Keysight U8032A 3-Channel Power Supply, 375 W

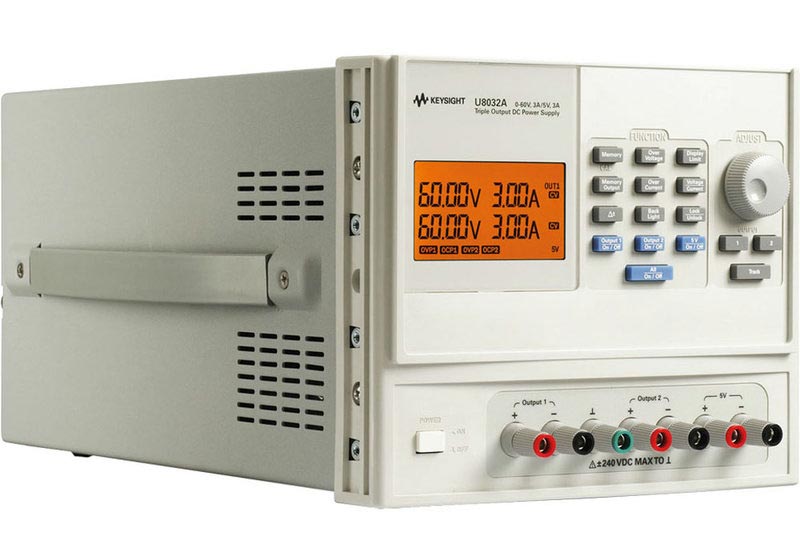

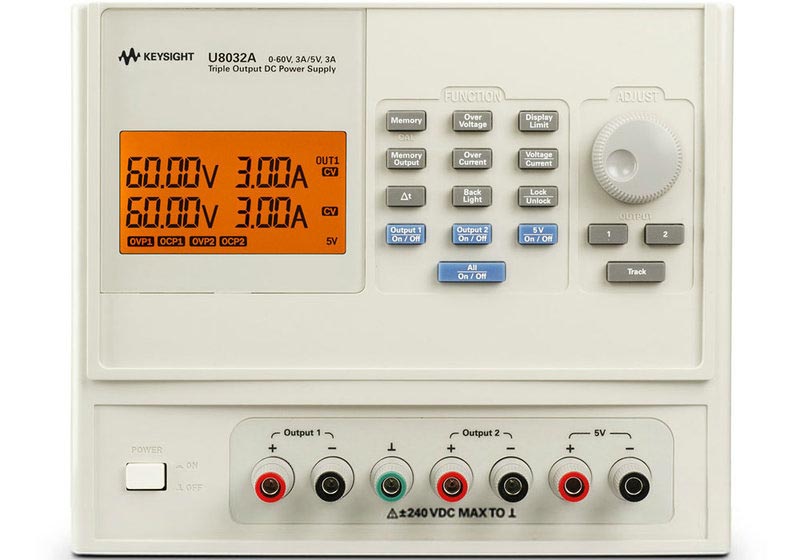

Keysight U8032A power supply
additional images:
progressive price
taking 1 pcs
€ 1.219,00
taking 3 pcs
€ 1.158,05
Price

1.219,00*
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock
Delivery time
Delivery Time ~2-3 weeks
Description

Benefits

  • 3-channel DC power supply up to 375 W.
  • Output ranges voltage up to 5/60 V, current up to 3 A.
  • Fast transient response <50 µs.

More Power, More Channel - 375 W, 60 V/3 A.

The power supplies U8032A expand the range of Keysight's U8000 serie with 3-channel models up to 375 W, 60 V/3 A. With an integrated sequencing function for simple output sequencen wiht minimal programming skills.

  • 3 channels, 375 W.
  • Easy to use, no programming required.
  • Excellent load and line regulation (CV: <0.01% + 2 mV; CC: <0.02% + 2 mA).
  • Fast transient response <50 µs.
  • Low output noise =1 mVRMS (0.5 mVRMS typ.) and =1 mARMS from 20 Hz to 20 MHz.
  • Safety: Fully integrated OVP and OCP. Keypad and physical lock feature.
  • Dual display shows both voltage and current reading.
  • Auto tracking between output 1 and 2 with a single control.
  • Multiple channels that can be individually/simultaneously controlled.

Model Overview

Model Channel 1 Channel 2 Channel 3 Power
U8032A 60 V/3 A 60 V/3 A 5 V/3 A 375 W

Included: Power supply U 8032A, power cord, user manual.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

Agilent’s Electronic Measurement Group is now Keysight Technologies.
