TA3xx Accessories for PicoVNA Series USB Vector Network Analyzers
Description
Files/Downloads
Accessories for PicoVNA Series (PicoVNA-106, PicoVNA-108, PicoVNA-R)
Model Overview
| Model | Description | |
| Test leads | ||

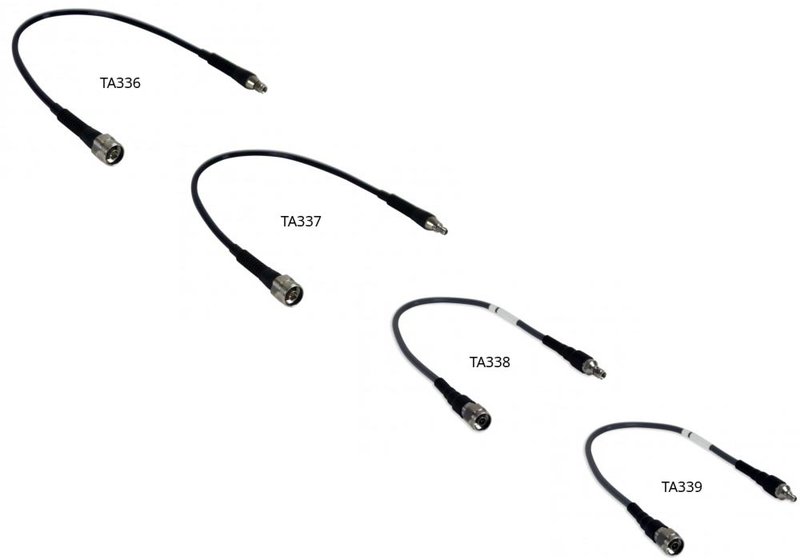

| TA336 | Standard 6 GHz phase stable test lead, 600 mm, male port, N(m) - SMA(m) | |
| TA337 | Standard 6 GHz phase stable test lead, 600 mm, female port, N(m) - SMA(f) | |
| TA338 | Premium 6 GHz Flex-form test lead, 600 mm, male port, N(m) - PC3.5(m) | |
| TA339 | Premium 6 GHz Flex-form test lead,600 mm, female port, N(m) - PC3.5(f) | |
| TA312 | Precision sleeved coaxial cable SMA (60 cm) | |
| TA265 | Precision sleeved coaxial cable 30 cm 1.3 dB at 13 GHz | |
| TA357 | ADA-STD-FM standard within series adaptor SMA(f-m) | |
| TA354 | ADA-PREM-FM premium within series adaptor PC3.5(f-m) | |
| Adaptors | ||
| TA314 | Adaptor 18 GHz 50 Ω SMA(f)-N(m) | |

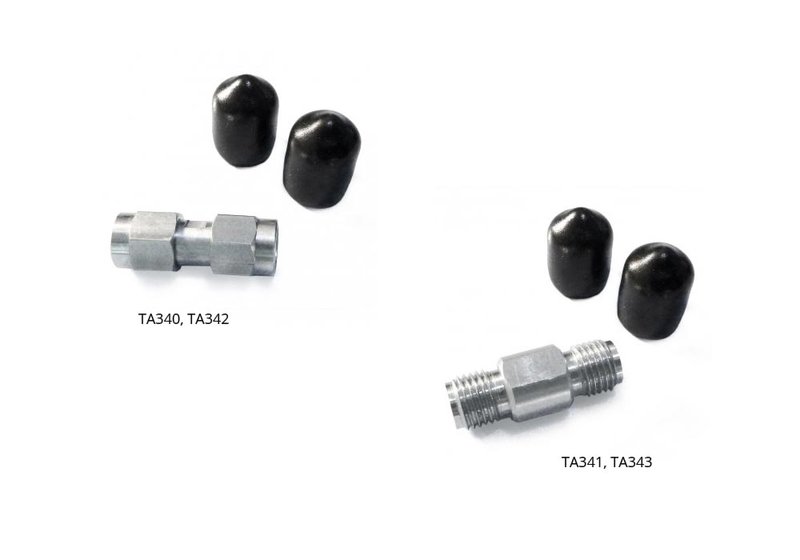

| TA340 | Premium test port adaptor PC3.5(m-m) | |
| TA341 | Premium test port adaptor PC3.5(f-f) | |
| TA342 | Standard test port adaptor, SMA(m-m) | |
| TA343 | Standard test port adaptor SMA(f-f) | |
| TA589 | N(f)-to-SMA(f) adaptor | |
| TA590 | N(f)-to-N(f) adaptor | |
| TA591 | N(f)-to-SMA(m) adaptor | |
| SOLT calibration kits, check standards, and tools | ||

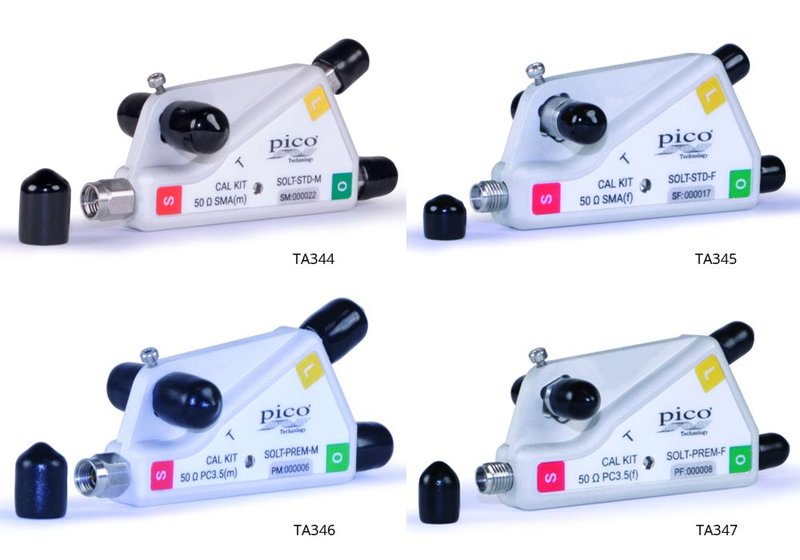

| TA344 | Standard 6 GHz SOLT calibration kit, SMA(m) | |
| TA345 | Standard 6 GHz SOLT calibration kit, SMA(f) | |
| TA346 | Standard 6 GHz SOLT calibration kit, PC3.5(m) | |
| TA347 | Standard 6 GHz SOLT calibration kit, PC3.5(f) | |
| TA430 | CHK-INS-MF insertable check standard SMA(m-f) | |
| TA431 | CHK-NON-F noninsertable check standard SMA(f-f) | |

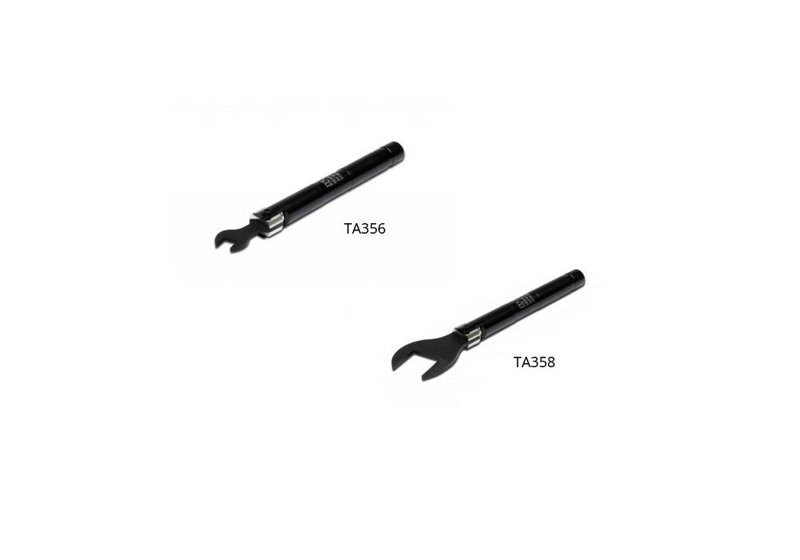

| TA356 | Dual-break torque wrench SMA/PC3.5/K-type | |
| TA358 | Dual-break torque wrench N-type connector | |
