EOL/obsolete. Recommended replacement product: ▸ACKSYS AirXroad

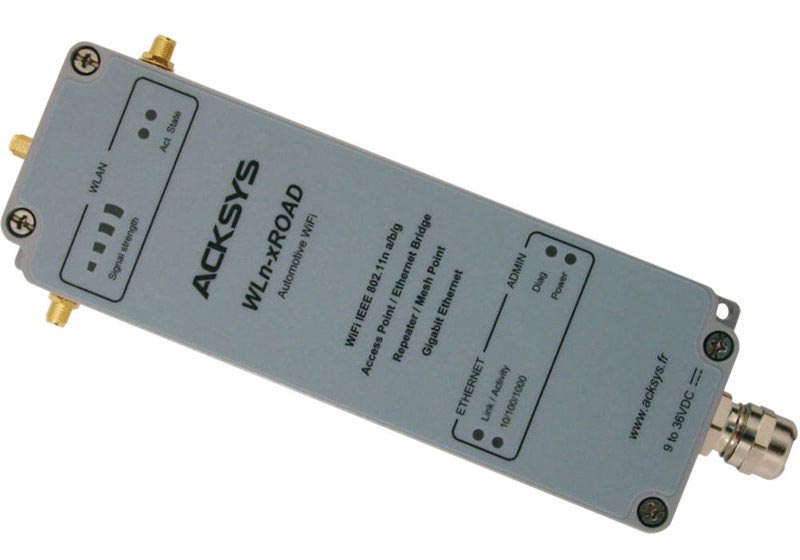

WLn-xROAD - 11n WiFi Access Point, Ethernet Bridge, Repeater and Mesh Point

The ACKSYS WLn-xROAD is a rugged equipment designed for applications in road transportation, warehouses, agriculture, manufacturing floors, shipyards, distribution centers etc., to be mounted in trucks, city buses, forklifts, trailers, or in any rotating machinery. The device relies on the multi-streams MIMO technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability. It fulfills the most severe requirements in terms of operating environment: -25...+70°C, shock and vibration proof, protection against dust and water projections (IP66). The WLn-xROAD is E-marked (CE standard for electronic equipments installed aboard vehicle), and can thus be installed in full safety aboard of all on-road equipments.

  • WiFi IEEE 802.11n a/b/g/n radio (MIMO 3T3R), up to 300 Mbps radio bit rate.
  • MESH, WMM QoS, multiple SSID and centralized RADIUS security support.
  • Web based configuration, SNMP administration.
  • Auto-sensing Gigabit 10/100/1000 Base TX auto MDI/MDIX network interface.
  • DC power supply input (+9 VDC...+36 VDC).
  • Shockproof and vibration proof rugged aluminum enclosure, IP66 seal rating.

Model Overview

Model Dscription
WLn-xROAD WiFi access point, 2-port ethernet bridge, repeater and MESH point (IEEE 802.11n a/b/g/n) for automotive applications.
DC power supply input +9...+36 VDC

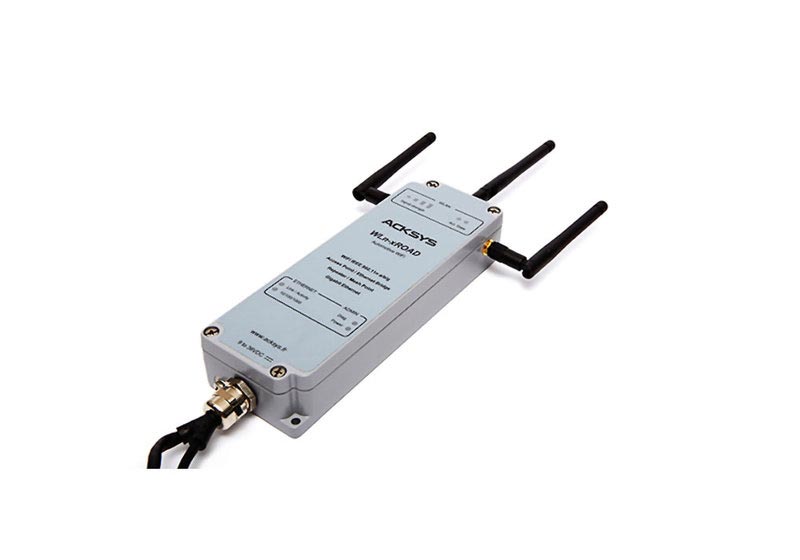

Incl. 3 dualband 2 dBi omni-directional antenna (2.4/5 GHz) and 2 m ethernet cable, power cord.
