Keysight Power-Produkte im Überblick

Keysight Power-Produkte Vergleichstabellen

DC-Quellen, Labornetzteile, Power-Supplies

Keysight U8000A Serie

Modell Kanal 1 Kanal 2 Kanal 3 Leistung insgesamt
U8001A 30 V/3 A (CC<380ppm/°C - - 90 W
U8002A 30 V/5 A (CC<300ppm/°C - - 150 W
U8031A 30 V/6 A 30 V/6 A 5 V/3 A 375 W
U8032A 60 V/3 A 60 V/3 A 5 V/3 A 375 W

Keysight E3600A Serie

Modell Kanäle Schnittstelle(n) Bereich(e) Max. Power Größe (mm)
E3620A 2 - Bereich 1: 0...25 V; 0...1 A
Bereich 2: 0...25 V; 0...1 A
50 W 212 x 88 x 392
E3630A 3 - Bereich 1: 0...6 V; 0...2,5 A
Bereich 2: 0...+20 V; 0...0,5 A
Bereich 3: 0...-20 V; 0...0,5 A
35 W 212 x 88 x 318
E3631A 3 GPIB, RS232 Bereich 1: 0...+25 V; 0...1 A
Bereich 2: 0...-25 V; 0...1 A
Bereich 3: 0...6 V; 0...5 A
80 W 213 x 133 x 348
E3632A 1 GPIB, RS232 Bereich 1: 0...15 V; 7 A
Bereich 2: 0...30 V; 4 A
120 W 213 x 133 x 348
E3633A 1 GPIB, RS232 Bereich 1: 0...8 V; 20 A
Bereich 2: 0...20 V; 10 A
200 W 213 x 133 x 348
E3634A 1 GPIB, RS232 Bereich 1: 0...25 V; 7 A
Bereich 2: 0...50 V; 4 A
200 W 213 x 133 x 348
E3640A 1 GPIB, RS232 Bereich 1: 0...8 V; 3 A
Bereich 2: 0...20 V; 1,5 A
30 W 213 x 88 x 348
E3641A 1 GPIB, RS232 Bereich 1: 0...35 V; 0,8 A
Bereich 2: 0...60 V; 0,5 A
30 W 213 x 88 x 348
E3642A 1 GPIB, RS232 Bereich 1: 0...8 V; 5 A
Bereich 2: 0...20 V; 2,5 A
50 W 213 x 88 x 348
E3643A 1 GPIB, RS232 Bereich 1: 0...35 V; 1,4 A
Bereich 2: 0...60 V; 0,8 A
49 W 213 x 88 x 348
E3644A 1 GPIB, RS232 Bereich 1: 0...8 V; 8 A
Bereich 2: 0...20 V; 4 A
80 W 213 x 88 x 348
E3645A 1 GPIB, RS232 Bereich 1: 0...35 V; 2,2 A
Bereich 2: 0...60 V; 1,4 A
78 W 213 x 88 x 348
E3646A 2 GPIB, RS232 Bereich 1: 0...8 V; 3 A
Bereich 2: 0...20 V; 1,5 A
60 W 213 x 133 x 348
E3647A 2 GPIB, RS232 Bereich 1: 0...30 V; 0,8 A
Bereich 2: 0...60 V; 0,5 A
60 W 213 x 133 x 348
E3648A 2 GPIB, RS232 Bereich 1: 0...8 V; 5 A
Bereich 2: 0...20 V; 2,5 A
100 W 213 x 133 x 348
E3649A 2 GPIB, RS232 Bereich 1: 0...35 V; 1,4 A
Bereich 2: 0...60 V; 0,8 A
98 W 213 x 133 x 348

Keysight E3623xA Serie

Modell E36231A E36232A E36233A E36234A
Ausgangsleistung 200 W 200 W 400 W 400 W
Kanal 1 1 1 2 1 2
DC-Ausgangsleistung (0....40ºC) 0...30 V 0...60 V 0...30 V 0...30 V 0...60 V 0...60 V
0...20 A 0...10 A 0...20 A 0...20 A 0...10 A 0...10 A
Ausgangswelligkeit und Rauschen (20 Hz...20 MHz), Normalbetriebsspannung, VSpitze-Spitze <4,5 mVSpitze-Spitze <3,5 mVSpitze-Spitze <4,5 mVSpitze-Spitze <3,5 mVSpitze-Spitze
Ausgangswelligkeit und Rauschen (20 Hz...10 MHz), Normalbetriebsspannung, Veff eff
Genauigkeit 12 Monate (23ºC ±5ºC); Programmiergenauigkeit ±(% des Ausgangs + Offset)
Spannung 0,03% +4 mV 0,03% +8 mV 0,03% +4 mV 0,03% +8 mV
Strom 0,1% +6 mA 0,1% +3 mA 0,1% +6 mA 0,1% +3 mA
Strom im unteren Bereich* 0,25% +160 µA 0,25% +80 µA 0,25% +160 µA 0,25% +80 µA
Typisches Eigenschaften
Befehlsverarbeitungszeit
Auf/Ab-Programmierung Einschwingzeit bis zu 1% der Gesamtauslenkung Auf - Volllast: 50 msec; ohne Last aufwärts: 50 ms; Volllast herunterfahren: 30 ms; ohne Last: 100 ms
Features
Strom im unteren Bereich
Datenlogging
Spannung-Slew-Rate
Ausgabeliste
Digital-I/O-Port
Remote-Sensing
Ausgänge vorne und hinte
Automatische Serien-/Parallel-Schaltung - -
Ausgabesequenzierung - -
E3633A/E3634A codekompatibel - -
I/O-Schnittstellen USB 2.0, Ethernet/LAN, LXI Class-C, optional GPIB
Abmessungen (mm, gesamt) 145 x 216 x 389; ca. 5,8 kg 145 x 216 x 389; ca. 5,8 kg 145 x 216 x 405; ca. 7,0 kg 145 x 216 x 389; ca. 6,9 kg

* ≤100 mA für E36231A und E36233A, ≤50 mA für E36232A und E36234A.


Keysight E36100B Serie

Modell E36102B E36103B E36104B E36105B E36106B
Ausganskanäle 1 1 1 1 1
Max. Spannung 6 V 20 V 35 V 60 V 100 V
Max. Strom 5 A 2 A 1 A 0,6 A 0,4 A
Leistung 30 W 40 W 35 W 36 W 40 W
Auflösung - programmiert 360 µV | 300 µA 1,2 mV | 120 µA 2,1 mV | 60 µA 3,6 mV | 36 µA 6,0 mV | 24 µA
Auflösung - Readback 240 µV | 200 µA | 5 µA 800 µV | 80 µA | 960 nA 1,4 mV | 40 µA | 280 nA 2,4 mV | 24 µA | 180 nA 4 mV | 16 µA | 120 nA
Auflösung - programmiert (Meter) 1 mV | 1 mA 1 mV | 1 mA 2 mV | 1 mA 3 mV | 1 mA 6 mV | 1 mA
Auflösung - Readback (Meter) 1 mV | 1 mA | 1 µA 1 mV | 1 mA | 1 µA 1 mV | 1 mA | 1 µA 3 mV | 1 mA | 1 µA 6 mV | 1 mA | 1 µA
Ausgangs-Ripple und Noise (20 Hz bis 20 MHz) eff./Spitze-Spitze 350 µV/8 mV 0,8 mV/15 mV 1,2 mV/20 mV 1,55 mV/30 mV 2,5 mV/40 mV
Schnittstellen LAN (LXI Core), USB 2.0 FS (TMC488)
Größe (mm) Gesamt 2 HE, ¼ Rack 102 x 106 x 365; 3,7 kg. Gerät alleine (ohne Füße, Griffe etc.) 89 x 106 x 339; 3,6 kg

Keysight E36310A Serie

Modell E36311A E36312A E36313A
Leistung 80 W 80 W 160 W
Kanäle 1 2 3 1 2 3 1 2 3
Spannung 0...+6 V 0...+25 V 0...-25 V 0...+6 V 0...+25 V 0...+25 V 0...+6 V 0...+25 V 0...+25 V
Strom 0...5 A 0....1 A 0...1 A 0...5 A 0...1 A 0...1 A 0...10 A 0...2 A 0...2 A
Ausgangs-Ripple und Noise (20 Hz...20 MHz) eff/2 mVSS eff/2 mVSS eff/2 mVSS eff/5 mVSS
Genauigkeit* - Spannung 0,1% +5 mV 0,05% +20 mV 0,03% +2 mV 0,03% +5 mV 0,03% +3 mV 0,03% +5 mV
Genauigkeit* - Strom 0,1% + 10 mA 0,1% +4 mA 0,04% +3 mA 0,04% +2 mA 0,05% +4 mA 0,04% +3 mA
Einstellzeit - Volllast 11 ms 50 ms 11 ms 50 ms 15 ms 50 ms
Einstellzeit - keine Last 10 ms 20 ms 10 ms 20 ms   15 ms 25 ms
Schnittstellen USB USB, LAN, optional GPIB USB, LAN, optional GPIB
Abmessungen (HxBxT, mm) 145 x 216 x 364, 8,1 kg 145 x 216 x 367, 8,3 kg 145 x 216 x 367, 9,8 kg

Keysight N5700A Serie

Modell Spannung Strom Leistung
N5741A 6 V 100 A 600 W
N5742A 8 V 90 A 720 W
N5743A 12,5 V 60 A 750 W
N5744A 20 V 38 A 760 W
N5745A 30 V 25 A 750 W
N5746A 40 V 19 A 760 W
N5747A 60 V 12,5 A 750 W
N5748A 80 V 9,5 A 760 W
N5749A 100 V 7,5 A 750 W
N5750A 150 V 5 A 750 W
N5751A 300 V 2,5 A 750 W
N5752A 600 V 1,3 A 780 W
N5761A 6 V 180 A 1080 W
N5762A 8 V 165 A 1320 W
N5763A 12,5 V 120 A 1500 W
N5764A 20 V 76 A 1520 W
N5765A 30 V 50 A 1500 W
N5766A 40 V 38 A 1520 W
N5767A 60 V 25 A 1500 W
N5768A 80 V 19 A 1520 W
N5769A 100 V 15 A 1500 W
N5770A 150 V 10 A 1500 W
N5771A 300 V 5 A 1500 W
N5772A 600 V 2,6 A 1560 W

Keysight N8700A Serie

Modell Spannung Strom Leistung
N8731A 8 V 400 A 3,2 kW
N8732A 10 V 330 A 3,3 kW
N8733A 15 V 220 A 3,3 kW
N8734A 20 V 165 A 3,3 kW
N8735A 30 V 110 A 3,3 kW
N8736A 40 V 85 A 3,4 kW
N8737A 60 V 55 A 3,3 kW
N8738A 80 V 42 A 3,36 kW
N8739A 100 V 33 A 3,3 kW
N8740A 150 V 22 A 3,3 kW
N8741A 300 V 11 A 3,3 kW
N8742A 600 V 5.5 A 3,3 kW
N8754A 20 V 250 A 5 kW
N8755A 30 V 170 A 5,1 kW
N8756A 40 V 125 A 5 kW
N8757A 60 V 85 A 5,1 kW
N8758A 80 V 65 A 5,2 kW
N8759A 100 V 50 A 5 kW
N8760A 150 V 34 A 5,1 kW
N8761A 300 V 17 A 5,1 kW
N8762A 600 V 8.5 A 5,1 kW

Keysight B2900A Serie - SMUs, Präzisions-Quellen, Präzisions-Meter

Modell B2901A/ B2902A B2911A/ B2912A B2961A/ B2962A B2981A/ B2983A B2985A/ B2987A
Kein Filter N1294A-022
(low Noise)
N1294A-021
(ultra-low Noise)
N1294A-020
(high Current ultra-low Noise)
Typ Source Measure Unit/SMU Präzise Spannungs-/Strom-Quelle Femto-/Pico-Amperemeter Elektrometer
Kanäle 1 2 1 2 1 (B2961A) oder 2 (B2962A) 1
Quelle Auflösung 5½ Digit 6½ Digit 6½ Digit - 5½ Digit
Max. Output Strom (DC) 3,03 A¹ (10,5 A gepulst) 3,03 A¹ 3,03 A 105 mA 500 mA -
Spannung 210 V 210 V 210 V 42 V 21 V - 1000 V
Min. Auflösung Strom 1 pA 10 fA 10 fA 10 pA 10 pA 1 nA - -
Spannung 1 µV 100 nV 100 nV - 700 µV
Spannungs-Output Rauschen 3 mVeff 3 mVeff 350 µVeff 10 µVeff 10 µVeff - 1.6 mVeff
Messung Auflösung 6½ Digit 4½ Digit 6½ Digit
Max. Strom (DC) 3,03 A¹ 3,03 A¹ 3,03 A (DC, gepulst) 105 mA 500 mA 20 mA
Spannung 210 V 210 V 210 V 42 V 21 V - 20 V
Widerstand - - - - - - 10 PΩ
Ladung - - - - - - 2 µC
Min. Auflösung Strom (DC) 100 fA 10 fA 1 pA 1 nA 1 nA 100 nA 0.01 fA
Spannung 100 nV 100 nV - 1 µV
Widerstand - - - 1 Ω
Ladung - - - 1 fC
DC-Sweep-Funktion Linear/log single, linear/log double, Liste Linear/log single, linear/log double, Liste - Linear single/double, Liste
ARB-Funktionen - Sinusoid, Rechteck, Trapezoid, Rampe, Dreieck, Exponential, vom Anwender definiert - Rechteck
Batterie-Betrieb - - Nur B2983A Nur B2987A
Software-Optionen BenchVue Ja Ja -
Graphical web interface Ja Ja Ja
Quick I/V measurement software Ja Ja Ja
EasyEXPERT group+ Ja - -

AC-Leistungsquellen

Keysight 6800 Serie

Modell AC6801B AC6802B AC6803B AC6804B 6811C 6812C 6813C
Phasen Einphasig Einphasig
Max. Ausgangsleistung 500 VA 1000 VA 2000 VA 4000 VA 375 VA 750 VA 1750 VA
AC Ausgangs-Betrieb
Spannungsbereich 155 Veff/310 Veff 300 Veff
Genauigkeit der Spannungseinstellung 0,3 full-scale 45...100 Hz: 0,15% +0,3 V, >100...500 Hz: 0,5% +0,3 V, >500...1000 Hz: 1% +0,3 V
Max. Eff.-Strom 5 A/2,5 A 10 A/5 A 20 A/10 A 40 A/20 A 3,25 A 6,5 A 13 A
Max. Spitzenstrom 15 A/7,5 A 30 A/15 A 60 A/30 A 120 A/60 A 40 A 40 A 80 A
Frequenz 40...500 Hz 1 kHz
Messungen Spannung, Strom, Leistung Spannung, Strom, Leistung
Transienten- und erweiterte Messungen - (grundlegende Transienten-Messung über Option AC68ALGU/Analog-Karte) Vorprogrammierte Standard-Wellenformen und System zur Generierung von Transienten
DC Ausgangs-Betrieb
Spannungsbereich 219 V/438 V 425 V
Max. Strom 4 A/2 A 8 A/4 A 16 A/8 A 32 A/16 A 2,5 A 5,0 A 10,0 A
Max. unmittelbarer Strom 12 A/6 A 24 A/12 A 48 A/24 A 96 A/48 A 40 A 40 A 80 A
Leistung 400 W 800 W 1600 W 3200 W 285 W 575 W 1350 W
Schnittstellen LAN/LXI-Core mit Remote Web Interface, USB, optional GPIB LAN/LXI-Core mit Remote Web Interface, USB, GPIB

Keysight Signal-Quellen

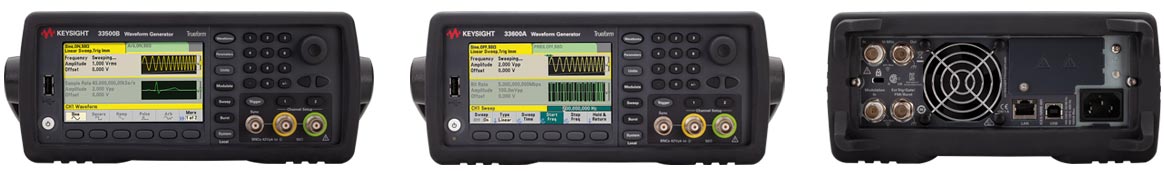

Keysight Trueform Serie Signal-Generatoren

Keysight Trueform Signal-Generatoren

Modelle Kanäle Max. Ausgangs-Frequenz Max. Sample-Rate Vert. Auflösung Max. Arb.-Waveform- Länge Schnittstellen
33509B 1 20 MHz 250 MS/s 16 bit - USB, Ethernet/LXI, GPIB
33510B 2 20 MHz 250 MS/s 16 bit - USB, Ethernet/LXI, GPIB
33511B 1 20 MHz 250 MS/s 16 bit 8 S...1 MS (optional 16 MS) USB, Ethernet/LXI, GPIB
33512B 2 20 MHz 250 MS/s 16 bit 8 S...1 MS (optional 16 MS) USB, Ethernet/LXI, GPIB
33519B 1 30 MHz 250 MS/s 16 bit - USB, Ethernet/LXI, GPIB
33520B 2 30 MHz 250 MS/s 16 bit - USB, Ethernet/LXI, GPIB
33521B 1 30 MHz 250 MS/s 16 bit 8 S...1 MS (optional 16 MS) USB, Ethernet/LXI, GPIB
33522B 2 30 MHz 250 MS/s 16 bit 8 S...1 MS (optional 16 MS) USB, Ethernet/LXI, GPIB
33611A* 1 80 MHz 1 GS/s 14 bit Optional bis zu 64 MS pro Kanal USB, Ethernet/LXI, optional GPIB
33612A 2 80 MHz 1 GS/s 14 bit Optional bis zu 64 MS pro Kanal USB, Ethernet/LXI, optional GPIB
33621A 1 120 MHz 1 GS/s 14 bit Optional bis zu 64 MS pro Kanal USB, Ethernet/LXI, optional GPIB
33622A 2 120 MHz 1 GS/s 14 bit Optional bis zu 64 MS pro Kanal USB, Ethernet/LXI, optional GPIB

* Ersetzt den 80 MHz Signal-Generator Keysight/Agilent/HP 33250A.


Weitere Keysight Signal-Generatoren

Modelle Kanäle Max. Ausgangs-Frequenz Max. Sample-Rate Vert. Auflösung Max. Arb.-Waveform- Länge Schnittstellen
33210A 1 20 MHz 50 MS/s (arb., optional) 14 bit (arb., optional) 2...8 kPts, bis 3 MHz (optional) USB, Ethernet/LXI, GPIB
U2761A 1 20 MHz 50 MS/s (arb.) 14 bit 64 kS, bis 200 kHz USB (Modular-Gerät)
