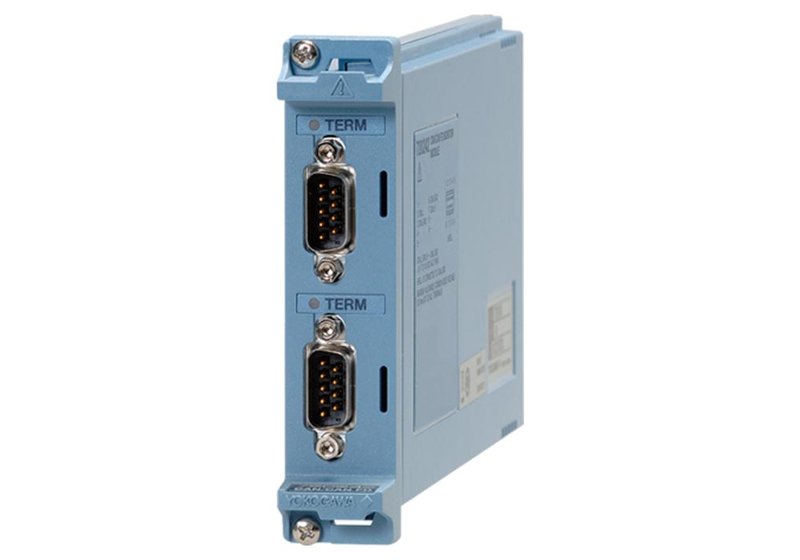

Module 720242 for Yokogawa DL350, CAN/CAN FD

new
Yokogawa 720242
additional images:
Price
3.315,00*
€ 3.944,85 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Description
PDF datasheet, specs:

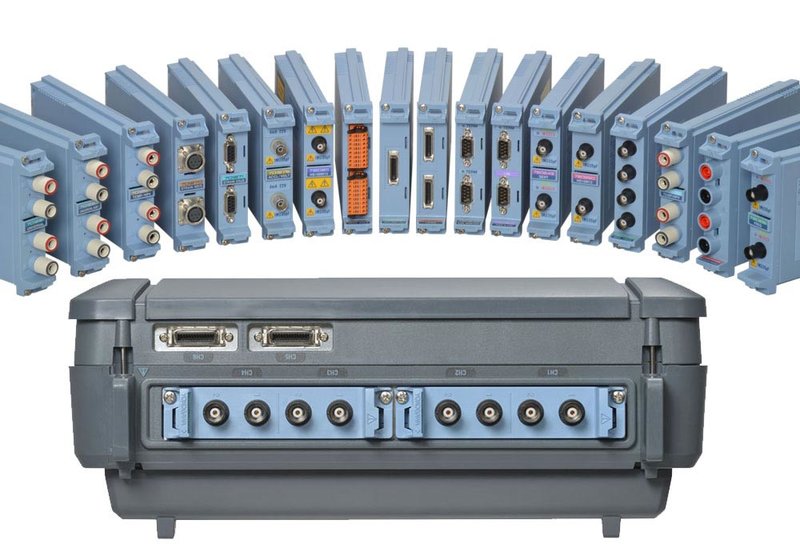

Module for the Yokogawa ScopeCorder DL350 - CAN/CAN FD Monitor Module.

  • Module 720242 CAN/CAN FD.
  • Allows monitoring a network intermingled with CAN and CAN FD by automatically discriminating between these two formats.
  • Decoding of the CAN/CAN FD bus signals.
  • Display information on physical data like engine temperature, vehicle speed and brake-pedal position as analog waveforms.
  • Compare this with the data coming from real sensors.
  • Compatible with ISO 11898-1:2015 and non-ISO standard for CAN FD protocols.
  • Simultaneous monitoring of up to 120 signals (60 signals/port).
  • Manual output of any CAN/CAN FD data or remote frame.
  • In-vehicle network definition file is available by using free software.
  • Sample rate 100 kS/s.
  • Isolated.
  • Max. measurement voltage 10 V.
  • Basic device DL350 with option -VE (vehicle edition) required.
