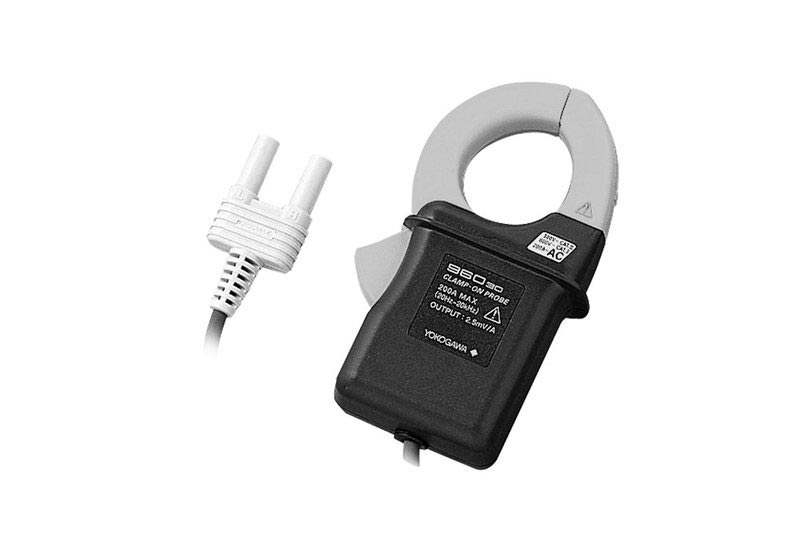

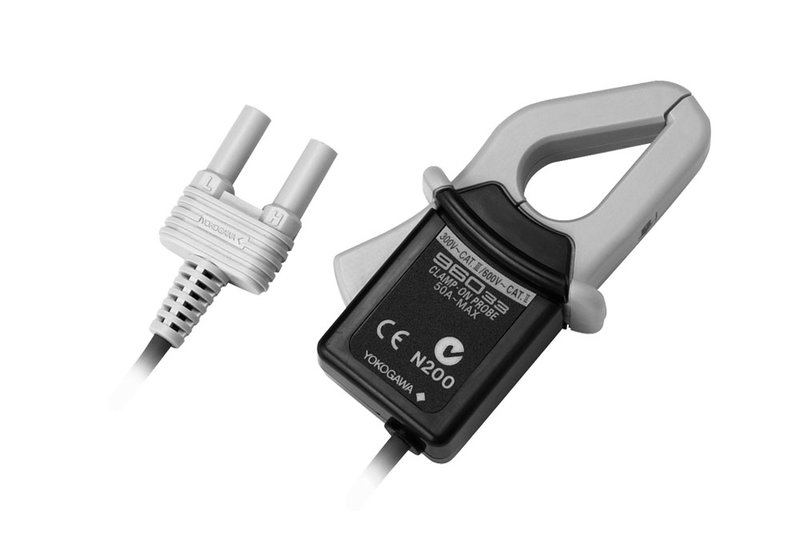

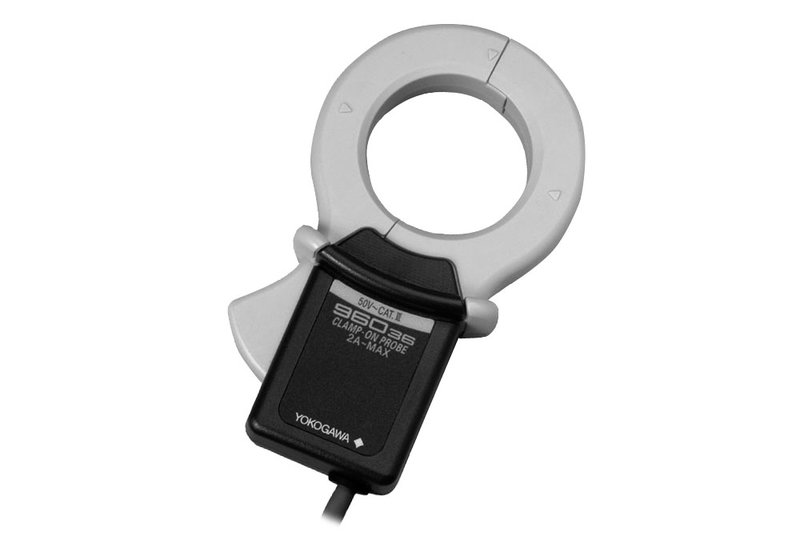

Yokogawa clamp-on probe series 9603x for CW500 power quality analyzer

Model 96030 96031 96033 96036
Description Clamp-on current probe for 20/200 A Clamp-on current probe for 50/500 A Clamp-on current probe for 200/1000 A Clamp-on current probe for 5/50 A
Measuring range 0...200 ARMS AC (300 Apk) 0...500 ARMS AC (750 Apk) 0...50 ARMS AC 0...2 ARMS AC (20 Apk)
Output voltage 0...0.5 VRMS AC (2.5 mV/A) 0...0.5 VRMS AC (1 mV/A) 0...0.5 VRMS AC (10 mV/A) 0...0 mVRMS AC (25 mV/A)
Accuracy Amplitude ±1.5% rdg ±0.4 mV (20...45 Hz)
±0.5% rdg ±0.1 mV (45...66 Hz)
±0.8% rdg ±0.2 mV (66 Hz...1 kHz)
±2.0% rdg ±0.4 mV (1...20 kHz)
±1.5% rdg ±0.4 mV (20...45 Hz)
±0.5% rdg ±0.1 mV (45...66 Hz)
±0.8% rdg ±0.2 mV (66 Hz...1 kHz)
±1.0% rdg ±0.3 mV (20...45 Hz)
±0.5% rdg ±0.1 mV (45...66 Hz)
±0.8% rdg ±0.2 mV (66 Hz...1 kHz)
±1.0% rdg ±0.3 mV (1...5 kHz)
±3% rdg ±0.4 mV (5...20 kHz)
±1.5% rdg ±0.04 mV (20...45 Hz)
±0.5% rdg ±0.01 mV (45...66 Hz)
±0.8% rdg ±0.02 mV (66 Hz...1 kHz)
±2% rdg ±0.04 mV (1...5 kHz)
Phase ±0.5° (45 Hz...1 kHz) ±1.0° (45 Hz...1 kHz) ±1.0° (45 Hz...1 kHz) ±2° (45 Hz...3.5 kHz)
Output impedance Approx. 6 Ω Approx. 2.4 Ω Approx. 18 Ω Approx. 70 Ω
External magnetic field effects 0.1 A equivalent or less (at 400 A/m, 50/60 Hz) 0.2 A equivalent or less (at 400 A/m, 50/60 Hz) 0.1 A equivalent or less (at 400 A/m, 50/60 Hz) 2 mA equivalent or less (at 400 A/m, 50/60 Hz)
Conductor position effects ±0.5% (at 20...200 A, 45 Hz...1 kHz) ±0.5% (at 50...500 A, 45 Hz...1 kHz) ±0.5% (at 1...50 A, 45 Hz...1 kHz) ±0.5% (at 0.2...2 A, 45 Hz...1 kHz)
Operating circuit voltage 600 VRMS AC max. 600 VRMS AC max. 300 VRMS AC max. 50 VRMS AC max.
Dimensions approx. (WxHxD, mm) 73 x 130 x 30, approx. 300 g 73 x 130 x 30, approx. 300 g 52 x 106 x 25 (excluding protrusions), approx. 220 g 70 x 120 x 25, approx. 300g
Output cable length Approx. 3 m Approx. 3 m Approx. 3 m Approx. 3 m
Accessories, options
Query on the Item?
Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!
Your E-mail Adress
Name, company, phone, your question:
Tell a friend
Description
Accessories, options
Query on the Item?
Tell a friend

Yokogawa clamp-on probe series 9603x for CW500 power quality analyzer

Model 96030 96031 96033 96036
Description Clamp-on current probe for 20/200 A Clamp-on current probe for 50/500 A Clamp-on current probe for 200/1000 A Clamp-on current probe for 5/50 A
Measuring range 0...200 ARMS AC (300 Apk) 0...500 ARMS AC (750 Apk) 0...50 ARMS AC 0...2 ARMS AC (20 Apk)
Output voltage 0...0.5 VRMS AC (2.5 mV/A) 0...0.5 VRMS AC (1 mV/A) 0...0.5 VRMS AC (10 mV/A) 0...0 mVRMS AC (25 mV/A)
Accuracy Amplitude ±1.5% rdg ±0.4 mV (20...45 Hz)
±0.5% rdg ±0.1 mV (45...66 Hz)
±0.8% rdg ±0.2 mV (66 Hz...1 kHz)
±2.0% rdg ±0.4 mV (1...20 kHz)
±1.5% rdg ±0.4 mV (20...45 Hz)
±0.5% rdg ±0.1 mV (45...66 Hz)
±0.8% rdg ±0.2 mV (66 Hz...1 kHz)
±1.0% rdg ±0.3 mV (20...45 Hz)
±0.5% rdg ±0.1 mV (45...66 Hz)
±0.8% rdg ±0.2 mV (66 Hz...1 kHz)
±1.0% rdg ±0.3 mV (1...5 kHz)
±3% rdg ±0.4 mV (5...20 kHz)
±1.5% rdg ±0.04 mV (20...45 Hz)
±0.5% rdg ±0.01 mV (45...66 Hz)
±0.8% rdg ±0.02 mV (66 Hz...1 kHz)
±2% rdg ±0.04 mV (1...5 kHz)
Phase ±0.5° (45 Hz...1 kHz) ±1.0° (45 Hz...1 kHz) ±1.0° (45 Hz...1 kHz) ±2° (45 Hz...3.5 kHz)
Output impedance Approx. 6 Ω Approx. 2.4 Ω Approx. 18 Ω Approx. 70 Ω
External magnetic field effects 0.1 A equivalent or less (at 400 A/m, 50/60 Hz) 0.2 A equivalent or less (at 400 A/m, 50/60 Hz) 0.1 A equivalent or less (at 400 A/m, 50/60 Hz) 2 mA equivalent or less (at 400 A/m, 50/60 Hz)
Conductor position effects ±0.5% (at 20...200 A, 45 Hz...1 kHz) ±0.5% (at 50...500 A, 45 Hz...1 kHz) ±0.5% (at 1...50 A, 45 Hz...1 kHz) ±0.5% (at 0.2...2 A, 45 Hz...1 kHz)
Operating circuit voltage 600 VRMS AC max. 600 VRMS AC max. 300 VRMS AC max. 50 VRMS AC max.
Dimensions approx. (WxHxD, mm) 73 x 130 x 30, approx. 300 g 73 x 130 x 30, approx. 300 g 52 x 106 x 25 (excluding protrusions), approx. 220 g 70 x 120 x 25, approx. 300g
Output cable length Approx. 3 m Approx. 3 m Approx. 3 m Approx. 3 m
