Description
Accessories
Files/Downloads

Benefits of the BK1685B, BK1687B, BK1688B Switching Model Power Supplies up to 60 V or 20 A

  • Automatic CV/CC crossover operation.
  • Overvoltage, overtemperature, and overload protection.
  • Three user-defined voltage and current presets.

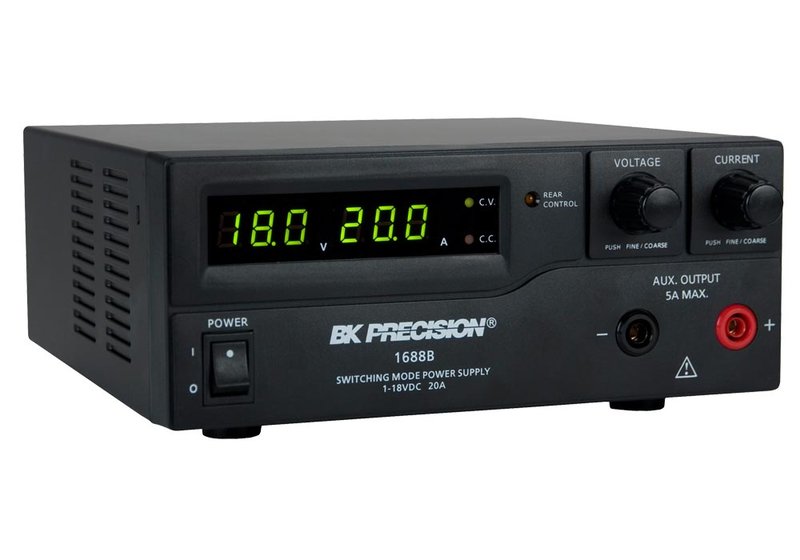

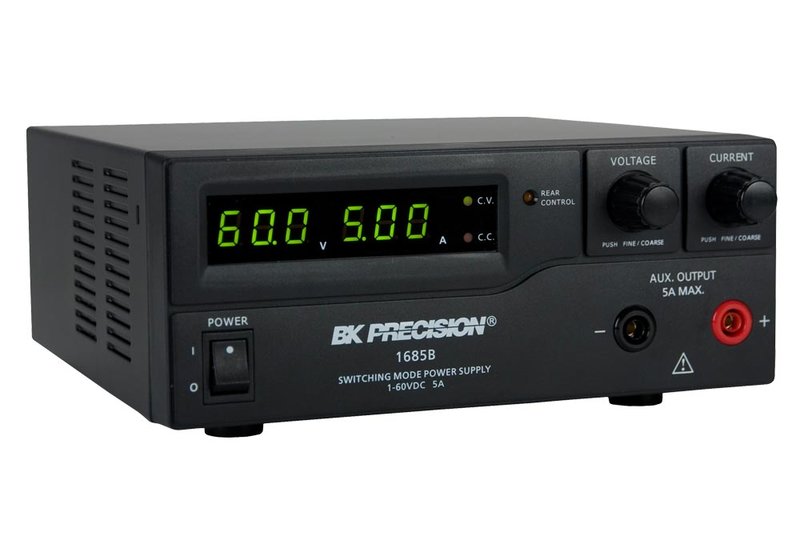

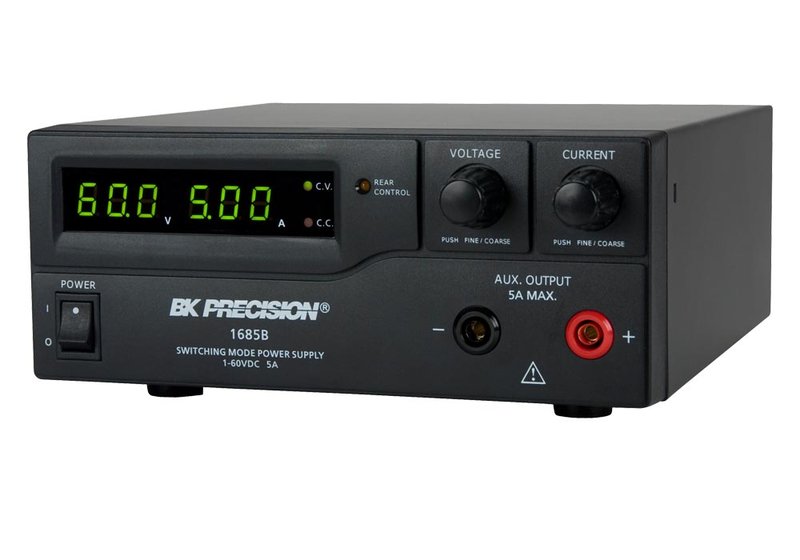

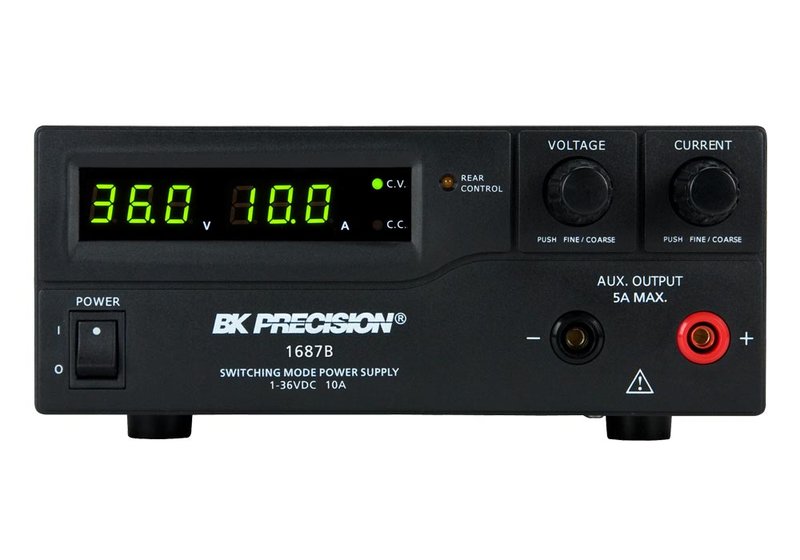

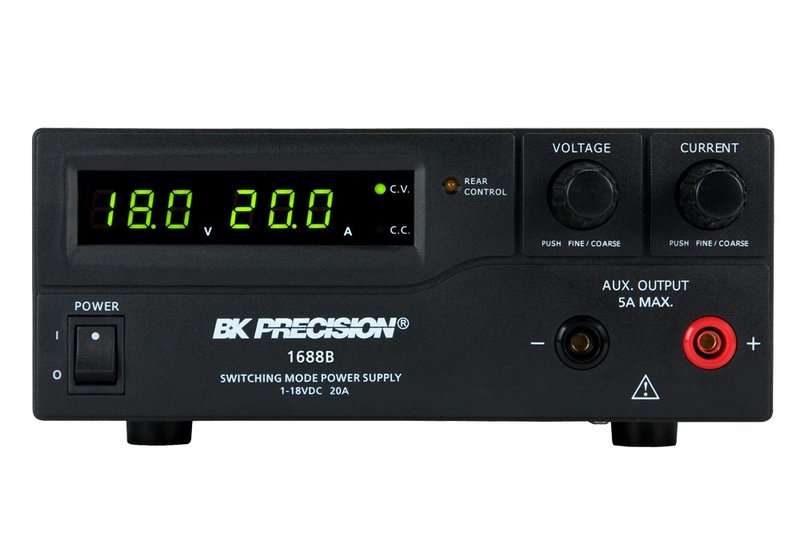

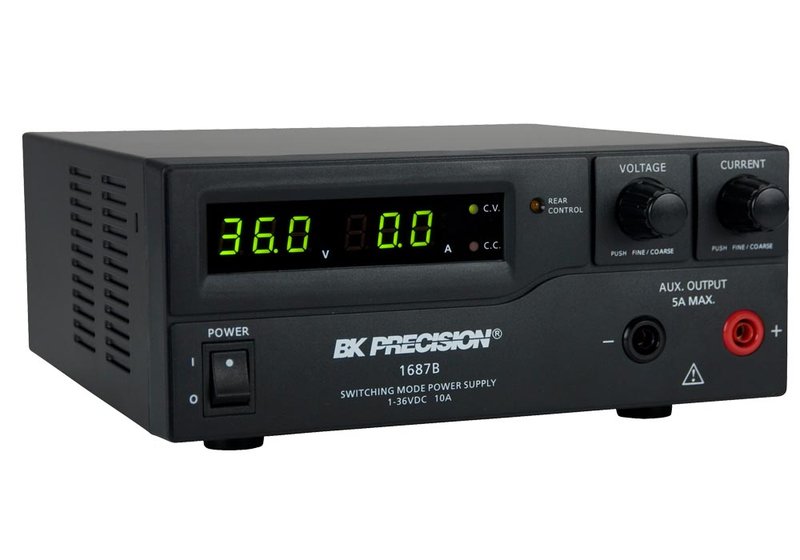

B+K Precision BK168xB Series 300 W or 360 W Switching Bench DC Power Supplies

The B+K Precision models BK1685B, BK1687B, and BK1688B are switching mode DC power supplies. The devices provide various configurations of high output voltage or high output current in a small, lightweight form factor. They offer constant voltage (CV) and constant current (CC) modes and unique preset and remote control modes. Up to three different presets of voltage and current values can be saved, and quickly be recalled through a rear switch. An analog remote control terminal is accessible on the rear. The devices have a USB interface to communicate with the power supply via PC software or remote commands. These features make the BK1685B, BK1687B, and BK1688B suitable for a wide range of applications including production testing, telecommunications, R&D, electronic field service, and university labs.

  • Switching bench DC power supplies with 300 W or 360 W power.
  • Output depending on model: 1...60 V/0...5 A, 1...36 V/0...10 A, or 1...18 V/0...20 A.
  • Automatic CV/CC (constant voltage/constant current) crossover operation.
  • Precise voltage and current setting with rotary encoder control.
  • 3 user-defined voltage and current presets.

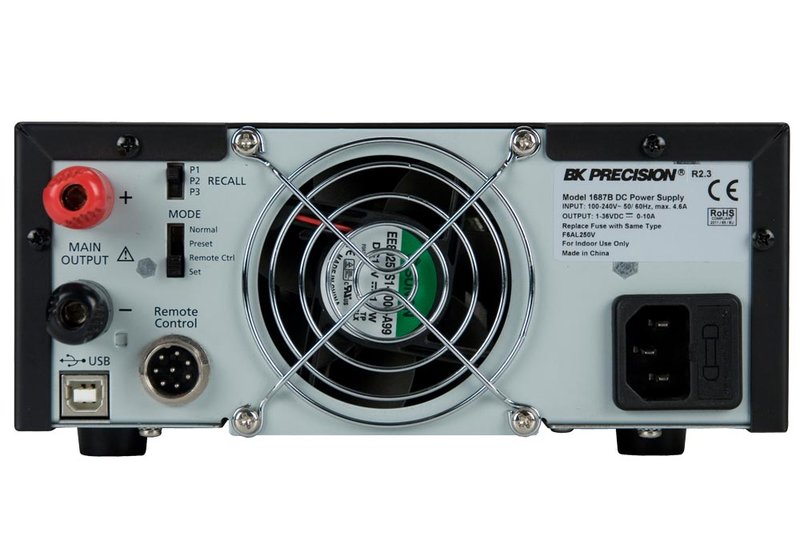

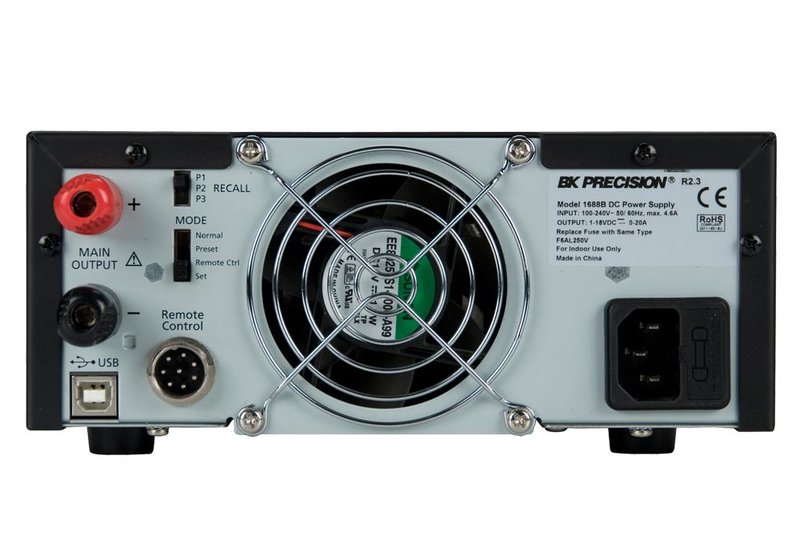

  • Analog remote control function.
  • Overvoltage, overtemperature, and overload protection.
  • USB interface and PC Windows software for remote control and external timed programming.
  • Lightweight and compact.

Model Overview

Model Voltage Current Power
BK1685B 1...60 V 0...5 A 300 W
BK1687B 1...36 V 0...10 A 360 W
BK1688B 1...18 V 0...20 A 360 W

Included: DC power supply BK 1685B, 1687B, or 1688B, power cord, instruction manual, application software CD, USB cable, remote control connector.
