B+K Precision BK406xB Series Function/ARB Generators up to 120MHz
Benefits of the BK4062B, BK4063B, BK4064B 2-Channel Signalgenerators up to 40/80/120 MHz
- Precision function and arb waveform generator up to 120 MHz (sine).
- Standard waveforms, arbitrary signals (DDS or "true arb"), pulse, noise.
- Versatile modulations, burst and sweep. Frequency counter.

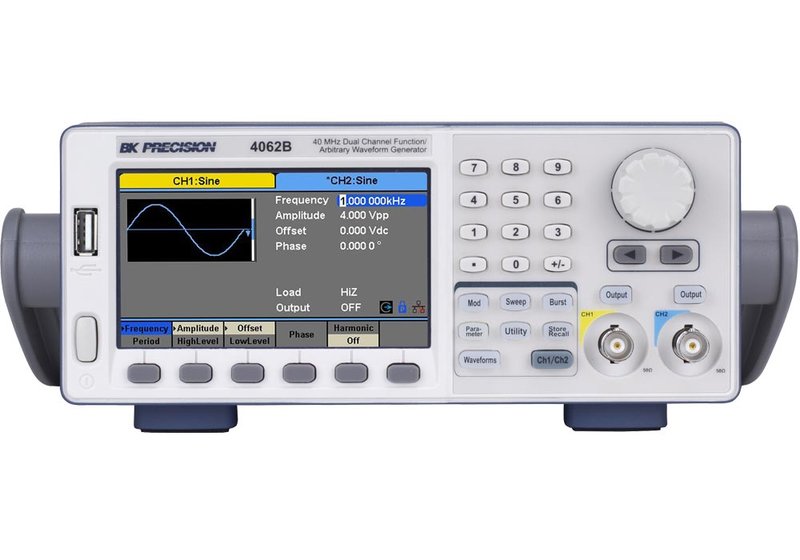

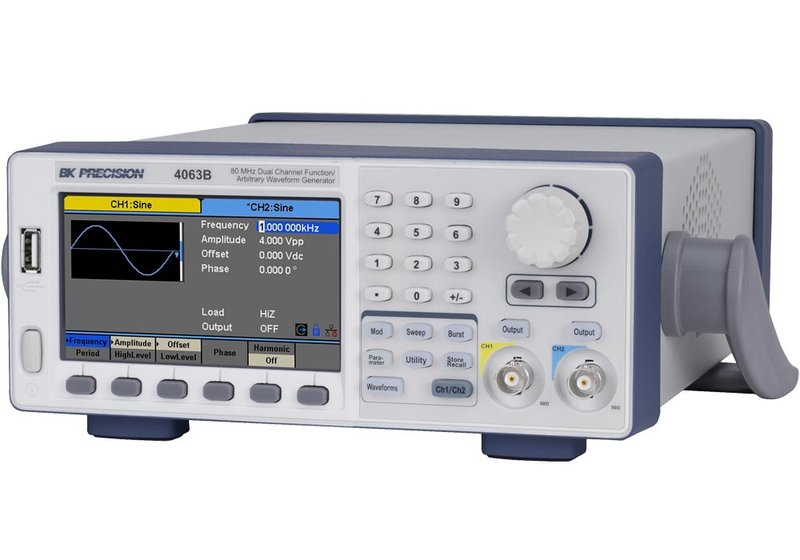

B+K Precision BK406xB Series Function/Arbitrary Waveform Generators up to 120 MHz

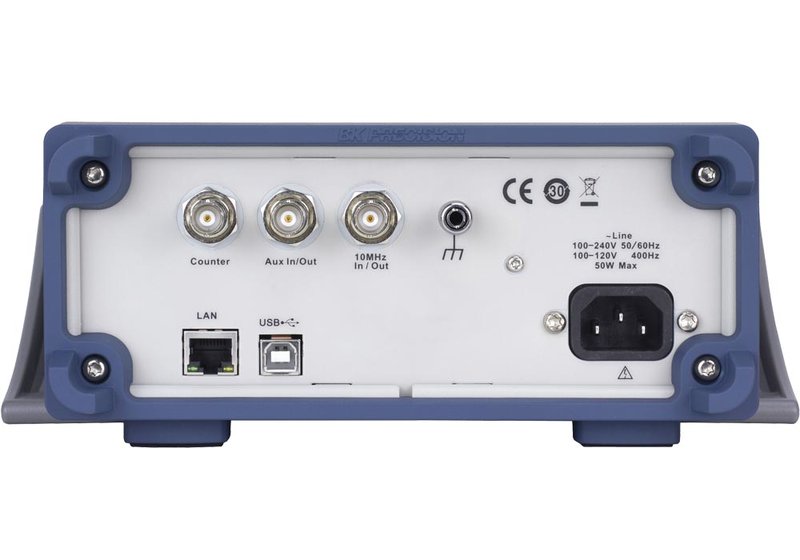

The B+K Precision BK406xB series are dual-channel function and arbitrary waveform generators with 40, 80, or 120 MHz (sine). All three models are capable of generating 16 bit arbitrary waveforms up to 300 MS/s in DDS (direct digital synthesis) mode and up to 75 MS/s in true point-by-point arbitrary mode. All models feature two independent channels with one-button synchronization, a 200 MHz frequency counter with a dedicated input on the back panel, a sweep function (linear or logarithmic), expanded triggering capabilities and a variable DC offset. The series also offers extensive analog and digital modulation capabilities including amplitude and frequency modulation (AM/FM), double sideband amplitude modulation (DSB-AM), amplitude and frequency shift keying (ASK/FSK), phase modulation (PM), phase shift keying (PSK) and pulse width modulation (PWM). Users can select from one of the 196 built-in arbitrary waveforms or create custom point-by-point arbitrary waveforms using the included application software.
- 16 bit resolution, 8 Mpts, 300 MS/s (DDS), 75 MS/s (true point-by-point) arbitrary waveform generator.
- Up to 1.2 GS/s sample rate for sine, square, triangle, and pulse waveforms.
- Two independent channels with one-button phase synchronization.
- Channel copy, track, and waveform combine functions.
- Generate sine waves up to 120 MHz.
- Harmonic generator function.
- Linear sweep, logarithmic sweep, and burst functions.
- Precise pulse width and rise/fall time adjustments.
- Supports AM/DSB-AM, FM, PM, PSK, FSK, ASK, and PWM modulation types.
- DC signal level up to ±10 V into a high-Z load or ±5 V into a 50 Ω load.
- Variable DC offset.
- Adjustable duty cycle.
- Frequency counter.
- Internal/external triggering.
- 196 built-in predefined arbitrary waveforms.
- Store/recall up to 10 instrument settings.
- LAN and USB device port (USBTMC-compliant). GPIB connectivity with optional USB-to-GPIB adapter. Front-panel USB host port.
- Arbitrary waveform editing software included.
- LabVIEW driver available.
Model Overview
| Model | BK4062B | BK4063B | BK4064B | |
| Channels | 2 | 2 | 2 | |
| Max. bandwidth | 40 MHz | 80 MHz | 120 MHz | |
| Standard waveforms | Sine | 1 µHz...40 MHz | 1 µHz...80 MHz | 1 µHz...120 MHz |
| Square | 1 µHz...25 MHz rise/fall times 9 ns (10...90%); duty cycle 0.001...99.999% limited by frequency setting | |||
| Pulse | 1 µHz...25 MHz; pulse width 16.3 ns; rise/fall times 8.4 ns...22.4 s (10... 90%); duty cycle 0.001...99.999% limited by frequency setting | |||
| Triangle, Ramp | 1 µHz...1 MHz | |||
| Gaussian noise | >120 MHz | |||
| DC | Output range ±5 V into 50 Ω, ±10 V into hgh-Z load/open circuit | |||
| Arbitrary waveform generator | Frequency setting range 1 µHz...20 MHz; waveform length 8 pts...8 Mpts, sampling rate 300 MS/s (DDS mode)/75 MS/s (true arbitrary mode); vertical resolution 16 bit | |||
| Modulations | AM, FM, PM (carrier sine, square, ramp, arb; source internal/external; modulating wave sine, square, ramp, noise, arb); ASK, FSK (carrier sine, square, ramp, arb; source internal/external; modulating wave square with 50% duty cycle); PWM (carrier pulse; source internal/external; modulating wave sine, square, ramp, noise, arb) | |||
| Burst | Carrier sine, square, ramp, pulse, noise, arb; type: Count (1...1,000,000 cycles), infinite, gated; trigger source internal/external/manual | |||
| Sweep | Carrier sine, square, ramp, arb; type: Linear, logarithmic; direction: Up, down; trigger source internal/external/manual | |||
| Frequency counter | Frequency, period, positive/negative pulse width, duty cycle; 100 mHz...200 MHz (DC coupling) or 10 Hz...200 MHz (AC coupling) | |||
| Interfaces | USB Host, USB Device (USBTMC), LAN (VXI-11), optional GPIB (USB-to-GPIB adaptor) | |||
| Display | 4.3"/10.9 cm resistive touch screen; 24 bit colour depth | |||
| Dimensions (mm) | 260 x 107 x 295; 3.43 kg | |||
Included: Signal generator BK 4062B, 4063B, or 4064B, quick start guide, power cord, USB cable, BNC coaxial cable, calibration certificate.
Information on product safety:
Manufacturer:
B+K Precision, 22820 Savi Ranch Pkwy, Yorba Linda, CA 92887/USA
www.bkprecision.com
(with EU branch France)
