Benefits of the Wireless Temperature Mini Datalogger BlueCube (blueDAN) Pt100

  • Completely mobile and stand-alone with battery and wireless data transmission.
  • Easy to use with iOS or Android App.
  • Small and sturdy design. For external Pt100 sensor.

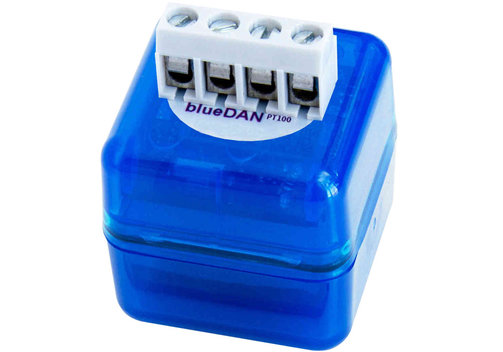

BlueCube Pt100 Bluetooth Mini Datalogger for Temperature, Pt100

These mini dataloggers measure and store temperature in mobile or stationary applications with an external 2- or 4-wire Pt100 sensor (sensor not included). A wireless Bluetooth connection is used to transfer the data to your mobile device. The BlueCubes operate with a battery, they are small, light and easy to use.

  • Connect an external 2- or 4-wire Pt100 sensor (sensor not included).
  • Works everywhere without line voltage.
  • Easy data access via Bluetooth 4.0 LE. Setup via iOS and Android app.
  • Optional Bluetooth 4.0 WiFi-Bridge for data transmission to the internet (IoT).
  • Approx. 6 months battery life. Over 10 years data preservation without battery.
  • No operating costs.
  • Small and sturdy design.
  • Easy to use.
  • Functions: Data acquisition, recording/logging with longtime memory, data transfer via Bluetooth (or USB).

Application Areas

  • Longtime logging and monitoring of temperature.
  • Logging/food control in stores, restaurants, canteen kitchens/large scale catering.
  • Logging/monitoring of devices, machines, servers.
  • Applications in industry, environmental technology and science.

Model Specifications

Model BlueCube Pt100 (blueDAN Pt100) 4.0
Measurement Temperature with external 2- or 4-wire Pt100 (not included)
Range -200...+550°C (also note sensor specifications)
Accuracy ±0.8°C
Resolution 0.1°C
Battery Replaceable (Lithium ½ AA 3.6 V/1 Ah), battery livr approx. 6 months
Measurement/storage interval 1 s...24 h programmable
Delay 1 s...6 months selectable
Storage Max. 32,000 values, threshold possible
Data transmission Bluetooth 4.0 LE, max. distance 10 m
Display/configuration With iOS- (from iOS version 7) or Android App (from Android 4.4); data format EXCEL-compatible (CSV)
Size (mm) 31 x 31 x 31, approx. 26 g (incl. battery); IP54
Connectors 4 screw terminals for 2- or 4-wire Pt100
