Connector Board CB12 HD IDC Ribbon Cable

Connector Board CB12 HD IDC Ribbon Cable

Model CB12(A), CAMI-742(A)

Connector board for HD IDC ribbon cable (3x 80-pin open positions. Can be used for 20-, 26-, 30-, 34-, 40-, 50-, 60-, 68- and 80-pin HD IDC). Set of 2 boards, no connectors.

• Rated for operation up to 500 VDC/AC.
• Test high-density flat cables with IDC wiremount sockets (0.025"/0.635 mm wire centers, 0.050" x 0.100"/1.27 mm x 2.54 mm pin centers).

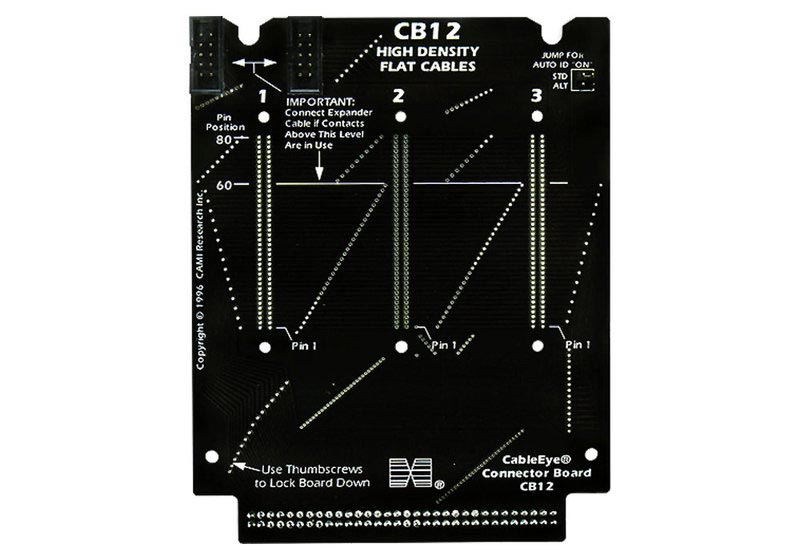

• CB12/CAMI-742: Three 80-pin positions are available on each board. Standard header sizes are: 80, 68, 60, 50, 40, 34, 30, 26, and 20 pins. For 3M-style connectors (side-release latches), the board will accommodate any THREE sizes. For Thomas&Betts connectors (front-release latches), any two of the smaller sizes (40, 34, 30, 26, and 20) may share a single position.

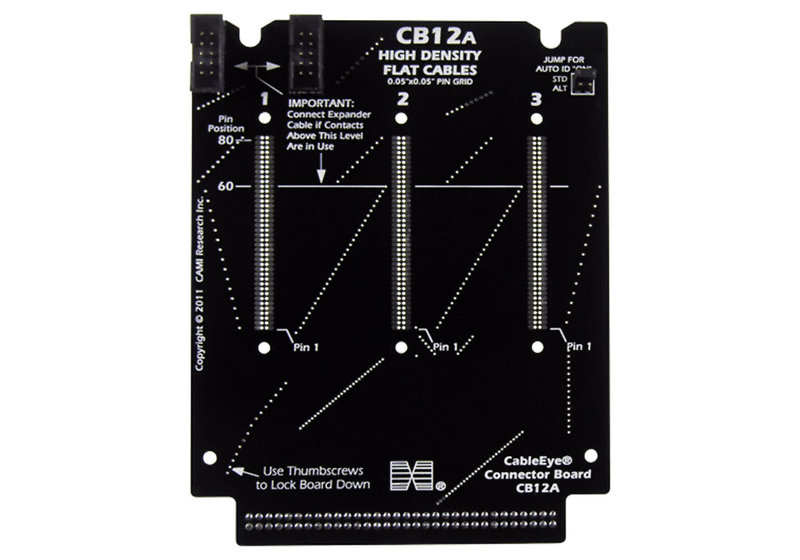

• CB12A/CAMI-742A: May also be used with surface-mount connectors having either 0.050" x 0.100"/1.27 mm x 2.54 mm or 0.050" x 0.050"/1.27 mm x 1.27 mm leg spacing. Three 80-pin positions are available on each board. Standard header sizes are: 80, 68, 60, 50, 40, 34, 30, 26, and 20 pins.
