HVX and HVX-21 High-Voltage Test System

CableEye high voltage cable tester cami-829

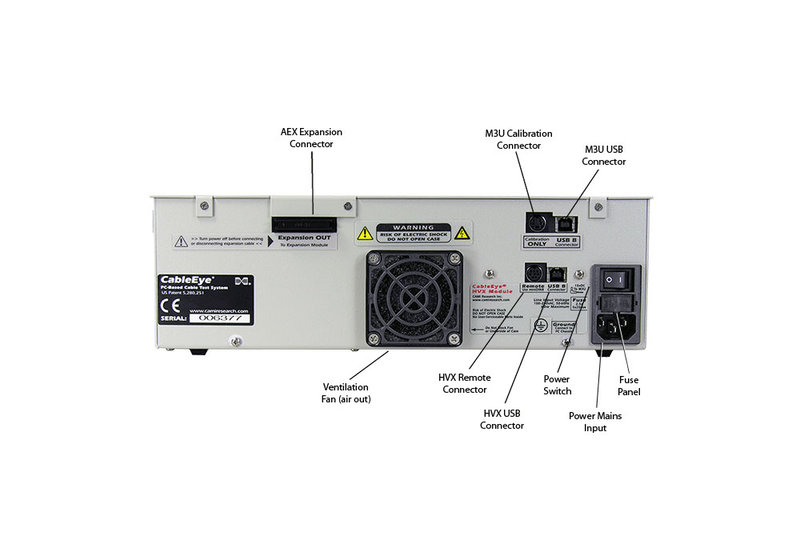

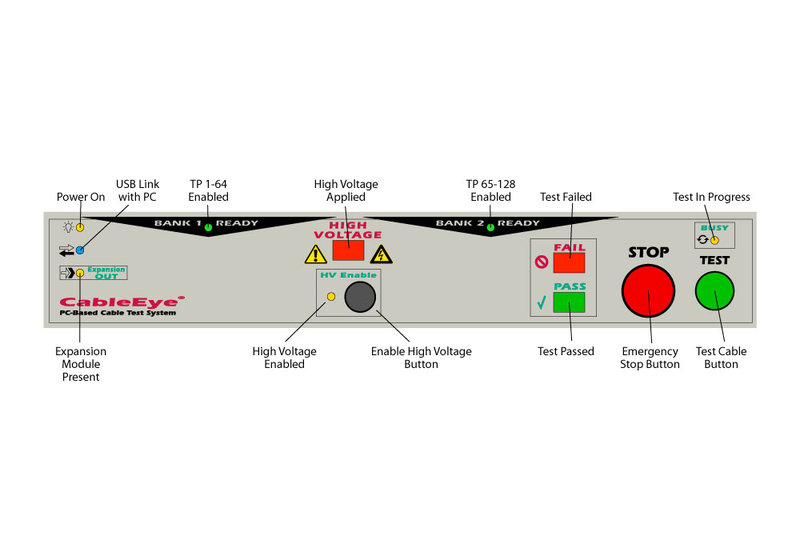

additional images:
Price
starting 7.980,00*
starting € 9.496,20 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • Combines the features of the M3U with additional testing functions for higher voltages.
  • Tests isolation resistance with selectable voltages up to 1500 VDC/1000 VAC or 2100 VDC/1200 VAC
  • Expandable for even more complex cables and cable harnesses.

Cable and Harness Test System - HVX High Voltage Test System.

With the CableEye cable testers and harness testers, find defective or miswired cables instantly before they damage equipment or waste valuable technician time. CableEye cable testers and harness testers have a unique, patented graphic wiring display to visually pinpoint problems when wiring errors are detected, and offer one-second pass/fail testing for production environments. Quickly locate intermittent connections and identify their position in the cable. The HVX system is the version for voltage up to 1500 VDC/1000 VAC or 2100 VDC/1200 VAC and resistance 0.1 Ω...1 GΩ or 5 GΩ. It has 128 test points, expandable to 1024 or 512+.

  • Continuity test:
    Detects open lines, short circuits and miswired cables.
    Pass/fail test with a 'known good' sample.
    Locate intermittent connections and identify their position in the cable.
  • Measurement of resistance:
    Set two resistance thresholds, one for good connections down to 0.1 Ω, and one for isolation up to 1 GΩ. Measure embedded resistors and resistor networks, check the orientation of diodes, and measure diode forward voltage
  • Store full cable documentation.
    Print out cable wiring diagrams.
    Print labels.
    Log and print error protocols.
  • Visualize cable wiring: Automatically draw schematics from measured cable connections. Compare cables. Easy testing of cable leads.

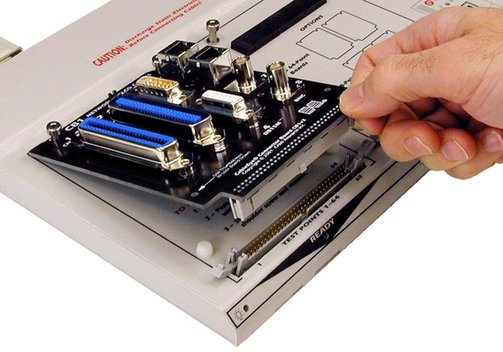

  • Plug-in connector boards, easy to install, for various connector types like BNC, RJ45, D-sub, ribbon cable/IDC and many more.
  • Connects to the PC via USB.

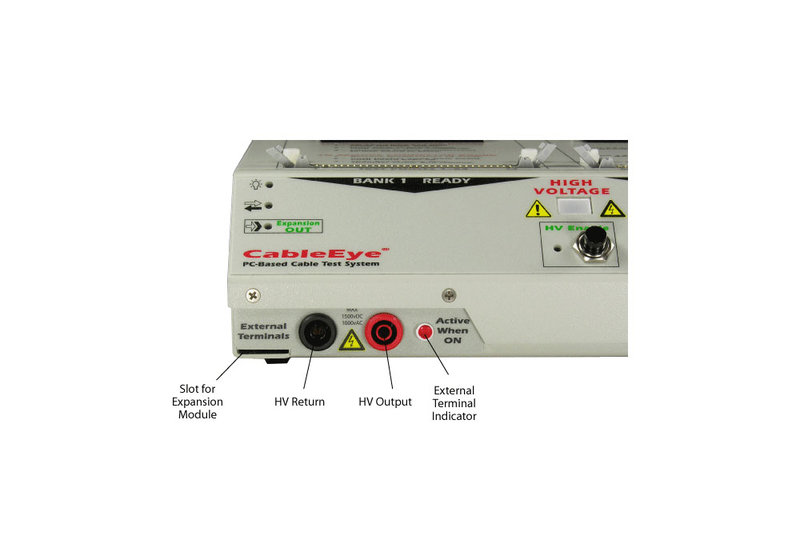

  • High voltage testing:
    The CableEye HVX (CAMI-829) system combines the M3U tester with a high voltage module to provide insulation resistance and dielectric breakdown testing, adjustable in 1 V increments from 10 V to the maximum voltage permitted.
    The HVX model tests up to 1500 VDC/1000 VAC or 2100 VDC/1200 VAC. Ramp Up, Ramp Down, Dwell Time (same as Test Time), Trip Current, and Trip Delay (same as Soak Time) may be programmed for your specific requirements.

HVX System - Features

HVX/CAMI-829 HVX-21/CAMI-829A
Continuity
Opens
Short
Miswires
Intermittent faults
Resistance
Connection/non-connection quality
Resistance (2-wire)
Continuouse resistance scan
Fixture resistance nulling
Resistance (4-wire Kelvin) () optional () optional
Capacitance
Wire length, cable length () optional () optional
Length to break () optional () optional
Twisted-pairing () optional () optional
Single channel safety test
Chassis, panels, transformers etc.
Insulation quality
Dielectric strenght,
DWV/Dielectric Withstand Voltage
Insulation resistance
Inline components
Resistors
Diodes
   Orientation
   Forward voltage
LEDs
   Orientation
   Colour detection
Zener diodes
   Orientation
   Forward voltage
   Reverse voltage <10 V
   Reverse voltage >10 V
Capacitors () optional () optional
HVX/CAMI-829 HVX-21/CAMI-829A
Test points1) 152 for LV-Test,
128 for HV-Test
152 for LV-Test,
128 for HV-Test
Expandable ✓, to max. 1024 ✓, to max. 512
Test time2) depending on voltage, ramp rate, test algorithm selected depending on voltage, ramp rate, test algorithm selected
Resistance threshold 0.1 Ω...1 GΩ 0.1 Ω...5 GΩ
Resistance accuracy same as M3UH under 1 MΩ;
5% (1 MΩ...100 MΩ);
lesser accuracy over 100 MΩ
same as M3UH under 1 MΩ;
5% (1 MΩ...100 MΩ);
lesser accuracy over 100 MΩ
4-wire Kelvin option: 1 mΩ ±1 mΩ,
1 mΩ...15 Ω,
test current 100 mA...1 mA
option: 1 mΩ ±1 mΩ,
1 mΩ...15 Ω,
test current 100 mA...1 mA
Intermittent connection scan rate same as M3UH or M4 same as M3UH or M4
Diode measurement Orientation, forward voltage, reverse breakdown >10 V Orientation, forward voltage, reverse breakdown >10 V
Test voltage 10...1500 VDC or 10...1000 VACRMS in increents of 1 V 10...2100 VDC or 10...1200 VACRMS in increments of 1 V
Capacitance Range 100 pF...100 µF, 5% accuracy, measurement rate 20 measurements/s at 100 nF or less Range 100 pF...100 µF, 5% accuracy, measurement rate 20 measurements/s at 100 nF or less
Twisted pair measurement ✓, approx. 183 cm min. length ✓, approx. 183 cm min. length
Measurement cable length ✓, approx. ±91 cm ✓, approx. ±91 cm
Measurement distance to break ✓, min. distance to break approx. ±91 cm ✓, min. distance to break approx. ±91 cm
Dwell time range LV: 1 µs...100 ms,
HV: 30 ms...300 s
LV: 1 µs...100 ms,
HV: 30 ms...300 s
Insulation resistance measurement 2 MΩ...1 GΩ (1500 VDC);
2 MΩ (min., 1000 VAC);
current sensitivity 1 µA
2 MΩ...5 GΩ (2100 VDC);
2 MΩ (min., 1000 VAC);
current sensitivity 0.2 µA
Digital I/Os Pairs of test points used as inputs, 50+ relay outputs Pairs of test points used as inputs, 50+ relay outputs
Calibration Recommended yearly Recommended yearly
Test point connectors 64-pin dual-row headers, 2.54 mm centers; 2 per 128-point module 64-pin dual-row headers, 2.54 mm centers; 2 per 128-point module
Remote control socket MiniDIN8 connector for footswitch, ext. control panel MiniDIN8 connector for footswitch, ext. control panel
Probe socket ✓, probe included with tester ✓, probe included with tester
Power requirements 100...250 VAC/50...60 Hz, 130 W (max.) for 128 test points; 175 W (max.) for 512 test points; power cord 100...250 VAC/50...60 Hz, 130 W (max.) for 128 test points; 175 W (max.) for 512 Test points; power cord
Weight 9.5 kg 9.5 kg
PC requirements Windows XP SP3 or later; compatible with touchscreen and laptop PCs Windows XP SP3 or later; compatible with touchscreen and laptop PCs
USB interface USB 1.1 full-speed, 2 Ports USB 1.1 full-speed, 2 Ports

1) LV = low voltage test, HV = high voltage test.
2) 128 test points, first value continuity only, second value with resistance test.

Model Overview - Application: Low/High Voltage Testing

Low Voltage Testing
CAMI-810U CableEye M2U-Basic 128 test points, not expandable. USB interface
CAMI-811U CableEye M2U-Full 152 test points, expandable to 1024. USB interface
CAMI-813 M2U-AEX Expansion module for the M2U-Full system (811U), stackable version. 128 additional test points. Use more modules to expand the CableEye system up to 1048 test points). Connected to the base system via ribbon cables.
CAMI-821U CableEye CableEye M3U 152 test points, expandable to 2560. Can also measure resistance (0.3 Ω...10 MΩ) and diodes. USB interface
CAMI-821UH CableEye M3UH 152 test points, expandable to 1024. Can also measure resistance (0.1 Ω...5 MΩ) and diodes. USB interface
CAMI-823 M3U-AEX Expansion module for the M3U system (821U), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 2560 test points). Connected to the base system via ribbon cables.
CAMI-823H M3UH-AEX Expansion module for the M3UH system (821UH), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 1024 test points). Connected to the base system via ribbon cables.
CAMI-824 M4 152 test points, expandable to more than 1024. Can also measure resistance, diodes, capacitance, twisted-pairing. USB interface
CAMI-825 M4-AEX Expansion module for the M4 system (824), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 1048 test points). Connected to the base system via ribbon cables.
High Voltage Testing
CAMI-829 CableEye HVX Applies voltage up to 1500 VDC/1000 VAC, measures resistance between 0.1 Ω and 1 GΩ, 128 test points, expandable to 1024
CAMI-829A CableEye HVX-21 Applies voltage up to 2100 VDC/1200 VAC, measures resistance between 0.1 Ω and 5 GΩ, 512+ test points
CAMI-828 HVX-Expansion Expansion module for HVX/829: Adds 128 testpoints to 829.
CAMI-829X HVX accessorie CableEye HVX series remote control
CAMI-832 HVX-Expansion Expansion module for HVX/829: 4-wire measurement.
CAMI-712H HVX accessories QuickMount system, rated 2100 VDC/1500 VAC

CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a small selection. Contact us for individual configurations or special connector board designs. Find a CB board compatibility chart and other overviews here.

CAMI CableEye cable tester

Accessories, options
2.680,00*
€ 3.189,20 brutto
starting 188,00*
starting € 223,72 brutto
240,00*
€ 285,60 brutto
310,00*
€ 368,90 brutto
310,00*
€ 368,90 brutto
335,00*
€ 398,65 brutto
145,00*
€ 172,55 brutto
238,00*
€ 283,22 brutto
260,00*
€ 309,40 brutto
238,00*
€ 283,22 brutto
240,00*
€ 285,60 brutto
295,00*
€ 351,05 brutto
240,00*
€ 285,60 brutto
238,00*
€ 283,22 brutto
274,00*
€ 326,06 brutto
205,00*
€ 243,95 brutto
333,00*
€ 396,27 brutto
333,00*
€ 396,27 brutto
240,00*
€ 285,60 brutto
310,00*
€ 368,90 brutto
310,00*
€ 368,90 brutto
starting 220,00*
starting € 261,80 brutto
165,00*
€ 196,35 brutto
188,00*
€ 223,72 brutto
195,00*
€ 232,05 brutto
starting 195,00*
starting € 232,05 brutto
starting 274,00*
starting € 326,06 brutto
238,00*
€ 283,22 brutto
295,00*
€ 351,05 brutto
195,00*
€ 232,05 brutto
310,00*
€ 368,90 brutto
380,00*
€ 452,20 brutto
305,00*
€ 362,95 brutto
295,00*
€ 351,05 brutto
295,00*
€ 351,05 brutto
295,00*
€ 351,05 brutto
345,00*
€ 410,55 brutto
260,00*
€ 309,40 brutto
345,00*
€ 410,55 brutto
305,00*
€ 362,95 brutto
98,00*
€ 116,62 brutto
205,00*
€ 243,95 brutto
starting 138,00*
starting € 164,22 brutto
205,00*
€ 243,95 brutto
265,00*
€ 315,35 brutto
100,00*
€ 119,00 brutto
33,00*
€ 39,27 brutto
310,00*
€ 368,90 brutto
Query on the Item?
Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!
Your E-mail Adress
Name, company, phone, your question:
Tell a friend
Description
Accessories, options
Query on the Item?
Tell a friend

Benefits

  • Combines the features of the M3U with additional testing functions for higher voltages.
  • Tests isolation resistance with selectable voltages up to 1500 VDC/1000 VAC or 2100 VDC/1200 VAC
  • Expandable for even more complex cables and cable harnesses.

Cable and Harness Test System - HVX High Voltage Test System.

With the CableEye cable testers and harness testers, find defective or miswired cables instantly before they damage equipment or waste valuable technician time. CableEye cable testers and harness testers have a unique, patented graphic wiring display to visually pinpoint problems when wiring errors are detected, and offer one-second pass/fail testing for production environments. Quickly locate intermittent connections and identify their position in the cable. The HVX system is the version for voltage up to 1500 VDC/1000 VAC or 2100 VDC/1200 VAC and resistance 0.1 Ω...1 GΩ or 5 GΩ. It has 128 test points, expandable to 1024 or 512+.

  • Continuity test:
    Detects open lines, short circuits and miswired cables.
    Pass/fail test with a 'known good' sample.
    Locate intermittent connections and identify their position in the cable.
  • Measurement of resistance:
    Set two resistance thresholds, one for good connections down to 0.1 Ω, and one for isolation up to 1 GΩ. Measure embedded resistors and resistor networks, check the orientation of diodes, and measure diode forward voltage
  • Store full cable documentation.
    Print out cable wiring diagrams.
    Print labels.
    Log and print error protocols.
  • Visualize cable wiring: Automatically draw schematics from measured cable connections. Compare cables. Easy testing of cable leads.
  • Plug-in connector boards, easy to install, for various connector types like BNC, RJ45, D-sub, ribbon cable/IDC and many more.
  • Connects to the PC via USB.
  • High voltage testing:
    The CableEye HVX (CAMI-829) system combines the M3U tester with a high voltage module to provide insulation resistance and dielectric breakdown testing, adjustable in 1 V increments from 10 V to the maximum voltage permitted.
    The HVX model tests up to 1500 VDC/1000 VAC or 2100 VDC/1200 VAC. Ramp Up, Ramp Down, Dwell Time (same as Test Time), Trip Current, and Trip Delay (same as Soak Time) may be programmed for your specific requirements.

HVX System - Features

HVX/CAMI-829 HVX-21/CAMI-829A
Continuity
Opens
Short
Miswires
Intermittent faults
Resistance
Connection/non-connection quality
Resistance (2-wire)
Continuouse resistance scan
Fixture resistance nulling
Resistance (4-wire Kelvin) () optional () optional
Capacitance
Wire length, cable length () optional () optional
Length to break () optional () optional
Twisted-pairing () optional () optional
Single channel safety test
Chassis, panels, transformers etc.
Insulation quality
Dielectric strenght,
DWV/Dielectric Withstand Voltage
Insulation resistance
Inline components
Resistors
Diodes
   Orientation
   Forward voltage
LEDs
   Orientation
   Colour detection
Zener diodes
   Orientation
   Forward voltage
   Reverse voltage <10 V
   Reverse voltage >10 V
Capacitors () optional () optional
HVX/CAMI-829 HVX-21/CAMI-829A
Test points1) 152 for LV-Test,
128 for HV-Test
152 for LV-Test,
128 for HV-Test
Expandable ✓, to max. 1024 ✓, to max. 512
Test time2) depending on voltage, ramp rate, test algorithm selected depending on voltage, ramp rate, test algorithm selected
Resistance threshold 0.1 Ω...1 GΩ 0.1 Ω...5 GΩ
Resistance accuracy same as M3UH under 1 MΩ;
5% (1 MΩ...100 MΩ);
lesser accuracy over 100 MΩ
same as M3UH under 1 MΩ;
5% (1 MΩ...100 MΩ);
lesser accuracy over 100 MΩ
4-wire Kelvin option: 1 mΩ ±1 mΩ,
1 mΩ...15 Ω,
test current 100 mA...1 mA
option: 1 mΩ ±1 mΩ,
1 mΩ...15 Ω,
test current 100 mA...1 mA
Intermittent connection scan rate same as M3UH or M4 same as M3UH or M4
Diode measurement Orientation, forward voltage, reverse breakdown >10 V Orientation, forward voltage, reverse breakdown >10 V
Test voltage 10...1500 VDC or 10...1000 VACRMS in increents of 1 V 10...2100 VDC or 10...1200 VACRMS in increments of 1 V
Capacitance Range 100 pF...100 µF, 5% accuracy, measurement rate 20 measurements/s at 100 nF or less Range 100 pF...100 µF, 5% accuracy, measurement rate 20 measurements/s at 100 nF or less
Twisted pair measurement ✓, approx. 183 cm min. length ✓, approx. 183 cm min. length
Measurement cable length ✓, approx. ±91 cm ✓, approx. ±91 cm
Measurement distance to break ✓, min. distance to break approx. ±91 cm ✓, min. distance to break approx. ±91 cm
Dwell time range LV: 1 µs...100 ms,
HV: 30 ms...300 s
LV: 1 µs...100 ms,
HV: 30 ms...300 s
Insulation resistance measurement 2 MΩ...1 GΩ (1500 VDC);
2 MΩ (min., 1000 VAC);
current sensitivity 1 µA
2 MΩ...5 GΩ (2100 VDC);
2 MΩ (min., 1000 VAC);
current sensitivity 0.2 µA
Digital I/Os Pairs of test points used as inputs, 50+ relay outputs Pairs of test points used as inputs, 50+ relay outputs
Calibration Recommended yearly Recommended yearly
Test point connectors 64-pin dual-row headers, 2.54 mm centers; 2 per 128-point module 64-pin dual-row headers, 2.54 mm centers; 2 per 128-point module
Remote control socket MiniDIN8 connector for footswitch, ext. control panel MiniDIN8 connector for footswitch, ext. control panel
Probe socket ✓, probe included with tester ✓, probe included with tester
Power requirements 100...250 VAC/50...60 Hz, 130 W (max.) for 128 test points; 175 W (max.) for 512 test points; power cord 100...250 VAC/50...60 Hz, 130 W (max.) for 128 test points; 175 W (max.) for 512 Test points; power cord
Weight 9.5 kg 9.5 kg
PC requirements Windows XP SP3 or later; compatible with touchscreen and laptop PCs Windows XP SP3 or later; compatible with touchscreen and laptop PCs
USB interface USB 1.1 full-speed, 2 Ports USB 1.1 full-speed, 2 Ports

1) LV = low voltage test, HV = high voltage test.
2) 128 test points, first value continuity only, second value with resistance test.

Model Overview - Application: Low/High Voltage Testing

Low Voltage Testing
CAMI-810U CableEye M2U-Basic 128 test points, not expandable. USB interface
CAMI-811U CableEye M2U-Full 152 test points, expandable to 1024. USB interface
CAMI-813 M2U-AEX Expansion module for the M2U-Full system (811U), stackable version. 128 additional test points. Use more modules to expand the CableEye system up to 1048 test points). Connected to the base system via ribbon cables.
CAMI-821U CableEye CableEye M3U 152 test points, expandable to 2560. Can also measure resistance (0.3 Ω...10 MΩ) and diodes. USB interface
CAMI-821UH CableEye M3UH 152 test points, expandable to 1024. Can also measure resistance (0.1 Ω...5 MΩ) and diodes. USB interface
CAMI-823 M3U-AEX Expansion module for the M3U system (821U), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 2560 test points). Connected to the base system via ribbon cables.
CAMI-823H M3UH-AEX Expansion module for the M3UH system (821UH), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 1024 test points). Connected to the base system via ribbon cables.
CAMI-824 M4 152 test points, expandable to more than 1024. Can also measure resistance, diodes, capacitance, twisted-pairing. USB interface
CAMI-825 M4-AEX Expansion module for the M4 system (824), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 1048 test points). Connected to the base system via ribbon cables.
High Voltage Testing
CAMI-829 CableEye HVX Applies voltage up to 1500 VDC/1000 VAC, measures resistance between 0.1 Ω and 1 GΩ, 128 test points, expandable to 1024
CAMI-829A CableEye HVX-21 Applies voltage up to 2100 VDC/1200 VAC, measures resistance between 0.1 Ω and 5 GΩ, 512+ test points
CAMI-828 HVX-Expansion Expansion module for HVX/829: Adds 128 testpoints to 829.
CAMI-829X HVX accessorie CableEye HVX series remote control
CAMI-832 HVX-Expansion Expansion module for HVX/829: 4-wire measurement.
CAMI-712H HVX accessories QuickMount system, rated 2100 VDC/1500 VAC

CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a small selection. Contact us for individual configurations or special connector board designs. Find a CB board compatibility chart and other overviews here.
