Connector Board CB31 Metral/2mm Pitch

€ 441,49

including VAT free shipping (Germany)

min Quantity

1 piece

Unit price

base price

Variants

technical Question?

Please fill in all fields.

Question Type

Your E-mail Adress

My Question:

Please validate that you are not a robot.

I accept the Privacy Policy

Description

Accessories

Files/Downloads

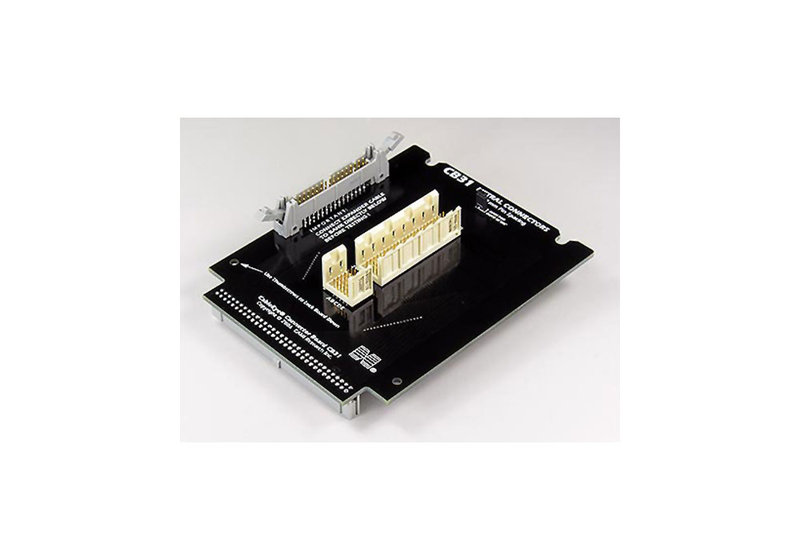

Connector Board CB31 Metral, 26nbsp;mm Pitch

Model CB31(A), CAMI-761(A)

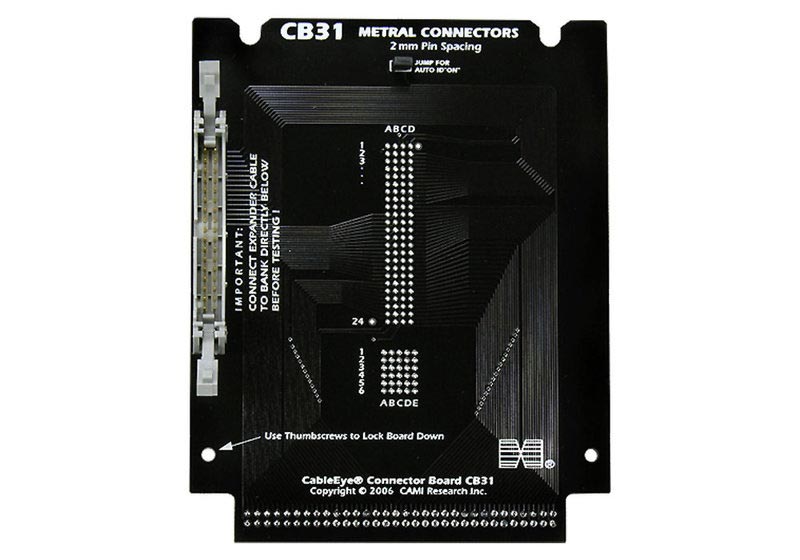

CB31 (EOL/discontinued): Connector board for Metral/FCI connectors. Unpopulated board for various connector versions (up to 4x24 pin grid or 5x6 pin grid with 2 mm grid spacing). Set of 2 boards. 256 testpoints required.
CB31A: 2 mm pitch.
CB31AH: HV version.

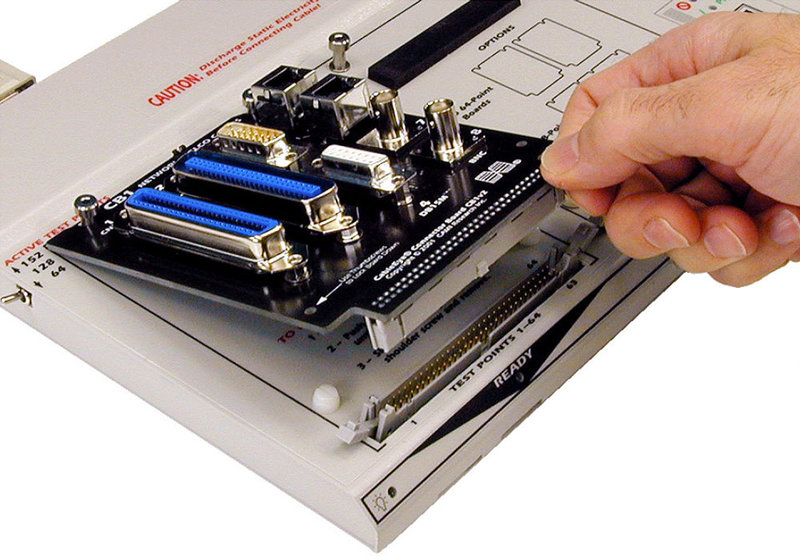

CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a small selection. Contact us for individual configurations or special connector board designs.

Information on product safety:

Manufacturer:
CAMI Research Inc., 42 Nagog Park, Suite 115m Acton, MA 01720-3301/USA
www.camiresearch.com

Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
info@meilhaus.com
