M2U Basic System, not Expandable

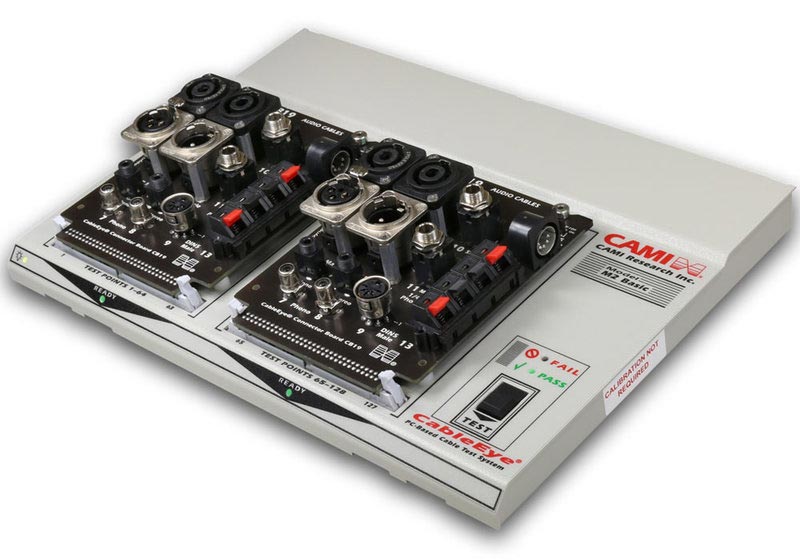

CableEye basic system cable tester cami-810u
additional images:
Price
1.290,00*
€ 1.535,10 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Delivery Time ~1-2 weeks
Description

Benefits

  • Quick and easy testing of cables and cable harnesses.
  • Detailed test documentations for your quality management.
  • Nearly unlimited possibilities of adaptions to your connectors, cables, cable harnesses.

Cable and harness test system: 128 test points, not expandable. USB interface.

With the CableEye cable testers and harness testers, find defective or miswired cables instantly before they damage equipment or waste valuable technician time. CableEye cable testers and harness testers have a unique, patented graphic wiring display to visually pinpoint problems when wiring errors are detected, and offer one-second pass/fail testing for production environments. Quickly locate intermittent connections and identify their position in the cable.

Choose from a wide variety of plug-in connector boards to mate with most standard cables, and easily mount custom connectors for unusual applications.

The easy-to-use software can be set up for one-button operation to speed production testing. Unskilled operators need only to press the TEST pushbutton on the fixture to trigger an involved test sequence set up by the quality control engineer, with results automatically logged to disk for later analysis and report generation.

  • Economy basic system for 128 test points, not expandable. USB interface.
  • Continuity test:
    Detects open lines, short circuits and miswired cables.
    Pass/fail test with a 'known good' sample.
    Locate intermittent connections and identify their position in the cable.
  • Store full cable documentation.
    Print out cable wiring diagrams.
    Print labels.
    Log and print error protocols.
  • Visualize cable wiring: Automatically draw schematics from measured cable connections. Compare cables. Easy testing of cable leads.

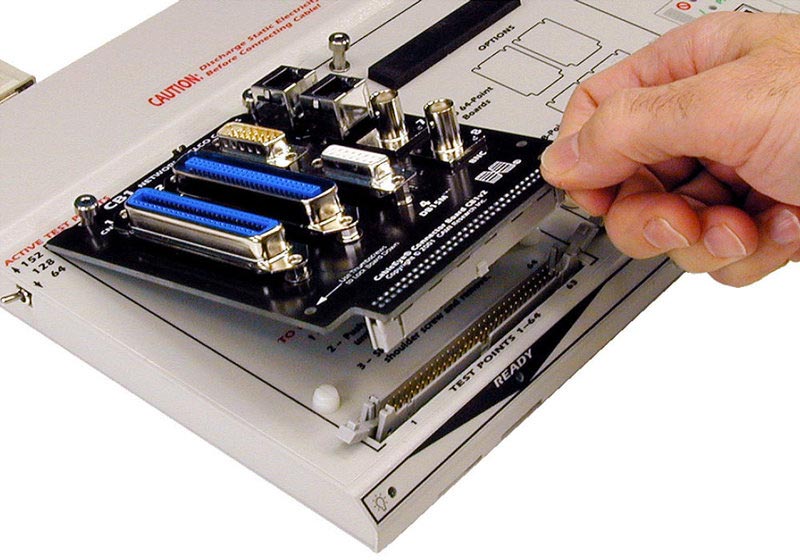

  • Plug-in connector boards, easy to install, for various connector types like BNC, RJ45, D-sub, ribbon cable/IDC and many more.
  • Connects to the PC via USB.
  • Light Director System:
    LED guided cable and harness assembly. Optional Speech Instructions Eliminate Need to View Screen. Test-as-you-build to catch problems the moment they occur.

M2U Basic System - Features

M2U-B/CAMI-810U
