Connector Board CB35 Relay Board
Model CB35, CAMI-765

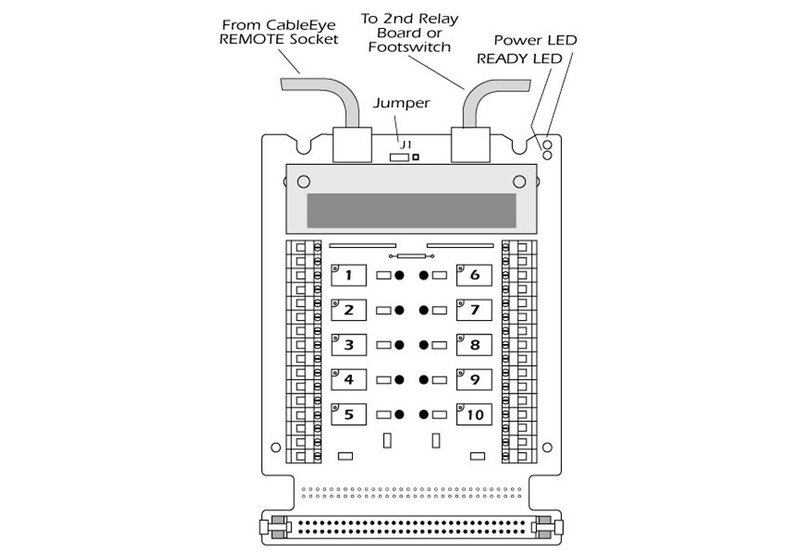

Connector board with 10 SPDT relays. 1 board.
Relay Specifications
| Model | CB35 (CAMI-765) | CB35R (CAMI-765R) |
| Relay type | Omron G5V-1 or equivalent | Omron HY1-5V or equivalent |
| Contact load | 0.5 A at 125 VAC, 1 A at 24 VDC | 0.5 A at 125 VAC, 1 A at 30 VDC |
| Contact resistance | 100 mΩ max. | 100 mΩ max. |
| Bounce time | 0.2 ms (operate), 5 ms (release) | 0.2 ms (operate), 4 ms (release) |
| Insulation resistance | 1000 MΩ min. | 1000 MΩ min. |
| Dielectric strength | 400 VAC, 50/60 Hz between contacts | 500 VAC, 50/60 Hz between contacts |
CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a small selection. Contact us for individual configurations or special connector board designs.
