Option for 829/HVX: 4-Wire Measurement

cami-832
additional images:
Price
1.070,00*
€ 1.273,30 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Delivery Time ~1-2 weeks
Description

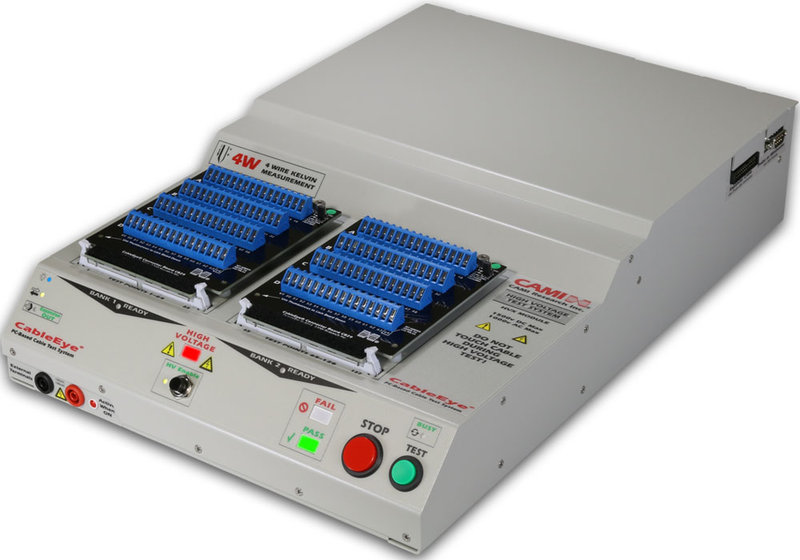

4-Wire Kelvin Measurement

Optional add-on for CableExe HVX system. Applies a user-selectable test current from 10 mA to 1 A and measures contact and wire resistance as low as 1 mΩ.

Model Overview - Application: Low/High Voltage Testing

Low Voltage Testing
CAMI-810U CableEye M2U-Basic 128 test points, not expandable. USB interface
CAMI-811U CableEye M2U-Full 152 test points, expandable to 1024. USB interface
CAMI-813 M2U-AEX Expansion module for the M2U-Full system (811U), stackable version. 128 additional test points. Use more modules to expand the CableEye system up to 1048 test points). Connected to the base system via ribbon cables.
CAMI-821U CableEye CableEye M3U 152 test points, expandable to 2560. Can also measure resistance (0.3 Ω...10 MΩ) and diodes. USB interface
CAMI-821UH CableEye M3UH 152 test points, expandable to 1024. Can also measure resistance (0.1 Ω...5 MΩ) and diodes. USB interface
CAMI-823 M3U-AEX Expansion module for the M3U system (821U), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 2560 test points). Connected to the base system via ribbon cables.
CAMI-823H M3UH-AEX Expansion module for the M3UH system (821UH), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 1024 test points). Connected to the base system via ribbon cables.
CAMI-824 M4 152 test points, expandable to more than 1024. Can also measure resistance, diodes, capacitance, twisted-pairing. USB interface
CAMI-825 M4-AEX Expansion module for the M4 system (824), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 1048 test points). Connected to the base system via ribbon cables.
High Voltage Testing
CAMI-829 CableEye HVX Applies voltage up to 1500 VDC/1000 VAC, measures resistance between 0.1 Ω and 1 GΩ, 128 test points, expandable to 1024
CAMI-829A CableEye HVX-21 Applies voltage up to 2100 VDC/1200 VAC, measures resistance between 0.1 Ω and 5 GΩ, 512+ test points
CAMI-828 HVX-Expansion Expansion module for HVX/829: Adds 128 testpoints to 829.
CAMI-829X HVX accessorie CableEye HVX series remote control
CAMI-832 HVX-Expansion Expansion module for HVX/829: 4-wire measurement.
CAMI-712H HVX accessories QuickMount system, rated 2100 VDC/1500 VAC

CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a small selection. Contact us for individual configurations or special connector board designs. Find a CB board compatibility chart and other overviews here.
