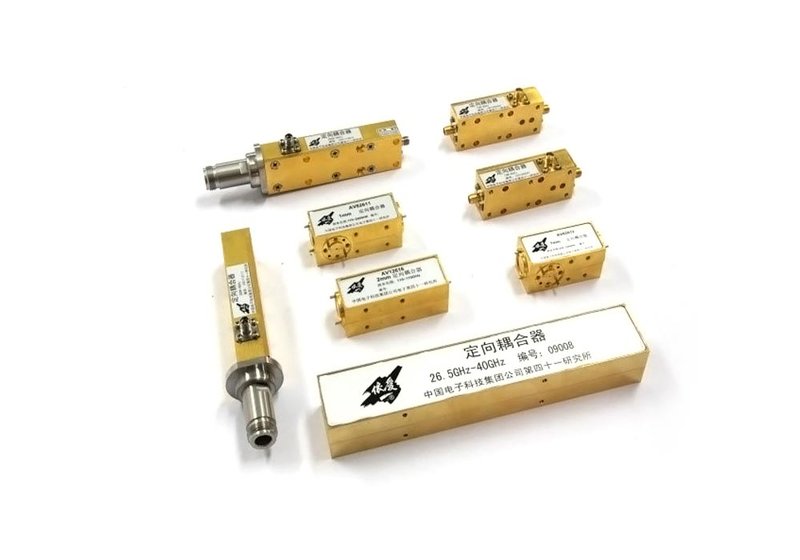

Waveguide Directional Couplers up to 500 GHz
- Broad band, high directivity, low loss.
- Coaxial directional coupler frequency range from 100 kHz to 67 GHz.
- Waveguide directional coupler frequency range from 2.5 GHz to 325 GHz.
- Maximum input power up to 400 W.
Model Overview
| Model | Frequency range | Coupling | Directivity (min.) | Return loss (min.) | Connector |
| Ceyear-12611 | 26.5...40 GHz | 10 dB | 36 dB | 30 dB | WR28 |
| Ceyear-12611A | 20 dB | 30 dB | |||
| Ceyear-12612 | 33...50 GHz | 10 dB | 34 dB | 30 dB | WR22 |
| Ceyear-12612A | 20 dB | 30 dB | |||
| Ceyear-12613 | 40...60 GHz | 10 dB | 32 dB | 30 dB | WR19 |
| Ceyear-12613A | 20 dB | 30 dB | |||
| Ceyear-12614 | 50...75 GHz | 10 dB | 30 dB | 30 dB | WR15 |
| Ceyear-12614A | 20 dB | 30 dB | |||
| Ceyear-12614B | 10 dB | 30 dB | |||
| Ceyear-12615 | 75...110 GHz | 10 dB | 30 dB | 28 dB | WR10 |
| Ceyear-12615A | 20 dB | 28 dB | |||
| Ceyear-12615B | 10 dB | 28 dB | |||
| Ceyear-82601 | 2.5...7.5 GHz | 60 dB | 20 dB | 20 dB | WRD250 |
| Ceyear-82602 | 7.5...18 GHz | 60 dB | 20 dB | 20 dB | WRD750 |
| Ceyear-82610 | 110...170 GHz | 10 dB | 20 dB | 20 dB | WR6 |
| Ceyear-82610A | 10 dB | 20 dB | |||
| Ceyear-82611 | 170...220 GHz | 10 dB | 22 dB | 24 dB | WR5 |
| Ceyear-82612 | 220...325 GHz | 10 dB | 22 dB | 22 dB | WR3 |
| Ceyear-82613 | 8...12.4 GHz | 50 dB | 30 dB | 32 dB | WR90 |
| Ceyear-82614 | 12.4...18 GHz | 50 dB | 30 dB | 32 dB | WR62 |
| Ceyear-82615 | 18...26.5 GHz | 50 dB | 30 dB | 32 dB | WR42 |
| Ceyear-82616 | 26.5...40 GHz | 50 dB | 30 dB | 32 dB | WR28 |
| Ceyear-82619QG | 18...26.5 GHz | 40 dB | 30 dB | 30 dB | WR42 |
| Ceyear-82619QP | 18...26.5 GHz | 40 dB, 30 dB | 30 dB | 30 dB | WR42 |
| Ceyear-82620 | 170...220 GHz | 13 dB | 22 dB | 20 dB | WR5 |

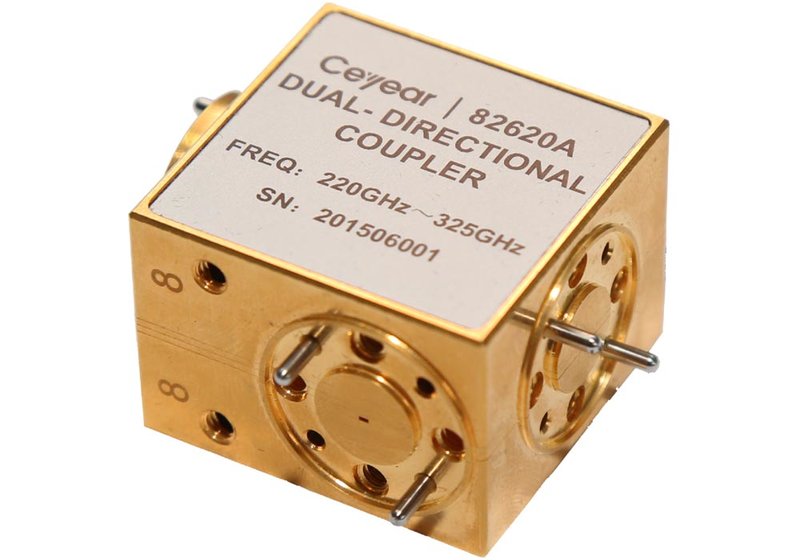

| Ceyear-82620A (EOL) | 220...325 GHz | 13 dB | 22 dB | 20 dB | WR3 |
| Ceyear-82621BG | 26.5...40 GHz | 40 dB | 30 dB | 30 dB | WR28 |
| Ceyear-82621BP | 26.5...40 GHz | 40 dB, 30 dB | 30 dB | 30 dB | WR28 |
| Ceyear-82621T (EOL) | 325...500 GHz | 10 dB | 19 dB | 15 dB | WR02 |
