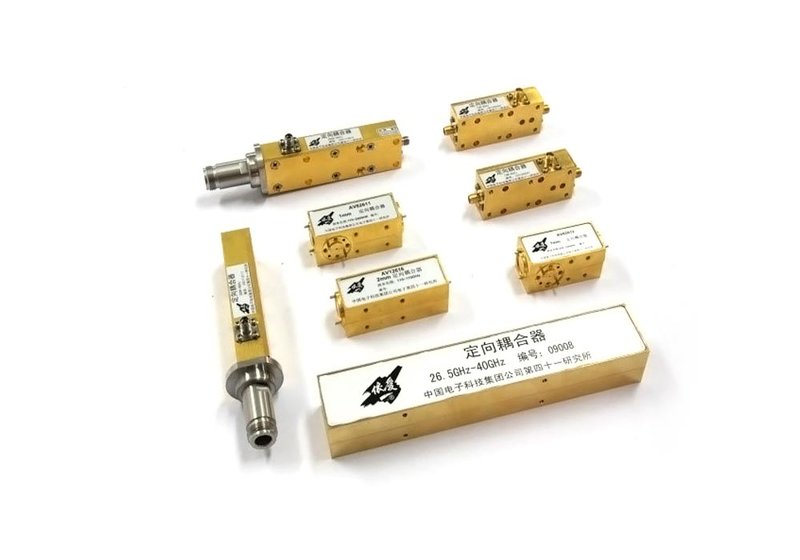

Coaxial Directional Couplers

Broad band, high directivity, low loss.
Coaxial directional coupler frequency range from 100 kHz to 67 GHz.
Waveguide directional coupler frequency range from 2.5 GHz to 325 GHz.
Maximum input power up to 400 W.

Model Overview

Model	Frequency range	Coupling	Directivity (min.)	Return loss (min.)	Insertion loss (max.)	Power rating (average/peak)	Connector
Ceyear-70601	2...40 GHz	15.5 ±3 dB	15 dB	15 dB	1.8 dB	2 W/1 kW	2.4 mm(f)
Ceyear-70602	2...26.5 GHz	15 ±2 dB	16 dB	16 dB	1.58 dB	2 W/1 kW	3.5 mm(f)
Ceyear-70603	2...40 GHz	12.5 ±1.3 dB	11 dB	11 dB	2.08 dB	10 W/3 kW	2.4 mm(f)
Ceyear-70604	2...20 GHz	17 ±2 dB	13 dB	15 dB	1.58 dB	10 W/3 kW	3.5 mm(f)
Ceyear-70607	0.01...4 GHz	16 ±1.5 dB	30 dB	20 dB	3 dB	1 W/10 kW
Ceyear-80601	2...8 GHz	20 ±2 dB	24 dB	16 dB	18 dB	100 W/1 kW	Type-N(f)
Ceyear-80601	8...18 GHz	20 ±2 dB	21 dB	16 dB	18 dB	100 W/1 kW	Type-N(f)
Ceyear-80602	2...8 GHz	30 ±2 dB	24 dB	16 dB	18 dB	100 W/1 kW	Type-N(f)
Ceyear-80602	8...18 GHz	30 ±2 dB	21 dB	16 dB	18 dB	100 W/1 kW	Type-N(f)
Ceyear-80603	2...8 GHz	40 ±2 dB	24 dB	16 dB	18 dB	100 W/1 kW	Type-N(f)
Ceyear-80603	8...18 GHz	40 ±2 dB	21 dB	16 dB	18 dB	100 W/1 kW	Type-N(f)
Ceyear-80604	2...18 GHz	30 ±2 dB	12 dB	20 dB	18 dB	400 W/3 kW	Type-N(f)
Ceyear-80604D	6...18 GHz	40 ±3 dB	11 dB	20 dB	1 dB	400 W/3 kW
Ceyear-80611	0.0003...3 GHz	16 ±1.5 dB	30 dB	15 dB	3.5 dB	1 W/10 W
	3...6 GHz		25 dB
	6...9 GHz		20 dB
Ceyear-80613	0.01...20 GHz	15 ±1.5 dB	18 dB	16 dB	3.2 dB	1 W/10 W	3.5 mm(f)
Ceyear-80615	0.001...40 GHz	17.5 ±2 dB	14 dB	12 dB	4.0 dB	1 W/10 W	2.4 mm(f)
Ceyear-80616	0.01...26.5 GHz	17 ±1.5 dB	18 dB	16 dB	3.5 dB	1 W/10 W	3.5 mm(f)
Ceyear-80617	18...26.5 GHz	40 ±1 dB	11 dB	16 dB	0.68 dB	10 W/1 kW	3.5 mm(f)
Ceyear-80617E	18...26.5 GHz	31 ±1 dB	10 dB	17 dB	0.58 dB	60 W/1 kW	3.5 mm(f)
Ceyear-80622B	0.0001...9 GHz	16.5 ±1.5 dB	20 dB	18 dB	3.2 dB	1 W/10 W	3.5 mm(f)
Ceyear-80622F	0.01...40 GHz	17.5 ±2 dB	16 dB	14 dB	4.0 dB	1 W/10 W	2.4 mm(f)
Ceyear-80623CE	0.5...20 GHz	20 ±2 dB	16 dB	15 dB	1 dB	20 W
Ceyear-82603	0.0001...0.5 GHz	60 ±2 dB	16 dB	17 dB	18 dB	120 W/1 kW	Primary line 7/16 type(f),auxiliary arm type-N(f)
Ceyear-82604	0.5...2.5 GHz	60 ±2 dB	16 dB	17 dB	18 dB	400 W/1 kW	Primary line 7/16 type(f),auxiliary arm type-N(f)
Ceyear-82617	3...67 GHz	13.5 ±3.5 dB	12 dB	11 dB	2.78 dB	1 W/0.5 kW	1.85 mm(f)
