Benefits

  • Models with option for direct receiver access and frequency extension up to 110 GHz.
  • Excellent dynamic range and measurement speed of 10 µs or 12 µs per sweep point.
  • Wide output power range of -60...+10 or +15 dBm.

Copper Mountain Cobalt C Series VNA up to 9 GHz and 20 GHz

The Copper Mountain Cobalt/C Series VNA (vector network analyzers) deliver industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in the software. Depending on the model they are half rack or full rack modules designed for the use in the laboratory and in production testing, without requiring a lot of space. The VNAs can be integrated into production test system via manufacturing test plugin. Auxiliary board option is available on all Cobalt VNAs at the time of order (factory-installed) or as an add-on at a later date.

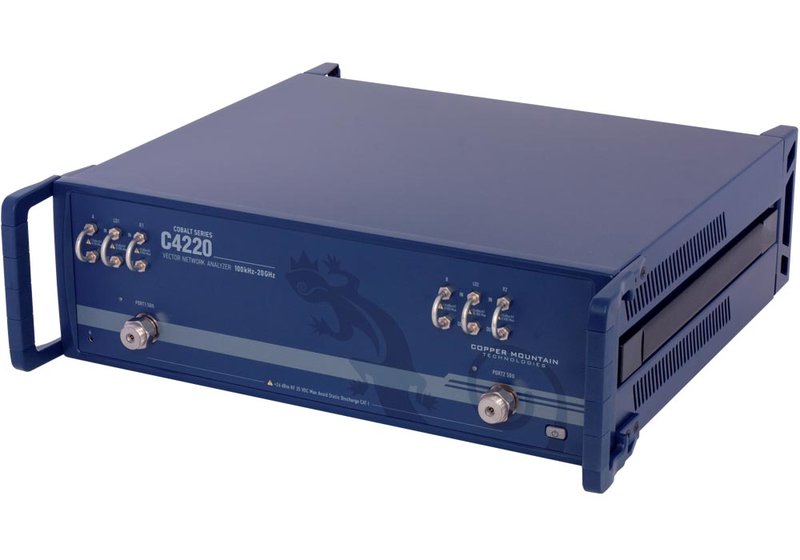

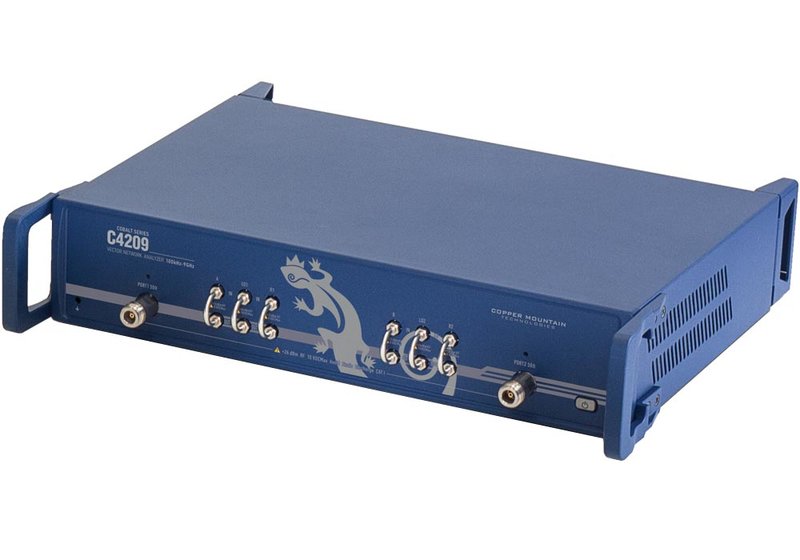

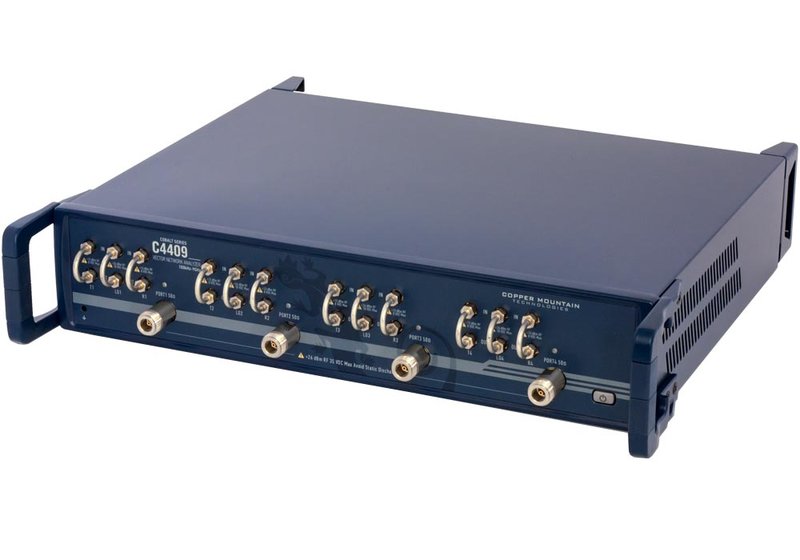

The models C4209, C4409, C4220, and C4420 are frequency extender compatible and are the anchor network analyzer for the CobaltFx frequency extender system.

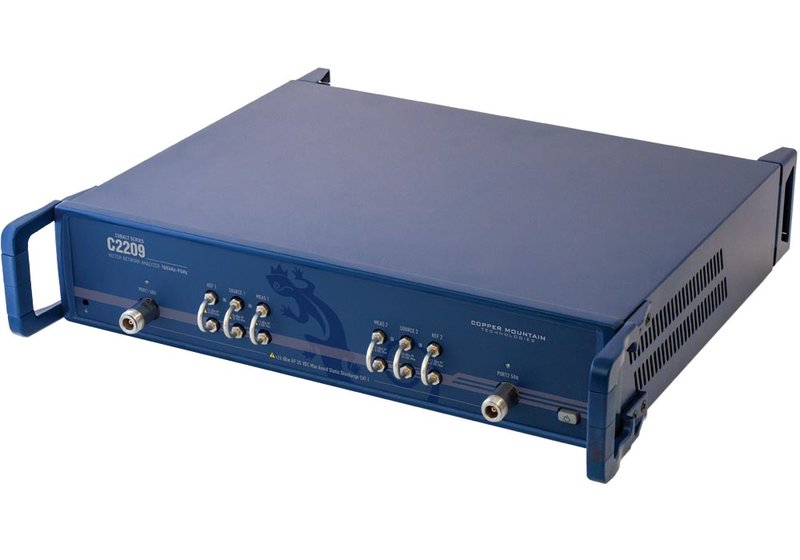

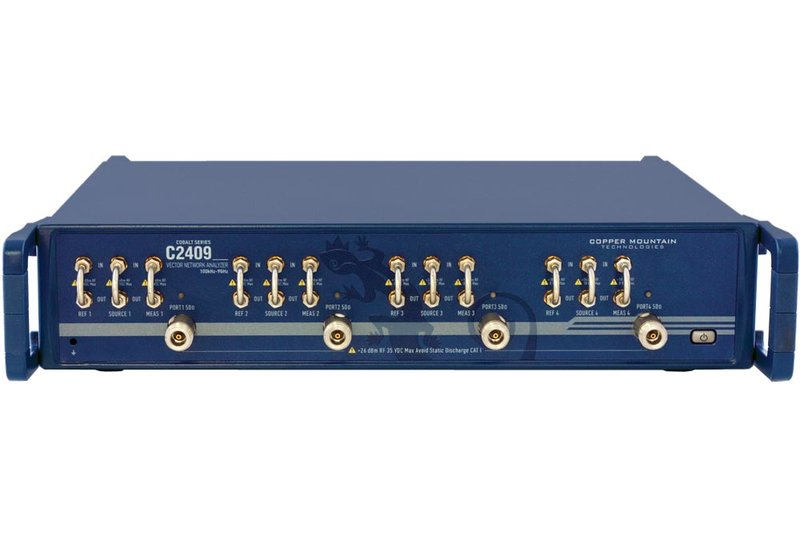

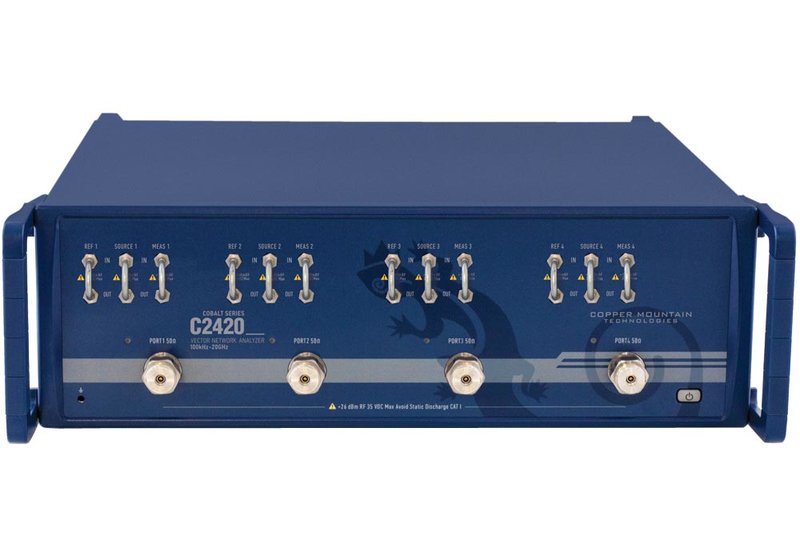

The models C2409, C2220, and C2420 have direct receiver access for special applications involving external directional coupling, including load pull and high power measurements.

The Cobalt series devices include an RF measurement module/hardware and the S2 (2-port) or S4 (4-port) software application which runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. The S2/S4 software can be installed on multiple computers that share the use of the analyzer measurement module.

  • 2- and 4-port vector network analyzers.
  • Frequency range 100 kHz to 9 GHz or 20 GHz.
  • Measured parameters: S11, S12, S21, S22, or S11...S44.
  • Measurement speed 10 µs (9 GHz models) or 12 µs (20 GHz models).
  • Impedance 50 Ω

Applications

SAW and BTS filter tuning, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.

Model Overview

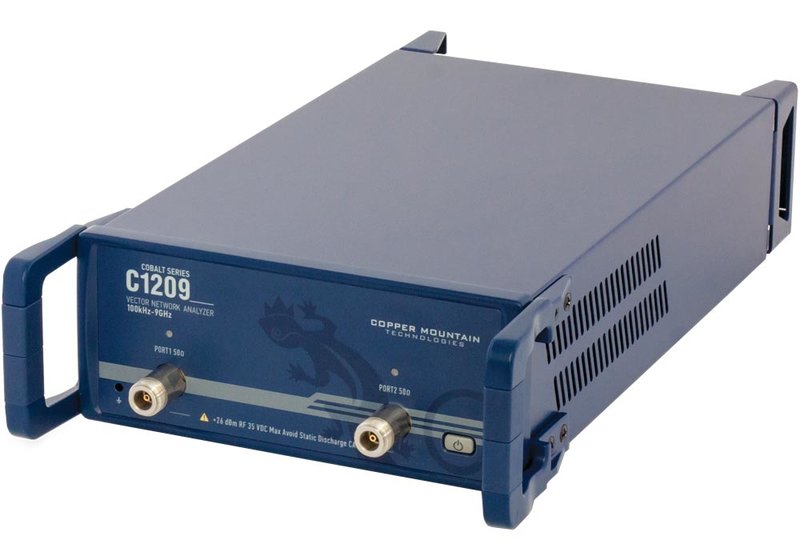

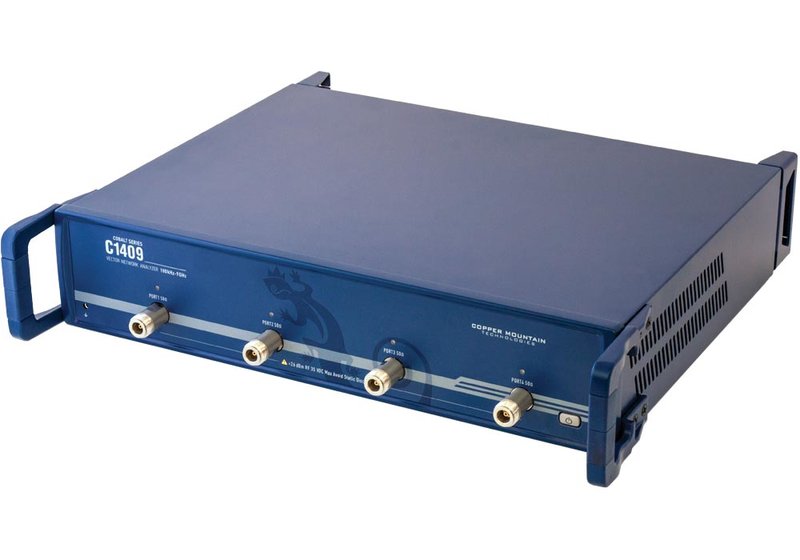

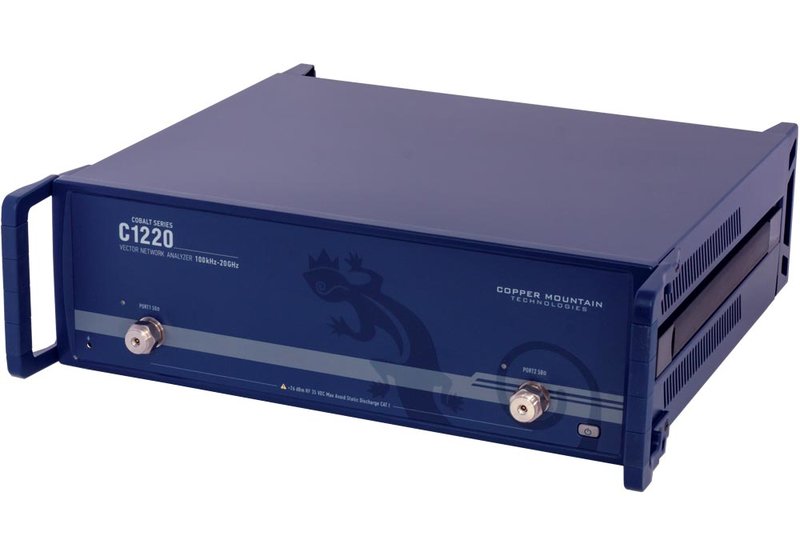

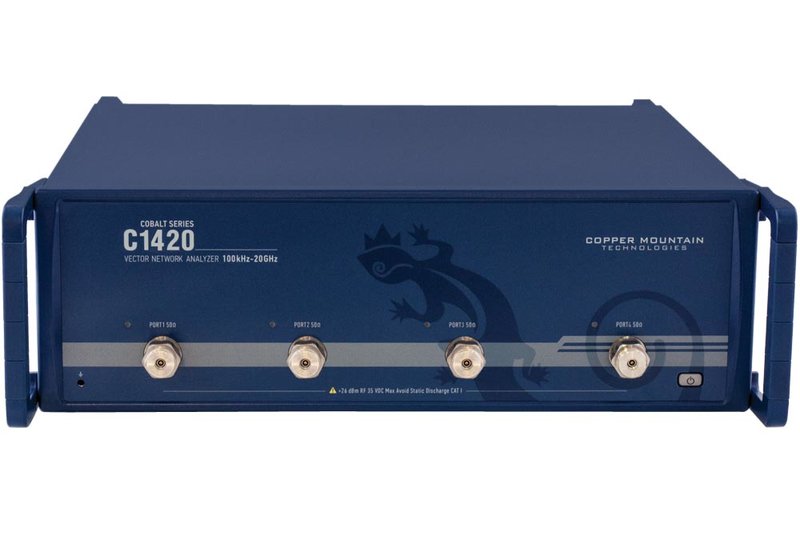

ModelC1209C2209C4209C1409C2409C4409C1220C2220C4220C1420C2420C4420
Ports222444222444
Frequency range100 kHz...9 GHz100 kHz...20 GHz
Dynamic range105 dB (100 kHz...1 MHz)
148 dB/typ. 152 dB (1 MHz...8 GHz)
138 dB/typ. 142 dB (8 ...9 GHz)
C1220, C4220, C1420, C4420:
110 dB (100 kHz...1 MHz)
133 dB/typ. 135 dB (1 MHz...20 GHz)
C2220, C2420:
110 dB (100 kHz...1 MHz)
130 dB/typ. 135 dB (1 MHz...20 GHz)
Measured parametersS11, S21, S12, S22S11...S44S11, S21, S12, S22S11...S44
Measurement time per point min., typ.10 µs12 µs
Output power range-60...+15 dBm-60...+10 dBm
Measurement pointsup to 500,001up to 500,001
Time domain and gatingincludedincluded
Effective directivity46 dB46 dB (100 kHz...1 MHz and 1 MHz...10 GHz); 42 dB (10...20 GHz)
Compatible with CobaltFx frequency extender----yesyes--yes--yes
Direct receiver access----yes--yes--yes-
InterfaceUSB 2.0, type BUSB 2.0, type B
Power supplyExternal power adaptorExternal power adaptor
Recommended accessoriesAutom. cal. module ACM2509
Cal. kits N911, N912, S911T
Cables and adaptors 2x C50NMNM.X, 2x C50NMNM.X + NF50, 2x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM2509
Cal. kits N911, N912, S911T
Cables and adaptors 2x C50NMNM.X, 2x C50NMNM.X + NF50, 2x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM2509
Cal. kits N911, N912, S911T
Cables and adaptors 2x C50NMNM.X, 2x C50NMNM.X + NF50, 2x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM4509
Cal. kits N911, N912, S911T
Cables and adaptors 2x C50NMNM.X, 2x C50NMNM.X + NF50, 2x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM4509
Cal. kits N911, N912, S911T
Cables and adaptors 2x C50NMNM.X, 2x C50NMNM.X + NF50, 2x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM4509
Cal. kits N911, N912, S911T
Cables and adaptors 2x C50NMNM.X, 2x C50NMNM.X + NF50, 2x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM2520
Cal. kits S2611, N1801
Cables and adaptors 2x C50292MM.2, 2x C50SMNM.X, 2x PNMDF3.5
Torque wrench TW-S, TW-N
Autom. cal. module ACM2520
Cal. kits S2611, N1801
Cables and adaptors 2x C50292MM.2, 2x C50SMNM.X, 2x PNMDF3.5
Torque wrench TW-S, TW-N
Autom. cal. module ACM2520
Cal. kits S2611, N1801
Cables and adaptors 2x C50292MM.2, 2x C50SMNM.X, 2x PNMDF3.5
Torque wrench TW-S, TW-N
Autom. cal. module ACM2520
Cal. kits S2611, N1801
Cables and adaptors 4x C50292MM.2, 4x PNMDF3.5F, 4x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM2520
Cal. kits S2611, N1801
Cables and adaptors 4x C50292MM.2, 4x PNMDF3.5F, 4x C50SMNM.X
Torque wrench TW-S, TW-N
Autom. cal. module ACM2520
Cal. kits S2611, N1801
Cables and adaptors 4x C50292MM.2, 4x PNMDF3.5F, 4x C50SMNM.X
Torque wrench TW-S, TW-N

VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 accredited, traceable calibration certificate and uncertainties is available and needs to be specified at time of order.
