DT9826 Simultaneous Multifunction USB Data Acquisition Module
Description
Files/Downloads
Benefits of the DT9826 (6069-410-136) 24 bit DAQ and Control Box With BNC
- 16 simultaneous, isolated, 24-bit analog inputs.

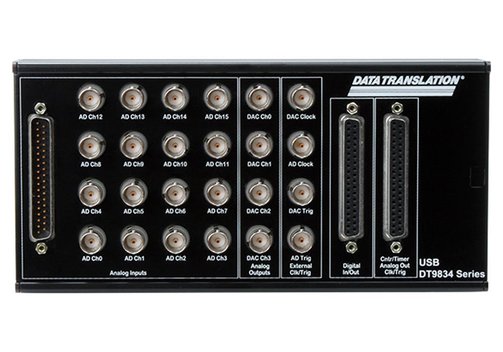

- Rugged metal housing with BNC connectors and D-sub.
- Tachometer, digital-I/O, and counter timer channels.
DT9826 Simultaneous Multifunction USB Data Acquisition Module
The DT9826 is a high-performance, multifunction DAQ module for USB at a Windows PC. The module offers 16 simultaneous analog inputs, 16 digital input/output lines, 2 counter/timers, and a tachometer channel on a single device (vailable as a board-level OEM version on request).
- 16 simultaneous analog input channels.
- 24 bit Delta-Sigma A/D conversion.
- ±10 V input range.
- Sample rates up to 41.6 kS/s per channel.
- Simultaneous subsystem operation: analog input, digital I/O, counter/timer, and tachometer.
- 16 digital-I/O channels, two 32-bit counter/timer channels, 1 tachometer channel.
- ±500 V galvanic isolation prevents ground loops.
- Compatible with LabVIEW and MATLAB.
- Includes free QuickDAQ software.
- USB 2.0 connectivity, bus-powered.
Model Overview
| Model | DT9826 (6069-410-136) | |
| Analog inputs | Number | 16 single-ended, simultaneous |
| A/D conversion | Sample rate up to 41.6 kS/s per channel; 24 bit Delta-sigma converters | |
| Range | ±10 V | |
| Isolation | ±500 V | |
| Trigger | External digital (TTL), analog threshold trigger, software | |
| Tachometer signal support | Range | ±30 V |
| Frequency | Max. 1 MHz | |
| Pulse width | Min. 0.4 µs | |
| Threshold voltage | Fixed at +2 V with 0.5 V of hysteresis | |
| Digital-I/O lines | Number | One digital input port consisting of 8 digital input lines; one digital output port consisting of 8 digital output lines |
| Counter/timer | Numnber, type | Two 32 bit counter/timers |
| Connectivity | USB | USB 2.0; USB LED indicator; USB-powered |
| Analog inputs | 16 BNC, and 2x BNC for ext. trigger, AD clock/tachometer | |
| Digital-I/O | 37-pin D-sub female | |
| Counter timer etc. | 37-pin D-sub female | |
Included: DT 9826, software and user manual via download.
