DT9834 High-Performance Multifunction USB Data Acquisition Module
Description
Files/Downloads
Benefits of the DT9834-16-4-16-BNC 16-bit, 500 kS/s DAQ Module
- 16 analog inputs, 16 bit, BNC, up to 500 kS/s.
- 4 analog outputs, 16 bit, BNC, continuous output mode or waveform mode.
- 16/16 digital-I/O and 5 multifunctional counters.

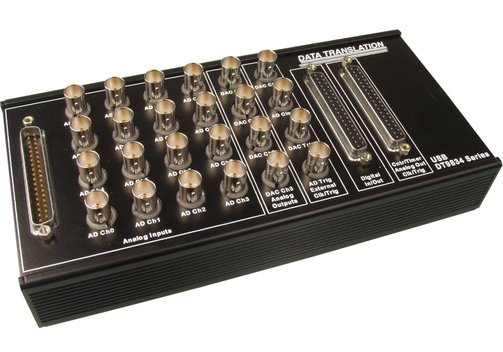

DT9834 High-Performance Multifunction USB Data Acquisition Module
The DT9834 is a high-speed, high-performance USB data acquisition module that provided simultaneous analog input, analog output, digital I/O, and counter/timer operations. The DT9834 module features 16 single-ended 16-bit analog inputs with BNC (up to 500 kS/s), 4 analog outputs with 16-bit and BNC, as well as 16 digital input lines, 16 digital output lines, and 5 counter/timer channels.
- Simultaneous subsystem operation: Analog input, analog output, digital I/O, counter/timer
- 16 single-ended analog.
- 16-bit resolution.
- Fast sampling 500 kS/s.
- 16 digital inputs, 16 digital outputs, 5 multifunctional counter/timers.
- 4 analog output channels.
- 16-bit deglitched D/A 500 kS/s per channel for waveform generation.
- ±500 V galvanic isolation protects signal integrity.
- BNC connectors for all analog channels.
- Includes free QuickDAQ software.
- Connected to a Windows PC via USB. Powered by an external power supply (included).
Model Overview
| Model | DT9834-16-4-16-BNC | |
| Analog inputs | Number | 16 single-ended |
| A/D conversion | 16 bit, 500 kS/s | |
| Ranges | Four programmable gains 1, 2, 4, 8 for input signal ranges ±10 V, ±5 V, ±2.5 V, ±1.25 V | |
| Analog outputs | Number | 4, continuous output mode or waveform mode |
| Range | ±10 V | |
| D/A conversion | 16 bit, 500 kS/s per channels | |
| Digital-I/O | Number | 16 inputs, 16 outputs |
| Counters | Number | 5, 32 bit, multifunctional |
| Galvanic isolation | ±500 V | |
| Connectivity | USB | USB 2.0 high-speed |
| Power supply | External power supply +5 V (included) | |

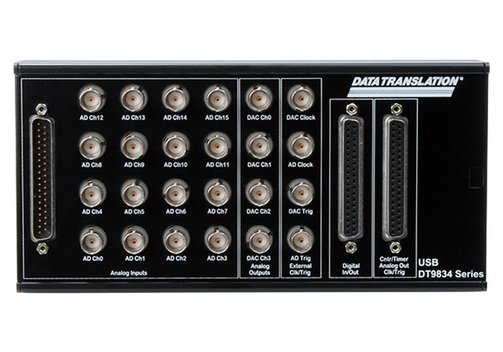

| Analog inputs | 16x BNC, additional 1x 37-pin D-sub male, 1x BNC AD trigger, 1x BNC AD clock | |
| Analog outputs | 4x BNC, 1x BNC DAC clock, 1x BNC DAQ trigger | |
| Digital-I/O | 1x 37-pin D-sub female | |
| Counters | 1x 37-pin D-sub female | |
Included: DT 9834, external powers upply, software and user manual via download.
