Keysight E36441A 400 W 4-Channel Autoranging DC Power Supply
Benefits of the E36441A Power Supply up to 160 W/32 V/10 A per channel
- 4 outputs with optional auto-series and auto-parallel.
- 160 W/32 V/10 A per channel, 400 W total.
- Low noise, precise programming/readback, fast transient response.
Part of ▸Keysight's Smart Bench Essentials Plus!

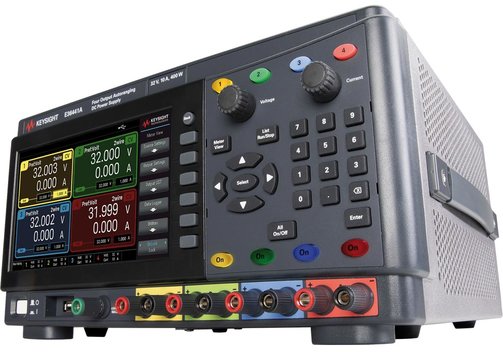

Keysight E36441A 4-Channel Autoranging DC Power Supply
The Keysight E36441A is a 4-channel DC power supply with autoranging function. With a total output of 400 W (160 W, 32 , 10 A per channel), it is ideal for use in testing ICs and components in consumer electronics, automotive (fan motors, sensors, ABS, infotainment, airbags, etc.) as well as in testing or R&D in general electronics. For a better overview, the channels on the entire panels and in the display are color-coded. The E364SNP add-on kit enables convenient serial or parallel connection of the channels.
- Autoranging DC power supply.
- 4 outputs.
- Total up to 400 W.
- 160 W, 32 V, 10 A each output.

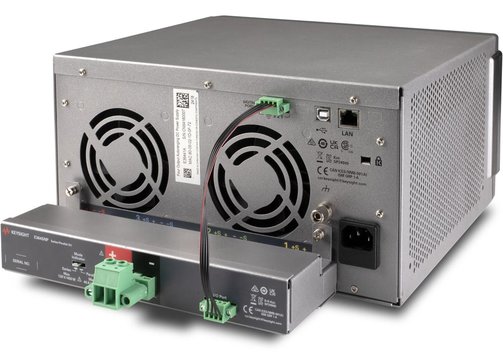

- Auto-series and auto-parallel up to 128 V and 40 A (with optional E364SNP kit).
- Output tracking.
- Output sequencing.
- Adjustable slew rate.

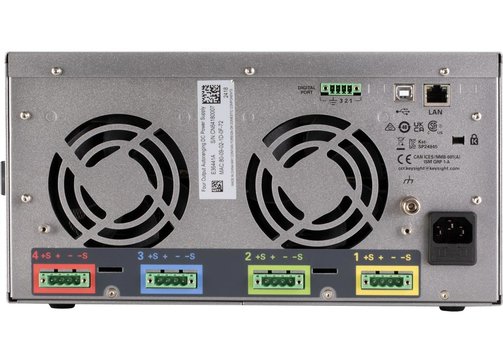

- 2- and 4-wire remote sense.
- Data logger.
- LIST mode.
- Protection: OVP (over voltage protection), OCP (over current protection), OTP (over temperature protection), prevent overshoot.
- Standard interfaces: USB and LAN/Ethernet.

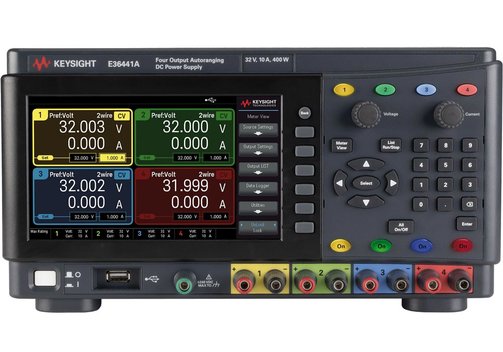

- 7"/17.8 cm display, colour-coded channels.
- Supported by web UI, Pathwave BenchVue, drivers for LabVIEW, IVI drivers.
Model Overview
| Model | Keysight E36441A |
| Channels | 4, auto-ranging; colour-coded channels, with 2-/4-wire remote sensing |
| Total power | 400 W |
| Output power per channel | 160 W |
| Output voltage per channel | 32 V |
| Output current per channel | 10 A |
| Serial/parallel modes | Up to 128 V and 40 A, requires optional E364SNP kit |
| Output ripple and noise (at approx. 23°C) | Normal mode voltage, VPP (20 Hz...20 MHz) <10 mV; normal mode voltage, VRMS (20 Hz...10 MHz) <1 mV |
| Load regulation (0...+40ºC) ±(% of output + offset) | Voltage <0.01% + 2 mV; current <0.1% + 5 mA |
| Line regulation (0...+40ºC) ±(% of output + offset) | Voltage <0.01% + 2 mV; current <0.1% + 5 mA |
| Accuracy | 12 months (23ºC ±5ºC) programming accuracy ±(% of output + offset): Voltage 0.06% + 6 mV; current 0.1% + 6 mA readback accuracy ±(% of output + offset): Voltage 0.05% + 5.5 mV; current 0.1% + 3.5 mA |
| Transient response | <55 µs |
| Prog. speed | Up 80 ms; down 60 ms |
| Protection and operating modes | OVP (over voltage protection), OCP (over current protection), OTP (over temperature protection), prevent overshoot |
| Further features | Output tracking (synchronize all outputs to output 1), LIST mode (program outputs by creating a pre-defined sequence/list), data logger, emulator mode for HMP4040 programming code |
| Display | 7"/17.8 cm LCD |
| Interfaces | LAN/Ethernet, USB host and device, digital port |
| Dimensions (mm) | 165 x 314 x 281; 11 kg |
Optional Accessories
| Model | Description |
| E364SNP | Series and parallel kit for E36441A |

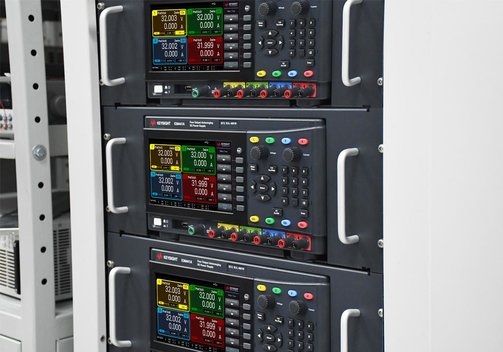

| E364RMK | Rack mount kit for E36441A |
| EDU190A | Instrument stacking kit - frame for stacking the devices |
