eX-9022 2 Analog Outputs, for RS485

Scaled Prices
taking 1 pc.
€ 309,40
taking 5 pc.
€ 297,02
taking 20 pc.
€ 284,65
taking 50 pc.
€ 272,27
taking 200 pc.
€ 259,90
309,40
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~3-10 workdays
Item available at short notice. Delivery Time ~3-10 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the eX-9022 2-Channel Analog Output Module, 12 bit, 0 to 10 V

  • 2 analog outputs, 12 bit.
  • Range 0...10 V.
  • Compact module, wall and DIN-rail mountable.

eX-9022 2 Analog Outputs, for RS485

The eX-9022 industrial modules are the ideal solution for decentral/distributed 2-channel analog output (12 bit, 0...10 V) with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485 for decentral/remote networking applications.
  • 2 analog outputs.
  • 12 bit D/A conversion, range 0...10 V.

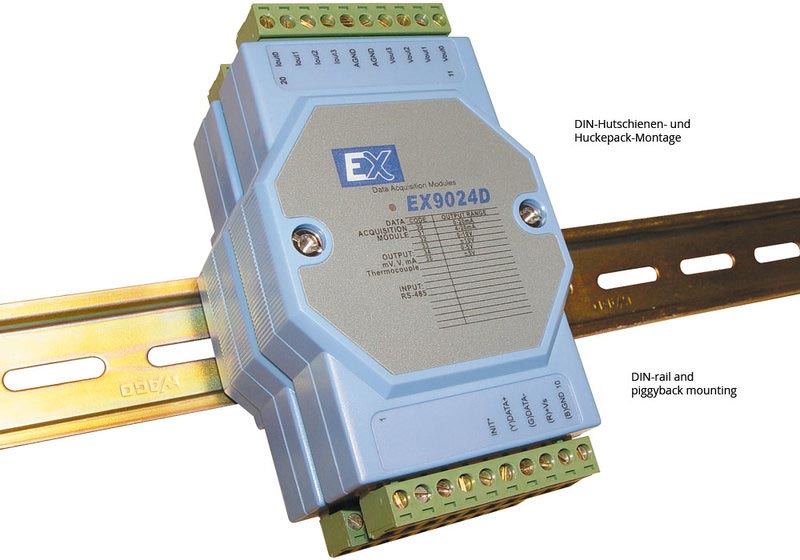

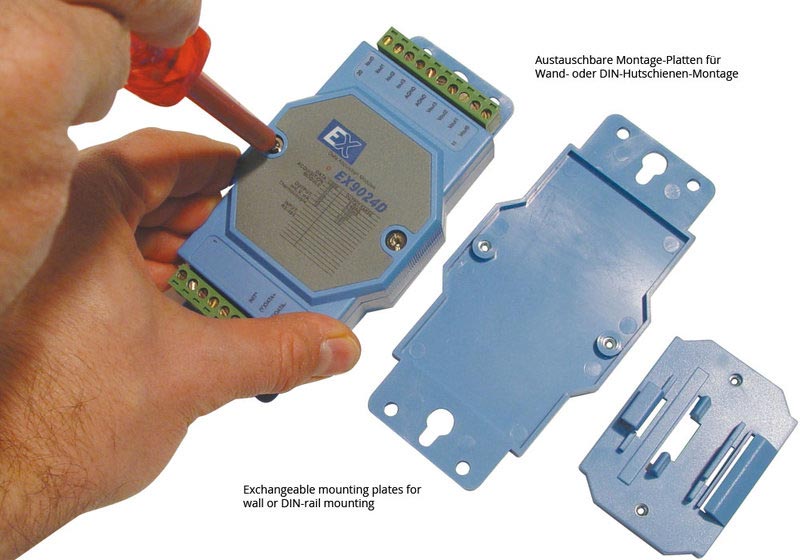

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

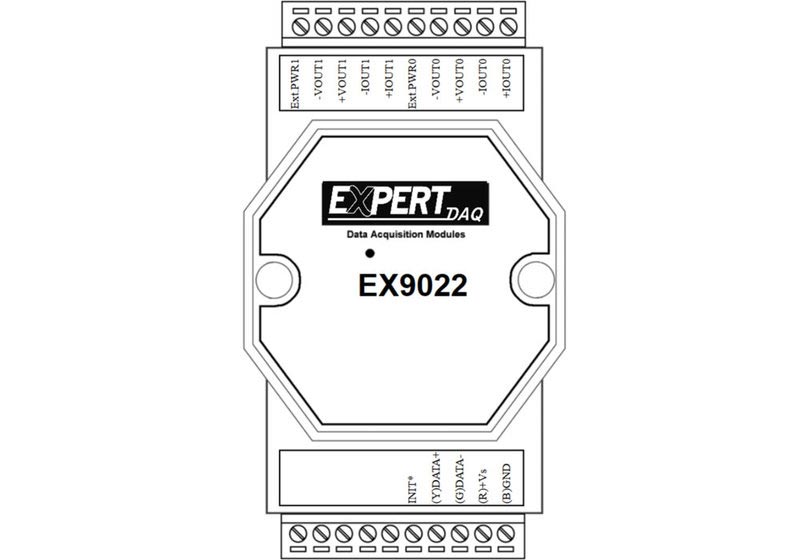

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9022
Available versionseX-9022
Channels2
Resolution12 bit
Voltage range0...10 V
Current range0...20 mA, 4...20 mA
Accuracy±0.1% of FSR
Read back±1% of FSR
DriftZero drift: ±30 µV/°C or ±0.2 µA/°C, span drift: ±20 ppm/°C
Isolation3000 V
Save value
Power-on value
Power consumption2.0 W
CommunicationRS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
