Benefits of the eX-9063 with 3 Type A, AC or DC Solid State Relays/SSR

3 type A relays, AC-SSR or DC-SSR/solid state relays.
7 or 8 additional digital inputs.
Modules for DIN-rail/wall mount with detachable screw terminals.

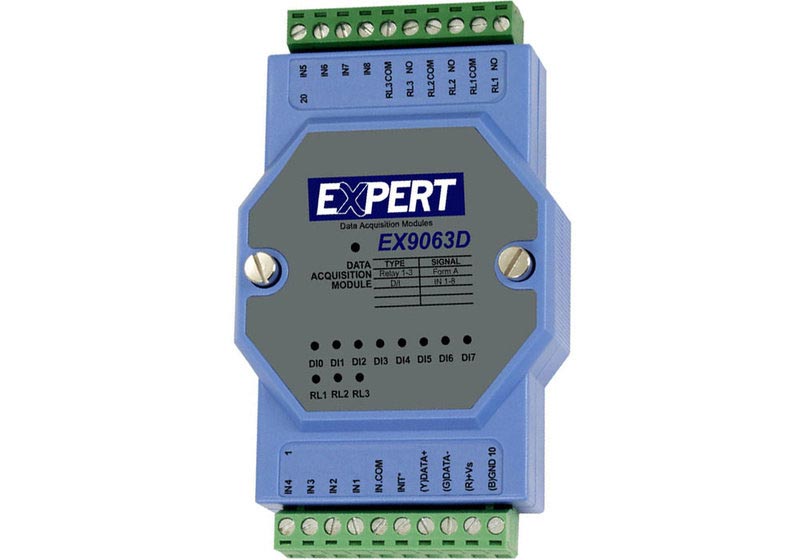

eX-9063 3 Relays (Type A, AC or DC SSR), for RS485

The eX-9063 are industrial modules for decentral, distributed signal switching controlled from a PC. The compact, rugged and reliable modules are the ideal solution for decentral remote-I/O networks. They are DIN-Rail or wall mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

Industrial modules with RS485 or MODbus-RTU for decentra networking solutions.
3 relays. Type A (5.0 A/250 VAC, 5.0 A/30 VDC) oder AC-SSR (1.0 A/24...265 V) or DC-SSR (1.0 A/3...30 V).

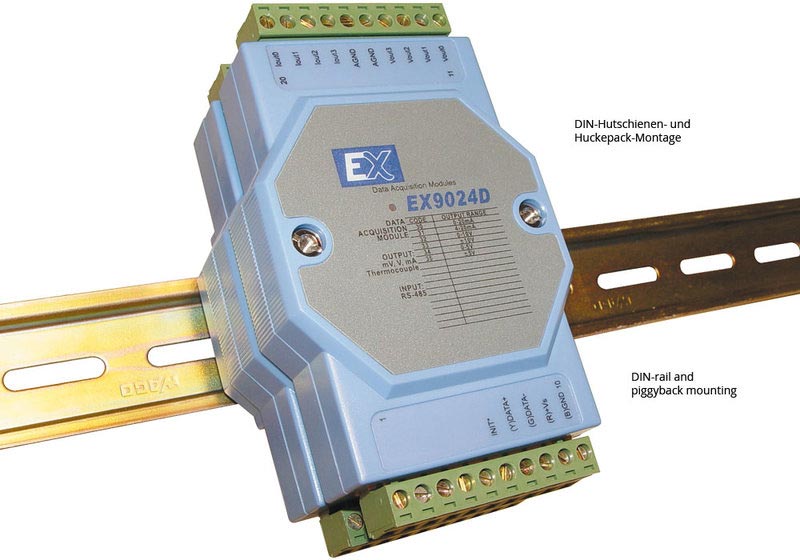

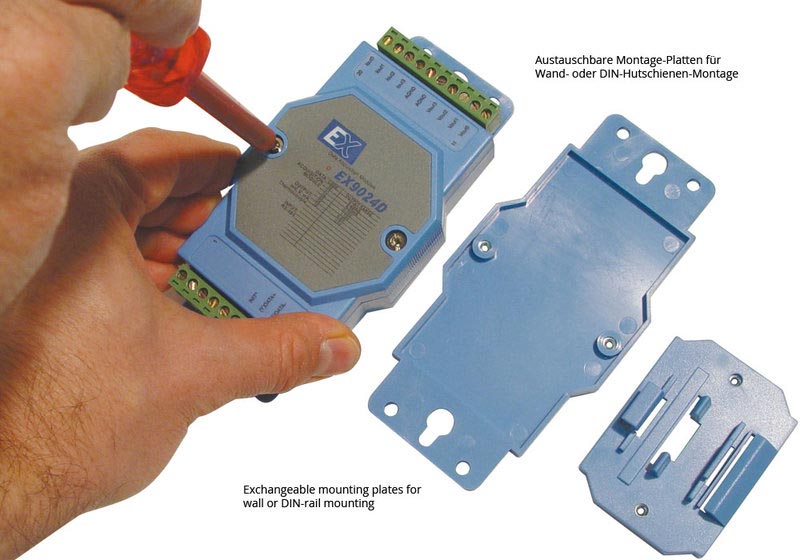

DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

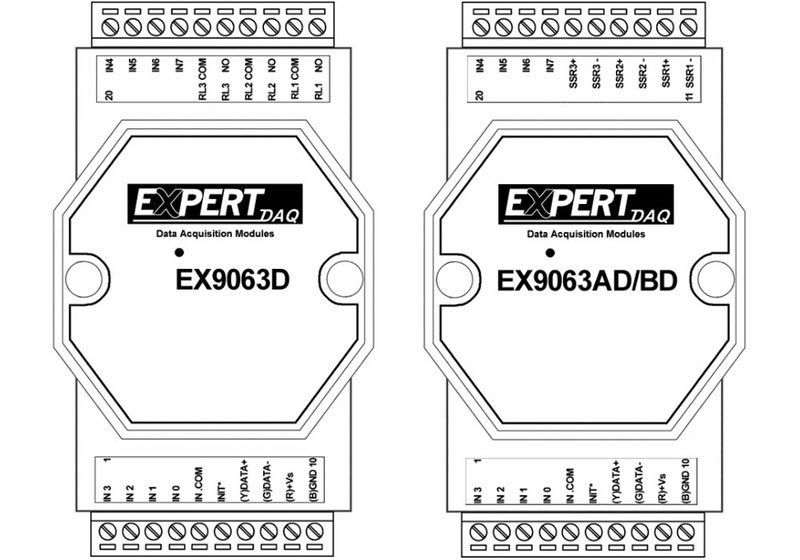

Pluggable screw terminals (signal connections, RS485, "INIT").
"INIT" input: Module reset.
Extended temperature range (-25...+70°C).
Galvanic isolation of input to output.
Configuration: Manual or with software (included).
Power supply 10...30 VDC.
Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
Hard- and software watchdog.

Model Overview

Model	eX-9063
Available versions	eX-9063D	eX-9063D-M	eX-9063AD	eX-9063AD-M	eX-9063BD	eX-9063BD-M	eX-9063-MTCP
Relay outputs	3 relays type A		3 relays AC-SSR		3 relays DC-SSR		3 relays, type A
On/off response time	6 ms/3 ms		1 ms/2 ms		1 ms/1 ms		6 ms/3 ms
Max. load	5.0 A/250 VAC, 5.0 A/30 VDC		1.0 A/24...265 V_eff		1.0 A/3...30 V		5.0 A/250 VAC, 5.0 A/30 VDC
Break down voltage	4000 V		2500 V_RMS		2500 RMS		4000 V
Digital inputs	8 single-ended, log. 0: 0...1 V, log. 1: 4...30 V						7 single-ended, common source/ground; dry/wet Contact; level 0/1 close to GND or max. 2 VDC/open or 4...30 VDC; inputs support 500 Hz counter.
Isolation	3750 V_RMS (common source)						3750 V_RMS (interface)
Power consumption	1.7 W				1.4 W		1.8 W
LED indicator per channel	✓		✓		✓		-
Communication	RS485, 300...115200 bps	Modbus-RTU RS485, 300...115200 bps	RS485, 300...115200 bps	Modbus-RTU RS485, 300...115200 bps	RS485, 300...115200 bps	Modbus-RTU RS485, 300...115200 bps	RJ45 Ethernet; Modbus/TCP, TCP/IP, UDP, ICMP, ARP

SSR = Solid state relays

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
