Keysight J720xA/B/C Attenuator Control Units
Scaled Prices
starting €
11.444,23
including VAT
free shipping (Germany)
close
Please fill in all fields.
Description
Files/Downloads

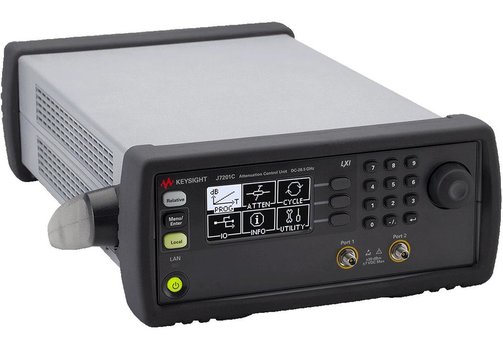

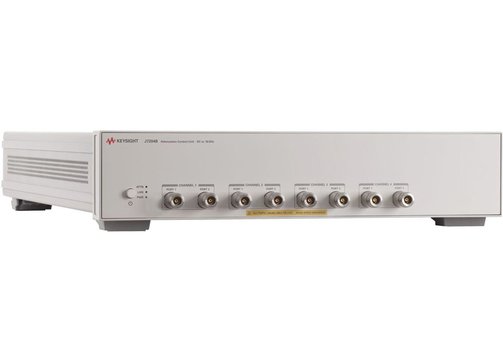

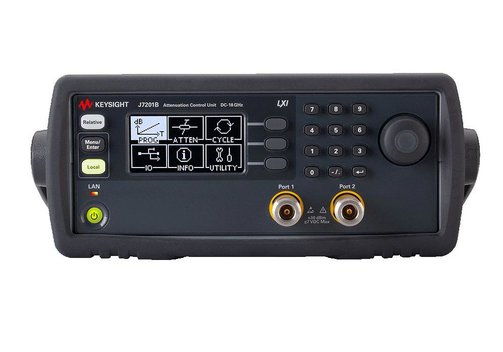

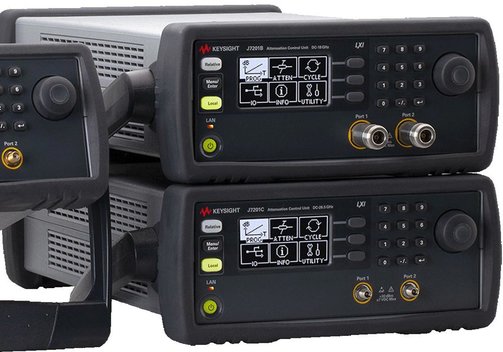

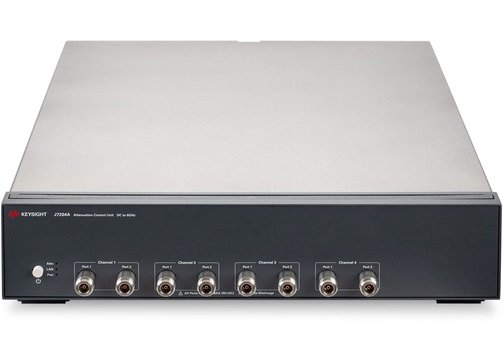

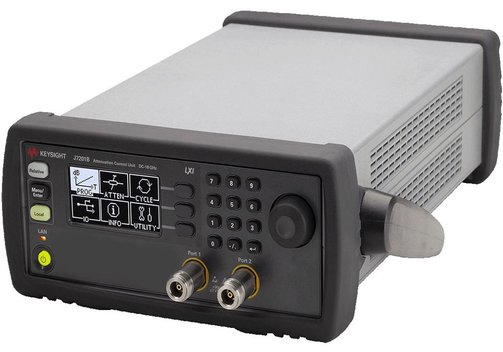

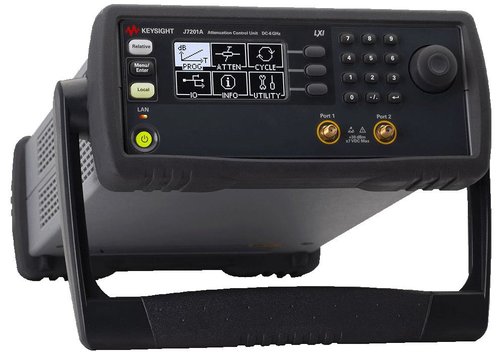

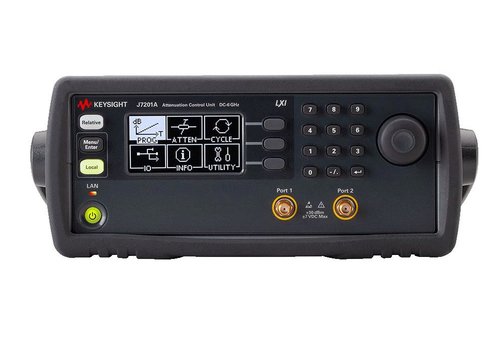

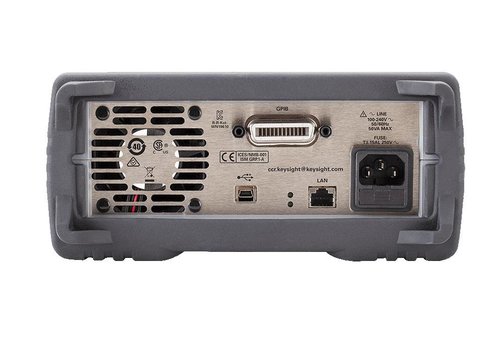

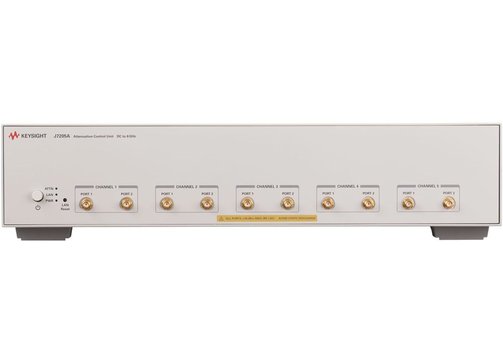

Keysight J7201A/B/C, J7204A/B, J7205A/B Attenuator Control Units
| Model | J7201A | J7201B | J7201C | J7204A | J7204B | J7205A | J7205B |
| Number of channels | 1 | 1 | 1 | 4 | 4 | 5 | 5 |
| Frequency | DC...6 GHz | DC...18 GHz | DC...26.5 GHz | DC...6 GHz | DC...18 GHz | DC...6 GHz | DC...18 GHz |
| Attenuation range | 121 dB | 121 dB | 101 dB | 121 dB | 121 dB | 121 dB | 121 dB |
| Attenuation step | 1, 5, 10 dB | 1, 5, 10 dB | 1, 5, 10 dB | 1 dB | 1 dB | 1 dB | 1 dB |
| Max. insertion loss at 0 dB | 2.5 dB | DC...6 GHz: 2.5 dB,6...18 GHz: 5.0 dB | DC...6 GHz: 2.5 dB, 6...18 GHz: 4.0 dB, 18...26.5 GHz: 5.0 dB | 2.5 dB | DC...6 GHz: 2.5 dB, 6...18 GHz: 5.0 dB | 2.5 dB | DC...6 GHz: 2.5 dB, 6...18 GHz: 5.0 dB |
| Return loss (VSWR) or SWR | 4 dB (1.50) | DC...6 GHz: 14 dB (1.50), 6...18 GHz: 10 dB (1.90) | DC...6 GHz: 16 dB (1.35), 6...18 GHz: 11 dB (1.78), 18...26.5 GHz: 7 dB (2.61) | Max. SWR 1.5 | Max. SWR DC...6 GHz: 1.50, 6...18 GHz: 1.90 | Max. SWR 1.5 | Max. SWR DC...6 GHz: 1.50, 6...18 GHz: 1.90 |
| Max. input average power | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W |
| Max. input peak power | n.s. | n.s. | n.s. | 100 W | 100 W | 100 W | 100 W |
| Operation life (n million cycles/section) | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Repeatability | 0.03 dB dB | 0.03 dB | 0.03 dB | 0.03 dB | 0.03 dB | 0.03 dB | 0.03 dB |
Options on request, please call.
