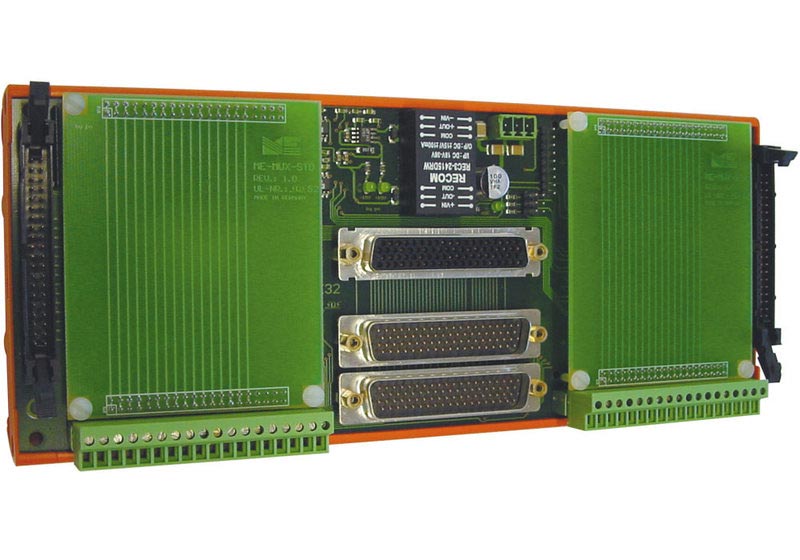

ME-MUX32-M Multiplexer Master

Obsolete - not available
This Article is currently not on stock. Please enter your mail and we will notify you when the product is back on stock.
Your request has been accepted
Your mail is incorrect!
The requested article couldnt be found!
An error occured!
Please accept the Privacy Policy
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

EOL/this product is obsolete and not available anymore.

Analog Multiplexer for Additional Analog Inputs

You may know the situation: There's never enough DAQ channels in a measurement system. And very often, speed is not the most important feature in real life applications, like temperature measurement for example. For applications like these you should consider the ME-MUX: With a DAQ board ME-Jekyll and a ME-MUX32 you get 47 analog inputs at a very low price per channel! Add up to 7 slave modules for up to 256 and more channels.

  • Save PC slots and money. Low cost solution for more DAQ channels.

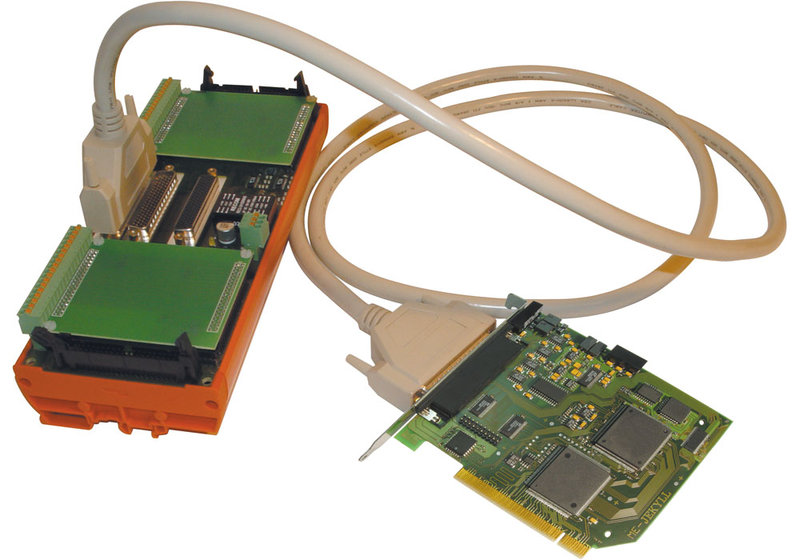

  • ME-MUX32-M for direct connectivity to boards of the ME-46x0 series (ME-4610, ME-4660, ME-4670, ME-4680) with 78-pin D-sub cable (1:1 contacted).
  • Multiplexing of 32 analog channels into one analog input of a DAQ board - PCI, PCI-Express, PXI/CompactPCI, Ethernet or USB (with ME-Synapse).
  • Mit zusätzlichen Slave-Modulen ME-MUX32-S bis zu 256-zu-1 und mehr Kanäle möglich. Maximale Ausbaustufe bis 8192 Eingänge.

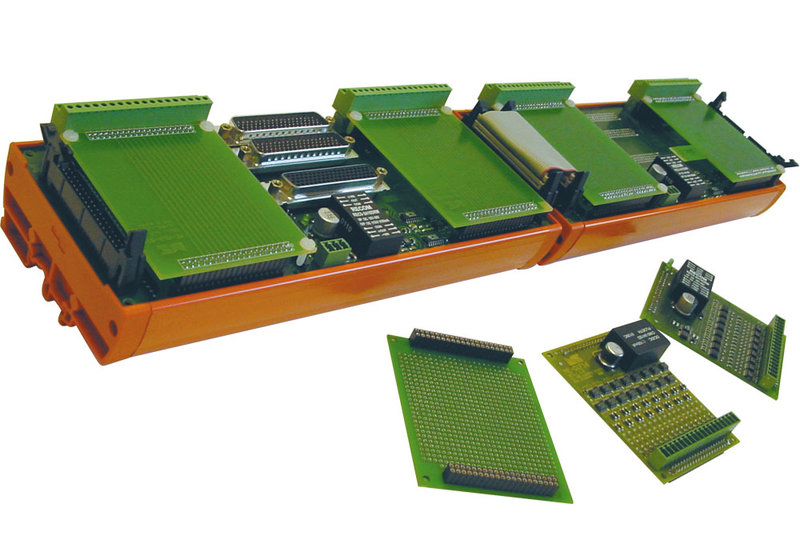

  • With additional slave modules, up to 256-to-1 and more channels are possible. Max. systems with up to 8192 analog inputs.
  • Remaining DAQ board signals (analog outputs, digital and counter channels) wired to an additional D-sub.
  • Digital outputs are used to control the multiplexer. So no special software is required.

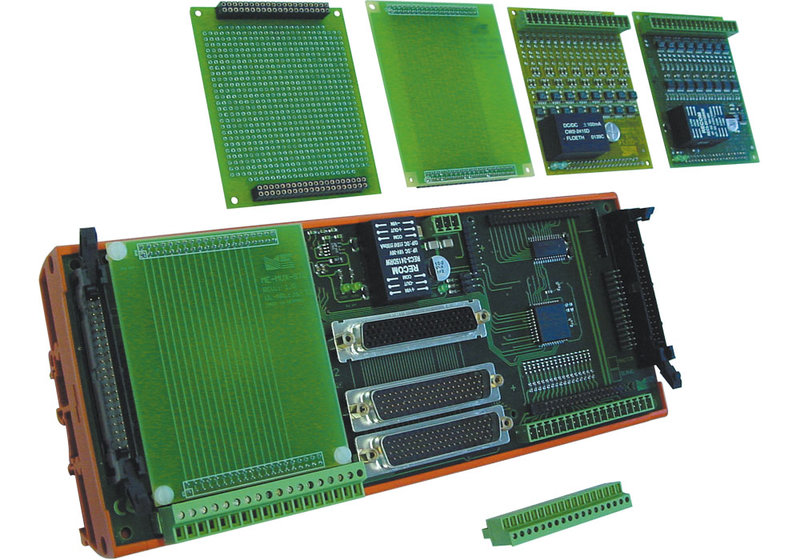

  • Optional flexible signal conditioning with plug-on modules (2 module slots), see ME-SIG32.
  • Timer controlled multiplexing with the ME-SylverFoXX/ME-4680.
  • Gain: Each 16 channel group has an individual software selectable gain of 1, 10 or 100.

Model Overview

ModelFunctionDirect connectivity with...
ME-MUX32-MMaster moduleMultiplexing of 32 analog channels to one analog input of a DAQ boardboards of the ME-46x0 series: ME-FoXX ME-4660, ME-4670, ME-4680 and ME-Jekyll ME-4610
ME-MUX32-SSlave moduleExpansion of a ME-MUX32-M. Up to 7 slave modules can be connected to a master module in series for one channel (256-to-1 MUX).ME-MUX32-M

Included: ME-MUX32-M or -S (master or slave module) with DIN-rail mountable card carrier. Up to 7 slave modules can be connected to one master. The ribbon cable is included with the slave modules.
