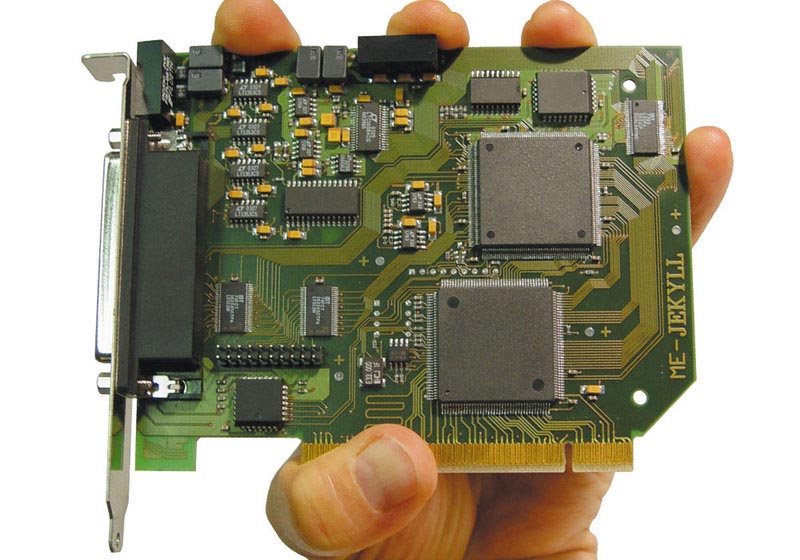

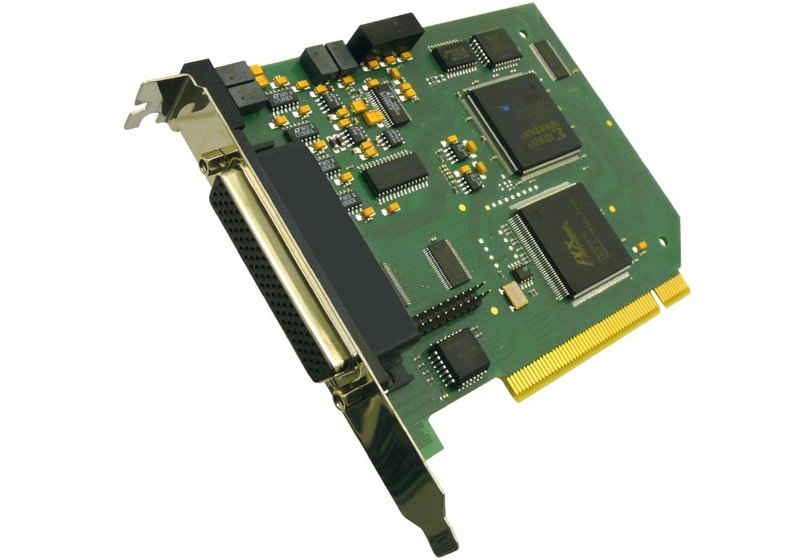

ME-Jekyll ME-4610 PCI 16 bit Analog DAQ Board

DAQ boards ME-Jekyll ME-4610
additional images:
Price
429,00*
€ 510,51 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
on stock
Delivery from stock
Description

Benefits

  • Multifunctional: Measurement and control with one board.
  • Professional quality at an affordable price.
  • English and German user manual.

Solid, high precision 16 bit universal DAQ board - economy model

This "economy model" offers you all the functions a professional DAQ board requires. In case it gets too "small" for your application one day, just replace the board with a model from the ME-FoXX ME-46x0 family. Advantages: Full compatibility of connectivity, software and functionality - just add the new functions.

  • 16 single-ended analog inputs. Range ±10 V.
  • High-precision 16 bit/max. 300 kHz A/D conversion (PC-dependent).
    External digital trigger.
  • 32 TTL digital I/O channels, grouped in 4x 8 bit ports.
    Each port programmable as input/output.
  • 3x 16 bit counters. All lines wired to the connector.

Model Overview

Model Analog inputs Analog outputs Digital-I/O Counters Opto-isolation Bus platform
ME-4610 (ME-Jekyll) - Analog DAQ PC-Board, Economy Model:
ME-4610 PCI 16 single-ended, ±10 V,
16 bit/max. 300 kHz (PC-dependent)
- 2x 16 (TTL) 3 (16 bit) - StandardPCI
» ME-4660 (ME-RedFoXX) - Analog Multifunctional PC Board, Basic Model
» ME-4670 (ME-SlyFoXX) - Analog Multifunctional PC Board, Enhanced Model
» ME-4680 (ME-SylverFoXX) - Analog Multifunctional PC Board, Top Model

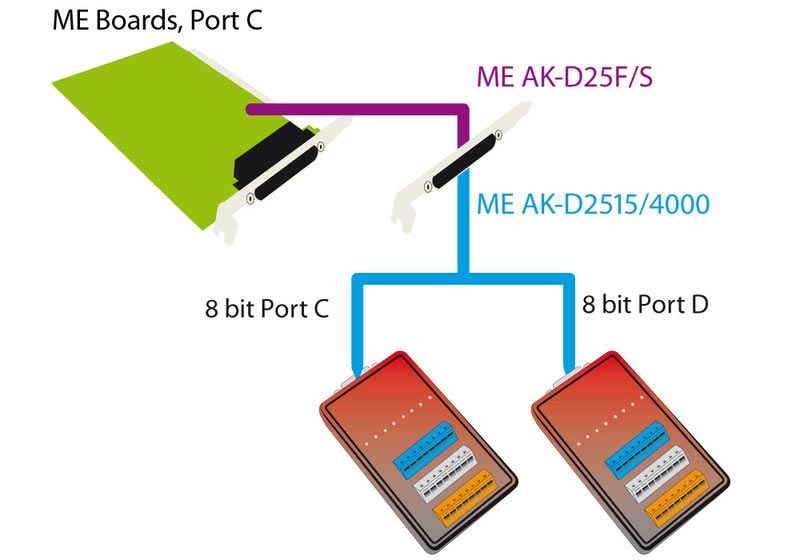

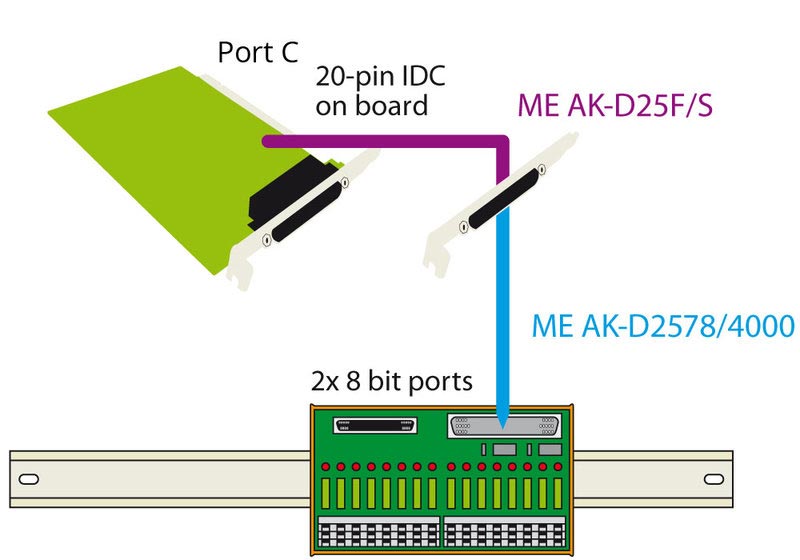

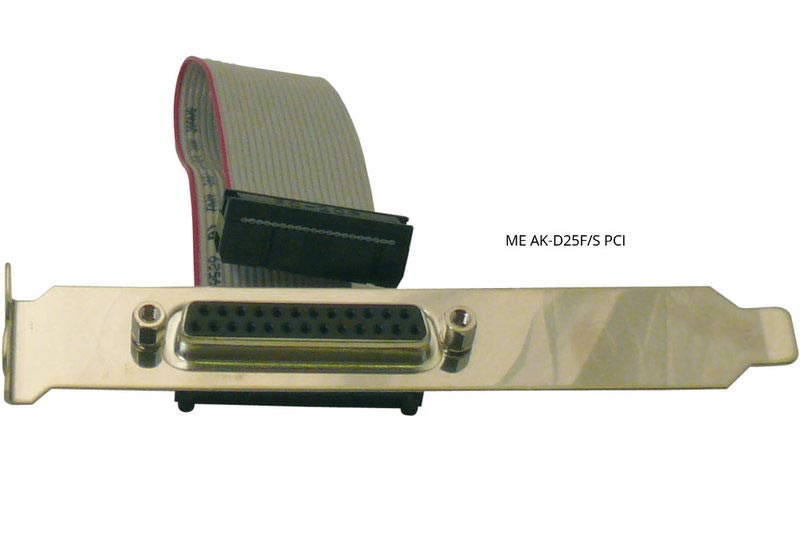

Included: Board, ME-Power-DVD with software and PDF manual, ME AK-D25F/S, 78- and 25-pin mating plug.
Software: Driver system ME-iDS for Windows, ME-PowerLab3
