Benefits of the MHO2024 and MHO2034 4-Channel DSOs up to 2 GS/s

  • 12 bit resolution, 200 oder 350 MHz bandwidth, 2 GS/s sample-rate on all channels.
  • Versatile functions and options: 16-channel mixed-signal/logic, signal-generator, serial trigger and decode and more.
  • Wide touch-screen and HDMI output.

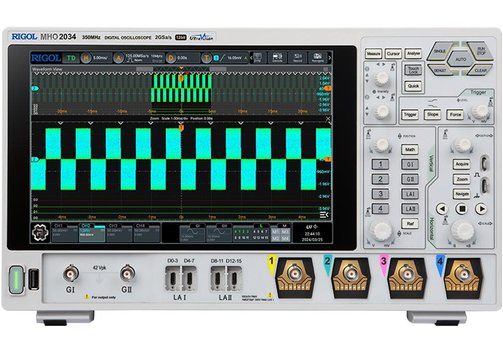

Rigol MHO2000 12 bit 350 MHz Mixed-Signal Oscilloscope Allrounder

The Rigol MHO2000 series is a family of high-resolution 4-channel digital mixed-signal oscilloscope designed for the vast mainstream digital oscilloscope market to meet the design, debugging, and test demands. It is developed based on RIGOL's self-developed Centaurus technical platform. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500  Mpts memory depth, 12-bit resolution, excellent noise floor and vertical measurement accuracy can meet the test demands for higher accuracy. The MHO2000 series digital oscilloscope supports an arbitrary waveform generator, digital signal analysis, Bode plot, and other functions. It is powered by battery pack, applicable for various complex test scenarios.

  • 12-bit resolution.
  • Max. 200 MHz or 350 MHz bandwidth, 4 analog channels, and 1 external trigger channel.
  • Standard configuration of 16 digital channels (requires purchase of optional logic analyzer probe).
  • Real-time sample rate up to 2 GS/s.
  • Max. memory depth 500 Mpts.
  • Vertical sensitivity up to 200 µV/div.
  • Max. waveform capture rate of 1,000,000 wfms/s (in fast recording mode).
  • Various standard and optional features: Function/arbitrary waveform generator, power analysis, histogram, digital signal analysis, Bode plot, and protocol decodings.
  • Search and navigation functions enable users to quickly search for the signals with exceptions and locate them accurately.
  • 256-level intensity grading display, with digital real-time fluorescence technology.
  • 10.1"/25.7 cm 1280x800 high-definition touch screen.
  • Flex knob brings friendly user experience.

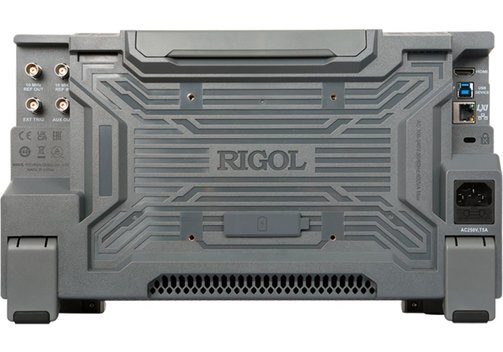

  • Standard configuration of USB host and device, LAN, HDMI interfaces.
  • Battery pack-powered, convenient to charge anytime and anywhere, providing great feasibility for measurement.
  • Online upgrade.
  • Standard configuration of the photoelectric encoder operating knob to improve the service life of the instrument.

Model Overview

ModelMHO2024MHO2034
Analog bandwidth (50 Ω and 1 MΩ, -3 dB)200 MHz350 MHz
Analog channels4 + 1 EXT channel
Max. sample rate2 GS/s on all channels; sampling mode: Real-time sampling
Resolution12 bit
Max. memory depth500 Mpts (half-channel), 250 Mpts (full-channel);
half-channel mode: When CH1 and CH3 are both enabled, or when CH2 and CH4 are both enabled;
full-channel mode: If all of the channels are enabled
Max. waveform capture rate200,000 wfms/s (in vector mode); 1,000,000 wfms/s (in record mode)
Max. frames of waveform recordingMax. 500,000 frames
MSO/mixed signal16 digital/logic channels
TriggerTrigger sources: Analog channel (1...4), EXT TRIG, AC line; trigger modes: Auto, normal, single; trigger types - standard: Edge trigger, pulse trigger, slope trigger, video trigger, pattern trigger, duration trigger, timeout trigger, runt trigger, window trigger, delay trigger, setup/hold trigger, n-th edge trigger, I2C trigger, SPI trigger, RS232/UART trigger, and CAN trigger; - optional: CAN-FD trigger, LIN trigger, FlexRay trigger, I2S trigger, and MILSTD-1553 trigger
Serial decodingNumber of decodings: Four protocol types can be decoded and enabled at the same time; available decoding types - standard: Parallel, RS232/UART, I2C, SPI, and CAN, - optional: LIN, CAN-FD, FlexRay, I2S, and MIL-STD-1553
Additional functions/optionsDigital voltmeter, high precision frequency counter, Bode plot
Signal generator option2 channels function and arbitrary waveform generator, sample rate 1 GS/s, 16 bit, max. 50 MHz (sine);
basic waveforms: Sine, square, pulse, ramp, and noise; built-in waveforms: DC, sinc, exp. rise and fall, ECG1, Gauss, Lorentz, and Haversine; arbitrary; modulations: AM, FM, PM
Processor systemProcessor Cortex-A72 1.8 GHz + Cortex-A53 1.4 GHz 6-core, system memory 4 GB RAM, operating system Android, onternal non-volatile memory 128 GB
Display10.1"/25.7 cm capacitive multi-touch screen, gesture enabled operation, resolution 1280x800 (screen region) 16:9; HDMI
InterfacesUSB 3.0 host and device, LAN/Ethernet

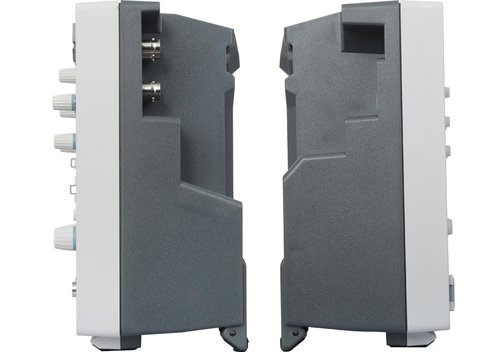

Dimensions (mm)335 x 235 x 154; 5.3 kg

Included: Oscilloscope MHO 2024 or 2034, power cord, USB cable, 4x passive high-impedance probe PVP2350.

Accessories and Options

ModelDescription
MHO2000-PWRAPower analysis option
MHO2000-AUDIOAI2S audio bus triggering and analysis option
MHO2000-AUTOACAN-FD, LIN bus triggering and decoding option
MHO2000-SENTASENT triggering and decoding option
MHO2000-FLEXAFlexRay triggering and decoding option
MHO2000-AEROAMIL-STD-1553 bus triggering and decoding option
MHO2000-AWGBuilt-in dual-channel 50 MHz function signal generator option
MHO2000-BNDBND option, include MHO2000-PWRA, MHO2000-AUDIOA, MHO2000-AUTOA, MHO2000-SENTA, MHO2000-FLEXA, MHO2000-AEROA, MHO2000-AWG
PLA32044-channel logic analyzer probe x4
