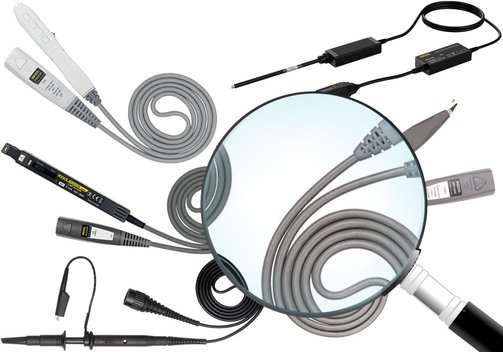

Rigol Probes - Overview
Depending on the model, recommended for Rigol oscilloscopes and other brands.
Overview Rigol Passive Probes
Model Overview
| Model | Attenuation | Bandwidth | Rise time | Input impedance, compensation | Max. input voltage | Cable length | Remarks, applications |
| ▸PVP2150 | 1:1/10:1 | 1x: DC...35 MHz; 10x: DC...150 MHz | 1x: 10 ns; 10x: 2.3 ns | 1x: 1 MΩ 10x: 10 MΩ; 10...25 pF | 1x: CAT II 150 V; 10x: CAT II 300 V | 1.2 m | For use with all Rigol scopes and others; passive high resistance probe for small signal test (1x), general purpose test |
| ▸PVP2350 | 1:1/10:1 | 1x: DC...35 MHz; 10x: DC...350 MHz | 1x: 10 ns; 10x: 1 ns | 1x: 1 MΩ 10x: 10 MΩ; 10...25 pF | 1x: CAT II 300 V; 10x: CAT II 300 V | 1.2 m | For use with all Rigol scopes and others; small signal test (1x), general purpose test |
| ▸RP1300H | 100:1 | DC...300 MHz | 1.2 ns | 100 MΩ; 10...35 pF | CAT I 2000 V; CAT II 1500 V | 1.35 m | For use with all Rigol scopes and others; high voltage test |
| ▸RP3500A | 10:1 | DC...500 MHz | n. s. | 10 MΩ; 6...24 pF | CAT II 300 V | 1.4 m | For use with all Rigol scopes and others; general purpose test |
| ▸RP5600A | 10:1 | DC...600 MHz | n. s. | 10 MΩ; 6...26 pF | CAT II 300 V | 1.4 m | For use with all Rigol scopes and others; general purpose test |
| ▸RP6150A | 10:1 | DC...1.5 GHz | n. s. | 500 Ω | CAT I 7 V | 1.4 m | For use with all Rigol scopes and others; RF small signal Test |
| ▸RP1010H | 1000:1 | DC...40 MHz | ≤8.8 ns | 100 MΩ/3 pF; 5...50 pF | 0...10 kVDC; AC pulse ≤20 kVpeak-peak; AC sine ≤7 kVRMS | 2 m | For use with all Rigol scopes and others; high voltage test |
| ▸RP1018H | 1000:1 | DC....150 MHz | 2.4 ns | 200 MΩ/1.5 pF; 10...35 pF | CAT II 18 kV (DC+AC peak); CAT II 12 kV (AC RMS) | 2 m | For use with all Rigol scopes and others; high voltage test |
Overview Rigol Active Probes - Single-Ended and Differential
Model Overview
| Model | Type | Attenuation | Bandwidth | Rise time | Input impedance | CMRR | Remarks |
| ▸PHA0150 | diff., high voltage | x50, x500 | 70 MHz | ≤5 ns | 5 MΩ/<4 pF (input to GND); 10 MΩ/<2 pF (between diff. inputs) | DC: >80 dB; 100 kHz: >60 dB; 1 MHz: >50 dB; 3.2 MHz: >30 dB; 50 MHz: >>26 dB | For use with all Rigol scopes; power supply external (USB-type) |
| ▸PHA1150 | diff., high voltage | x50, x500 | 100 MHz | ≤3.5 ns | |||
| ▸PHA2150 | diff., high voltage | x50, x500 | 160 MHz | ≤2.4 ns; | |||
| ▸PVA7250 | se./diff. | 10x | 2.5 GHz | <140 ps | 25 kΩ single-ended, 50 kΩ differential; <1 pF | >45 dB at 1 MHz | Power supply from Rigol scope |
| ▸PVA8150S | se. | 10x | 1.5 GHz | <250 ps | 1 MΩ/<1 pF | - | Power supply from Rigol scope |
| ▸RP1025D | se./diff. | x20, x50, x200 | 25 MHz | x50/x200: 14 ns; x20: 23.4 ns | 4 MΩ/1.2 pF differential; 2 MΩ/2.3 pF single-ended | 60 Hz: >80 dB; 100 Hz: >60 dB; 1 MHz: >50 dB | For use with all Rigol scopes; power supply external 9 VDC; for high voltage differential/single-ended signal test |
| ▸RP1050D | se./diff. | x100, x200, x500, x1000 | 50 MHz | x200/x500/x1000: 7 ns; x100: 14 ns | 100 MΩ/1.2 pF differential; 50 MΩ/2.3 pF | 60 Hz: >80 dB; 100 Hz: >60 dB; 1 MHz: >50 dB | For use with all Rigol scopes; power supply external 9 VDC; for high voltage differential/single-ended signal test |
| ▸RP1100D | se./diff. | x100, x200, x500, x1000 | 100 MHz | x200/x500/x1000: 3.5 ns; x100: 7 ns | 100 MΩ/1.2 pF differential; 50 MΩ/2.3 pF | 60 Hz: >80 dB; 100 Hz: >60 dB; 1 MHz: >50 dB | For use with all Rigol scopes; power supply external 9 VDC; for high voltage differential/single-ended signal test |
| ▸RP7080 | se./diff. | 10:1 | 800 MHz | <265 ps | 50 kΩ differential; 24 kΩ single-ended | >45 dB at 1 MHz | Power supply from Rigol scope; differential/single-ended high frequency signal test |
| ▸RP7150 | se./diff. | 10:1 | 1.5 GHz | <465 ps | 50 kΩ differential; 24 kΩ single-ended | >45 dB at 1 MHz | Power supply from Rigol scope; differential/single-ended high frequency signal test |
| ▸RP7080S | se. | 10:1 | 800 MHz | <265 ps | 100 kΩ/<1 pF | - | Power supply from Rigol scope; single-ended high frequency signal test |
| ▸RP7150S | se. | 10:1 | 1.5 GHz | <465 ps | 100 kΩ/<1 pF | - | Power supply from Rigol scope; single-ended high frequency signal test |
Overview Rigol Current Probes
Model Overview
| Model | Bandwidth | Rise time | Current | Diameter | Remarks |
| ▸PCA1030 | DC...50 MHz | ≤7 ns | 30 ARMS | 5 mm | For use with all Rigol scopes |
| ▸PCA2030 | DC...100 MHz | ≤3.5 ns | 30 ARMS | 5 mm | For use with all Rigol scopes |
| ▸PCA1150 | DC...10 MHz | ≤35 ns | 150 ARMS | 20 mm | For use with all Rigol scopes |
| ▸PCA1500 | DC...2 MHz | ≤175 ns | 500 ARMS | 20 mm | For use with all Rigol scopes |
| ▸RP1001C | DC...300 kHz | n. s. | Max. DC: ±100 A; AC peak-peak: 200 ; AC RMS: 70 A | 11 mm | For use with all Rigol scopes; external power supply or battery powered |
| ▸RP1002C | DC...1 MHz | n. s. | Max. DC: ±70 A; AC peak-peak: 140 A; AC RMS: 50 A | 11 mm | For use with all Rigol scopes; external power supply or battery powered |
| ▸RP1003C | DC...50 MHz | ≤7 ns | Max. AC peak: 50 A (non-continuous); AC RMS: 30 A | 5 mm | For use with all Rigol scopes; external power supply |
| ▸RP1004C | DC...100 MHz | ≤3.5 ns | Max. AC peak: 50 A (non-continuous); AC RMS: 30 A | 5 mm | For use with all Rigol scopes; external power supply |
| ▸RP1005C | DC...10 MHz | ≤35 ns | Max. AC peak: 300 A (non-continuous)/500 A (at pulse width ≤30 ms); max. RMS: 150 A | 20 mm | For use with all Rigol scopes; external power supply |
| ▸RP1006C | DC...2 MHz | ≤175 ns | Max. RMS: 500 A (continuous); max. AC peak: 700 A (non-continuous) | 20 mm | For use with all Rigol scopes; external power supply |
