PicoScope Probe Holder System
Description
Files/Downloads
PicoScope Probe Holder System
This range of probe holders is used to hold 2.5 mm passive probes (Pico Technology or othersuppliers). The system is designed to free up the user to operate the PicoScope or other test equipment and overcomes the issue of holding multiple probes at once. It has the following features:
- For use with 2.5 mm passive probes from Pico Technology or other suppliers.
- Ideal accessory for the PicoScope 6000E series and other oscilloscopes/measurement systems.

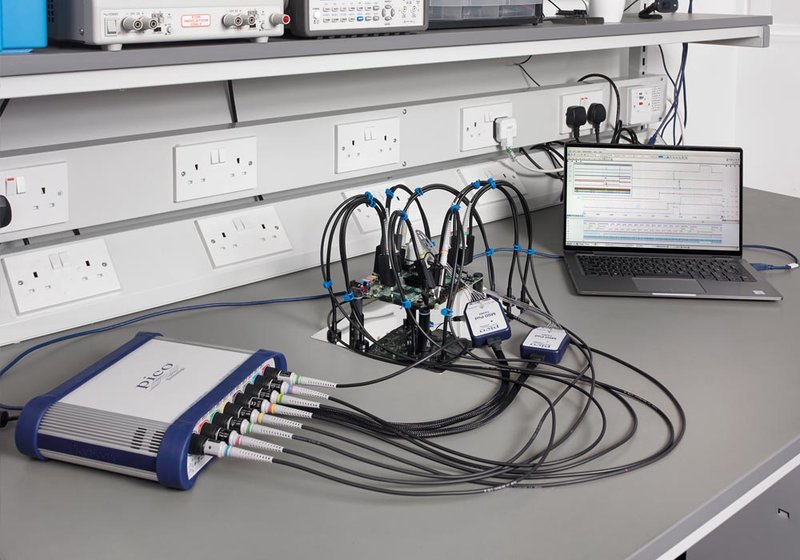

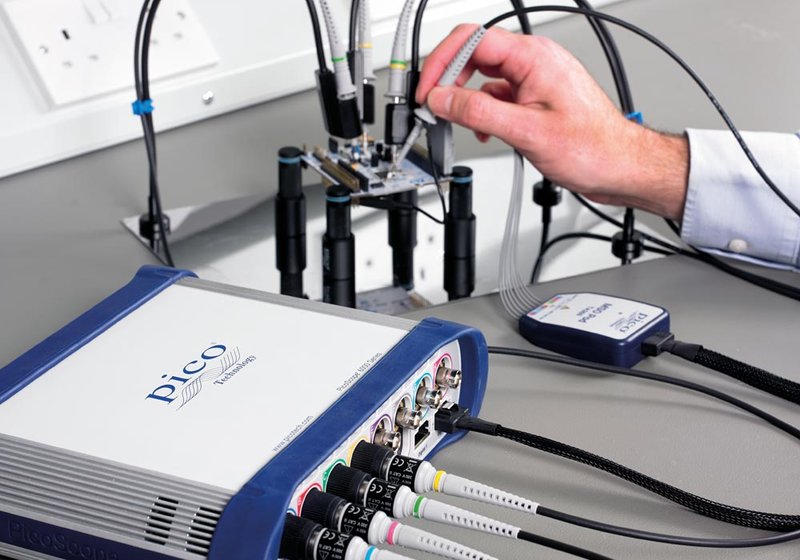

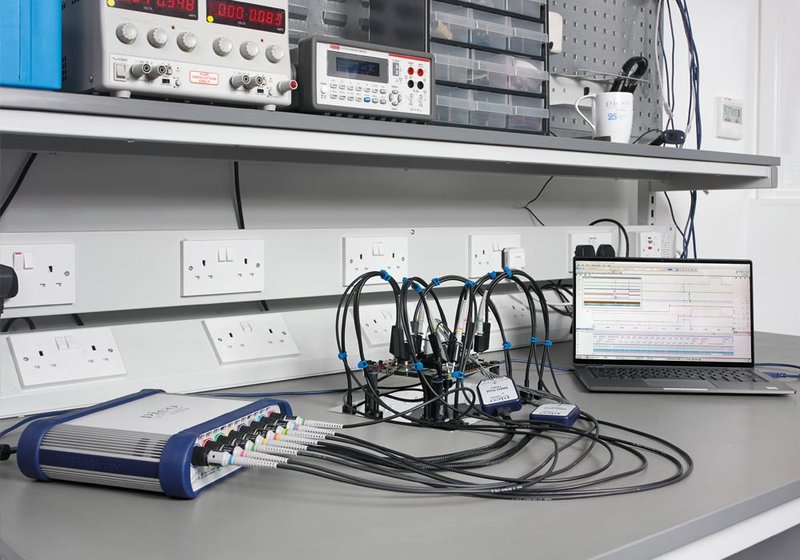

- Unique system for firmly holding a PCB in position whilst accurately positioning up to 8 probes.
- A 'mirror finish' stainless steel base plate that allows the user to view the underside of the PCB and view any status LEDs.
- Magnetic PCB holders, free positioning, holds firmly in place.
- "Goose neck" probe holders allow flexible positioning of 2.5 mm passive probes whilst holding them firmly.
Model Overview
| Model | Description |

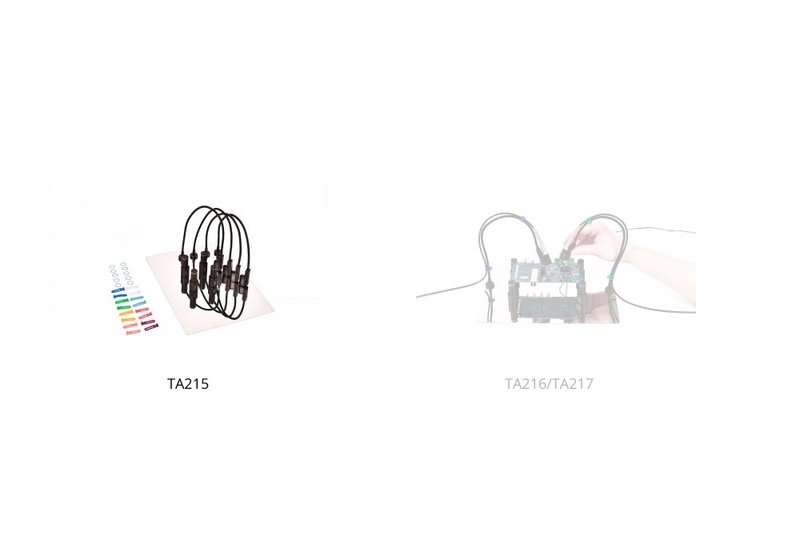

| PQ215 | Base probe holder kit (probes not included) |

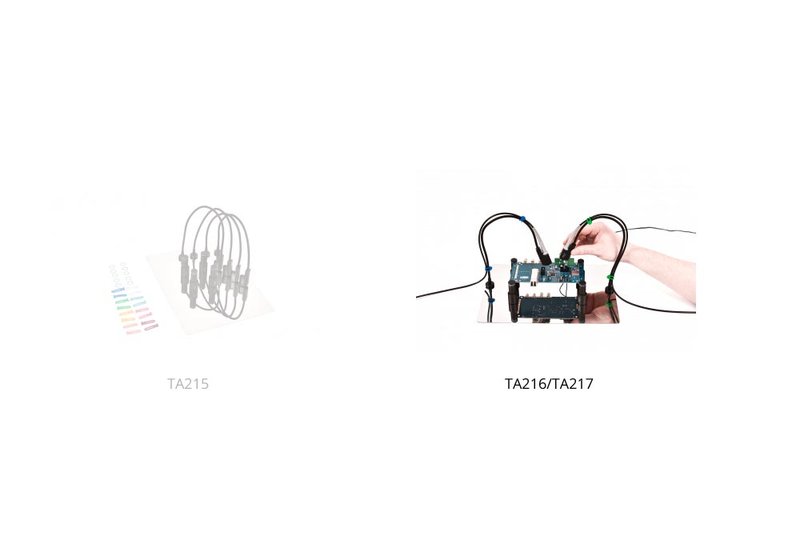

| PQ216 | Pico probe holder kit with 4x P2036 300 MHz probes |
| PQ217 | Pico probe holder kit with 4x P2056 500 MHz probes |
| PQ218 | 4 probe holders, no probes |

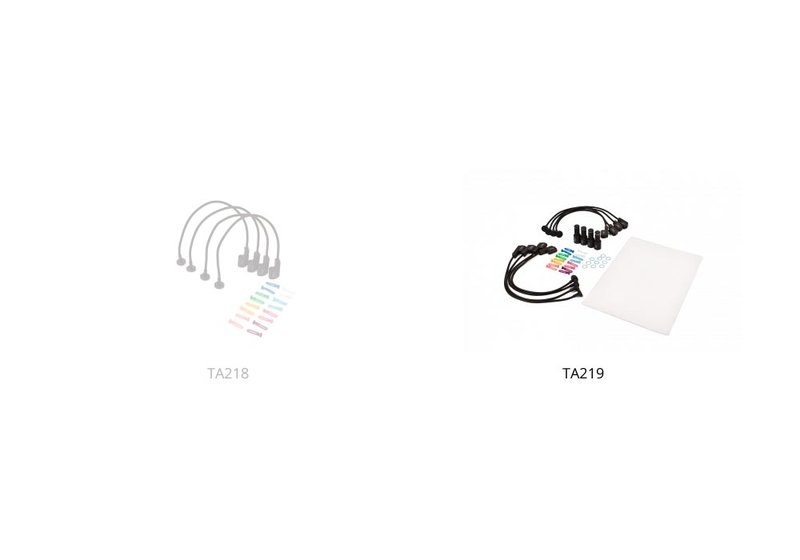

| PQ219 | PicoScope 6800E 8 channel probe holder upgrade kit |

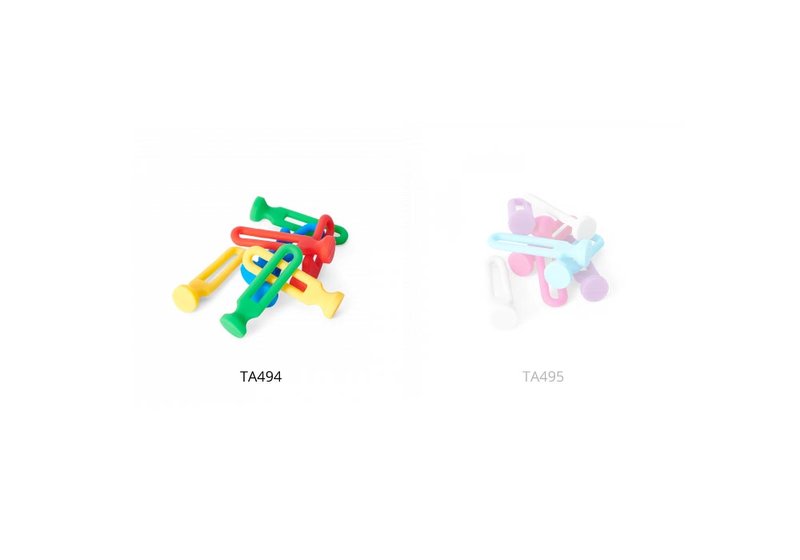

| TA494 | Cable ties A-D; set of cable holders channels A-D |

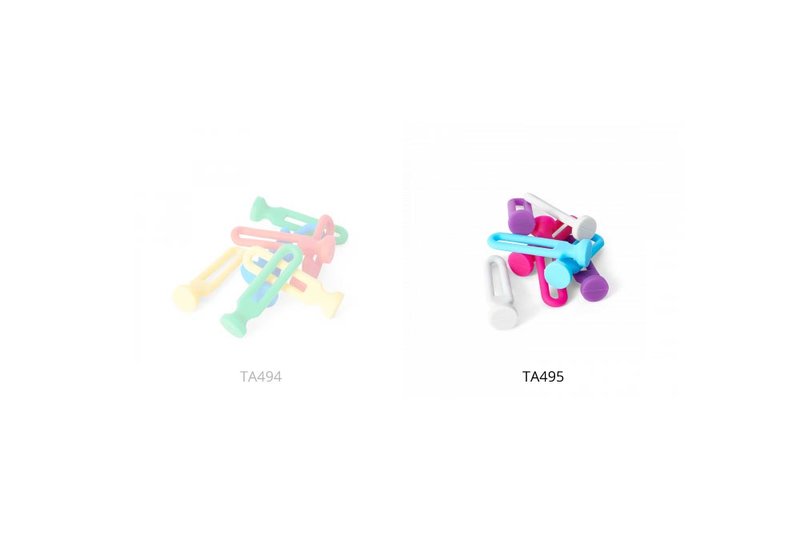

| TA495 | Cable ties E-H; set of cable holders channels E-H |
Probe Positioning System - Kit Contents
| Model | PQ215 kit | PQ219 kit | PQ218 kit |
| PCB holder | 4 | 4 | - |
| Base plate, 210 x 297 mm | 1 | 1 | - |
| Set of insulation washers for PCB holders | 1 | 1 | - |
| Probe holder, 2.5 mm | 4 | 8 | 4 |
| Set of cable holders channels A-D | 1 | 1 | 1 |
| Set of cable holders channels E-H | 1 | 1 | 1 |
| P2056 500 MHz 10:1 passive BNC probe | - | 4 | - |
| If you already own a PicoScope 6000E with four probes, this kit is the ideal add-on | Upgrade your PicoScope 6000E from four to eight probes, and add eight probe holders | Four extra probe holders |
