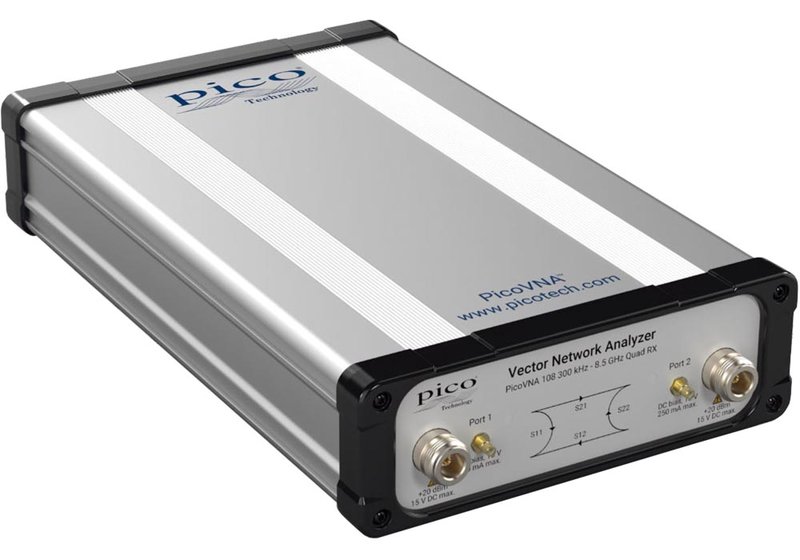

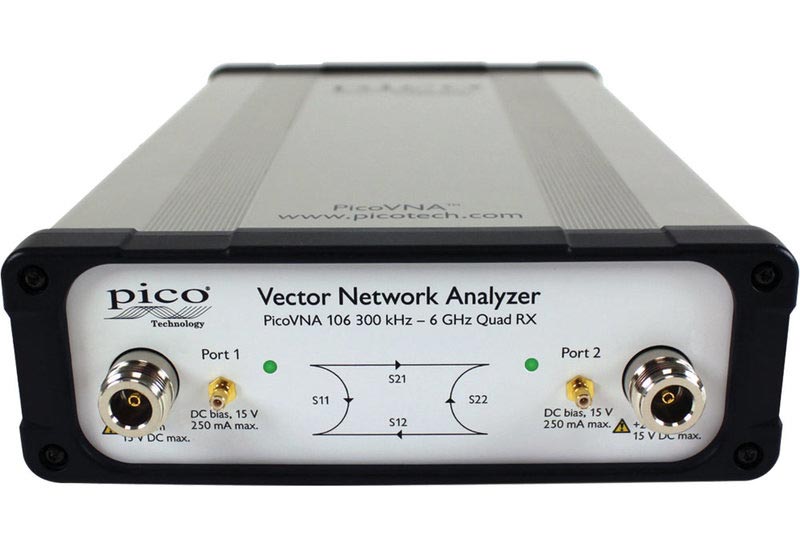

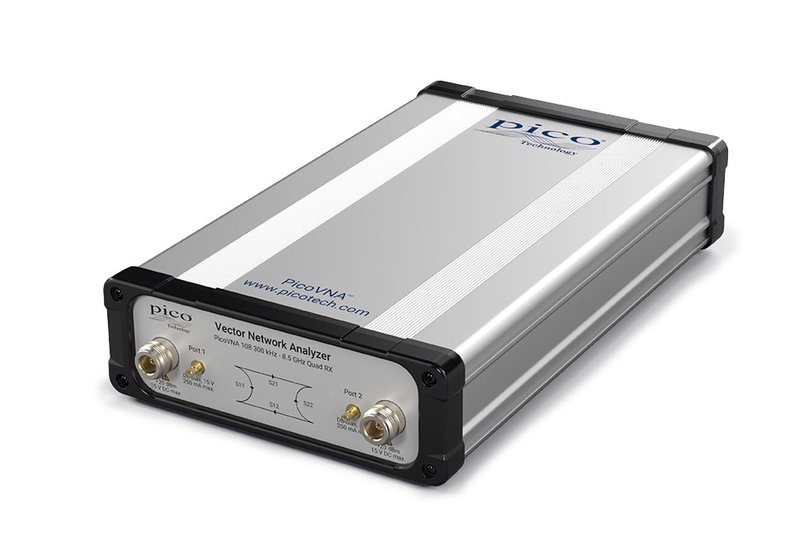

PicoVNA-106/108 (PQ111/112) - 6/8.5GHz vector network analyzers
additional images:
Price
List price € 5.085,00
starting 4.925,00*
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • 6 or 8.5 GHz vector network analyzer, up to 124 dB dynamic range.
  • High accuracy and high speed, up to 5500 dual-port S-parameters per second.
  • Affordable, compact, portable and rugged USB 2.0 modular device.

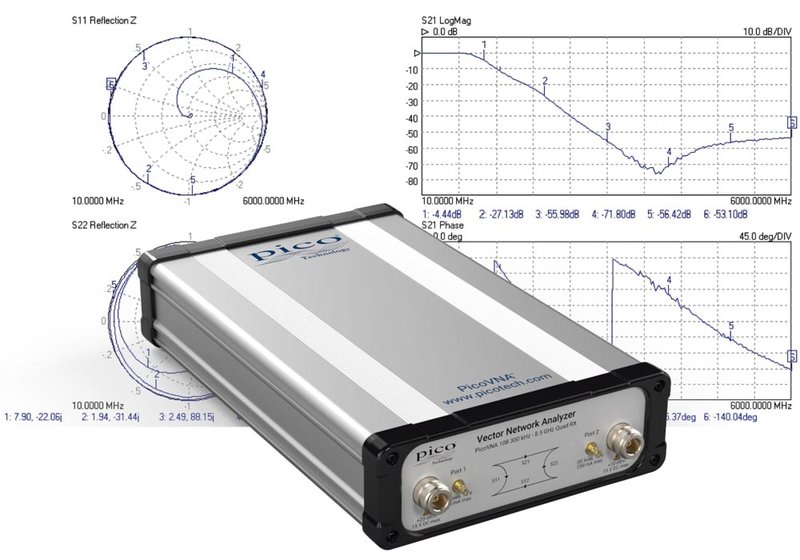

PicoVNA Series VNA/Vector Network Analyzers up to 6 or 8.5 GHz

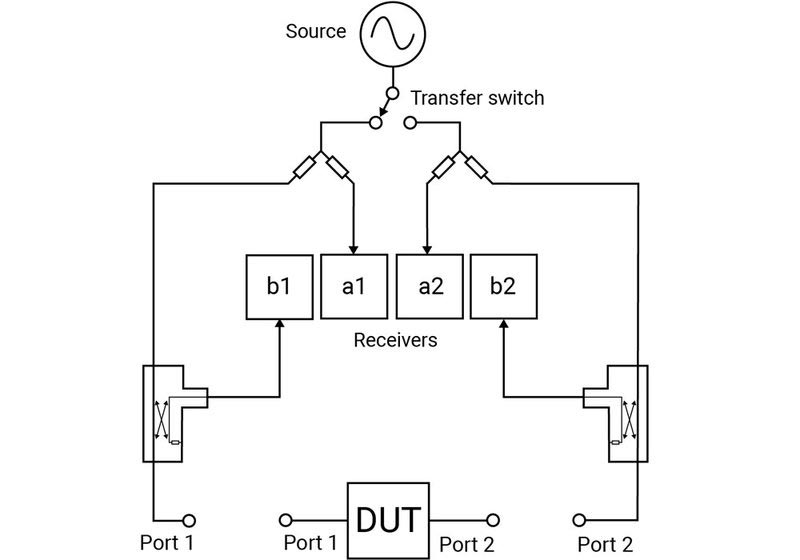

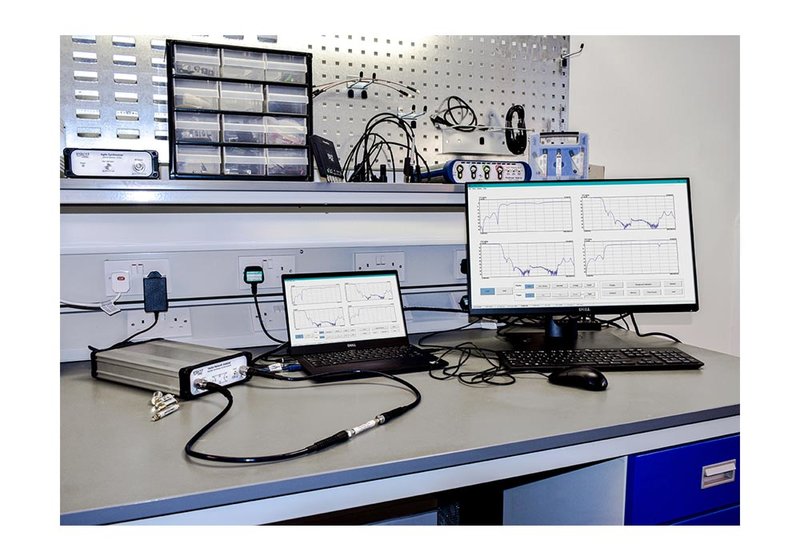

Making vector network analysis accessible. The PicoVNA-106 and PicoVNA-108 are professional USB-controlled, laboratory grade vector network instruments of unprecedented performance, portability and affordability. Despite their small size and low cost, the instruments boast a "Quad-RX" four-receiver architecture to eliminate the uncorrectable errors, delays and fragility of three-receiver designs with internal transfer switches. The devices offer exceptional dynamic ranges of 124 dB (PicoVNA-108) or 118 dB (PicoVNA-108) and only 0.005 dB RMS trace noise at its maximum operating bandwidth of 140 kHz. The cost is so low that the devices could even be used as cost-effective high-dynamic-range scalar network analyzers! They are affordable in the classroom, small business and even amateur workshop, yet capable in the microwave expert's laboratory.

  • Professional and portable performance at low cost.
  • 300 kHz to 6 or 8.5 GHz operation.
  • High speed, up to 5500 dual-port S-parameters per second; >10,000 S11 + S21 per second.
  • Quad RX four-receiver architecture for best accuracy.
  • Up to 124 dB dynamic range at 10 Hz bandwidth.
  • 0.005 dB RMS trace noise at maximum bandwidth of 140 kHz.
  • Half-rack, small-footprint, lightweight package.
  • Reference plane offsetting and de-embedding.
  • Tabular and graphic print and save formats, including Touchstone.
  • Save on trigger for high-speed device profiling (PicoVNA-108)
  • Dual-frequency mixer measurements with VSWR correction (PicoVNA-108).
  • P1dB, AM to PM, and stand-alone signal generator utilities.
  • Guided 8/12-term and absolute power calibration processes.

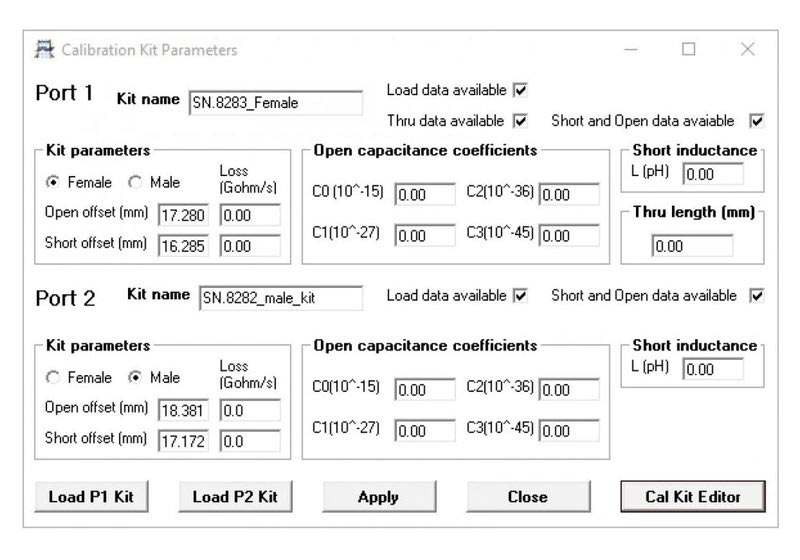

    6 calibration modes, including unknown through and connected DUT isolation.
    Calibration and check standards with data guarantee confident measurements.

Model Overview

ModelPicoVNA-106 (PQ111)PicoVNA-108 (PQ112)
Bandwidth300 kHz...6 GHz300 kHz...8.5 GHz
Measurement bandwidth140 kHz, 70 kHz, 35 kHz, 15 kHz, 10 kHz, 5 kHz, 1 kHz, 500 Hz, 100 Hz, 50 Hz, 10 Hz
Dynamic range118 dB (at 10 Hz)124 dB (at 10 Hz)
Average displayed noise floorBandTyp.Max.BandTyp.Max.
0.3...10 MHz–110 dB-100 dB0.3...1 MHz-100 dB-90 dB
10...4000 MHz–118 dB-108 dB1...6 GHz-124 dB-110 dB
>4000 MHz–110 dB-100 dB>6 GHz-128 dB-100 dB
Measuring parametersS11, S21, S22, S12; P1dB (1 dB gain compression); AM-PM conversion factor (PM due to AM)
-Mixer conversion loss, return loss, isolation and compression (PicoVNA-108 only)

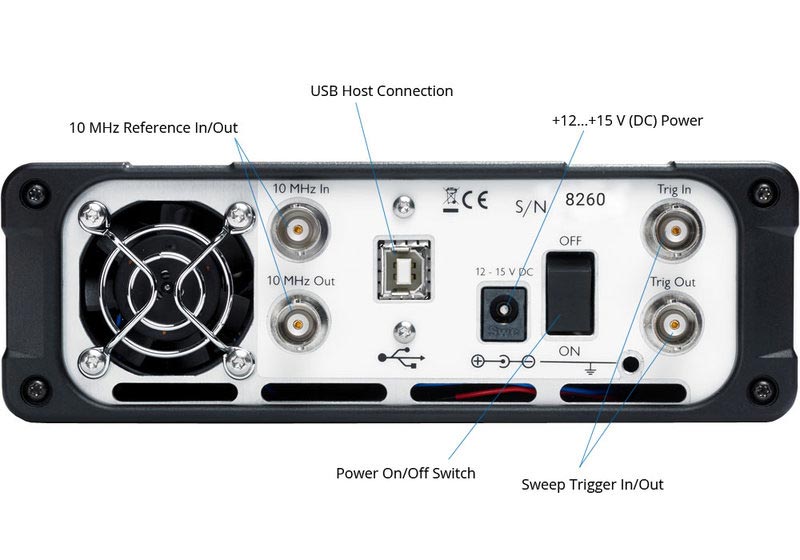

InterfaceUSB 2.0

Included: PQ111 PicoVNA-106 or PQ112 PicoVNA-108, PS010 power supply, carry case, wrench for N, SMA, PC3.5, and K-type connectors, Pico blue USB 2.0 cable 1.8 m, USB flash drive with software and documents.

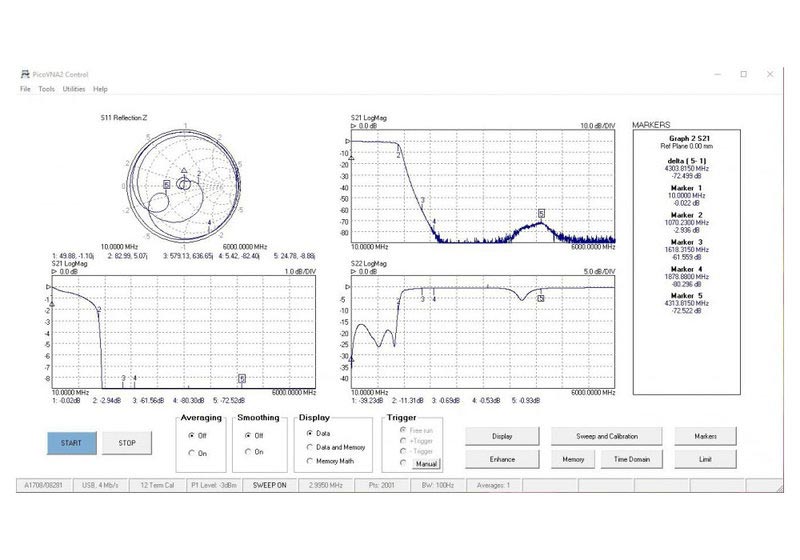

Software: PicoVNA software. Support for third party test software: Dynamic Link Library (DLL) as part of user interface software.
