Siglent General Purpose Line - Oscilloscopes With Big Features for Little Money
True to the slogans "Every Bench. Every Engineer. Every Day." and "The Best Value in Electronic Test & Measurement", Siglent offers technically advanced oscilloscopes with high-end professional features at an optimal price-performance ratio.
Benefits
- 2- and 4-channel oscilloscopes up to 1 GHz, 110.000 Wfm/s waveform capture rate.
- High-resolution 12-bit models.
- Super phosphor technology with 256 intensity levels and color temperature display operation.
- Deep memory.
- Extensive feature and options/upgrades: Bode diagram, waveform generator, serial bus triggering/decoding, WIFI adapter, and much more.
- Mixed-signal oscilloscopes.
- USB and Ethernet/LAN/LXI interfaces, optional USB-to-GPIB converter.
Model Overview
12-bit Series SDS General Purppose Line
| Model | Channels | Bandwidth | Max. sample rate | Waveform capture rate | Memory depth | Generator | Display | Interfaces |
| ▸SDS3034X HD | 4+16* | 350 MHz | True 12-bit resolution, 4 GS/s (single/two channels), 2 GS/s (four channels) | 200,000 wfms/s (normal mode), 890,000 wfms/s (sequence mode) | 400 Mpts/ch (single channel), 200 Mpts/ch (two channels), 100 Mpts/ch (four channels) | Option; USB, one channel, max. output frequency 50 MHz, sampling rate 125 MS/s, 14 bit, waveform length 16 kpts | 10.1"/25.7 cm capacitive touch display | 2x USB 3.0 host, 1x USB 2.0 host, USB 3.0 device, LAN/Ethernet |
| ▸SDS3054X HD | 4+16* | 500 MHz | ||||||
| ▸SDS3104X HD | 4+16* | 1 GHz | ||||||
| ▸SDS2204X HD | 4+16* | 200 MHz | True 12-bit resolution, 4 GS/s (single/two channels), 2 GS/s (four channels) | 100,000 wfms/s (normal mode); 500,000 wfms/s (sequence mode) | 200 Mpts | Software option; one channel, max. output frequency 25 MHz; sample rate 125 MS/s, 14 bit, waveform length 16 kpts | 10.1"/25.7 cm capacitive touch display | USB 2.0 host and device, LAN/Ethernet |
| ▸SDS2354X HD | 4+16* | 350 MHz | ||||||
| ▸SDS1102X HD | 2+16* | 100 MHz | True 12-bit resolution, 2 GS/s | 120,000 wfms/s (normal mode), 500,000 wfms/s (sequence mode) | 100 Mpts/channel | Option; USB; one channel, max. output frequency 25 MHz, sample rate 125 MS/s, 14 bit, waveform length 16 kpts, isolated output | 10.1"/25.7 cm capacitive touch display | USB 2.0 host and device, LAN/Ethernet |
| ▸SDS1104X HD | 4+16* | 100 MHz | ||||||
| ▸SDS1102X HD | 2+16* | 200 MHz | ||||||
| ▸SDS1104X HD | 4+16* | 200 MHz | ||||||
| ▸SDS802X HD | 2+16* | 70 MHz | True 12-bit resolution, 2 GS/s (single channel), 1 GS/s (two channels), 500 MS/s (four channels) | 80,000 wfms/s (normal mode), 500,000 wfms/s (sequence mode) | 50 Mpts (single channel), 25 Mpts (two channels), 10 Mpts (four channels) | Option; USB; one channel, max. output frequency 25 MHz, sample rate 125 MS/s, 14 bit, waveform length 16 kpts, isolated output | 7"/17.8 cm capacitive touch display | USB 2.0 host and device, LAN/Ethernet |
| ▸SDS804X HD | 4+16* | 70 MHz | ||||||
| ▸SDS812X HD | 2+16* | 100 MHz | ||||||
| ▸SDS814X HD | 4+16* | 100 MHz | ||||||
| ▸SDS822X HD | 2+16* | 200 MHz | 120,000 wfms/s (normal mode), 500,000 wfms/s (sequence mode) | 100 Mpts (single channel), 50 Mpts (two channels), 25 Mpts (four channels) | ||||
| ▸SDS824X HD | 4+16* | 200 MHz |
* For MSO option/upgrade: 16 logic channels for mixed-signal use.

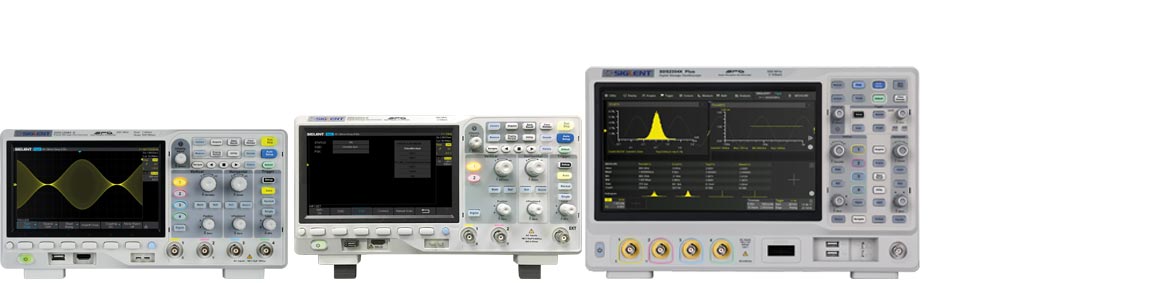

8-bit Series SDS General Purpose Line
| Model | Channels | Bandwidth | Max. sample rate | Waveform capture rate | Memory depth | Generator | Display | Interface |
| ▸SDS5032X | 2+16* | 350 MHz | max. 5 GS/s (interleaved), 2.5 GS/s (non-interleaved) | 110,000 wfms/s (normal mode), 480,000 wfms/s (sequence mode) | 2-channel devices: 250 Mpts (1 channel in use); 125 Mpts (2 channels in use); 4-channel devices: 250 Mpts (1-2 channel in use); 125 Mpts (3-4 channels in use) | Optional (SAG1021 USB module): 1 channel, max. 25 MHz (sine); arbitrary: 5 MHz, 125 MS/s, 14 bit, wave length 16 kpts | 10,1"/25.7 cm touch screen | 3x USB host, 1x USB device, Ethernet/LAN, VGA output; optional USB-to-GPIB adaptor |
| ▸SDS5034X | 4+16* | |||||||
| ▸SDS5052X | 2+16* | 500 MHz | ||||||
| ▸SDS5054X | 4+16* | |||||||
| ▸SDS5102X | 2+16* | 1 GHz | ||||||
| ▸SDS5104X | 4+16* | |||||||
| ▸SDS2102X-Plus | 2+16* | 100 MHz | 2 GS/s (interleaving mode), 1 GS/s (non-interleaving mode) | 120,000 wfms/s (normal mode), 500,000 wfms/s (sequence mode) | 200 Mpts (interleaving mode), 100 Mpts (non-interleaving mode) | Optional: 1 channel, max. 50 MHz (sine); arbitrary: 5 MHz, 14 bit, 125 MS/s, 16 kpts wave length | 10,1"/25,7 cm touch screen | USB, Ethernet/LAN; optional USB-to-GPIB adaptor |
| ▸SDS2104X-Plus | 4+16* | 100 MHz | ||||||
| ▸SDS2204X-Plus | 4+16* | 200 MHz | ||||||
| ▸SDS2354X-Plus | 4+16* | 350 MHz | ||||||
| ▸SDS1104X-U | 4 | 100 MHz | 1 GS/s (one channel), 500 MS/s (two channels), 250 MS/s (four channels) | 100,000 wfms/s (normal mode), 400,000 wfms/s (sequence mode) | 14 Mpts max. | - | 7"/17.8 cm TFT-LCD | 1x USB host, 1x USB device, Ethernet/LAN; optional USB-to-GPIB adaptor |
| ▸SDS1202X-E | 2 | 200 MHz | Single 1 GS/s ADCs, when all channels are enabled, each channel has a maximum sample rate of 500 MS/s. When a single channel per pair is active, that channel has sample rate of 1 GS/s | 100,000 wfms/s (normal mode), 400,000 wfms/s (sequence mode) | 14 Mpts (1 channel in use); 7 Mpts (2 channels in use) | - | 7"/17.8 cm TFT-LCD | 1x USB host, 1x USB device, Ethernet/LAN; optional USB-to-GPIB adaptor |
| ▸SDS1104X-E | 4+16* | 100 MHz | Two 1 GS/s ADCs, when all channels are enabled, each channel has a maximum sample rate of 500 MS/s. When a single channel per pair is active, that channel has sample rate of 1 GS/s | 14 Mpts (1-2 channels in use); 7 Mpts (3-4 channels in use) | Optional (SAG1021 USB module): 1 channel, max. 25 MHz (sine); arbitrary: 5 MHz, 125 MS/s, 14 bit, wave length 16 kpts | 2x USB host, 1x USB device, Ethernet/LAN; optional USB-to-GPIB adaptor; optional USB-to-Wifi adaptor | ||
| ▸SDS1204X-E | 4+16* | 200 MHz |
Siglent Performance Line - Oscilloscopes For Highend Applications in Industry and R&D
True to the slogans "Every Bench. Every Engineer. Every Day." and "The Best Value in Electronic Test & Measurement", Siglent offers technically advanced oscilloscopes with high-end professional features at an optimal price-performance ratio.
Benefits
- Oscilloscopes up to 6 GHz, up to 8 channels, upt to 1,000,000 Wfm/s waveform capture rate.
- High-resolution 12-bit models.
- Wide touch displays, super phosphor technology with 256 intensity levels and color temperature display operation.
- Deep memory.
- Extensive feature and options/upgrades: Bode diagram, waveform generator, serial bus triggering/decoding, power measurement, and much more.
- Mixed-signal oscilloscopes.
- USB and Ethernet/LAN/LXI interfaces, optional USB-to-GPIB converter.
Model Overview

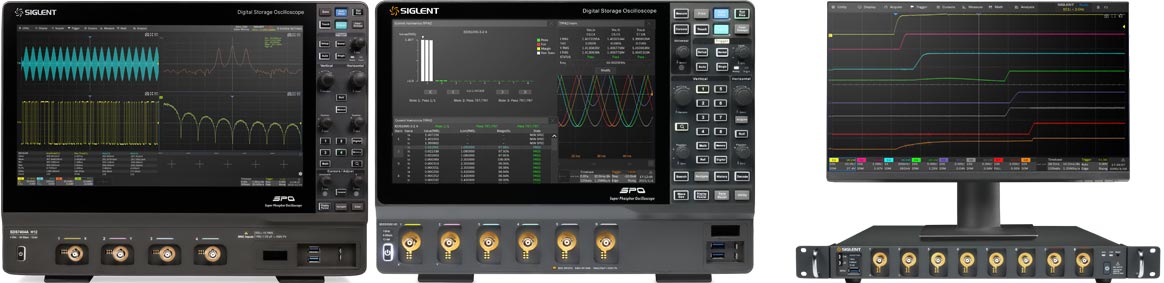

12-bit Series SDS Performance Line
| Model | Channels | Bandwidth | Max. sample rate | Max. waveform capture rate | Memory depth | Display | Interfaces |
| ▸SDS7604A H12 | 4 | 6 GHz | 20 GS/s (2 channels); 10 GS/s (3 or 4 channels) | Max. 1,000,000 wfms/s | Standard: 500 Mpts/channel; optional: 1 Gpts/channel in 2-channel operation | 15.6"/39.6 cm touch screen; outputs: DVI-D, DP 1.2, HDMI 1.4 | 4x USB host 3.1; 2x USB 3.0 host; USB 2.0 device; 2x 1000M LAN/Ethernet/LXI |
| ▸SDS7404A H12 | 4 | 4 GHz | |||||
| ▸SDS7304A H12 | 4 | 3 GHz | |||||
| ▸SDS5034X HD | 4 | 350 MHz | 5 GS/s (quarter channel/half channel mode), 2.5 GS/s (full channel mode) | Normal mode: up to 160,000 wfms/s; sequence mode: up to 650,000 wfms/s | 2,5 Gpts/channel (quarter channnel mode, 1 Gpts/channel (hald channel mode), 500 Mpts/channel (full channel mode) | 12.1"/30.7 cm TFT-LCD touch screen; HDMI2 | 2x USB 3.0 host, USB 2.0 host, USB 3.0 device, 1000M LAN/Ethernet |
| ▸SDS5054X HD | 4 | 500 MHz | |||||
| ▸SDS5104X HD | 4 | 1 GHz | |||||
| ▸SDS5036X HD | 6 | 350 MHz | |||||
| ▸SDS5056X HD | 6 | 500 MHz | |||||
| ▸SDS5106X HD | 6 | 1 GHz | |||||
| ▸SDS5048X HD | 8 | 350 MHz | |||||
| ▸SDS5058X HD | 8 | 500 MHz | |||||
| ▸SDS5108X HD | 8 | 1 GHz | |||||
| ▸SDS5038L | 8 | 350 MHz | -; HDMI | USB 3.0 host, USB 2.0 host, USB 3.0 device, 1000M LAN/Ethernet | |||
| ▸SDS5058L | 8 | 500 MHz | |||||
| ▸SDS5108L | 8 | 1 GHz |
* For MSO option/upgrade: 16 logic channels for mixed-signal use. Signal generator upgrade (external module).

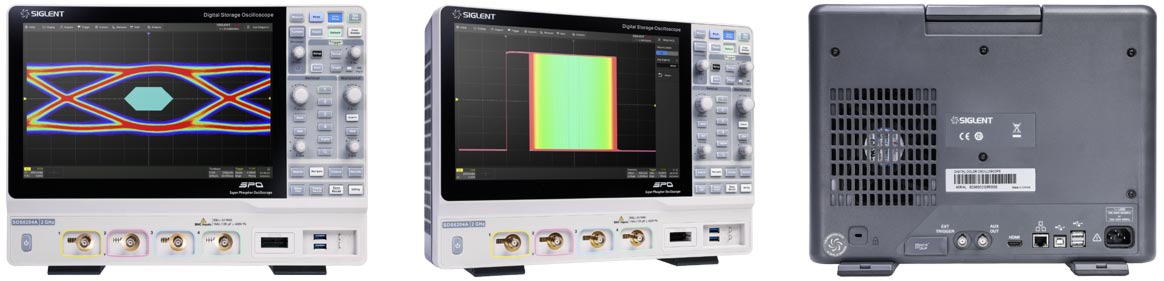

8-bit Series SDS Performance Line
| Model | Channels | Bandwidth | Max. sample rate | Max. waveform capture rate | Memory depth | Display | Interfaces |
| ▸SDS6054A | 4 | 500 MHz | 5 GS/s per channel (10 GS/s with ESR/enhanced sample rate) | 170,000 wfms/s (normal mode), 750,000 wfms/s (sequence mode) | 500 Mpts/channel (one channel), 250 Mpts/channel (two channels), 125 Mpts/channel (3 or 4 channela); segmented memory; deadtime only 1.3 µs | 12.1"/30.7 cm touch screen | USB host & decive: 2x USB 3.0 host, 2x USB 2.0 host, USB 2.0 fevice; LAN/Ethernet; Micro-SD card |
| ▸SDS6104A | 4 | 1 GHz | |||||
| ▸SDS6204A | 4 | 2 GHz |
* For MSO option/upgrade: 16 logic channels for mixed-signal use.
