Siglent Performance Line Measurement Instruments

Siglent series A measurement instruments for high demanding applications

Focus on Professional and Industrial Applications

With the "performance line" devices, Siglent is focusing even more on professional and industrial applications. Target applications can be found in mobile communications, automotive, medical technology, consumer electronics or RF semiconductors, i.e. primarily in the field of wireless. The features, technical specifications and options are tailor-made for these fields. The Siglent performance line includes these measurement instruments:

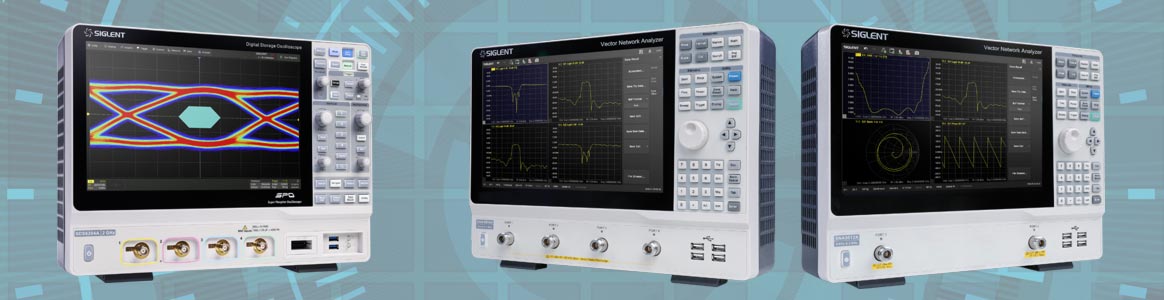

Perfect signal analysis: Siglent Oscilloscope Series SDS6000A and SDS7000A.

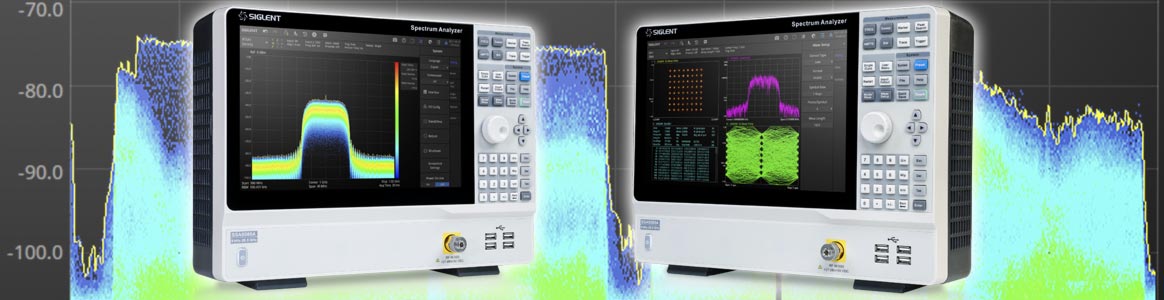

Heterodyne and real-time spectrum analysis: Siglent Spectrum Analyzer Series SSA5000A.

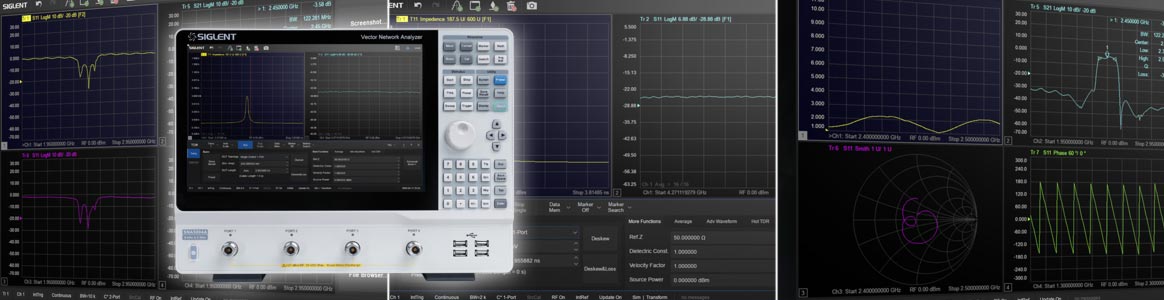

Perfect analysis of transmission parameters: Siglent VNA Series SNA5000A, SNA6000A.

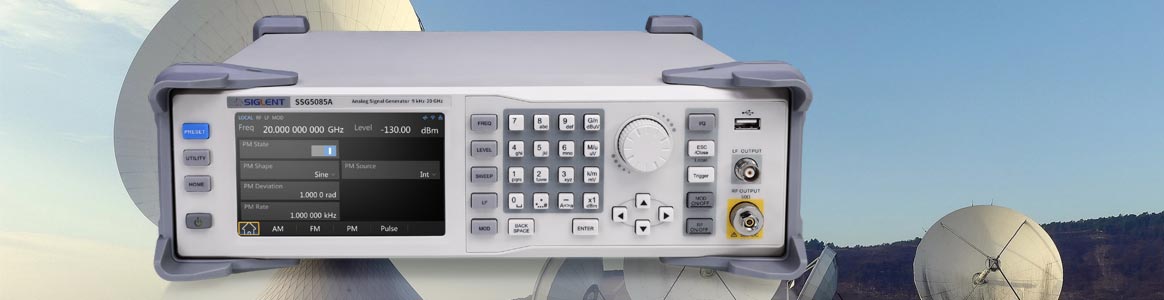

Generate "clean" RF/microwave test signals: Siglent RF signal generator series SSG5000A and SSG6000A.

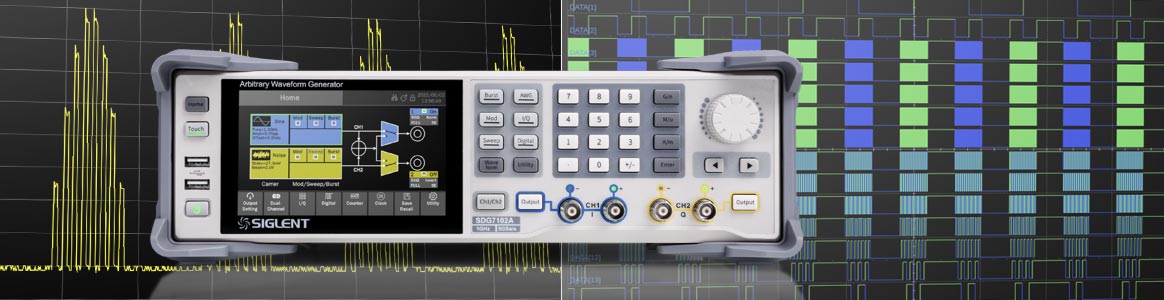

Generate perfect test signals: Siglent arbitrary waveform generator series SDG7000A.

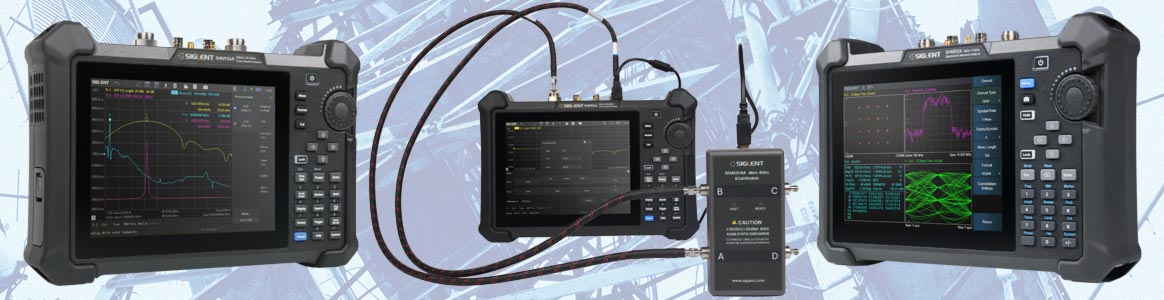

Ideal for increased requirements in mobile use: Siglent Series A handheld analyzers.

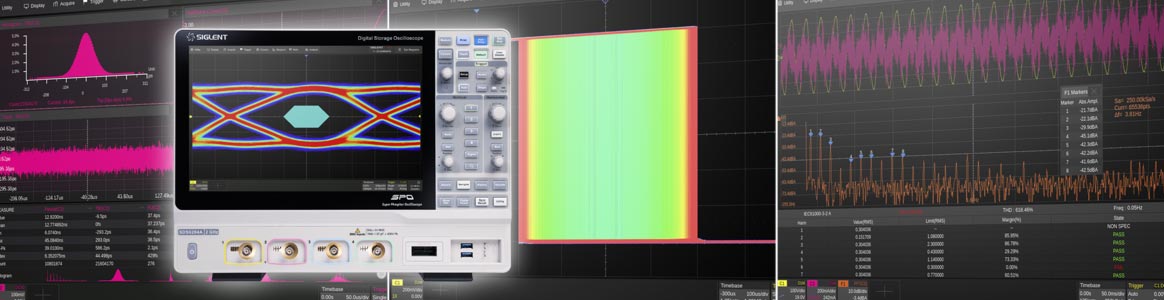

Perfect Signal Analysis: Siglent Oscilloscope Series SDS6000A and SDS7000A

Advantages at a Glance

Model	SDS6000A	SDS7000A
Wide display	Large 12.1"/30.74 cm capacitive touchscreen with multi-gesture control (1280x800), additional HDMI output	15.6"/39.6 cm capacitive touchscreen with multi-gesture contro (1920*1080), additional DVI-D, DP 1.2, and HDMI output
High bandwidth	Three model versions with 2 GHz, 1 GHz, or 500 MHz	Three model versions with 6, 4, or 3 GHz
Excellent sampling features	High sample rate per channel: 5 GS/s per channel - always, regardless of the number of active/used channels; 10 GS/s with ESR/enhanced sample rate	High resolution: 12 bit; up to 16 bit in ERES mode; sample rate 20 GS/s (dual-channel); 10 GS/s (3 or 4 channels)
High acquisition rate	170,000 Wfm/s in normal mode, 750,000 Wfm/s in sequence mode	Max. 1,000,000 wfm/s
Segmented memory with low dead time	Dead time only 1.3 µs; memory: 500 Mpts/ch (one channel), 250 Mpts/ch (two channels), 125 Mpts/ch (3 or 4 channels)	Max. record length divided into multiple segments (up to 124,000), according to trigger conditions set by the user, with a very small dead time between segments; memory 500 Mpts/channel; optional: 1 Gpts/channel in dual-channel mode
Precise, reliable analog channels	Channel-to-channel isolation 70 dB (up to 200 MHz), 60 dB (up to 500 MHz), 50 dB (up to 1 GHz), 40 dB (up to 2 GHz) DC gain accuracy ±1.5% SFDR /Spurious Free Dynamic Range) ≥45 dBc	Channel-to-channel isolation 70 dB (up to 200 MHz), 60 dB (up to 500 MHz), 40 dB (up to 1 GHz), 30 dB (up to 4 GHz) low background noise: 220 µV_RMS at 4 GHz bandwidth SFDR/Spurious Free Dynamic Range) ≥45 dBc
Extensive feature set standard	Math functions with 4 traces 8 Mpts (SDS6000A) or 32 Mpts (SDS7000A) hardware accelerated FFT sophisticated triggers history function always running in background (up to 80,000 waveform frames record & playback) mask test bode plot/frequency response with optional signal generator serial bus decoding built-in DVM and counter/totalizer and much more
Further functions optionally expandable	MSO/mixed signal function (16 digital/logic channels) power analysis serial bus decoding of additional buses Eye diagram, jitter analysis (SDS6000A 2-GHz model only)
Extensive interface equipment	2x USB 3.0 (Host), 2x USB 2.0 (Host), 1x USB 2.0 (Device) LAN/Ethernet web remote control slot for micro SD card	4x USB Host 3.1 Gen 1; 2x USB 3.0 Host; USB 2.0 Device (USBTMC); 2x 1000M LAN (VXI-11 + SCPI Telnet (5024)+SCPI, Socket (5025)+SCPI, LXI, WebServer)
Compact, despite large screen and extensive features	Very elegant, compact, portable design
Shop link	▸Siglent SDS6000A series	▸Siglent SDS7000A series

Heterodyne and Real-Time Spectrum Analysis: Siglent Spectrum Analyzer Series SSA5000A

Advantages at a Glance

Model	SSA5000A
Wide display	12.1"/30.74 cm capacitive touchscreen with multi-gesture control (1280x800), additional HDMI output
High bandwidth	Two model variants with 9 kHz to 13.6 GHz or 26.5 GHz
"Best of both Worlds"	Heterodyne analysis and real-time analysis (option) up to 25 or 40 MHz.
Excellent specifications	-165 dBm/Hz DANL (typ.). -105 dBc/Hz at 1 GHz, 10 kHz offset SSB phase noise (typ.). 100% POI 7.20 µs, dynamic range 60 dB.
Extensive features as standard and as options/upgrade	Multi-view for density, spectrogram and PvT. Measurement of channel power, ACPR, OBW, harmonics, TOI, etc. Optional analog modulation analysis (AM, FM, PM) and vector digital modulation analysis (ASK, FSK, MSK, PSK, QAM). and much more
Extensive interface equipment	4x USB (Host) with mouse/keyboard support, 1x USB (Device). LAN/Ethernet web remote control. Optional USB-to-GPIB adaptor.
Compact	Very slim, elegant, compact design
Shop link	▸Siglent SSA5000A series

Perfect Analysis of Transmission Parameters: Siglent VNA Series SNA5000A

Advantages at a Glance

Model	SNA5000A	SNA6000A
Wide display	12.1"/30.74 cm capacitive touchscreen with multi-gesture control (1280x800), display of many windows possible, additional HDMI output (additional DVI-D, DP video outputs on SNA6000A)
Professional frequency ranges supported	Model versions with 9 kHz to 8.5 GHz or 4.5 GHz, or 100 kHz to 13.5 GHz or 26.5 GHz	Model versions with 100 kHz to 13.5 GHz or 26.5 GHz
Full-featured VNA for professional applicationsn	Model variants with 2 or 4 ports and a variety of supported measurement such as 2- or 4-ports scattering-parameter, differential-parameter, and time-domain parameter measurements, determining the Q-factor, bandwidth and insertion loss etc.
Full-featured VNA for professional applicationsn		Versions with jumper interface on the frontpanel
Extensive calibration options	Response calibration, enhanced response calibration, full-one port calibration, full-two port calibration, full-three port calibration, full-four port calibration, TRL calibration matching hardware calibration kits available as optional accessorries
High-quality technical data	Frequency resolution 1 Hz level resolution 0.05 dB adjustment range of IFBW 10 Hz...3 MHz adjustment range of output level -55...+10 dBm Dynamic range (IFBW 10 Hz) SNA5002A, SNA5012, SNA5004A, SNA5014A: 85 dB (9...18 kHz); 90 dB (18...30 kHz); 95 dB (30...100 kHz); 105 dB (100...300 kHz); 120 dB (300...500 kHz); 125 dB (500 kHz...1 MHz); 125 dB (1 MHz...5 GHz); 123 dB (5...6.8 GHz); 120 dB (6.8...7.7 GHz); 119 dB (7.7...8 GHz); 117 dB (8...8.5 GHz) dynamic range (IFBW 10 Hz) SNA5022A, SNA5032A: 115 dB (100 kHz...10 MHz); 125 dB (10 MHz...3 GHz); 125 dB (3...9 GHz); 118 dB (9...13.5 GHz); 115 dB (13.5...20 GHz); 105 dB (20...26.5 GHz) bias tees standard	Frequency resolution 1 Hz level resolution 0.05 dB adjustment range of IFBW 1 Hz...10 MHz adjustment range of output level -55...+10 dBm dynamic range (IFBW 10 Hz) 100 kHz...1 MHz \| 120 dB \| 125 dB (SPD); 1 MHz...500 MHz \| 125 dB \| 135 dB (SPD); 500 MHz...1 GHz \| 130 dB \| 139 dB (SPD); 1 GHz...20 GHz \| 135 dB \| 142 dB (SPD); 20 GHz...24 GHz \| 127 dB \| 135 dB (SPD); 24 GHz...26.5 GHz \| 120 dB \| 128 dB (SPD) bias tees standard
Extensive interface equipment	4x USB 2.0 (Host), 1x USB 2.0 (Device) LAN/Ethernet web remote control optional USB-to-GPIB	4x USB 3.1GEN 1/2 device, 4x USB hub (frontpanel); 1x USB device 2x LAN/Ethernet optional USB-to-GPIB
Compact, despite large screen and extensive features	Very slim, elegant, compact design
Shop link	▸Siglent SNA5000A Serie	▸Siglent SNA6000A Serie

Generate "Clean" RF/Microwave Test Signals: Siglent SSG5000A and SSG6000A Series RF Signal Generator

Advantages at a Glance

Model	SSG5000A	SSG6000A
Easy operation	5"/12.7 cm capacitive touch screen and USB mouse/keyboard support
High bandwidth	Two model variants from 9 kHz to 13.6 GHz or 20 GHz	Three model variants from 100 kHz to 13.6 GHz (upgradeable to 20 GHz), 20 GHz, or 40 GHz
High precision	Clock source high accuracy OCXO standard
Excellent specifications	Frequency resolution 0.001 Hz. Phase noise -120 dBc/Hz at 1 GHz, offset 20 kHz (typ.). Modulations: AM, FM, PM as standard. Internal pulse generator as standard.	Frequency resolution 0.01 Hz. Phase noise -135 dBc/Hz at 1 GHz, offset 20 kHz (typ.). Modulations: AM as standard, pulse modulation optional. Internal pulse generator optional.
Extensive interface equipment	2x USB (Host) with mouse/keyboard support, 1x USB (Device). LAN/Ethernet web remote control. Optional USB-to-GPIB adaptor.
Compact	Very slim, elegant, compact design
Shop link	▸Siglent SSG5000A series	▸Siglent SSG6000A series

Generate Perfect Test Signals: Siglent Arbitrary Waveform Generator Series SDG7000A

Advantages at a Glance

Model	SDG7000A
Versatile signal generation	Arbitrary signal generator with low-jitter TrueARB technology (point-by-point), sine/continuous waveform generator (incl. harmonic generator), pulse generator, noise generator, PRBS pattern generator, I/Q vector signal generator
Two differential channels	2 differential or single-ended output channels, additional 16 bit LVTTL or LVDS outputs (option)
High bandwidth und Sample-Rate	350 MHz, 500 MHz, or 1 GHz maximum bandwidth. 5 GS/s sample rate and 14 bit vertical resolution; arbitrary: 0.01 S/s...2.5 GS/s
Bandwidth upgradeable	To fit the available budget, the bandwidth can be upgraded from 350 MHz to 1 GHz
Extensive modulations	Supports internal/external modulation, AM, FM, PM, PWM, FSK, PSK, ASK, burst and sweep
Dual channel functions	Inter-channel tracking, coupling and copying. Dual channel superposition function. Supports mutual modulation between channels.
Touchscreen and intuitive operation	5"/12.7 cm capacitive touchscreen with 800x480 resolution and super-intuitive menu navigation
Shop link	▸Siglent SDG7000A Series

Ideal for Increased Requirements in Mobile Use: Siglent Series A Handheld Analyzers

Advantages at a Glance

Model	SHA850A	SHN900A
Easy operation	8.4"/21.3 cm touchscreen, easy to read even in the field, clear operating panel, battery-powered
High bandwidth	Spectrum analyzer 9 kHz to 3.6 or 7.5 GHz; cable and antenna test	2-port VNA 30 kHz up to 14, 20, or 26.5 GHz
Options	VNA, source, extended measurement kit, analog and digital modulation analysis	Spectrum analysis, time domain analysis, extended time domain analysis
Excellent specifications	Integrated preamplifier 25 dB as standard, 165 dBm/Hz displayed average noise level/DANL (typ., preamplifier switched on), SSB noise level typ. -104 dBc/Hz, dynamic range 114 dB, ±0.5 dB total amplitude accuracy at 10 kHz offset phase noise (typ. 1 GHz), 1 Hz to 10 MHz minimum resolution bandwidth/RBW	Frequency resolution 1 Hz, level resolution 0.01 dB, IFBW range 10 Hz...3 MHz, output level adjustment range -45...+10 dBm; extensive measurement types and calibration options
Extensive interface equipment	USB Host and Device, LAN/Ethernet, connection for GPS antenna; mouse and keyboard supported
Compact	Robust, compact, portable design despite large touchscreen display and extensive functions
Shop link	▸Siglent SHA850A series	▸Siglent SHN900A series
