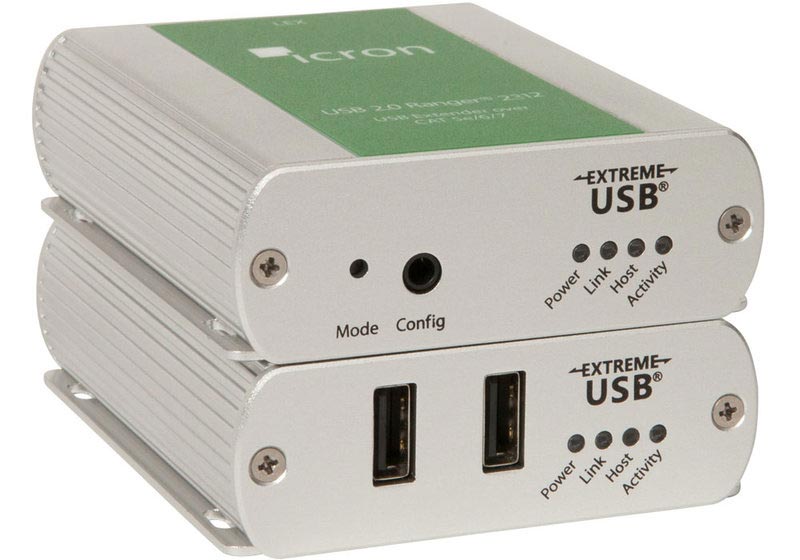

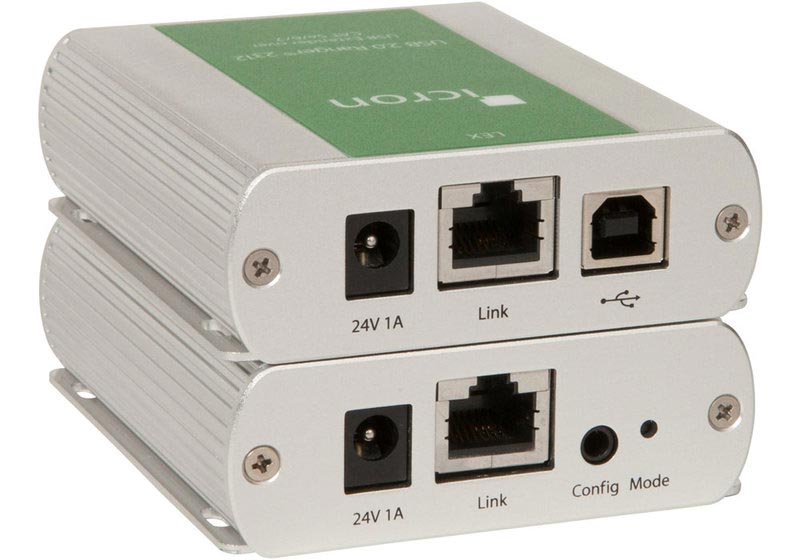

Icron Ranger 2312 USB 2.0 Extender over 100 m Cat5e/6/7, 2-Port Hub

Scaled Prices
taking 1 pc.
€ 390,32
taking 3 pc.
€ 370,80
390,32
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Ready for dispatch. Delivery Time ~1-3 workdays
Ready for dispatch. Delivery Time ~1-3 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Benefits of the Icron Ranger 2313 USB 2.0 Extender with Integrated 2x Hub

  • Extension for USB 2.0 over Cat5e/6/7 cable.
  • Distances up to 100 m. 2-port hub.
  • Easy connectivity with two extender modules.

Icron Ranger 2312 - Extend USB 2.0 with Copper Cable over 100 m Cat5e/6/7, with 2-Port Hub

These modules are used to extend the USB transmission with 100 m. The extenders are connected with commercially obtainable standard Cat5e/6/7 Ethernet cable. Integrated 2-port hub on REX side.

Model Overview

Model Ranger 2312
Ordering Code00-00407
SeriesExtremeUSB 2.0
ExtenderUSB 2.0 up to 480 Mbps/Lowspeed and Fullspeed; compatible with USB 1.1
Distance100 m
Ports1 to 2
MediumCat 5e/6/7 copper/Ethernet cable
Model2 modules (LEX and REX)
Power supplyEither the LEX or REX can use a power adapter. Only one is required
ApplicationsIndustrial control, KVM extension, digital signage, security: Web camera, access control and more
SoftwareTransparent, no additional driver software required

LEX = Local Extender, extender module at host.
REX = Remote Extender module.

Included: LEX, REX, power supply adaptor. Cat5e/6/7 cable not included!
