Rigol DNA800 Vector Network Analyzers up to 14GH

Benefits of the DNA804, DNA808, DNA814 2-Port VNAs

• 2-port VNAs with frequency ranges 5 kHz to 4.5 GHz, 8.5 GHz, or 14 GHz.
• Max. output power 10 dBm and high dynamic range 125 dB (typ.).
• Various calibration types and Ecal supported.

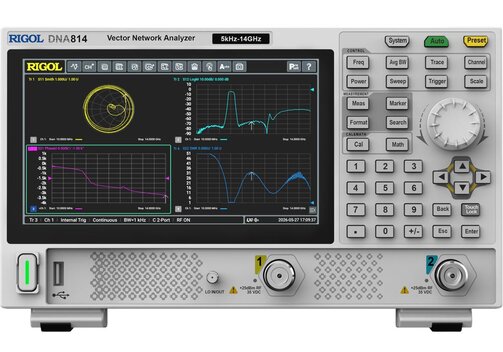

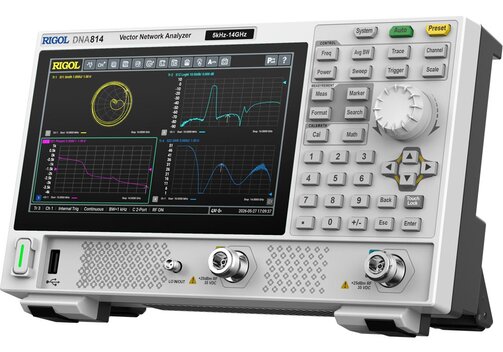

Rigol DNA800 Vector Network Analyzers up to 14 GHz

The Rigol DNA800 series is a family of compact 2-port vector network analyzers with frequency coverage from 5 kHz up to 4.5 GHz, 8.5 GHz, or 14 GHz. They offer 1 Hz frequency resolution, up to 10 dBm output power, high dynamic range, multiple calibration methods, S-parameter measurements, impedance, VSWR, TDA, fixture embedding/de-embedding, antenna test functions, USB/LAN/HDMI interfaces, SCPI control, and Web Control.

• 2-port vector network analyzers (VNA).
• Frequency range 5 kHz to 4.5 GHz, 8.5 GHz, or 14 GHz.
• Frequency resolution 1 Hz.
• Max. output power 10 dBm.
• High dynamic range 125 dB (typ.).
• Trace noise 0.005 dB.
• IF BW 1 Hz to 3 MHz.
• Compatible with the mechanical calibration kit and the Ecal electronic calibration kit, supporting various calibration types (SOLT, Response Short, Response Open, OSL, Enhanced Response 1 to 2, Response Through).
• Integrates S-parameters, impedance, VSWR, TDA, fixture embedding/de-embedding, antenna test, etc.
• Portable handle and lightweight design, compact size.
• 7"/17.8 cm HD touch screen; HDMI port.

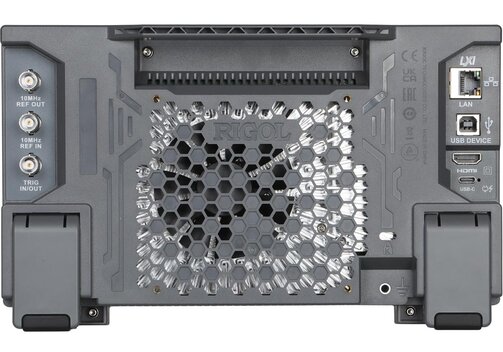

• LAN/Ethernet, USB Host and Device;
  supports standard SCPI instruction sets;
  supports Web Control for remote operation.
• Supports both physical key operation and touch screen operation; allowing you to use externally connected keyboard and mouse to input values.

Model Overview
