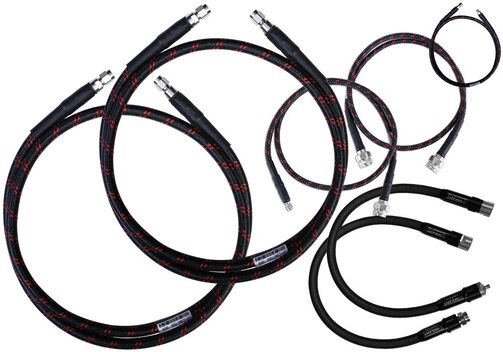

Siglent RF Cable Series
Description
Files/Downloads
Options for the Siglent A, X Series and Others
Model Overview
| Model | Connectors | Bandwidth | Length |

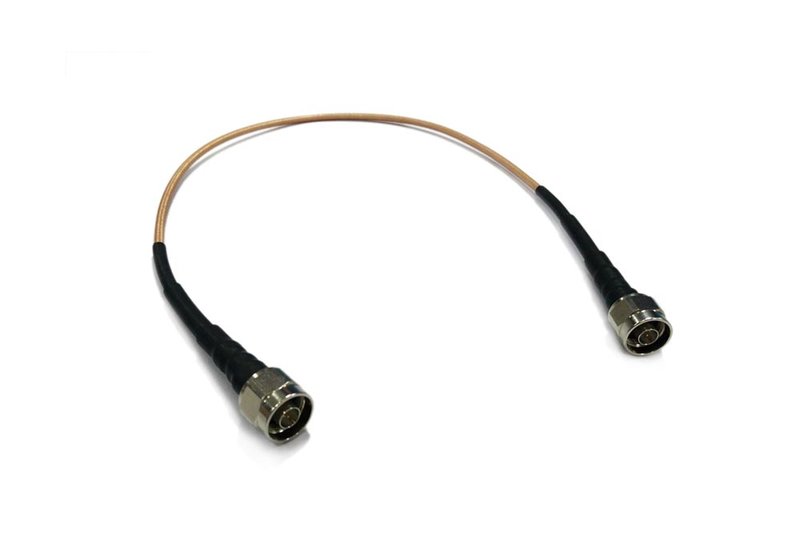

| N-N-6L | N(male) to N(male) | 6 GHz (eg. for SSA3000X series) | 700 mm |

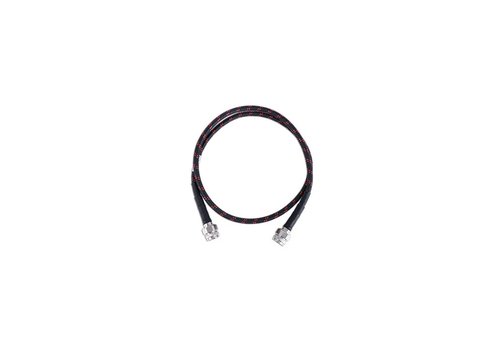

| N-N-18L | N(male) to N(male) | DC...18 GHz (eg. for Siglent A series) | 1000 mm |

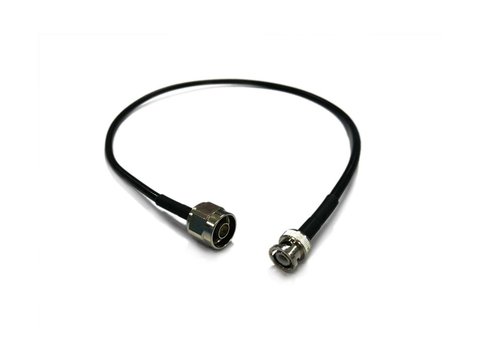

| N-BNC-2L | N to BNC | 2 GHz (eg. for SSA3000X series) | 700 mm |
| N-SMA-6L | N(male) to SMA(male) | 6 GHz (eg. for SSA3000X series) | 700 mm |

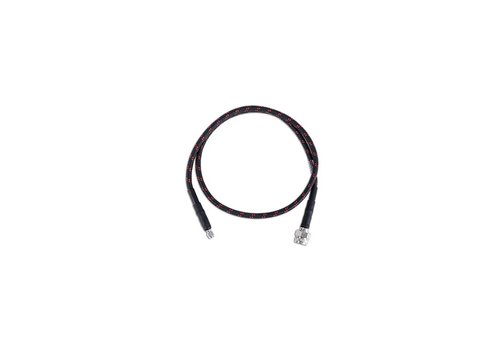

| N-SMA-18L | N(male) to SMA(male) | DC...18 GHz (eg. for Siglent A series) | 1000 mm |

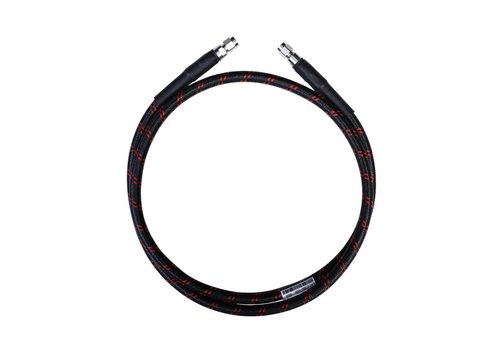

| SMA-SMA-18L | SMA(male) to SMA(male) | DC...18 GHz (eg. for Siglent A series) | 1000 mm |
| SMA-SMA-26L | SMA(male) to SMA(male) | DC...26.5 GHz (eg. for Siglent A series) | 1000 mm |

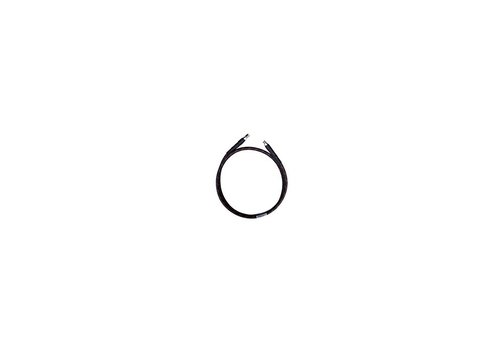

| SMAF-SMA-26L | SMA(female) to SMA(male) | DC...26.5 GHz (eg. for Siglent A series) | 1000 mm |

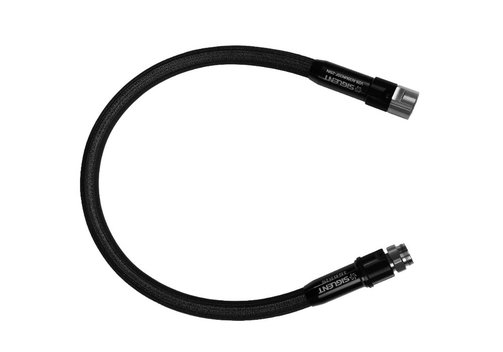

| V26-N35MN35F-25IN | NMD3.5(female) to NMD3.5(male) | DC...26.5 GHz (eg. for Siglent A series) | 635 mm |

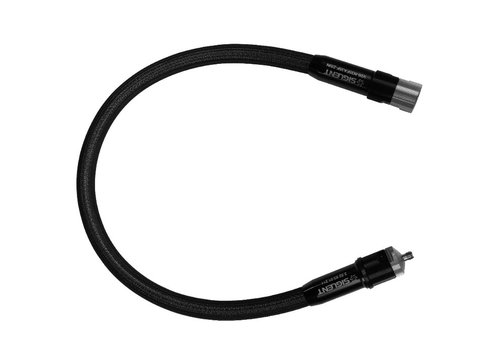

| V26-N35FA35F-25IN | NMD3.5(female) to APC3.5(female) | DC...26.5 GHz (eg. for Siglent A series) | 635 mm |
