Benefits of the SDS5000 DSOs/MSOs up to 8 Channels and 5 GS/s Sample-Rate

  • Benchtop series with 4, 6, or 8 analog and 16 logic/MSO channels, rack series L with 8 analog channels.
  • Bandwidth 350 MHz, 500 MHz oder 1 GHz.
  • 12-bit resolution, ENOB up to 8.6 bit; low noise floor.

Siglent SDS5000 Series Multi-Channel Digital Oscilloscopes up to 1 GHz

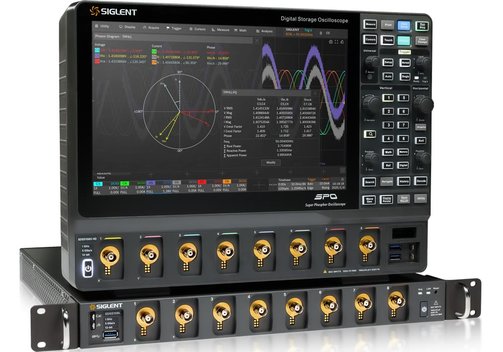

SDS5000X HD Series With Display and SDS5000L Series Without Display

The Siglent SDS5000 series are multi-channel high resolution DSOs (digital storage oscilloscopes). The are available as benchtop scopes (SDS5000X HD) or versiones with HDMI only and no dipslay (SDS5000L). The oscilloscopes are available with 4, 6, and 8 channels (L-versions only 8 channels and bandwidths of 350 MHz, 500 MHz and 1 GHz. They have 12-bit ADCs with sample rate up to 5 GS/s, maximum record length of 2.5 Gpts/channel. The maximum waveform capture rate is up to 160,000 wfm/s. The benchtop models also have 16 digital/logic channels (additional SPL2016 logic probes required). The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as history waveform recording, search and navigate functions, mask test, Bode plot, power analysis allow for extended waveform records to be captured, stored, and analyzed.

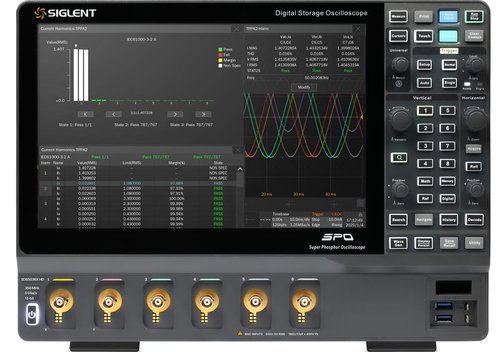

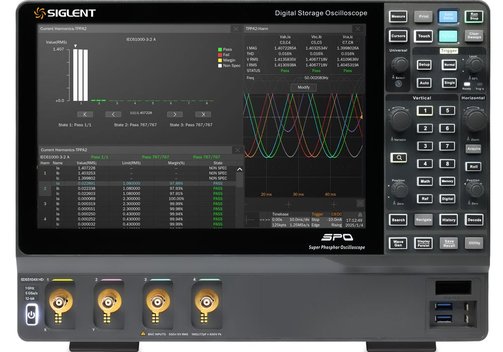

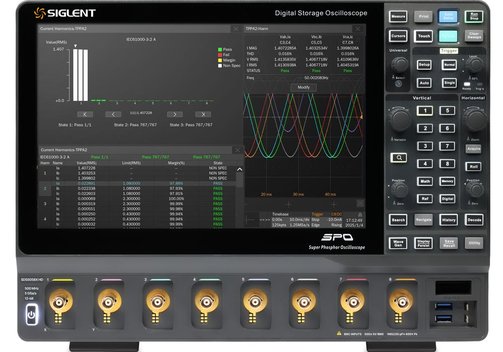

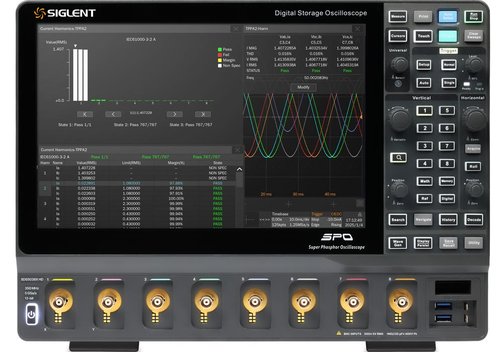

Siglent Benchtop DSOs/MSOs SDS5034/5054/S5104X HD, SDS5036/5056/5106X HD, SDS5038/5058/5108X HD

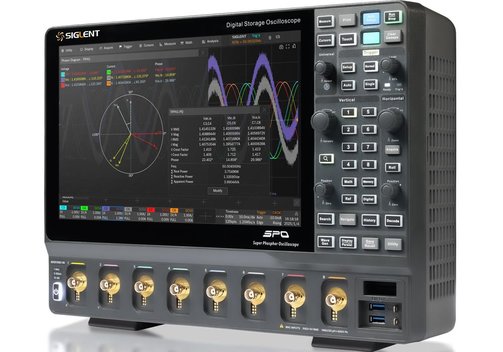

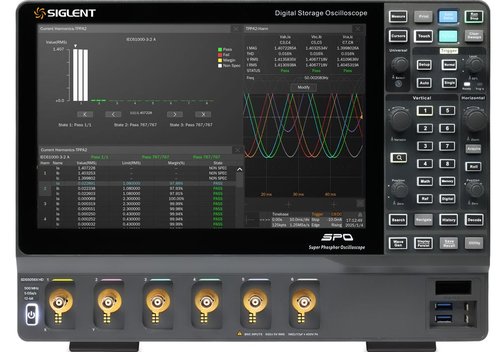

  • Stand-alone benchtop oscilloscope/MSO with display.
  • 4, 6, 8 analog channels and 16 digital/logic channels (MSO).
  • Large 12.1"/30.7 cdm TFT-LCD display with 1280x800 resolution; capacitive touch screen supports multi-touch gestures; additional HDMI output.

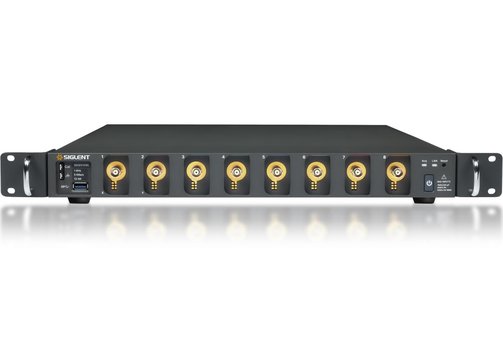

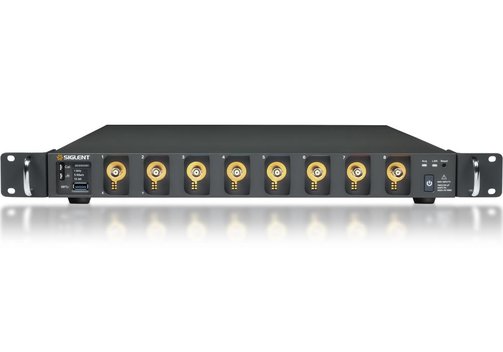

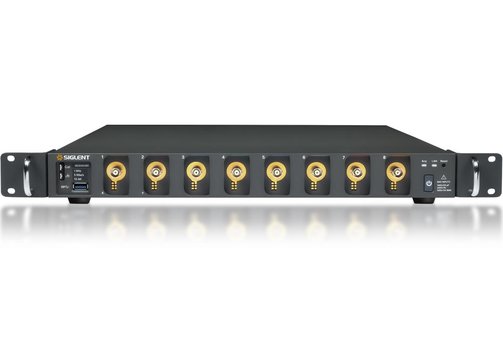

Siglent HDMI DSOs Without Display SDS5038L/SDS5058L/SDS5108L

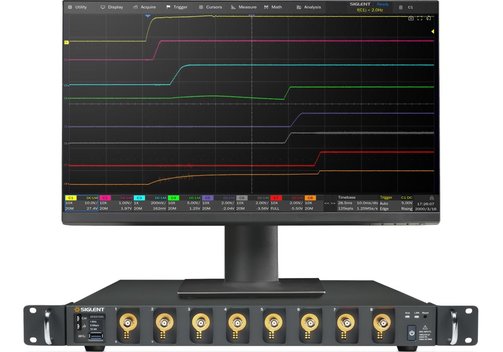

  • Oscilloscope/DSO without display, use HDMI to connect to your own display or use as remote scope in rack.
  • 8 analog channels.

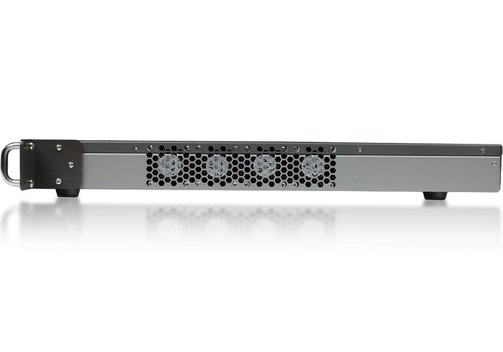

  • Compact form factor without integrated display; HDMI output.

All Models

  • 350 MHz, 500 MHz, or 1 GHz bandwidth.
  • 5 GS/s sample rate.
  • 12-bit ADC; low noise floor: 140 µVRMS at 1 GHz bandwidth (typical).
  • Waveform capture rates up to 160,000 wfm/s (normal mode), 650,000 wfm/s (sequence mode).
  • Up to 2.5 Gpts/ch waveform length.
  • Versatile triggers and serial bus triggering and decoder. Supports protocols including I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429.
  • Versatile measurement, display, math, and analysis functions.
  • Additional functions digital voltmeter, counter, waveform histogram, Bode plot, power analysis, double pulse test, and optional 50 MHz waveform generator (external module).

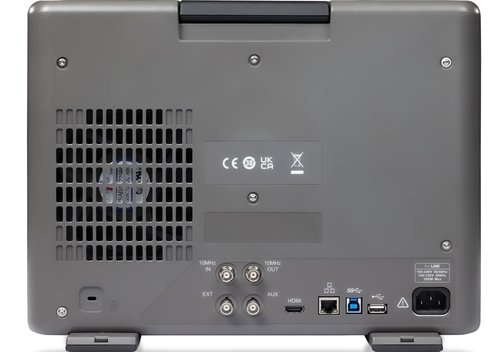

  • Interfaces 2x USB Host 3.0 (1x for SDS5000L), USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN.
  • Built-in web server supports remote control over the LAN port using a web browser.
  • Supports SCPI remote control commands.
  • Supports external mouse and keyboard.

Model Overview Siglent SDS5000X HD

ModelSDS5034X HDSDS5054X HDSDS5104X HDSDS5036X HDSDS5056X HDSDS5106X HDSDS5038X HDSDS5058X HDSDS5108X HD
Analog channels468
Bandwidth (-3 dB, 50 Ω)350 MHz500 MHz1 GHz350 MHz500 MHz1 GHz350 MHz500 MHz1 GHz
Rise time (typ., 50 Ω)830 ps610 ps460 ps830 ps610 ps460 ps830 ps610 ps460 ps
Bandwidth (-3 dB, 1 MΩ)350 MHz500 MHz500MHz350 MHz500 MHz500MHz350 MHz500 MHz500MHz
Sample rate5 GS/s (quarter channel/half channel mode), 2.5 GS/s (full channel mode)
Vertical resolution12 bit (up to 16 bit in HiRes mode)
Memory depth2.5 Gpts/channel (quarter channel mode), 1 Gpts/channel (half channel mode), 500 Mpts/channel (full channel mode)
Waveform capture rate (max.)Normal mode: Up to 160,000 wfm/s; sequence mode: Up to 650,000 wfm/s
Noise floor (typ., RMS, 50 Ω, ≤5 mV/div)100 µV120 µV140 µV100 µV120 µV140 µV100 µV120 µV140 µV
ENOB (typ., 50 Ω, 50 mV/div, 5 GS/s, -1 dB FS/12 MHz input)8.6 bit8.4 bit8.2 bit8.6 bit8.4 bit8.2 bit8.6 bit8.4 bit8.2 bit
Trigger typesEdge, slope, pulse width, window, runt, interval, dropout, pattern, video, qualified, n-th edge, setup/hold, delay, serial
Serial trigger and decodeStandard: I2C, SPI, UART, CAN, LIN;
Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429
Measurements60+ parameters; statistics, histogram, trend, and track supported
Math8 traces;
8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, identity, negation, absolute, sign, ex, 10x, ln, lg, interpolation, max.-hold, min.-hold, ERES, average, filter; supports formula editor
Data analysisSearch, navigate, history, mask test, digital voltmeter, counter, waveform histogram, Bode plot, power analysis, double pulse test
Digital channels16, max. sampling rate 1.25 GS/s, memory depth 250 Mpts/ch, logic type TTL, CMOS, LVCMOS3.3, LVCMOS2.5, Custom; additional SPL2016 logic probes required
Waveform generator (optional)SAG1021I USB isolated waveform generator module, frequency up to 50 MHz, 14 bit, 125 MS/s sample rate, 16 kpts waveform memory; sine, square, ramp, pulse, DC, noise, 45 arbitrary
I/O2x USB 3.0 Host, USB 2.0 Host, USB 3.0 Device (USBTMC),
1000M LAN (VXI-11+SCPI, Telnet (5024)+SCPI, Socket (5025)+SCPI, LXI, WebServer),
external Trigger In, Aux Out (TRIG OUT, PASS/FAIL), 10 MHz In, 10 MHz Out
Probes (standard)500 MHz, 1 probe supplied for each channel
Display12.1"/30.7 cm TFT-LCD with capacitive touch screen (1280*800); HDMI
Dimensions (mm)379 x 288 x 159; 5.5 kg

Model Overview Siglent SDS5000L

ModelSDS5038LSDS5058LSDS5108L
Analog channels8
Bandwidth (-3 dB, 50 Ω)350 MHz500 MHz1 GHz
Rise time (typ., 50 Ω)830 ps610 ps460 ps
Bandwidth (-3 dB, 1 MΩ)350 MHz500 MHz500MHz
Sample rate5 GS/s (quarter channel/half channel mode), 2.5 GS/s (full channel mode)
Vertical resolution12 bit (up to 16 bit in HiRes mode)
Memory depth2.5 Gpts/channel (quarter channel mode), 1 Gpts/channel (half channel mode), 500 Mpts/channel (full channel mode)
Waveform capture rate (max.)Normal mode: Up to 160,000 wfm/s; sequence mode: Up to 650,000 wfm/s
Noise floor (typ., RMS, 50 Ω, ≤5 mV/div)100 µV120 µV140 µV
ENOB (typ., 50 Ω, 50 mV/div, 5 GS/s, -1 dB FS/12 MHz input)8.6 bit8.4 bit8.2 bit
Trigger typesEdge, slope, pulse width, window, runt, interval, dropout, pattern, video, qualified, n-th edge, setup/hold, delay, serial
Serial trigger and decodeStandard: I2C, SPI, UART, CAN, LIN;
Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429
Measurements60+ parameters; statistics, histogram, trend, and track supported
Math8 traces;
8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, identity, negation, absolute, sign, ex, 10x, ln, lg, interpolation, max.-hold, min.-hold, ERES, average, filter; supports formula editor
Data analysisSearch, navigate, history, mask test, digital voltmeter, counter, waveform histogram, Bode plot, power analysis, double pulse test
Digital channels-
Waveform generator (optional)SAG1021I USB isolated waveform generator module, frequency up to 50 MHz, 14 bit, 125 MS/s sample rate, 16 kpts waveform memory; sine, square, ramp, pulse, DC, noise, 45 arbitrary

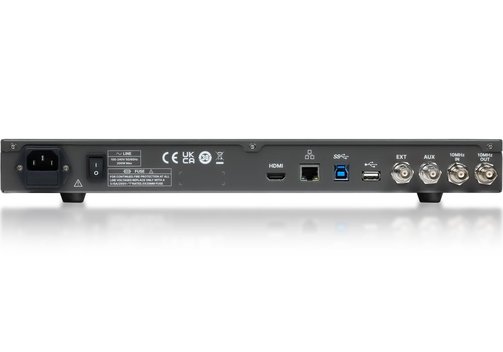

I/OUSB 3.0 Host, USB 2.0 Host, USB 3.0 Device (USBTMC),
1000M LAN (VXI-11+SCPI, Telnet (5024)+SCPI, Socket (5025)+SCPI, LXI, WebServer),
external Trigger In, Aux Out (TRIG OUT, PASS/FAIL), 10 MHz In, 10 MHz Out
Probes (standard)500 MHz, 1 probe supplied for each channel
Display-; HDMI
Dimensions (mm)395 x 43 x 414; 6.2 kg

Included: Siglent oscilloscope SDS 5034X HD, 5054X HD, 5104X HD, 5036X HD, 5056X HD, 5106X HD, 5038X HD, 5058X HD, 5108X HD, 5038L, 5058L, or 5108L, power cord, USB cable, wireless mouse, passive probes 500 MHz (1 per analog channel), quick start, certificate of calibration.

Options and Accessories

ModelDescriptionFor models...Hardware/software
SDS5000HD-PAPower analysisSDS5000X HD seriesSoftware
SDS5000HD-PA33-phase power analysisSoftware
SDS5000HD-I2SI2S trigger and decodeSoftware
SDS5000HD-1553BMIL-STD-1553B trigger and decodeSoftware
SDS5000HD-FlexRayFlexRay trigger and decodeSoftware
SDS5000HD-CANFDCAN FD trigger and decodeSoftware
SDS5000HD-SENTSENT trigger and decodeSoftware
SDS5000HD-ManchManchester decodeSoftware
SDS5000HD-ARINCARINC429 trigger and decodeSoftware
SDS5000HD-8BW3T58-channel, 350 MHz to 500 MHz bandwidth upgradeSoftware
SDS5000HD-8BW3TA8-channel, 350 MHz to 1 GHz bandwidth upgradeSoftware
SDS5000HD-8BW5TA8-channel, 500 MHz to 1 GHz bandwidth upgradeSoftware
SDS5000HD-6BW3T56-channel, 350 MHz to 500 MHz bandwidth upgradeSoftware
SDS5000HD-6BW3TA6-channel, 350 MHz to 1 GHz bandwidth upgradeSoftware
SDS5000HD-6BW5TA6-channel, 500 MHz to 1 GHz bandwidth upgradeSoftware
SDS5000HD-4BW3T54-channel, 350 MHz to 500 MHz bandwidth upgradeSoftware
SDS5000HD-4BW3TA4-channel, 350 MHz to 1 GHz bandwidth upgradeSoftware
SDS5000HD-4BW5TA4-channel, 500 MHz to 1 GHz bandwidth upgradeSoftware
SDS5000L-PAPower analysisSDS5000L seriesSoftware
SDS5000L-PA33-phase power analysisSoftware
SDS5000L-I2SI2S trigger and decodeSoftware
SDS5000L-1553BMIL-STD-1553B trigger and decodeSoftware
SDS5000L-FlexRayFlexRay trigger and decodeSoftware
SDS5000L-CANFDCAN FD trigger and decodeSoftware
SDS5000L-SENTSENT trigger and decodeSoftware
SDS5000L-ManchManchester decodeSoftware
SDS5000L-ARINCARINC429 trigger and decodeSoftware
SDS5000L-8BW3T5350 MHz to 500 MHz bandwidth upgradeSoftware
SDS5000L-8BW3TA350 MHz to 1 GHz bandwidth upgradeSoftware
SDS5000L-8BW5TA500 MHz to 1 GHz bandwidth upgradeSoftware
SPL201616-channel logic probe: input impedance 100 kΩ || 18 pF, input range ±20 V, min. input swing 800 mVPP, max. data rate 300 Mbps (with leadset), 100 Mbps (without leadset)SDS5000X HD seriesHardware
DF2001APower analysis deskew fixtureAll modelsHardware
STB3STB3 demo signal source
USB-GPIBUSB-GPIB adaptor
SAG1021I50 MHz isolated USB function/arbitrary waveform generator
SP6150AHigh-speed passive probe: 1.5 GHz, 10X, input impedance 1.8 pF || 500 Ω
SAP2500DHigh-speed differential probe: 2.5 GHz, 10X, differential input impedance 1 pF || 200 kΩ, input range ±4 V, offset range ±8 V, SAPBus interface
SAP2500High-speed active probe: 2.5 GHz, 10X, input impedance 1.1 pF || 1 MΩ, input range ±8 V, offset range ±12 V, SAPBus interface
SAP1000High-speed active probe: 1 GHz, 10X, input impedance 1.2 pF || 1 MΩ, input range ±8 V, offset range ±12 V, SAPBus interface
HPB4010High voltage passive probe: DC...40 MHz, 1000X, input impedance 3.0 pF || 100 MΩ, max. input differential voltage DC: 0...10 kVDC, AC: ≤7 kVRMS (sinewave), 20 kVPP (pulse)
SDP6150AHigh voltage differential probe: 100 MHz, 50X/500X, max. differential test voltage (DC + peak AC) ±1500 V, CAT III 600 V/CAT II 1000 V, DC 5 V power supply
SDP6150DHigh voltage differential probe: 400 MHz, 100X/1000X, max. differential test voltage (DC + peak AC) ±1500 V, CAT III 600 V/CAT II 1000 V, DC 5 V power supply
SAP1000HHigh voltage differential probe: 1 GHz, 5X/50X, differential input impedance 1 pF || 200 kΩ, input range (DC + peak AC) ±42 V, offset range ±42 V, SAPBus interface
DPB1300High voltage differential probe: 50 MHz, 50X/500X, max. differential test voltage (DC + peak AC) ±1300 V, CAT III 600 V/CAT II 1000 V, DC 12 V power supply
DPB5150High voltage differential probe: 70 MHz, 50X/500X, max. differential test voltage (DC + peak AC) ±1500 V, CAT III 600 V/CAT II 1000 V, USB 5 V power supply
DPB5150AHigh voltage differential probe: 100 MHz, 50X/500X, max. differential test voltage (DC + peak AC) ±1500 V, CAT III 600 V/CAT II 1000 V, USB 5 V power supply
DPB5700High voltage differential probe: 70 MHz, 100X/1000X, max. differential test voltage (DC + peak AC) ±7000 V, CAT III 1000 V, USB 5 V power supply
DPB5700AHigh voltage differential probe: 100 MHz, 100X/1000X, max. differential test voltage (DC + peak AC) ±7000 V, CAT III 1000 V, USB 5 V power supply
SCP5030Current probe: DC...50 MHz, 1 V/A and 0.1 V/A, max. current 30 ARMS/50 APK, 300 V, SAPBus interface
SCP5030ACurrent probe: DC...100 MHz, 1 V/A and 0.1 V/A, max. current 30 ARMS/50 APK, 300 V, SAPBus interface
SCP5150Current probe: DC...12 MHz, 0.1 V/A and 0.01 V/A, max. current 150 ARMS/300 APK, CAT III 300 V/CAT II 600 V, SAPBus interface
SCP5500Current probe: DC...2 MHz, 0.1 V/A and 0.01 V/A, max. current 500 ARMS/750 APK, CAT III 300 V/CAT II 600 V, SAPBus interface
CPL5100Current probe: DC...600 kHz, 0.1 V/A and 0.01 V/A, current range 50 mA...100 APK, DC 12 V power supply
CP4020Current probe: DC...200 kHz, 50 mV/A and 5 mV/A, max. current 20 ARMS/60 APP, CAT III 600 V/CAT II 600 V, DC 9 V power supply
CP4050Current probe: DC...1 MHz, 500 mV/A and 50 mV/A, max. current 50 ARMS/140 APP, CAT III 300 V/CAT II 600 V, DC 9 V power supply
CP4070Current probe: DC...300 kHz, 50 mV/A and 5 mV/A, max. current 70 ARMS/200 APP, CAT III 600 V/CAT II 600 V, DC 9 V power supply
CP4070ACurrent probe: DC...300 kHz, 100 mV/A and 10 mV/A, max. current 70 ARMS/200 APP, CAT III 600 V/CAT II 600 V, DC 9 V power supply
CP6030Current probe: DC...50 MHz, 1 V/A and 0.1 V/A, max. current 30 ARMS/50 APK, 300 V, DC 12 V power supply
CP6030ACurrent probe: DC...100 MHz, 1 V/A and 0.1 V/A, max. current 30 ARMS/50 APK, 300 V, DC 12 V power supply
CP6150Current probe: DC...12 MHz, 0.1 V/A and 0.01 V/A, max. current 150 ARMS/300 APK, CAT III 300 V/CAT II 600 V, DC 12 V power supply
CP6500Current probe: DC...5 MHz, 0.1 V/A and 0.01 V/A, max. current 500 ARMS/750 APK, CAT III 300 V/CAT II 600 V, DC 12 V power supply
SAP4000PPower rail probe: DC...4 GHz, 1.1X, input impedance 50 kΩ at low frequency, 50 Ω at high frequency, input range ±600 mV, offset range ±24 V, SAPBus interface
ODP6050BOptical isolated probe: 500 MHz, 50X, max. differential test voltage (DC + peak AC) ±25 V, isolated voltage ±60 kV, DC 5 V adaptor or 7.4 V battery power supply
ODP6100BOptical isolated probe: 1 GHz, 50X, max. differential test voltage (DC + peak AC) ±25 V, isolated voltage ±60 kV, DC 5 V adaptor or 7.4 V battery power supply
BAG-S2BagSDS5000X HD seriesHardware
