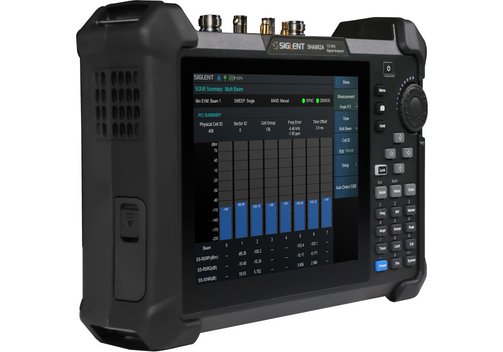

Siglent SHA860A Handheld Signal Analyzer up to 7.5GHz
Benefits of the SHA861A and SHA862A Spectrum-Analyzers, VNA and CAT Analyzers
- Multiple RF analysis such as spectrum analyzer, VNA, CAT, EMI, IQ data acquisition, LTE OTA, 5G NT OTA.
- Frequency range 9 kHz to 3.6 or 7.5 GHz, 5 kHz usable.
- Compact and portable with 8.4"/21.3 cm touch-screen, USB, and LAN/Ethernet.

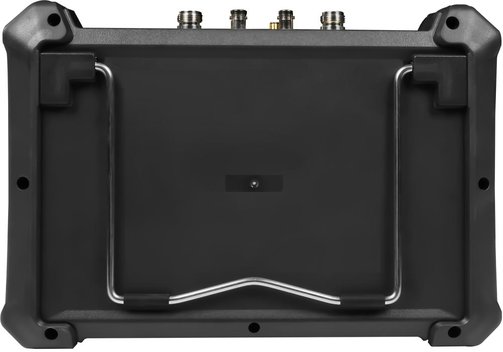

Siglent SHA860A Handheld Signal Analyzer up to 7.5 GHz
The Siglent SHA861A and SHA862A are handheld signal analyzers from the Siglent "Performance Line" with a frequency range from 9 kHz to 3.6 or 7.5 GHz (5 kHz usable). They extend the functionality of the SHA851A and SHA852A models from the Siglent "General Purpose Line" with additional functions such as measurements of LTE OTA or 5G NT OTA, and offer even better specifications, for example for RBW (1 Hz...10 MHz vs. 1 Hz...3 MHz of SHA850A). In addition, the SHA860A models offer real-time spectrum analysis and an analysis bandwidth of 40 MHz, optionally 110 MHz. The devices are robust, portable and have a large touchscreen.
- Handheld RF signal analyzer.
- Frequency range 9 kHz...3.6 or 7.5 GHz, 5 kHz usable.
Displayed average noise level (DANL) -165 dBm/Hz.
SSB phase noise -104 dBc/Hz at 1 GHz, 10 kHz offset.
Analysis bandwidth 40 MHz standard, optional 110 MHz. - 5G NR OTA measurement, multi-PCI and multi-beam analysis.
- LTE FDD and TDD OTA measurement, multi-PCI analysis.
- Channel power, occupied bandwidth, adjacent channel power, SHI and TOI etc.
- IQ data acquisition in 110 MHz bandwidth.

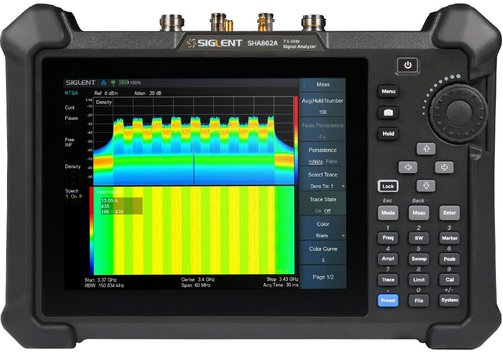

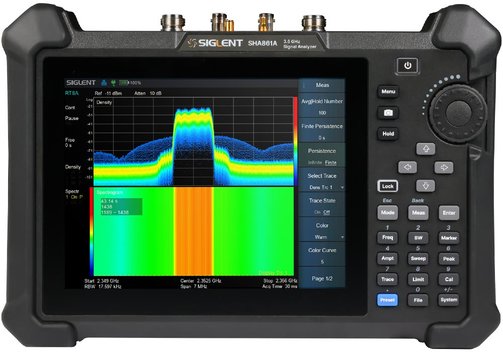

- Real-time spectrum analysis in up to 110 MHz bandwidth, 100% POI time 3.51 µs.
- Pulse profile measurements.
- Indoor and outdoor map for coverage mapping trace recording/playback with GNSS location.
- AM/FM/PM analog modulation analysis, and ASK/FSK/PSK/MSK/QAM digital modulation analysis.
- AM/FM/PM analog modulation audio tune and listening.
- Field strength (EMF) measurements and EMI measurements.
- Independent source to 7.5 GHz.
- Vector network analyzer, 1-path 2-ports S11 and S21 network analysis.
S11 directionality 40 dB, S21 dynamic 114 dB. - Cable and antenna test, distance to fault and time domain analysis.
- TTA test, bias out 12...32 VDC.
- Chargeable battery working time 2.5 hours, 3.2 kg net weight.
- 8.4"/21.3 cm multi-touch screen, mouse and keyboard supported.
Model Overview and Comparison with SHA850A Series
Features shown in the specifications may only be available with one of the softwre options, see table below
| Model | SHA861A | SHA862A | ▸SHA851A | ▸SHA852A |
| Functions | Spectrum analysis, vector network analysis, cable and antenna test, EMI measurement, preamplifier, source, bias out, analog modulation, digital modulation, IQ data acquisition, LTE OTA, 5G NT OTA, pulse profile analysis, GPS receiver, outdoor/indoor map, frequency upgrade |
Spectrum analysis, vector network analysis, cable and antenna test, EMI measurement, preamplifier, source, bias out, analog modulation, digital modulation, IQ data acquisition, GPS receiver, outdoor/indoor map, frequency upgrade | ||
| Spektrum analysis | 9 kHz...3.6 GHz (usable to 5 kHz) | 9 kHz...7.5 GHz (usable to 5 kHz) | 9 kHz...3.6 GHz | 9 kHz...7.5 GHz |
| VNA/CAT | 100 kHz...3.6 GHz (usable to 30 kHz) | 100 kHz...7.5 GHz (usable to 30 kHz) | 100 kHz...3.6 GHz | 100 kHz...7.5 GHz |
| Measurement range | DANL to +23 dBm, 1 MHz...3.6/7.5 GHz, preamp. off | DANL to +20 dBm, 1 MHz...3.6/7.5 GHz, preamp. off | ||
| DANL (typ.) | -165 dBm/Hz | -165 dBm/Hz | ||
| Phase noise (typ.) | -104 dBc/Hz (typ.) at fc=1 GHz, offset 10 kHz | -104 dBc/Hz (typ.) at fc=1 GHz, offset 100 kHz | ||
| RBW (-3 dB) | 1 Hz...10 MHz in 1-3-10 sequence | 1 Hz...3 MHz in 1-3-10 sequence | ||
| VBW (-3 dB) | 1 Hz...10 MHz in 1-3-10 sequence | 1 Hz...10 MHz in 1-3-10 sequence | ||
| Attenuation | 0...50 dB, in 1-dB steps | 0...50 dB, in 2-dB steps | ||
| Preamplifier | 25 dB, nom. | 25 dB, nom. | ||
| Analysis bandwidth | 40 MHz, upgradeable to 110 MHz | - | ||
| Number of traces | 6 | 6 | ||
| Display | 8.4"/21.3 cm TFT LCD touch screen | 8.4"/21.3 cm TFT LCD touch screen | ||
| Interfaces | USB host and device, LAN/Ethernet | USB host and device, LAN/Ethernet | ||
| Battery | 10.8 V, 74 Wh, Lithium Ion, 2.5 h | 10.8 V, 74 Wh, Lithium Ion, 4 h | ||
| Dimensions (mm) | 310 x 215 x 79; 3.2 kg | 310 x 215 x 79; 3.2 kg | ||
Included: RF signal analyzer Siglent SHA 861A or 862A, power cord, USB cable, AC-DC adaptor, rechargeable Lithium battery, portable bag, quick start guide.
Options List
| Model | Description |
| SHA860-F2 | Upgraded SHA861A to SHA862A |
| SHA860-B1A | Analysis bandwidth 110 MHz |
| SHA860-AMK | Advanced measurement kit |
| SHA860-EMI | EMI measurement |
| SHA860-NR | 5G NR OTA measurement |
| SHA860-LTE | LTE TDD/FDD OTA measurement |
| SHA860-RTA | Real-time spectrum analysis |
| SHA860-IQA | IQ data acquisition |
| SHA860-PU | Pulse profile analysis |
| SHA860-DMA | Digital modulation analysis |
| SHA860-AMA | Analog modulation analysis |
| SHA860-SOR | Source |
| SHA860-CAT | Cable and antenna test |
| SHA860-VNA | Vector network analysis |
| SHA860-BIAS | Bias out |
| SHA860-GPS | GPS receiver |
| SHA860-MAP | Outdoor/indoor map |
| EasyMap | Outdoor/indoor map tile download PC software |
