Benefits of the Micsig Compact-Oscilloscope STO2000C Series

  • Smart, portable and compact oscilloscope with touch screen.
  • 2 channels and 200 or 300 MHz bandwidth.
  • Supported by PC software and mobile app.

Micsig STO2000C Series Portable Smart Oscilloscope up to 300 MHz

Models STO2202C and STO2302C

The Micsig STO2000C series devices are portable smart 2-channel oscilloscopes with 200 MHz or 300 MHz bandwidth. They offer 2 GS/s sample rate (single channel), up to 280 Mpts memory depth, and up to 130,000 Wfm/s waveform capture rate. The Micsig STO2000C series support serial bus trigger and decoding (I²C, SPI, RS232/UART, CAN, LIN) and are equipped with various measurement and mathematical functions. The oscilloscopes have Ethernet/LAN, Wifi, USB 2.0 Host & Device interfaces, HDMI and a capacitive touch screen.

  • Smart, compact touch screen oscilloscopes.
  • 2 channels.
  • Bandwidth 200 MHz or 300 MHz.
  • 2 GS/s (single channel) sample rate.
  • Up to 280 Mpts (single channel) memory depth.
  • Waveform capture rate 130,000 wfm/s (regular mode), 270,000 wfm/s (segmented memory mode).

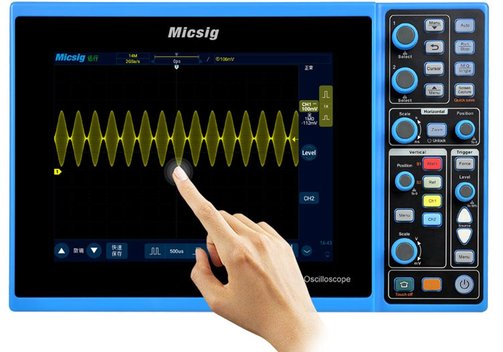

  • 8"/20.3 cm industrial LCD, 800x600 resolution multi-point capacitive touch screen.
  • Android system, rapid operation respond.
  • Interfaces: Ethernet/LAN, WiFi, USB 2.0 Host & Device; HDMI.
  • Probe calibration port.
  • Bus trigger and decoding supported: UART, I²C, SPI, CAN, LIN.
  • PC software, iOS and Android mobile app for oscilloscope remote control.
  • Built-in 8G storage for various types of waveform and video records.
  • Lithium battery, battery life up to 5 hours.

Model Overview

ModelSTO2202CSTO2302C
Channels22
Bandwidth200 MHz300 MHz
Real time sampling rate2 GS/s (1 channel), 1 GS/s (2 channels)
Memory depth280 Mpts/28 Mpts/2.8 Mpts/280 kpts/28 kpts/Auto (1 channel), 140 Mpts/14 Mpts/1.4 Mpts/240 kpts/14 kpts/Auto (2 channels)
Capture rateUp to 130,000 wfm/s (regular), up to 270,000 wfm/s (segmented memmory mode)
Resolution8 bit
SafetyCAT I 300 VRMS, 400 Vpk (1 MΩ), 5 VRMS 50 Ω
TriggeringModes: Normal, auto, single; types: Edge, pulse width, logic, runt, time-out, slope, video, nth edge
Bus decodingRS232/UART, I²C, SPI, CAN, LIN, optional 1553B, 429
Display8"/20.3 cm LCD, 800x600 resolution multi-point capacitive touch screen; HDMI port
InterfacesUSB 2.0 Host & Device, Ethernet/LAN, Wifi
Power supplyPower adaptor; Lithium Ion battery 7.4 V/7500 mAh
Dimensions (mm)280 x 180 x 50; approx. 1.34 kg (+ battery 132 g)

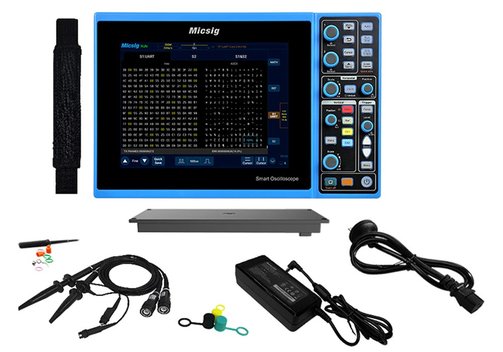

Included: Micsig STO 2202C or 2302C, power adaptor and cable, 2x passive probe, built-in battery, BNC caps, carry strap belt, protective film. Incl. ser. decoding for CAN, LIN, SPI, I²C, UART.
