Eaton/Sefelec SYNOR5000 Series High Voltage Cable Testers

new

additional images:

Quantity:

Total

Unit price

base price

Stock:

Delivery time

Description

» PDF datasheet, specs

» Accessories list

Benefits

High number of test points - modular, expandable.
Wide functional range for various tests.
Suitable also for very large test systems.

Eaton/Sefelec SYNOR5000 Series High Voltage Cable Testers

The Eaton/Sefelec SYNOR5000 is a high voltage cable tester system. It is one of the most compact systems regarding it's amount of available points, with excellent specs/price ratio. Working with or without PC, it is the ideal solution for production, laboratory, or maintenance. Due to ruggedized versions it can be used in indoor and outdoor applications.

AC/DC dielectric strength test.
Insulation measurement.
2- and 4-wire continuity test.
Functional test/stimuli.
Test of components.
All adaptor board types can be mixed (switching cards, stimuli cards, mixed cards).
Stand alone mode (black box).
Ethernet, PLC interfaces, Wifi.
Software compatible with Windows 7 and 10 Winpass:
- Import test files.
- Self-learning.
- Fast and easy test and debug.
- Traceability - generate reports to customer/quality management.
Multilingual software, free updates available via download.

Series Overview

Model	Number of test points	AC/DC dielectrical strength test/hipot tester	DC insulation test/resistance range	2-/4-wire continuity test	Component test and additional tests	Design/formfactor
SYNOR5000P	8 - 384; 2 relays per point	up to 5000 VAC 6000 VDC	2...2120 VDC 50 kO...5 GO	1 O...2 kO 1 mO...2 kO	Resistance, diode, capacitor, shielding, transil, transorb	19" portable unit
SYNOR5000H	8 - 100,000; 2 relays per point	up to 5000 VAC 6000 VDC	2...2120 VDC 50 kO...5 GO	1 O...2 kO 1 mO...2 kO	Resistance, diode, capacitor, shielding, transil, transorb	19" rack with housing
SYNOR5000R	8 - 100,000; 2 relays per point	up to 5000 VAC 6000 VDC	2...2120 VDC 50 kO...5 GO	1 O...2 kO 1 mO...2 kO	Resistance, diode, capacitor, shielding, transil, transorb	19" rack
SYNOR5000D	8 - 100,000; 2 relays per point	up to 5000 VAC 6000 VDC	2...2120 VDC 50 kO...5 GO	1 O...2 kO 1 mO...2 kO	Resistance, diode, capacitor, shielding, transil, transorb	distributed modules (satellites) 6 U height
SYNOR5000C	8 - 100,000; 2 relays per point	up to 5000 VAC 6000 VDC	2...2120 VDC 50 kO...5 GO	1 O...2 kO 1 mO...2 kO	Resistance, diode, capacitor, shielding, transil, transorb	19" cabinet

Included System Components

Model	Description	Formfactor	Includes	System requirements

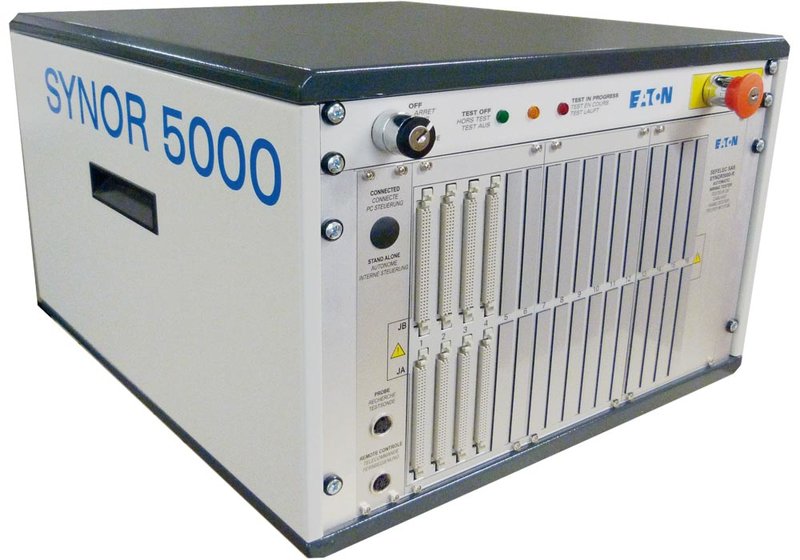

SYNOR5000-H_A	High voltage cable tester master	Enclosure (height 7 U)	Central unit (generation and measurement). On/Off and emergency stop panel. 2- and 4-wire continuity, 2- and 4-wire resistance, 2- and 4-wire diode, component measurement (resistance, diode, capacitor in DC). DC hipot and insulation (if option ref. SY5000-H VDC ordered). AC hipot (if option ref. SY5000-H VAC ordered). Winpass5000 software. 1 touch probe. 1x 19" rack with 16 available switching card slots (the switching cards have to be ordered separately); for more boards, see ref. SYNOR5000-HS or other available configurations. One crossed Ethernet cable 1.8 m.	PC with one available Ethernet port. All the available switching boards can be mixed in each rack
SYNOR5000-HX	High voltage cable tester master/slave	Enclosure (height 7 U)	Central unit (generation and measurement). On/Off and emergency stop panel. 2- and 4- wire continuity, 2- and 4- wire resistance, 2- and 4-wire diode, component measurement (resistance, diode, capacitor in DC). DC hipot and insulation (if option ref. SY5000-H VDC ordered). AC hipot (if option ref. SY5000-H VAC ordered). Winpass5000 software. 1 touch probe. 1x 19" rack with 16 available switching card slots (the switching cards have to be ordered separately); for more boards, see ref. SYNOR5000-HS or other available configurations. One crossed Ethernet cable 1.8 m.	PC with one available Ethernet port. All the available switching boards can be mixed in each rack

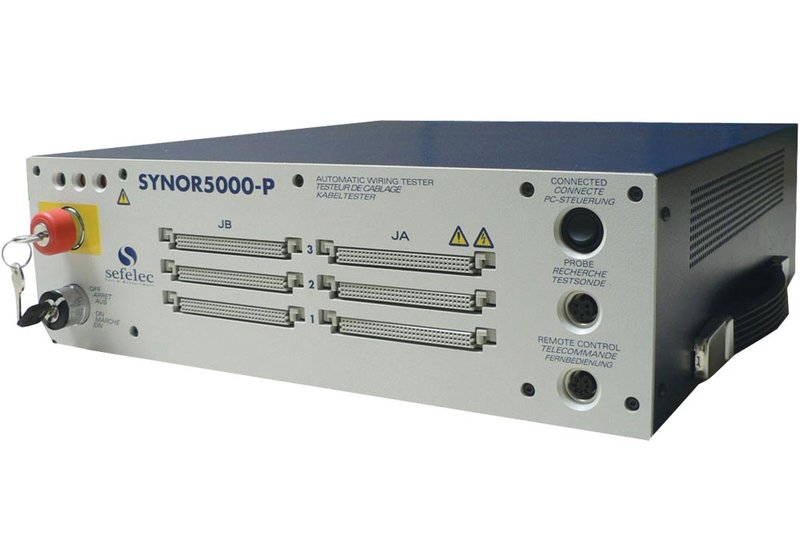

SYNOR5000-P_A	High voltage cable tester	Unit (height 3 U)	Central unit (generation and measurement). On/Off and emergency stop. 2- and 4-wire continuity, 2- and 4-wire resistance, 2- and 4-wire diode, component measurement (resistance, diode, capacitor in DC). DC hipot and insulation (if option ref. SY5000-H VDC ordered). AC hipot (if option ref. SY5000-H VAC ordered). Winpass5000 software. 1 touch probe. 1x 19" rack with 3 available switching card slots (the switching cards have to be ordered separately); for more boards, see ref. SYNOR5000-RS or other available configurations. One crossed Ethernet cable 1.8 m	PC with one available Ethernet port. All the available switching boards can be mixed in each rack
SYNOR5000-R_A	High voltage cable tester	Rack (height 6 U)	Central unit (generation and measurement). 2- and 4-wire continuity, 2- and 4-wire resistance, 2- and 4-wire diode, component measurement (resistance, diode, capacitor in DC). DC hipot and insulation (if option ref. SY5000-H VDC ordered). AC hipot (if option ref. SY5000-H VAC ordered). Winpass5000 software. 1 touch probe. 1x 19" rack with 16 available switching card slots (the switching cards have to be ordered Separately); for more boards, see ref. SYNOR5000-RS or other available configurations. One crossed Ethernet cable 1.8 m	PC with one available Ethernet port. All the available switching boards can be mixed in each rack
SYNOR5000-RX	High voltage calbe tester master/slave	Enclosure (height 7 U)	Central unit (generation and measurement). On/Off and emergency stop panel. 2- and 4-wire continuity, 2- and 4-wire resistance, 2- and 4-wire diode, component measurement (resistance, diode, capacitor in DC). DC hipot and insulation (if option ref. SY5000-H VDC ordered). AC hipot (if option ref. SY5000-H VAC ordered). Winpass5000 software. 1 touch probe. 1x 19" rack with 16 available switching card slots (the switching cards have to be ordered separately); for more boards, see ref. SYNOR5000-HS or other available configurations. One crossed Ethernet cable 1.8 m	PC with one available Ethernet port. All the available switching boards can be mixed in each rack
SYNOR5000-C	High voltage cable tester	Cabinet (from 18 U to 36 U)	1x 19" cabinet which can include several racks (ref. SYNOR5000-R and SYNOR5000-RS) or unit (ref. SYNOR5000-P and SYNOR5000-RS) with switching card slots (the switching cards have to be ordered separately); see available configurations. On/Off and emergency stop panel.	PC with one available Ethernet port. All the available switching boards can be mixed in each rack. Has to be ordered with one main rack or unit (ref. SYNOR5000-R or SYNOR5000-P) in order to get a central unit (generation and measurement) inside
SYNOR5000-D_A	High voltage cable tester	Composite enclosure type (height 7 U)	Central unit (generation and measurement). 2- and 4-wire continuity, 2- and 4-wire resistance, 2- and 4-wire diode, component measurement (resistance, diode, capacitor in DC). DC hipot and insulation (if option ref. SY5000-H VDC ordered). AC hipot (if option ref. SY5000-H VAC ordered). Winpass5000 software. 1 touch probe. 1x 19" rack with 16 available switching card slots (the switching cards have to be ordered separately); for more boards, see ref. SYNOR5000-DS or other available configurations. One crossed Ethernet cable 1.8 m	PC with one available Ethernet port. All the available switching boards can be mixed in each rack
SYNOR5000-DX	High voltage cable tester master/slave	Enclosure (height 7 U)	Central unit (generation and measurement). On/Off and emergency stop panel. 2- and 4-wire continuity, 2- and 4-wire resistance, 2- and 4-wire diode, component measurement (resistance, diode, capacitor in DC). DC hipot and insulation (if option ref. SY5000-H VDC ordered). AC hipot (if option ref. SY5000-H VAC ordered). Winpass5000 software. 1 touch probe. 1x 19" rack with 16 available switching card slots (the switching cards have to be ordered separately); for more boards, see ref. SYNOR5000-HS or other available configurations. One crossed Ethernet cable 1.8 m	PC with one available Ethernet port. All the available switching boards can be mixed in each rack

Extension racks/cabinets

Model	Description
SYNOR5000-HS_A	7 U metallic extension with enclosure, 19", 18 slots
SYNOR5000-RS_A	6 U metallic extension rack without enclosure, 19", 18 slots
SYNOR5000-DS_A	7 U composite extension distributed module, 19", 18 slots

More options and accessories on request, see datasheet.

Accessories, options

Adaptor and Stimuli Boards for Eaton/Sefelec SYNOR5000 Series

Price on demand

Query on the Item?

Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!

Tell a friend

Tell a friend
