Keysight U2781A Instrument Chassis

Scaled Prices
taking 1 pc.
€ 2.553,74
taking 2 pc.
€ 2.426,05
2.553,74
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~10-25 workdays
Item available at short notice. Delivery Time ~10-25 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the U2781A for Individual, Modular USA DAQ Systems

  • Robustes Chassis für USB-Systeme mit vielen Kanälen.
  • Für die Keysight U2000 USB-Module und Instrumente
  • Hot-swap: Module im eingeschalteten Zustand austauschbar.

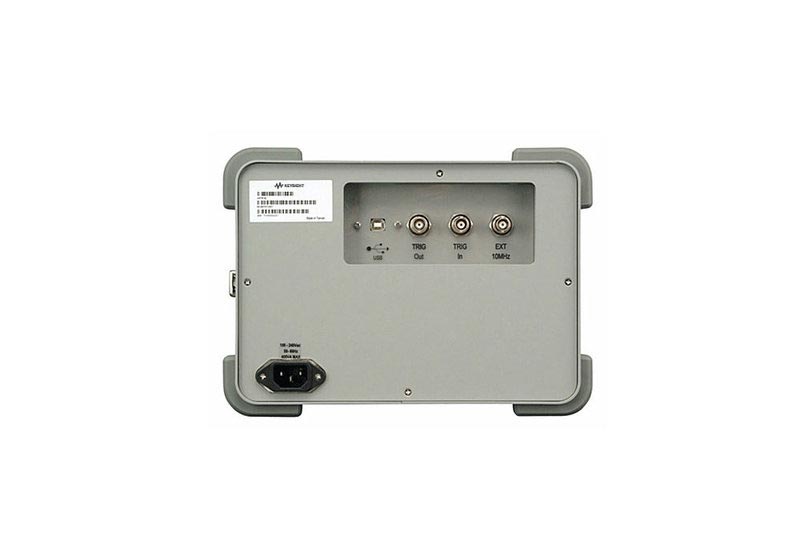

Keysight U2781A Instrument Chassis

The Keysight USB modules are very flexible: All modules (see table below) can be used directly at a PC USB port like "traditional" USB devices. Or you can remove the rubber protector and insert the modules in a type U2781A 4 U chasssis. Up to 6 modules can be mounted in a 2781A chassis which allows up to 384 I/O channels!

  • Mainframe/chassis for the modules see table below.
  • High-speed USB 2.0 (480 Mbit/s).
  • Hot-swappable and auto-detectable characteristic minimizes startup time/effort.
  • Mountable to rack with an optional rackmount kit.
  • Simultaneous synchronization between modules.
  • SSI/Star trigger bus synchronization between external trigger source and modules.

Included: Chassis U 2781A (modules not included!), USB interface cable, CD with user manual and Keysight IO Libraries Suite CD, functional test certificate,quick start instruction. Software: Keysight Connectivity-Software. Keysight IO Libraries Suite. Software drivers fpr programming environments: IVI-COM driver. Compatible with Keysight VEE Pro (formerly Agilent VEE, HP-VEE), T&M Toolkit, Microsoft Visual Studio .NET C/C++, Visual Basic 6, National Instruments LabVIEW, The MathWorks MATLAB. Keysight Measurement Manager.

Supported Modules

ModelDescription
▸U2300AUSB multifunctional DAQ: Rates up to 3 MS/s for a single channel. Up to 64 analog inputs. Up to 16 bit resolution for high accurracy.
▸U2500AUSB multifunctional DAQ with simultaneous sampling: Individual A/D converter per channel for simultaneous acquisition when signal phase matters. Raten bis 2 MS/s pro Kanal. Auflösung bis 16 bit.
▸U2600AUSB isolated digital-I/O: 64 opto-isolated channels up to 24 V/35V. Isolation up to 1250 V(RMS).
▸U2722AUSB source measure unit (SMU) - more than a power supply
▸U2751AUSB switching matrix, 32 2-wire cross-points.
▸U2761A1-channel USB signal generator up to 20 MHz.
▸U270xA2-channel USB oscilloscope, 100 or 200 MHz bandwidth.
▸U2741A5½ digit USB digital multimeter.

Agilent’s Electronic Measurement Group is now Keysight Technologies.
