Keysight U2802A Thermocouple Inputs

Keysight U2802A thermocouple inputs
Scaled Prices
taking 1 pc.
€ 2.537,08
taking 2 pc.
€ 2.410,23
€ 2.537,08
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~10-25 workdays
Item available at short notice. Delivery Time ~10-25 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

31 Thermocouple Inputs for Keysight U2355A and U2356A

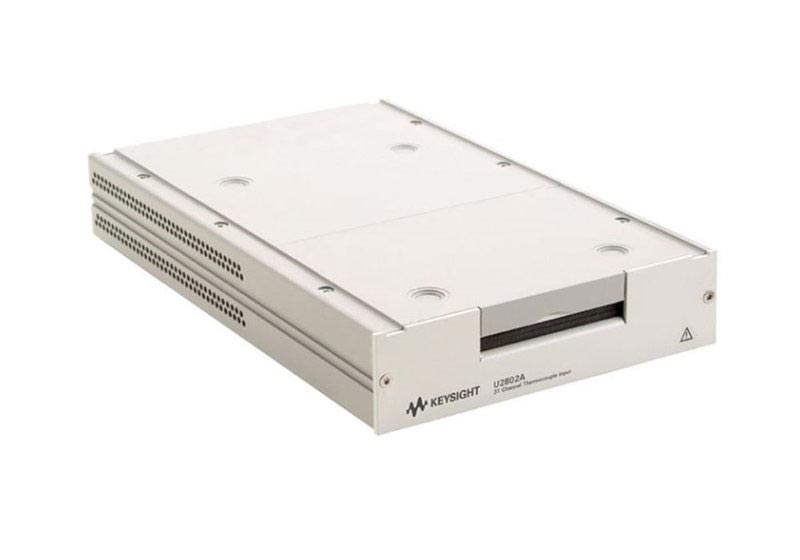

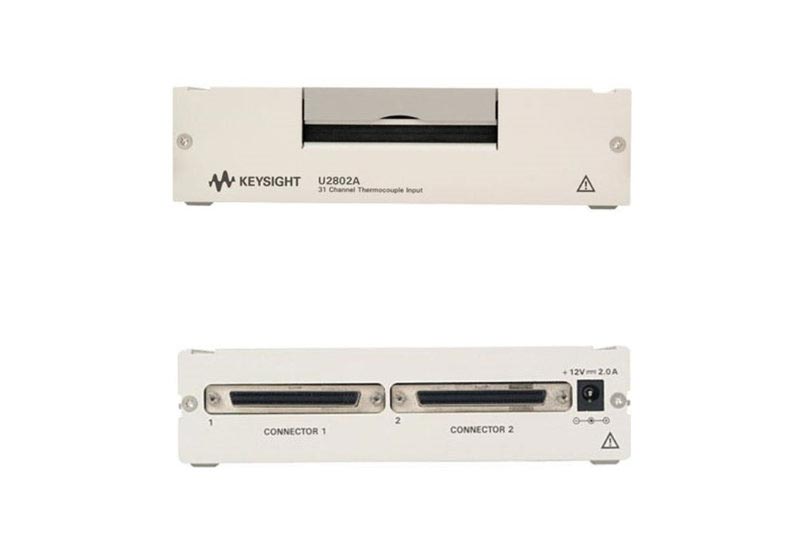

The Keysight U2802A offers 31 thermocouple inputs for the USB modules U2355A and U2356A. The module can be configured for temperature measurement with thermocouples of type J, K, T, E, R, S, B, N or for voltage measurement up to 10 V. A terminal block as well as a thermistor for cold junction compensation are integrated.

  • Up to 31 thermocouple inputs.
  • Independently configurable for measurement of thermocouples or voltages.
  • Integrated thermistor for cold junction compensation (CJC).
  • Zeroing function.
  • Open thermocouple detection.
  • NIST calibration.
  • Voltage input range up to 10 V.
  • Supports thermocouples typ J, K, T, E, R, S, B, N.

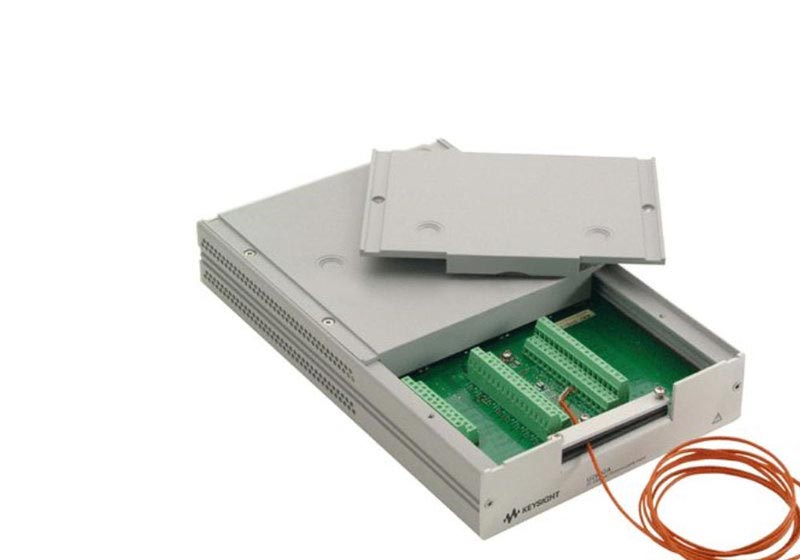

  • Integrated isothermal terminal block.
  • Sampling rate 500 kS/s for the whole module, 10 kS/s total for all channels in thermocouple mode.
  • Accessory for the modules Keysight U2355A and U2356A.
  • Incl. power supply splitter, two 68-pin SCSI cables (1 m), and a type J thermocouple.

Included: Module, power supply splitter, two 68-pin SCSI cables (1 m), a type J thermocouple, quick start guide, produkt referenz CD-ROM, Keysight Automation-Ready CD (incl. Keysight IO Libraries Suite), calibration certificate. Can be mounted in ▸mainframe/chassis U2781A.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

Agilent’s Electronic Measurement Group is now Keysight Technologies.
