Module 701262 for Yokogawa DL350, V, Temp., AAF

Yokogawa 701262
additional images:
Price
2.022,05*
€ 2.406,24 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Description
PDF datasheet, specs:

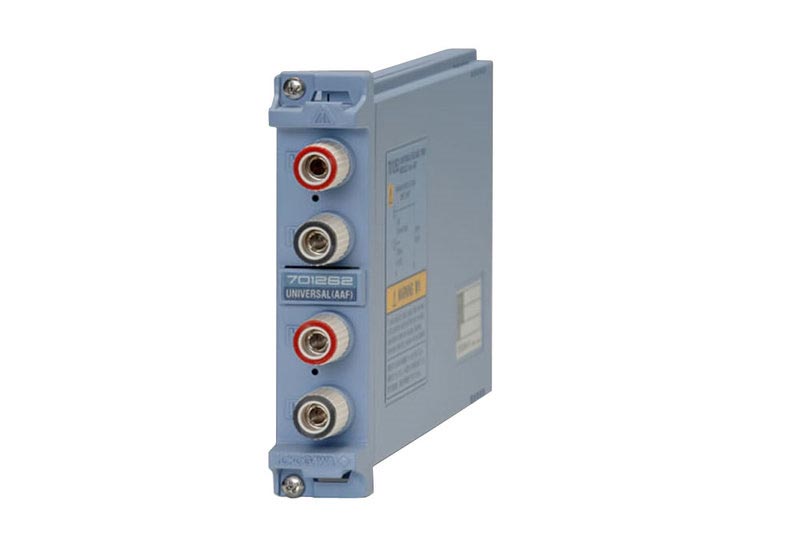

Module for the Yokogawa ScopeCorder DL350 - U, temperature, AAF - 701262.

  • Module 701262 for voltage and temperature.
  • Sample rate 100 kS/s (voltage), 500 S/s (temperature).
  • Resolution 16 bit (voltage), 0.1°C (temperature).
  • Bandwidth 40 kHz (voltage), 100 Hz (temperature).
  • 2 channels, isolated.
  • Max. measurement voltage 42 V.
  • DC accuracy ±0.25% (voltage).
  • Thermocouple (K, E, J, T, L, U, N, R, S, B, W, KP/AuFe), with anti aliasing filter.
Accessories, options
Query on the Item?
Do you have any questions on this item? Do you want to be updated with information on availability?
Don't forget to quote your name, company and phone number, so we can quickly reach you, if there are any questions from our side!
Your E-mail Adress
Name, company, phone, your question:
Tell a friend
Description
Accessories, options
Query on the Item?
Tell a friend
PDF datasheet, specs:



Module for the Yokogawa ScopeCorder DL350 - U, temperature, AAF - 701262.

  • Module 701262 for voltage and temperature.
  • Sample rate 100 kS/s (voltage), 500 S/s (temperature).
  • Resolution 16 bit (voltage), 0.1°C (temperature).
  • Bandwidth 40 kHz (voltage), 100 Hz (temperature).
  • 2 channels, isolated.
  • Max. measurement voltage 42 V.
  • DC accuracy ±0.25% (voltage).
  • Thermocouple (K, E, J, T, L, U, N, R, S, B, W, KP/AuFe), with anti aliasing filter.
