Keysight B2912A SMU 2 Channels

Online Price Advantage!
Keysight B2912A SMU 2 channels
additional images:
progressive price
taking 1 pcs
€ 13.180,00
taking 3 pcs
€ 12.521,00
Price
List price € 13.596,00
13.180,00*
€ 15.684,20 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
on stock
Delivery from stock
Description

Benefits

  • 2-channel 6½ source measure unit - the versatile combination of source and meter.
  • Wide application coverage from 100 nV/10  fA to 210 V/3 ADC and 10.5 A pulsed.
  • Ethernet/LXI, USB and GPIB interfaces.

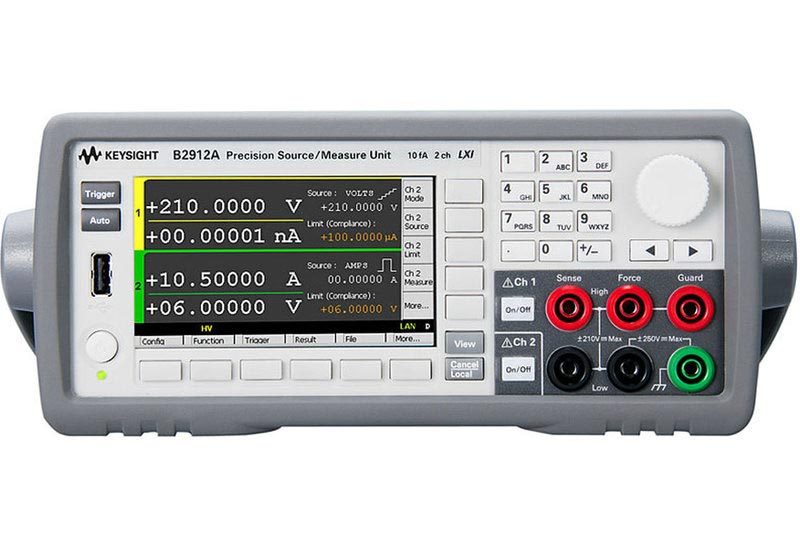

Keysight SMU/Source Measure Unit B2912A, 2-Channel.

Keysight B2912A - precision 2-channel source/measure unit (SMU) with the capability to source and measure both voltage and current. Graphic user interface, USB, Ethernet/LXI and GPIB interfaces.

  • 2 channels.
  • Integrated, high precision voltage/current source (4-quadrant) and measurement capabilities.
  • Wide range up to 210 V, 3 ADC/10.5 A pulse.
  • 4,3" (approx. 11 cm) colour display for graphic and numeric modes.
  • High resolution arbitrary waveform generator (AWG) and list sweep functions.
  • Fast digitizing function.
  • LXI core conformant, USB 2.0, GPIB, LAN and digital-I/O interface. SCPI compatible.
  • A BenchVue software licence (BV0003B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Model Overview

Model B2912A
Channels 2
Max. output Voltage 210 V
Current DC 3.03 A
pulsed 10.5 A
LPower 31.8 W
Source Max. digits Digits
Min. resolution Voltage 100 nV
Current 10 fA
Measurements Max. digits Digits
Min. resolution Voltage 100 nV
Current 10 fA
Min. programmable intervall for list sweep/AWG waveform 10 µs
Min. trigger intervall for digitizing (max. sample rate) 10 µs (100,000 pts/s)
View modes Single view yes
Dual view yes
Graph view yes
Roll view yes

Included: SMU B 2912A, power cord, quick start guide, product reference CD, software CD.
Software: Application software, IVI-COM driver. BenchVue enabled. A BenchVue software licence (BV0003B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

Agilent’s Electronic Measurement Group is now Keysight Technologies.
