B+K Precision BK40xx Series Dual Channel Function/ARB Waveform Generators
Benefits of the BK40xx Series Signalgenerators up to 5, 10, 30, 60, 80, 120, 160 MHz
- Dual channel signal and arbitrary waveform generators.
- Two independent channels, one button synchronization (BK406x series).
- Variety of modulations, burst and sweep functions.
B+K Precision BK40xx Series Dual Channel Function and Arbitrary Waveform Generators
Models BK4052, BK4053B, BK4054B, BK4055B, BK4063, BK4064, BK4065 Signal Generators

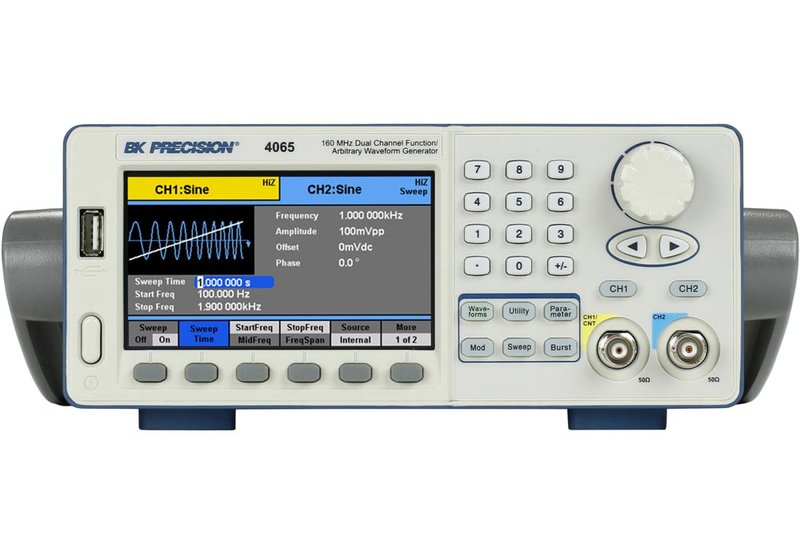

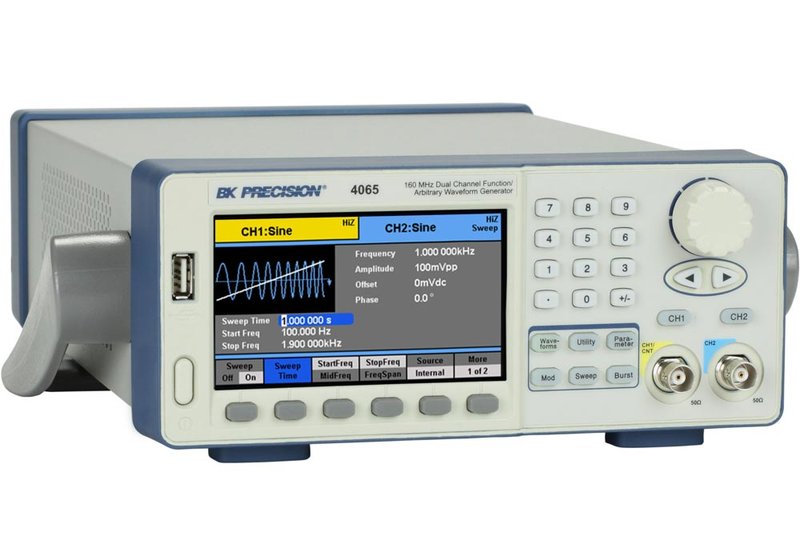

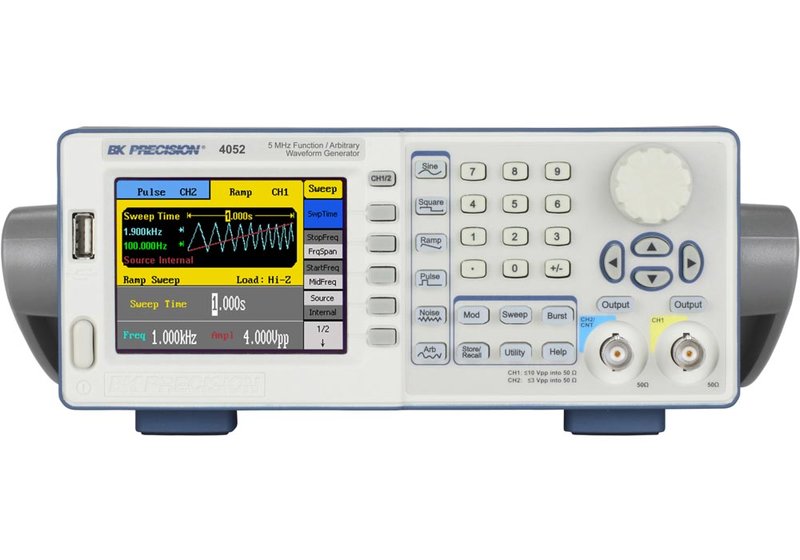

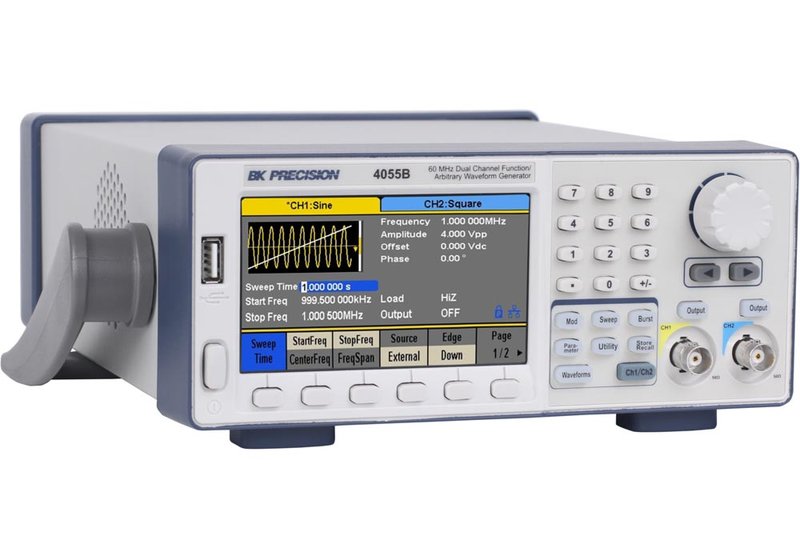

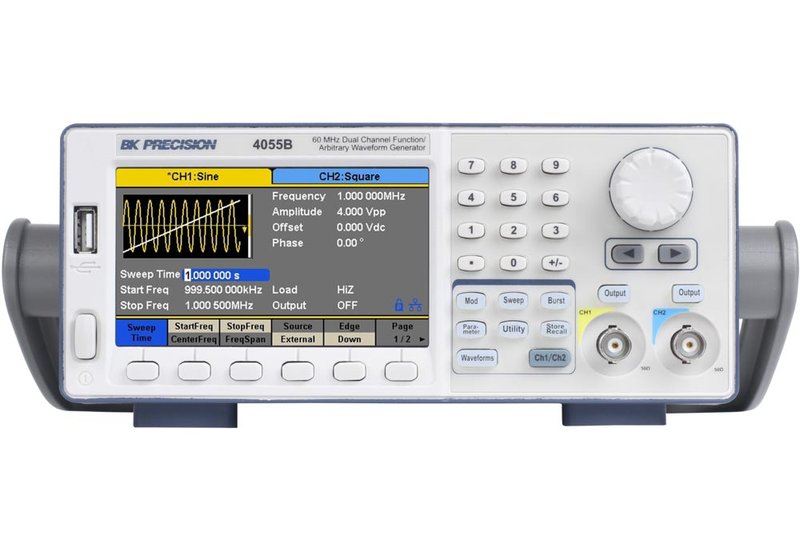

The B+K Precision series BK40xx devices are reliable 2-channel function and arbitrary waveform generators with max. frequencies up to 5, 10, 30, 60, 80, 120 or 160 MHz (sine). With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities.
- Two independent signal output channels.
- Max. sine frequency up to 160 MHz.
- Standard- and arbitrary waveforms.
- AM, DSB-AM, ASK, FM, FSK, PM, PWM modulations.
- Linear and logarithmic sweep.
- Built-in counter.
- Models BK405xB: Harmonics generator function.

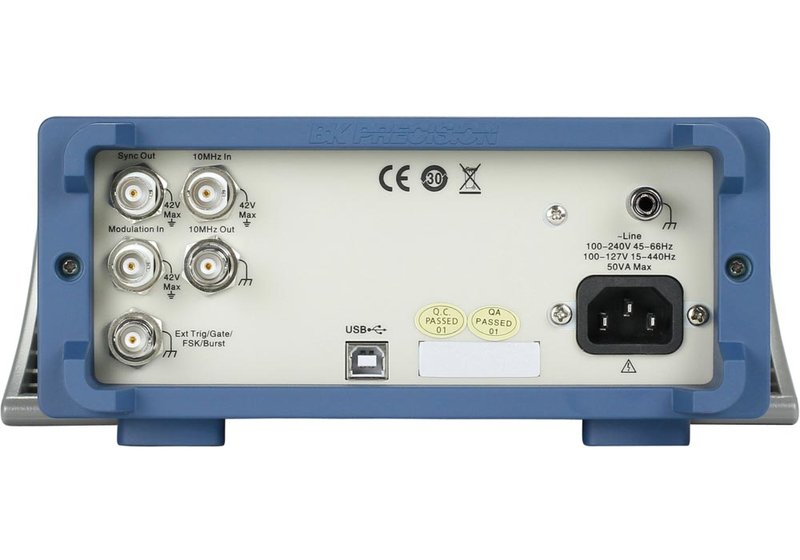

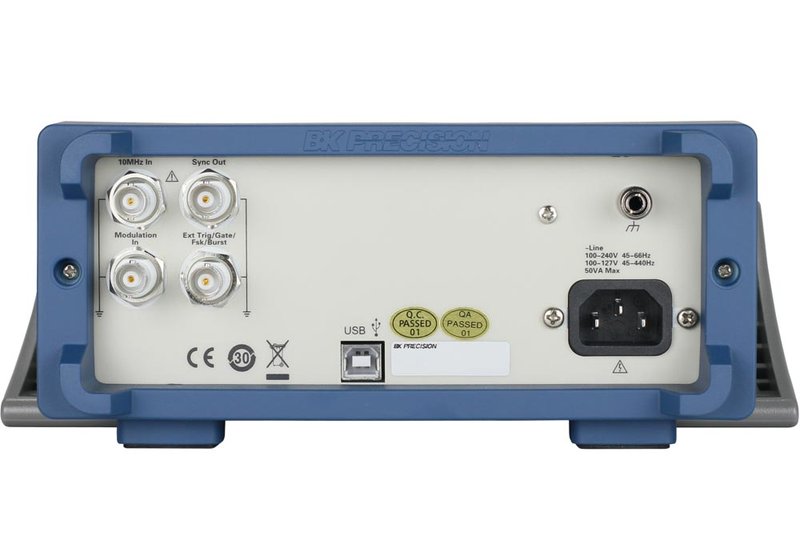

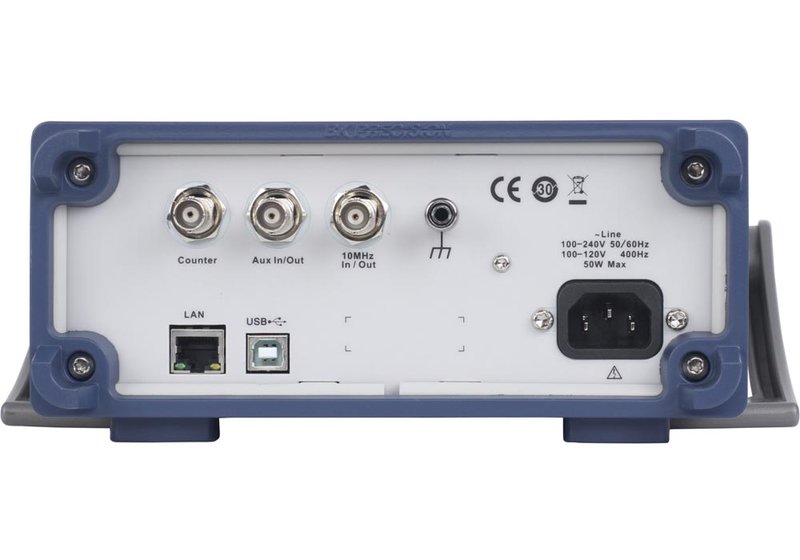

- USB interface, optional adaption to GPIB. Models BK405xB additional Ethernet/LAN.
Model Overview
| Model | Channels | Max. frequency sine | Max. frequency square | Max. frequency arbitrary | Waveforms | Interfaces |
| BK4052 | 2 | 1 µHz...5 MHz | 1 µHz...5 MHz | 1 µHz...5 MHz | Sine, square, triangle, ramp, pulse, Gaussian noise, arbitrary (48 built-in waveforms incl. DC, 14 bit, 125 MS/s, 16,000 points/channel) | USB |
| BK4053B | 2 | 1 µHz...10 MHz | 1 µHz...10 MHz | 1 µHz...6 MHz | Sine, square, triangle, ramp, pulse, noise, arbitrary (196 built-in waveforms incl. DC, 14 bit, 150 MS/s, 16 k points/channel) | USB, Ethernet/LAN |
| BK4054B | 2 | 1 µHz...30 MHz | 1 µHz...30 MHz | 1 µHz...6 MHz | USB, Ethernet/LAN | |
| BK4055B | 2 | 1 µHz...60 MHz | 1 µHz...60 MHz | 1 µHz...6 MHz | USB, Ethernet/LAN | |
| BK4063 | 2 | 1 µHz...80 MHz | 1 µHz...40 MHz | 1 µHz...20 MHz | Sine,square, triangle, ramp, pulse, Gaussian noise, arbitrary (36 built-in waveforms, 14 bit, 500 MS/s, channel 1: 16,000 points, channel 2: 512,000 or 16,000 points) | USB |
| BK4064 | 2 | 1 µHz...120 MHz | 1 µHz...50 MHz | 1 µHz...30 MHz | USB | |
| BK4065 | 2 | 1 µHz...160 MHz | 1 µHz...50 MHz | 1 µHz...40 MHz | USB |
Included: BK 4052, 4053B, 4054B, 4055B, 4063, 4064, or 4065, getting started manual, full instruction manual (download), power cord, USB type A-to-B cable, certificate of calibration.
