Brainboxes ES Series Ethernet-to-Serial Device Servers

Scaled Prices
starting 127,33
including VAT plus shipping
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the ES Series to Control your Serial Devices via LAN

  • Ethernet-to-serial device servers: Use RS232, RS422 or RS485 devices from the Ethernet.
  • Versions with power over Ethernet/PoE.
  • Industrial models with extended temperature range, wide range redundant dual power input, isolation and integrated switch.

Brainboxes ES Series Ethernet-to-Serial Device Servers

The Brainboxes series ES are Ethernet to serial device servers with 1, 2, 4 or 8 serial ports. They feature a serial rate of up to 1 MBaud and - depending on the model - RS232, RS422/RS485, mixed, or software-selectable ports. They have one 10 or 100 Mbs Ethernet/LAN port, the model ES-571 has an integrated 2-port switch. The ES series products are available in three housing formats:

  • Standard, wall-mountable models (optional DIN-rail mounting kit). Also available as models with PoE* and extended temperature range.
  • Multi-port box models (4- and 8-port; optional DIN-rail mounting kit).
  • DIN-rail mountable, industrial slim case models with extended temperature range and 2 redundant power supply connections. Also available as versions with galvanic isolation** and with an integrated dual-port Ethernet switch.

Model Overview

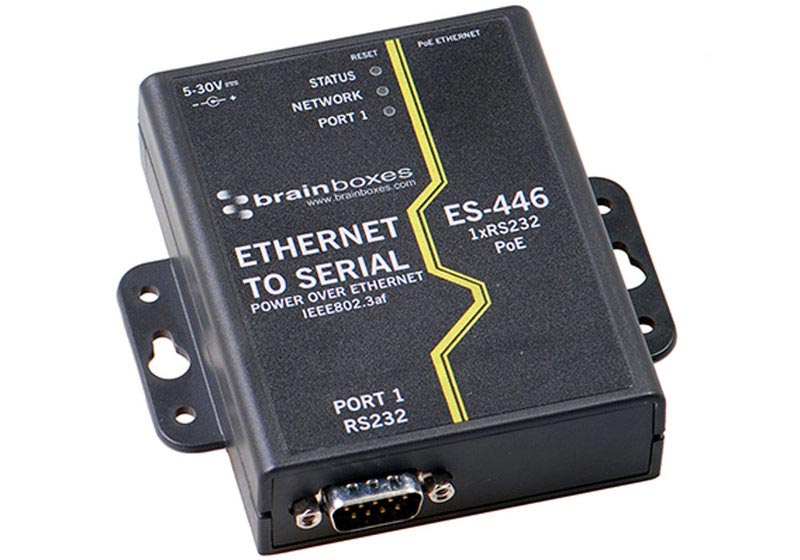

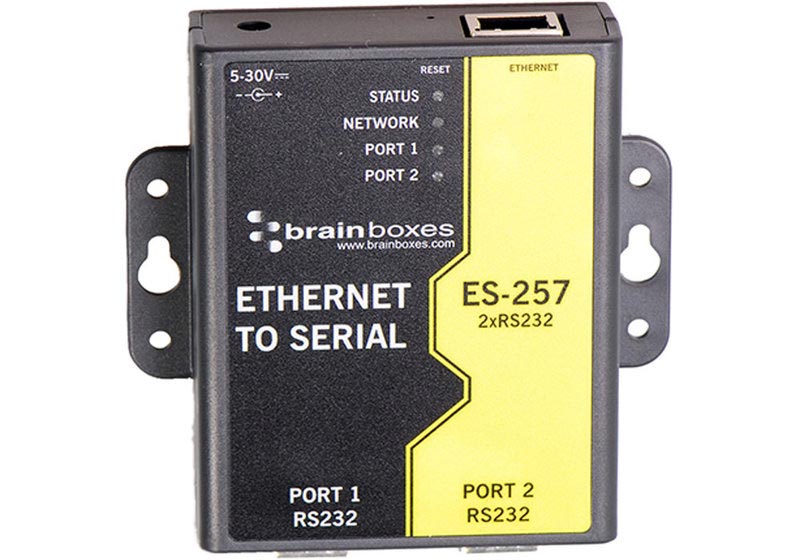

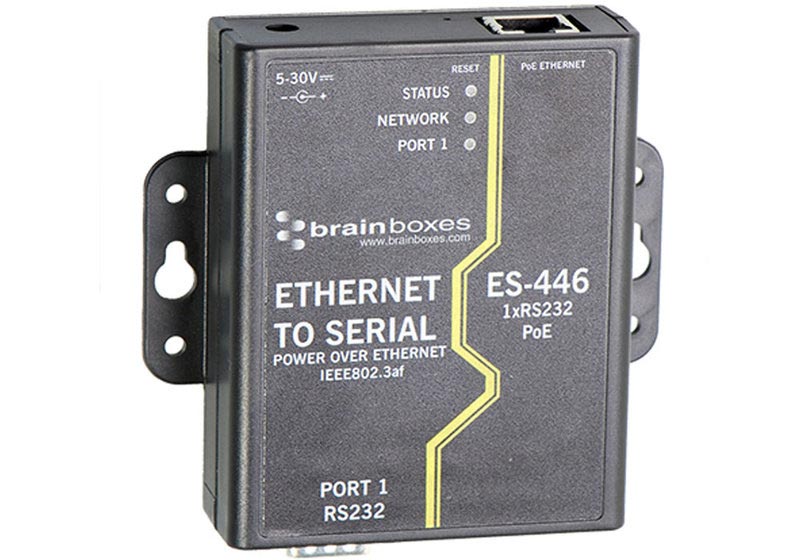

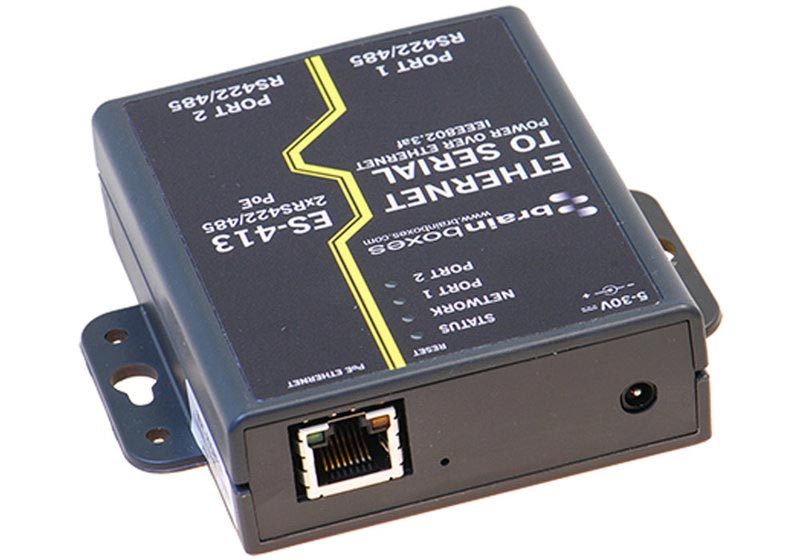

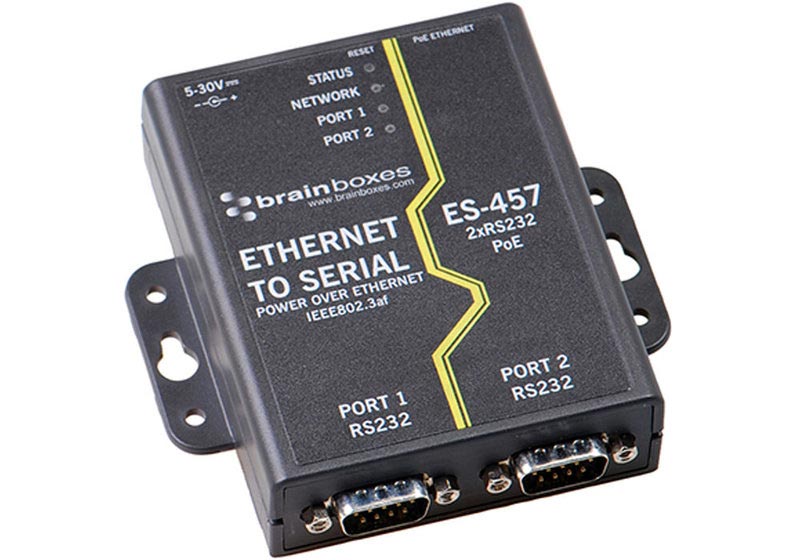

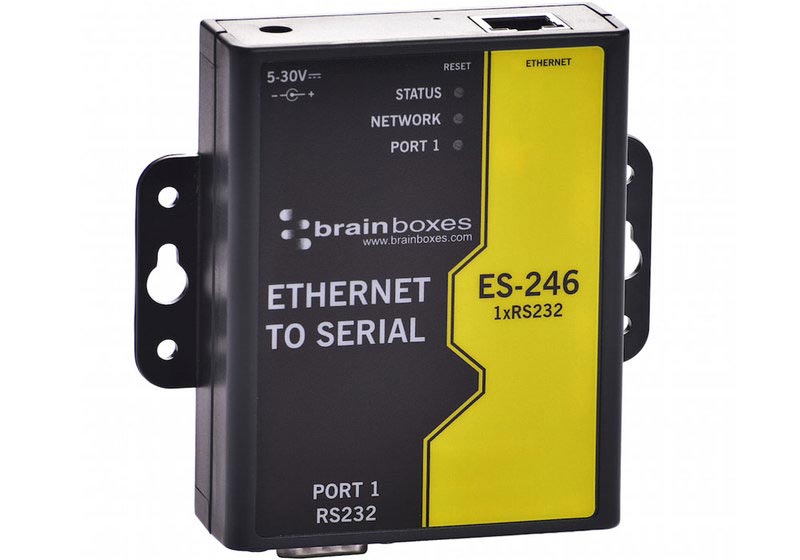

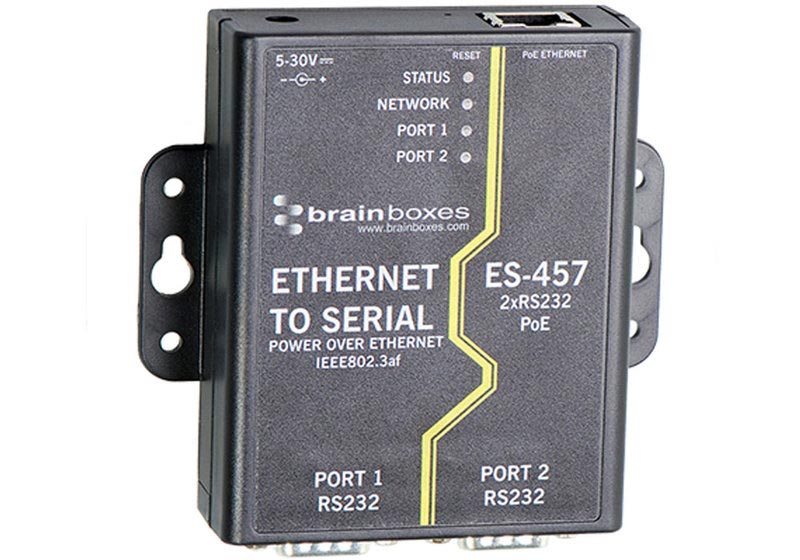

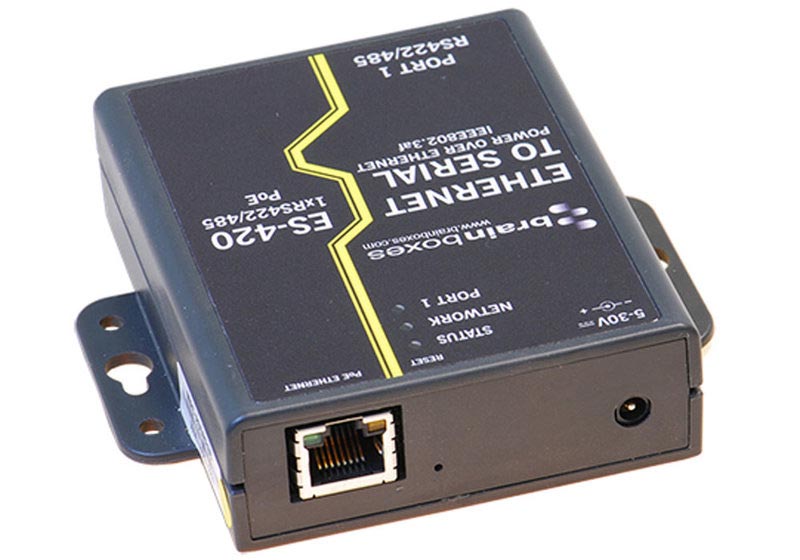

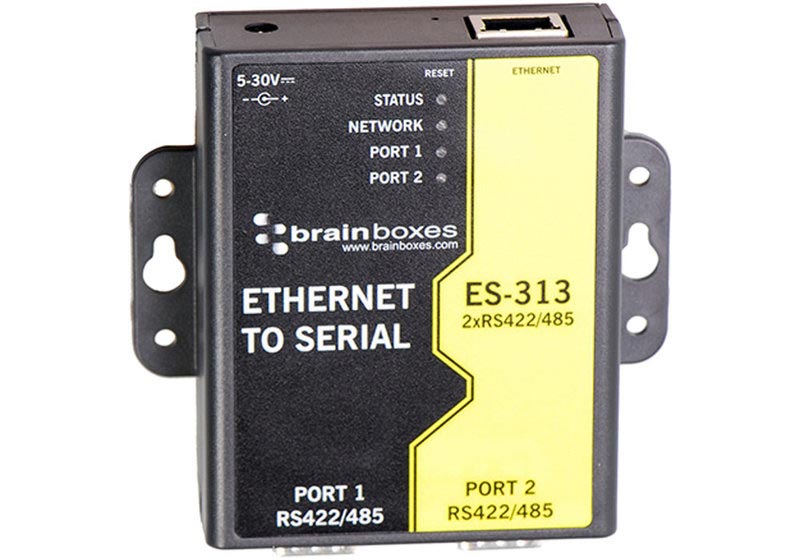

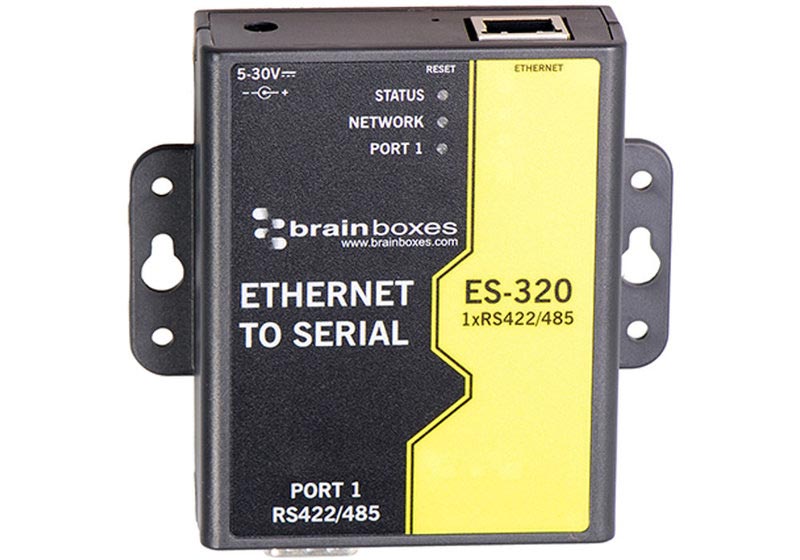

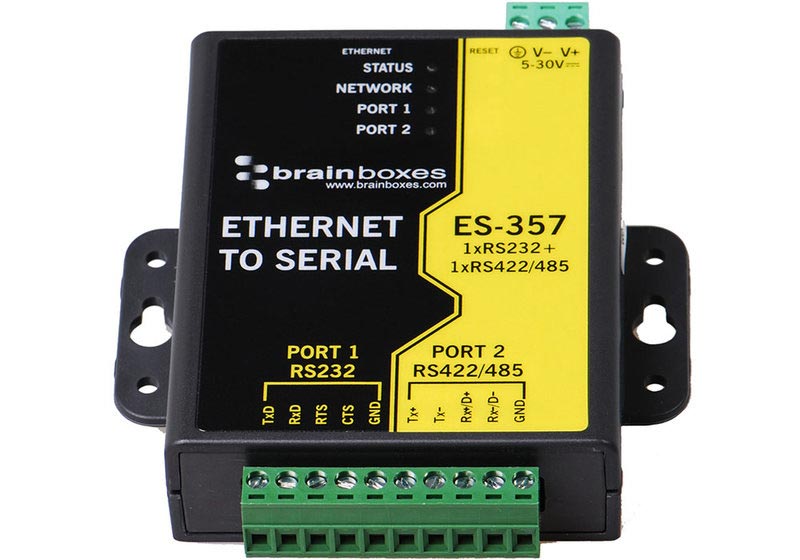

Models ES-020, ES-246, ES-257, ES-313, ES-320, ES-357, ES-446, ES-420, ES-457, ES-413 in Wall-mountable IP30 housing

ModelGalvanic
isolation
EthernetSerialPowerOperating temperature
PortsTypePortsTypeConnector(s)

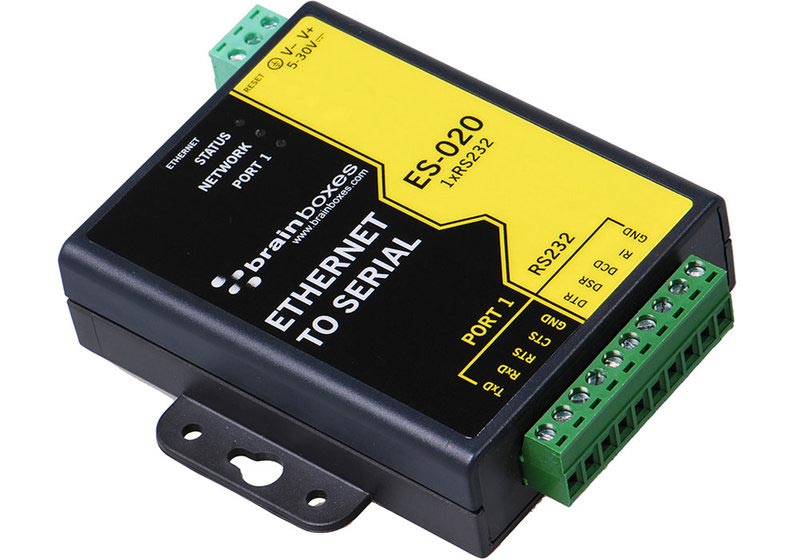

ES-020-110/100BaseTX, RJ451RS23210 screw terminals5...30 VDC0...+55°C

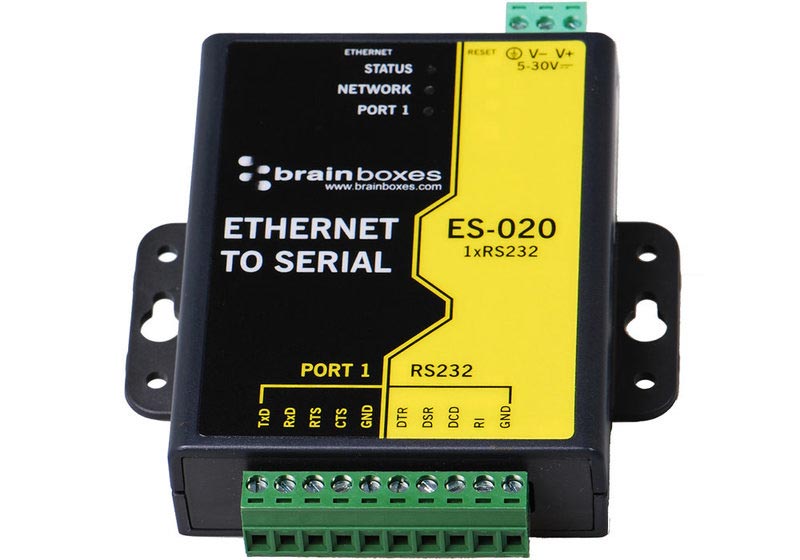

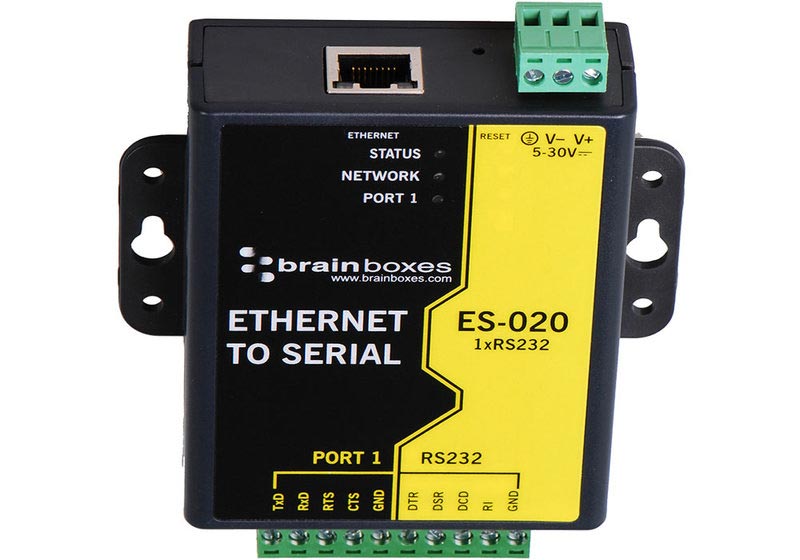

ES-246-110/100BaseTX, RJ451RS2329-pin D-sub male5...30 VDC0...+55°C
ES-257-110/100BaseTX, RJ452RS2329-pin D-sub male5...30 VDC0...+55°C
ES-313-110/100BaseTX, RJ452RS422/4859-pin D-sub male5...30 VDC0...+55°C
ES-320-110/100BaseTX, RJ451RS422/4859-pin D-sub male5...30 VDC0...+55°C

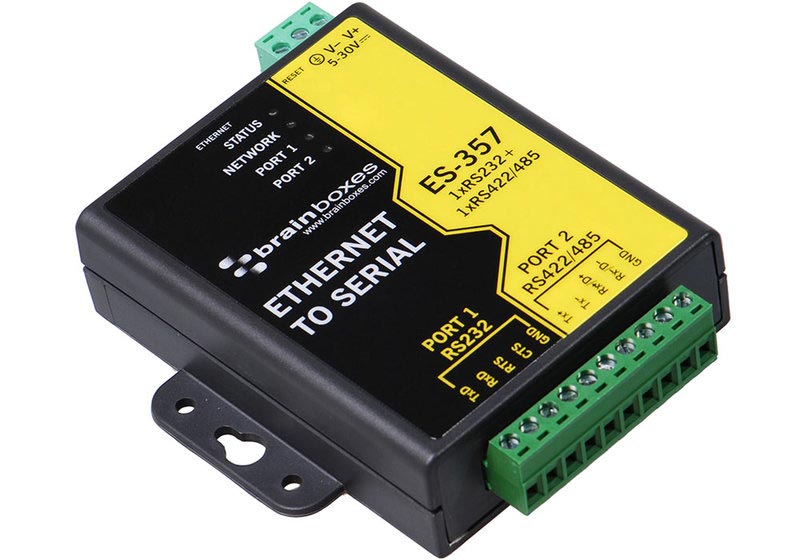

ES-357-110/100BaseTX, RJ4521x RS232, 1x RS422/4859-pin D-sub male5...30 VDC0...+55°C
ES-446-110/100BaseTX, RJ451RS2329-pin D-sub malePoE* or 5...30 VDC0...+60°C

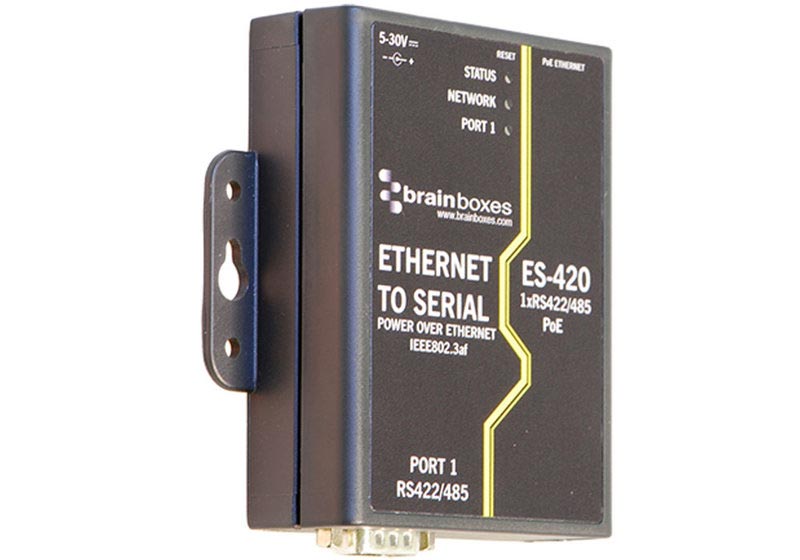

ES-420-110/100BaseTX, RJ451RS422/4859-pin D-sub malePoE* or 5...30 VDC0...+60°C
ES-457-110/100BaseTX, RJ452RS2329-pin D-sub malePoE* or 5...30 VDC0...+60°C

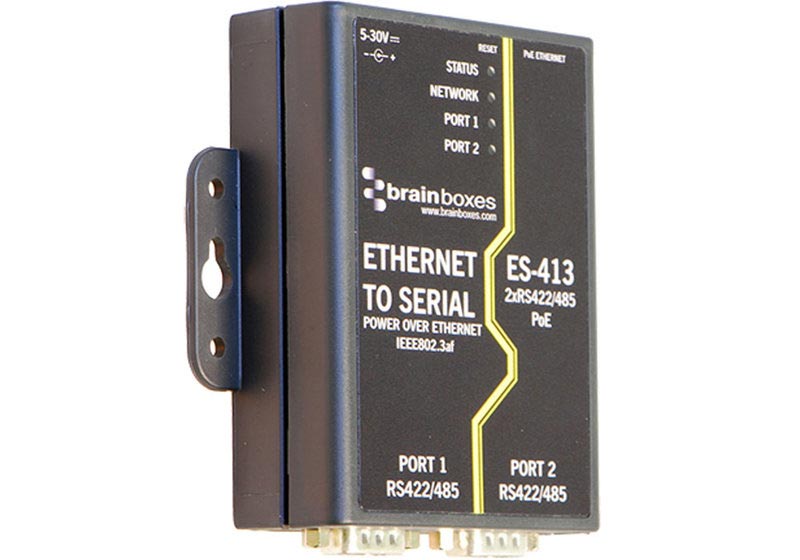

ES-413-110/100BaseTX, RJ452RS422/4859-pin D-sub malePoE* or 5...30 VDC0...+60°C

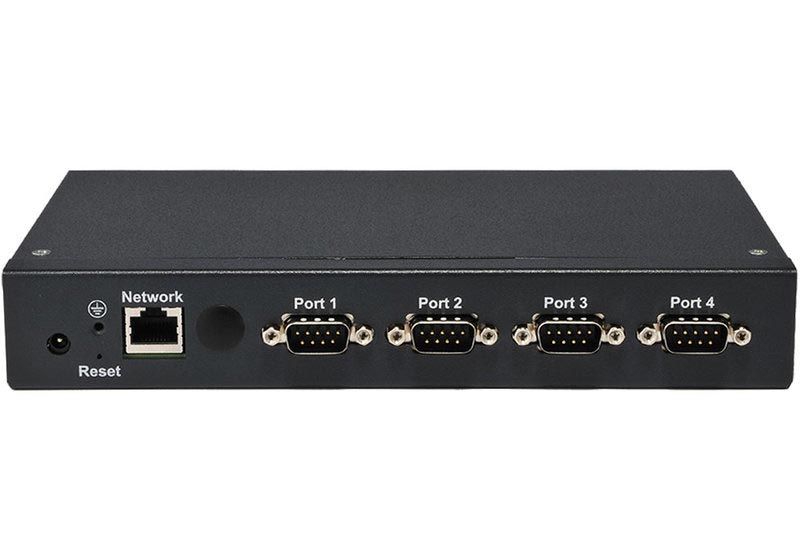

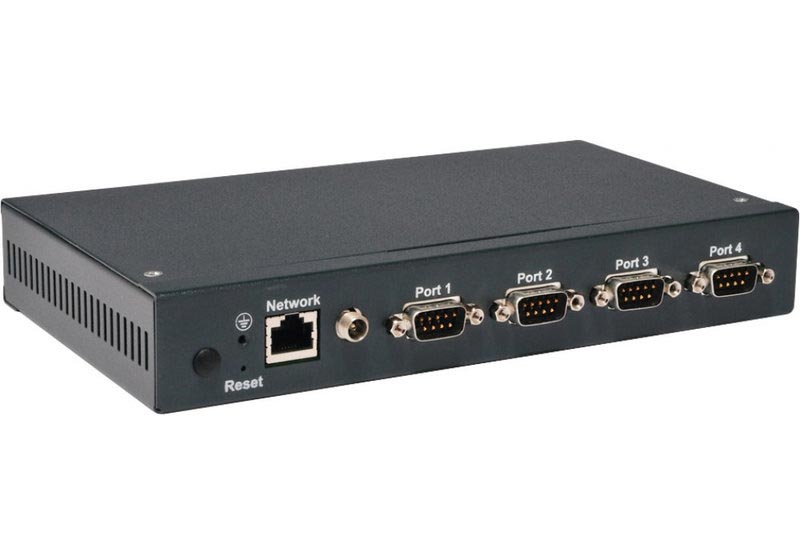

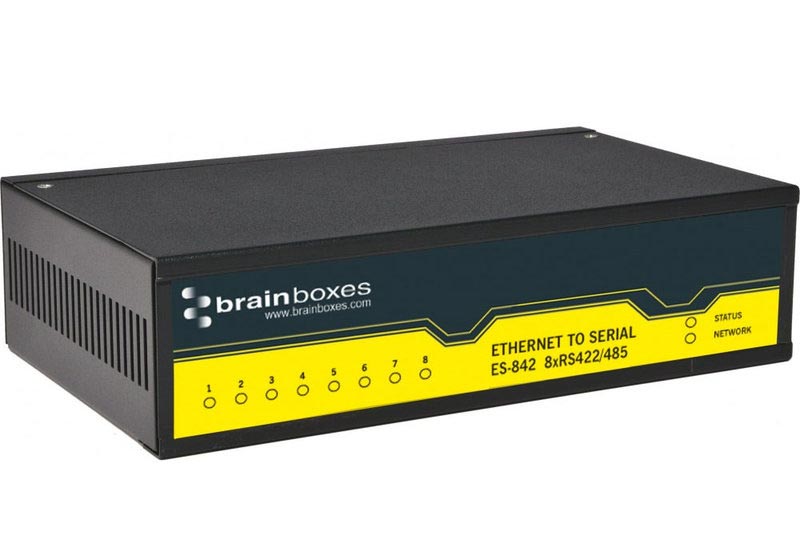

Models ES-701, ES-346, ES-279, ES-842 in IP30 Multi-port Box Housing

ModelGalvanic
isolation
EthernetSerialPowerOperating temperature
PortsTypePortsTypeConnector(s)

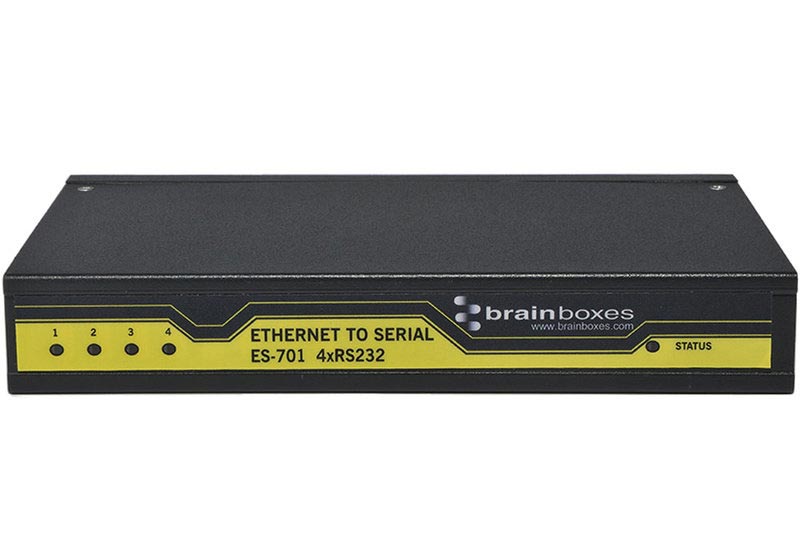

ES-701-110/100BaseTX, RJ454RS232, 1 MBd9-pin D-sub male5...30 VDC0...+55°C

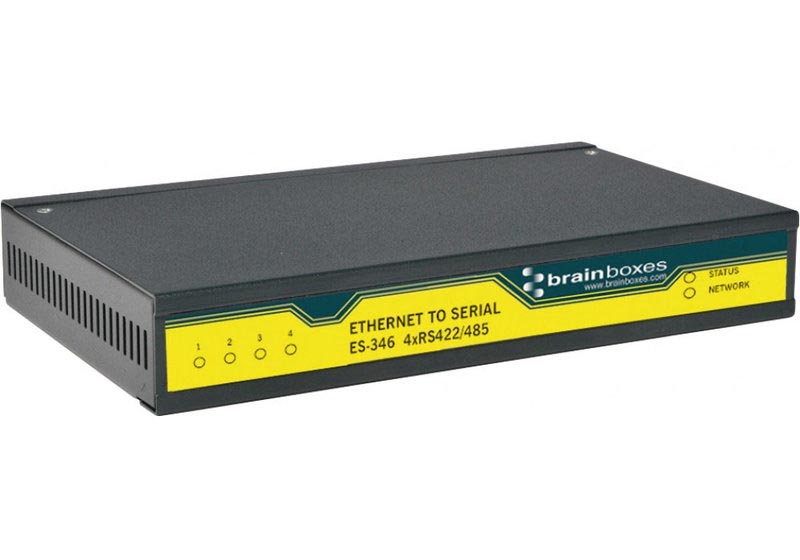

ES-346-110/100BaseTX, RJ454RS422/4859-pin D-sub male5...30 VDC0...+55°C

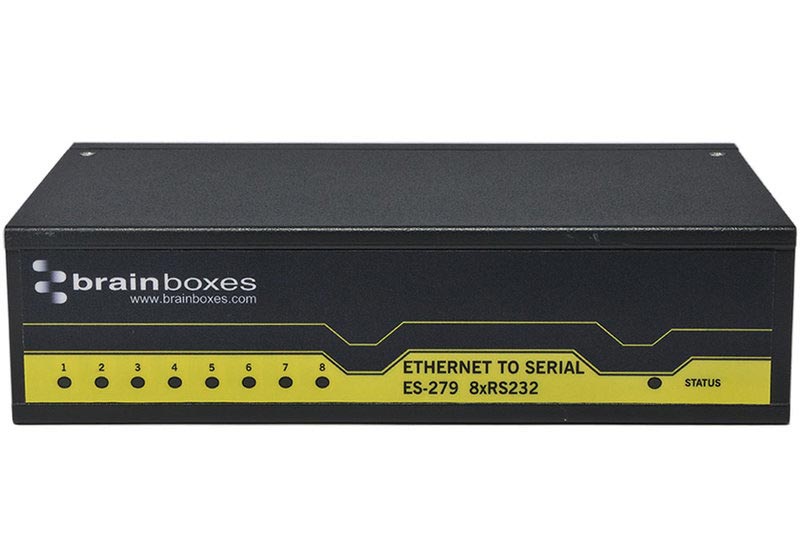

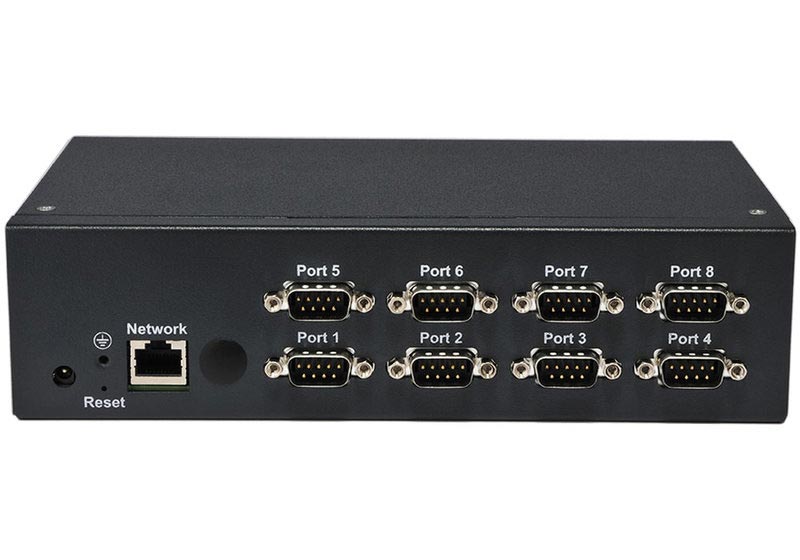

ES-279-110/100BaseTX, RJ458RS2329-pin D-sub male5...30 VDC0...+55°C

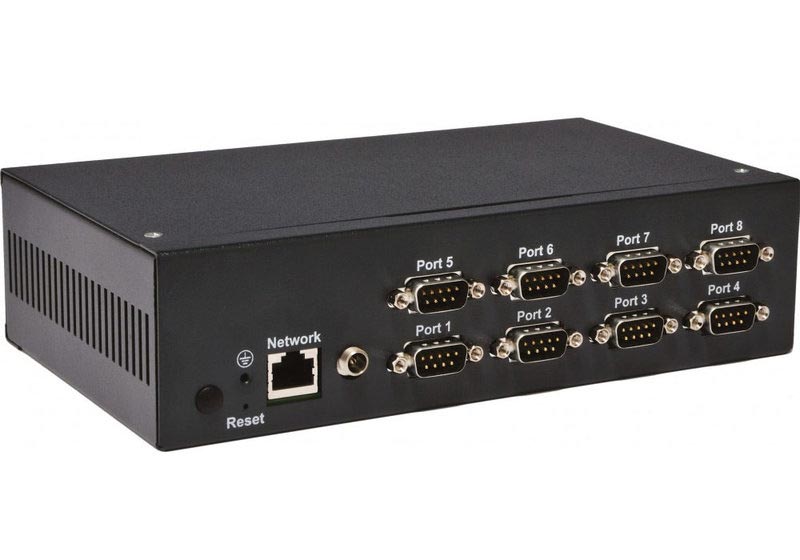

ES-842-110/100BaseTX, RJ458RS422/4859-pin D-sub male5...30 VDC0...+55°C

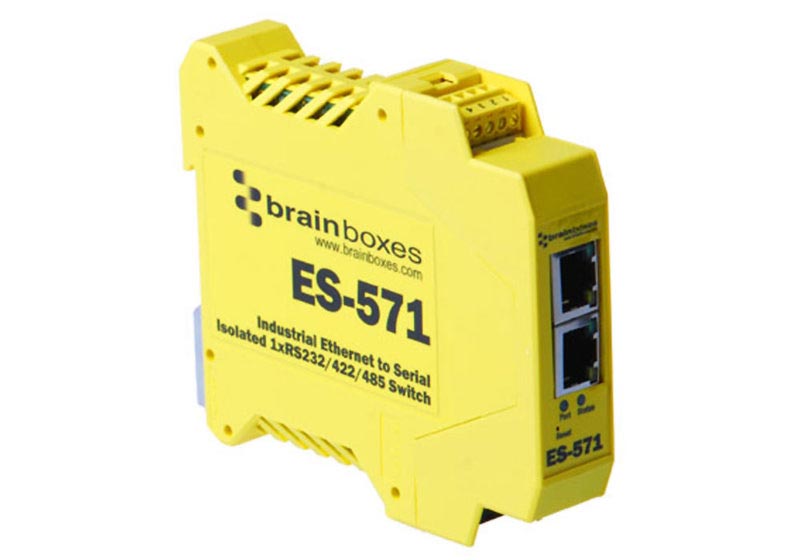

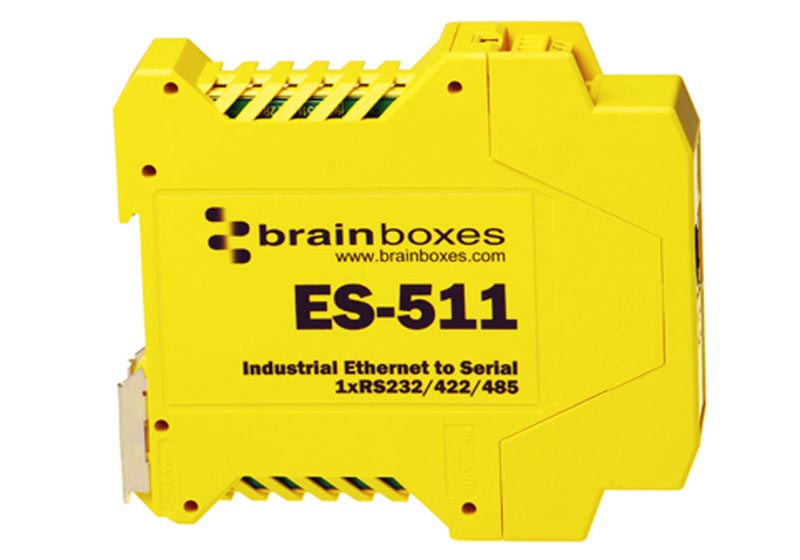

Models ES-511, ES-522, ES-551, ES-571 in Industrial DIN-rail Mountable Slim Case, IP30

ModelGalvanic
isolation
EthernetSerialPowerOperating temperature
PortsTypePortsTypeConnector(s)

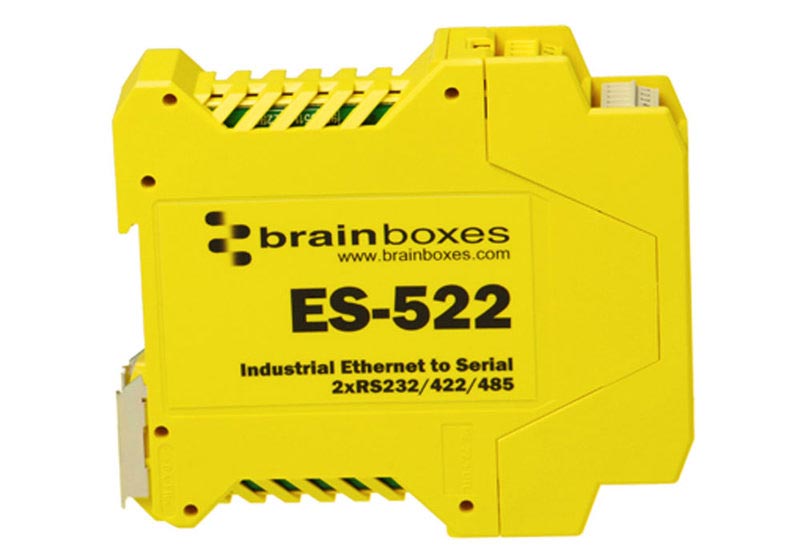

ES-511-110/100BaseTX, RJ451RS232, RS422, RS485 (software-selectable)Spring terminalsRedundant dual power input 5...30 VDC-30...+80°C
ES-522-110/100BaseTX, RJ452RS232, RS422, RS485 (software-selectable)Spring terminalsRedundant dual power input 5...30 VDC-30...+80°C

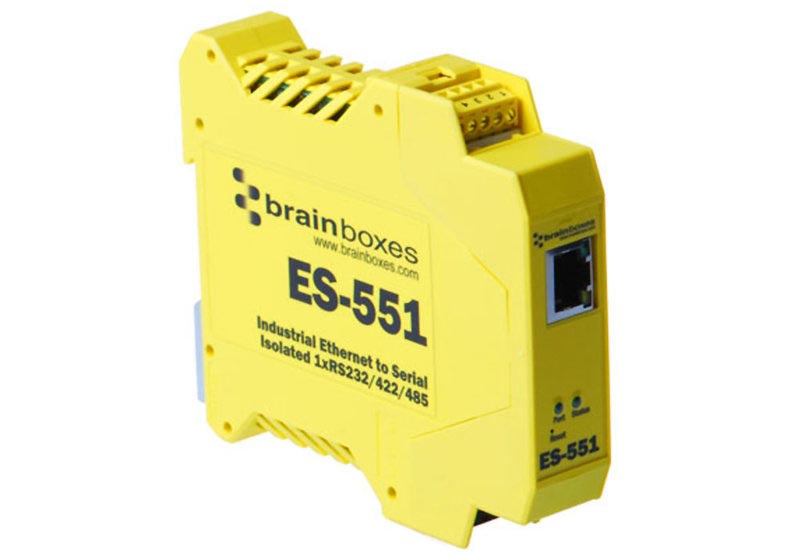

ES-551Yes**110/100BaseTX, RJ451RS232, RS422, RS485 (software-selectable)Spring terminalsRedundant dual power input 5...30 VDC-40...+80°C
ES-571Yes**2 (Switch)10/100BaseTX, RJ451RS232, RS422, RS485 (software-selectable)Spring terminalsRedundant dual power input 5...30 VDC-40...+80°C

* Power over Ethernet IEEE802.3af.
** Power to serial 2500 VRMS, power to Ethernet 1500 VRMS, serial to Ethernet 2500 VRMS.

Included: Module, installation CD including manual, Microsoft signed drivers & utilities.

Supported operating systems: Microsoft Windows 10,
Microsoft Windows 8 (32 bit and 64 bit editions)
Microsoft Windows 7 (32 bit and 64 bit editions)
Windows Server 2008 (32 bit and 64 bit editions)
Windows Vista (32 bit and 64 bit editions)
Windows XP (32 bit and 64 bit editions)
Microsoft Windows 2000
Ethernet-to-serial devices support network protocols ICMP, IP, TCP, DHCP, BOOTP, Telnet, HTTP, RFC2217. You can access the device via TCP/IP sockets from any networked device.
Boost.LAN Manager lets you find, install and upgrade devices.
