Ceyear 1435 Series RF Signal Generators up to 40GHz, Vector Models up to 6GHz

Benefits of the Ceyear 1435 Series RF Signal Sources

• Option for protocol measurements like Bluetooth, LTE, WLAN etc.
• Rise and fall time of <10ns for narrow pulse modulation.
• Excellent spectral purity and option for low phase noise.

Ceyear 1435 Series RF Signal Generators up to 40GHz, Vector Models up to 6GHz

Based on innovative technologies, the 1435(-V) series signal generators achieves balance in terms of performance, economy and volumetric weight. The devices have an excellent spectral purity, with a single side band (SSB) phase noise of -136 dBc/Hz (when the carrier is 1 GHz and the frequency offset is 10 kHz) or -116 dBc/Hz (1435 series, when the carrier is 10 GHz and the frequency offset is 10 kHz) or -120 dBc/Hz (1435-V series, when the carrier is 6 GHz and the frequency offset is 10 kHz). The provide a high power output and a large dynamic range, with the maximum output power up to 20 dBm at 20 GHz (1435 series)/22 dBm at 3 GHz (1435-V series) and an output power dynamic range greater than 150 dB. All Ceyear 1435 series devices are equipped with a 7"/17.7 cm high-sensitivity LED touch screen, and support user-friendly operation by touch screen, panel buttons, rotary knobs, external mouse and keyboard. The compact, portable 3 U chassis structure makes the devices easy to carry.

Ceyear-1345A, Ceyear-1435B, Ceyear-1435C, Ceyear-1435D, Ceyear-1435F up to 40 GHz

The Ceyear 1435 series responds fast and switches to another frequency in only 1 ms, which shortens the test time and improves test efficiency, meeting the needs of massive data testing. In addition, it also has excellent analog modulation and pulse modulation functions. By adopting advanced frequency synthesis and RF channel signal processing technologies, it can achieve high performance while reducing the cost. The 1435 series signal generators can meet both the test requirements for high performance in the R&D phase and the test requirements for high efficiency in the production phase.

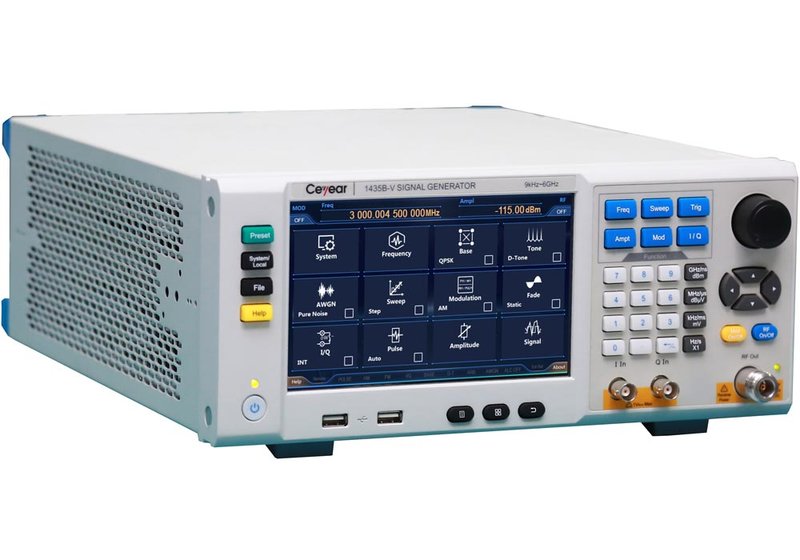

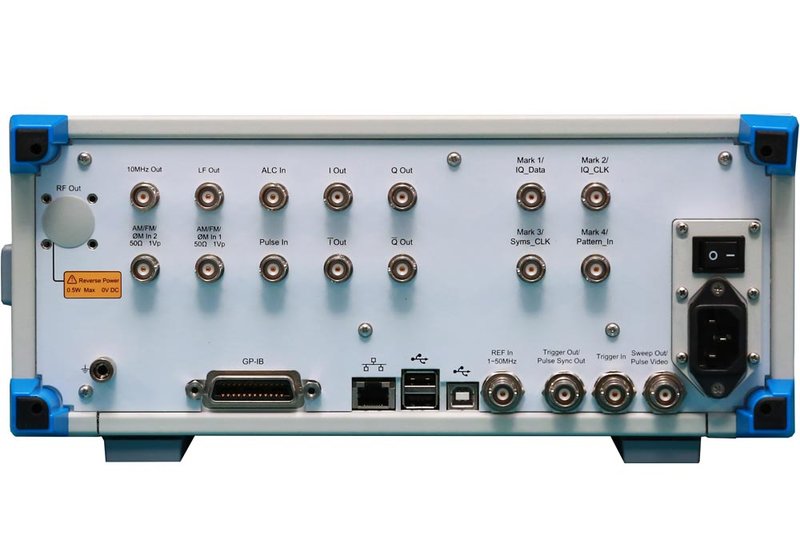

Ceyear-1435A-V, Ceyear-1435B-V Vector Models up to 6 GHz

The Ceyear 1435-V series supports arbitrary modulation of wave data downloaded in 5 formats, and enables users to edit, download, and configure the waveforms as required to complete various signal simulations and meet the testing requirements of various complex signals. Its baseband signal generator is easy to set up and has excellent performance. It supports real-time occurrence of general digital modulation signals in more than 20 formats such as PSK, QAM, FSK and MSK. It can achieve exceptional performance even in a compact space, which meets both the test requirements for high performance in the equipment development phase and the test requirements for high efficiency in the production phase.

• Ceyear 1435 series:
  • Wide frequency coverage.
  • Extremely short frequency switching time.
  • High performance pulse modulation.
  • Built-in multi-function function generator.
• Ceyear 1435-V series:
  • High compatibility, downloading of arbitrary wave data in various formats.
  • Complete universal digital modulation modes.
• High output power.
• Excellent phase noise.
• High-sensitivity LED touch screen.
• Small size and light weight.

Model Overview
