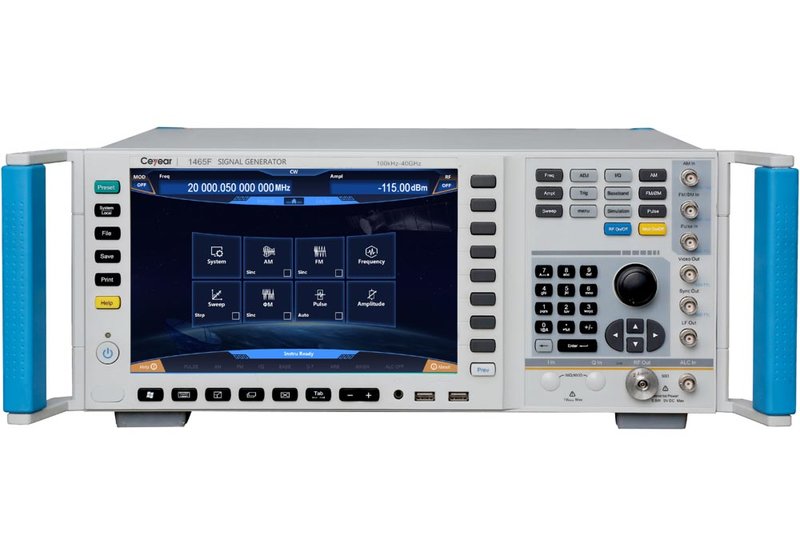

Ceyear 1465 series RF signal generators up to 67 GHz
additional images:
Price
starting 9.335,00*
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description
PDF datasheet, specs:

Benefits

  • Wide frequency range up to 100 kHz...67 GHz.
  • High purity spectrum and high output power.
  • Versatile modulation options; models -V: Vector modulation such as PSK, QAM, FSK, ASK.

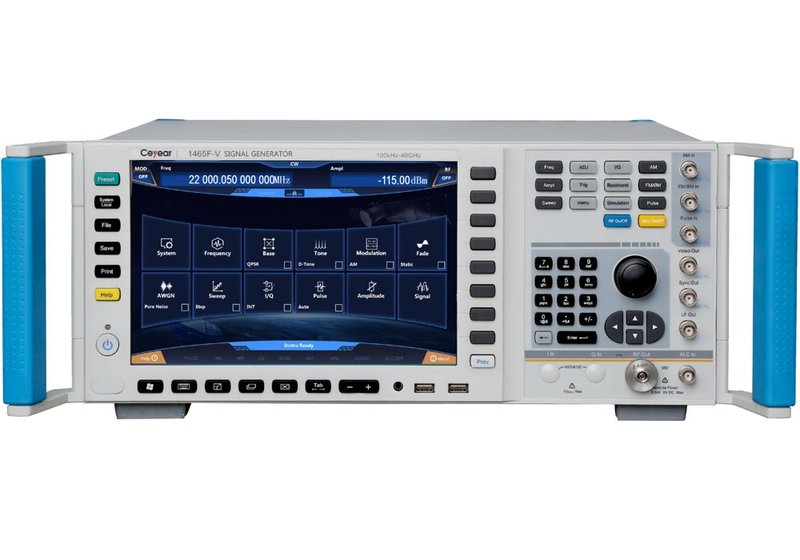

Ceyear 1465 Series RF Signal Generators up to 67 GHz, Models -V with Vector Modulation.

The Ceyear 1465 series signal generators have a frequency range of up to 100 kHz...67 GHz. They offer high purity spectrum and high output power. The single side band phase noise at 10 GHz carrier and 10 kHz frequency offset is -126 dBc/Hz. The maximum output power reaches up to 1 W at 20 GHz carrier, and the dynamic range of output power gets 150 dB. In addition, Ceyear 1465 signal generators feature high-precision analog sweep and high-performance analog and pulse modulation, with maximum bandwidth of internally modulated signal generator up to 10 MHz, various signal waveforms, the minimum pulse width of 20 ns and flexible pulse trains.

Ceyear 1465-V series signal generators have excellent vector modulation performance within the frequency range of 100 kHz...67 GHz. The offer 200 MHz internal modulation bandwidth and 2 GHz external modulation real-time bandwidth. The baseband signal generator can be set easily with flexible performance and many modulation formats. More than 20 kinds of common modulation formats are supported, such as PSK, QAM, FSK, ASK.

  • 1465 series: Analog signal source, 1465-V series: Vector signal source.
  • Frequency range 100 kHz to 3 GHz, 6 GHz, 10 GHz, 20 GHz, 40 GHz, 50 GHz, or 67 GHz.
  • High purity spectrum.
  • Broadband and high-power output.
  • High stability of frequency and power output.
  • Complete frequency band serialization.
  • High-precision analog sweep.
  • Super-high power dynamic range.
  • Excellent analog modulation.
  • High-performance pulse modulation.
  • Multiple control and function extension interfaces.
  • Models -V:
    Broadband vector signal generation.
    Large vector modulation bandwidth. Metrology grade vector modulation accuracy.
    Complete universal digital modulation format.
    High compatible arbitrary wave data format download.

Applications

  • Generate high-quality continuous-wave or modulated signals.
  • Local oscillation and clock source.
  • High-performance analog simulation signal source.
  • Radar performance evaluation.
  • High-performance receiver test.
  • Components parameter test.
  • In aviation, aerospace, radar, communication and navigation equipment etc.

Model Overview

1465 series: Analog signal source, 1465-V series: Vector signal source.

Model 1465A(-V) 1465B(-V) 1465C(-V) 1465D(-V) 1465F(-V) 1465H(-V) 1465L(-V)
Frequency Range 100 kHz... 3 GHz 6 GHz 10 GHz 20 GHz 40 GHz 50 GHz 67 GHz
Frequency resolution 0.001 Hz; frequency switching time typ. <20 ms
SSB phase noise (10 GHz carrier) <-120 dBc/Hz at 10 kHz
Sweep mode Step sweep, list sweep, analog sweep, power sweep, optional high-precision analog sweep
Min. power -20 dBm, optional -110 dBm (-135 dBm configurable) -20 dBm, optional -90 dBm (-110 dBm configurable)
Max. power 15 dBm 12 dBm/10 dBm (-V) 5 dBm
VSWR (internal fixed amplitude), typ. 100 kHz = f = 20 GHz: <1.6; 20 GHz < f = 40 GHz: <1.8; 40 GHz < f = 67 GHz: <2.0
Modulation type Optional: Frequency modulation, phase modulation, amplitude modulation, pulse modulation, narrow pulse modulation, internally modulated signal generator (3 independent signals respectively for frequency/phase modulation, amplitude modulation and low frequency output signals; waveform: Sine, square, triangle, sawtooth, noise, double sine, sweep sine; fequency range: DC...10 MHz for sinusoidal wave, double sine, sweep sine wave; 0.1 Hz...100 kHz for square wave, triangular wave and sawtooth wave)
Models -V only: Vector modulation; accuracy 50 MHz...40 GHz (or max. frequency), EMV(RMS%) <1.4% Models -V only: Vector modulation; accuracy 50 MHz...40 GHz, EMV(RMS%) <1.4%; accuracy 40 GHz...67 GHz (or max. frequency), EMV(RMS%) <2.5%
Models -V only:
Vector modulation bandwidth internal (carrier 900 MHz, 1.8 GHz, 2.4 GHz, 6 GHz, 18 GHz, 35 GHz, 50 GHz): 120 MHz (standard package, multi-tone, tone quantity: 51, frequency space: 2.4 MHz, ±3 dB bandwidth); 200 MHz (H3 large modulation bandwidth option, multi-tone, tone quantity: 51, frequency space: 4 MHz, ± 3dB bandwidth);
vector modulation bandwidth external (carrier 900 MHz, 1.8 GHz, 2.4 GHz, 6 GHz, 18 GHz, 35 GHz, 50 GHz): 200 MHz (ALC OFF, input 100 mVRMS sine to channel I, ± 4 dB bandwidth);
external wide modulation bandwidth (option H33, 6 GHz, 18 GHz, 35 GHz, 50 GHz): 2 GHz (ALC OFF, input 100 mVRMS sine to channel I, ±4 dB bandwidth);
internal baseband signal generator - channel quantities: 2 (I and Q); max. symbol rate: 60 Msps (standard package, max. 4 bit/symbol), 125 Msps (option H31, max. 4 bit/symbol); baseband waveform internal memory: 1 GS (standard package), 2 GS (option H32); modulation format: PSK (BPSK, QPSK, OQPSK, π/4 DQPSK, D8PSK, 16PSK), QAM (4, 16, 32, 64, 128, 256, 512, 1024), FSK (2, 4, 8, 16), ASK, MSK, arbitrary wave modulation
RF output port N female, impedance 50 Ω 3.5 mm male, N female (optional), impedance 50 Ω 2.4 mm male, impedance 50 Ω 1.85 mm male, impedance 50 Ω
Display 10.1" (approx. 25.7 cm), 1280 x 800 resolution; touch screen
Interfaces USB, Ethernet/LAN, GPIB
Dimensions (mm) 426 x 177 x 460 (excluding handle, foot mat, footing); 510 x 190 x 534 (incl. optional handle, foot mat and footing), models -V: 517 x 192 x 550; <28 kg (depending on model and configuration)

Included: RF signal generator, power cable assembly, user manual, programming manual, certificate of conformity.
