Keysight E36233A 2-Channel Autoranging DC Power Supply up to 400W
Benefits of the Keysight E36233A Autoranging DC Power Supplies
- 2-channel autoranging power supply up to 400 W.
- High accuracy, low ripple and noise.
- Auto-parallel/auto-series feature.

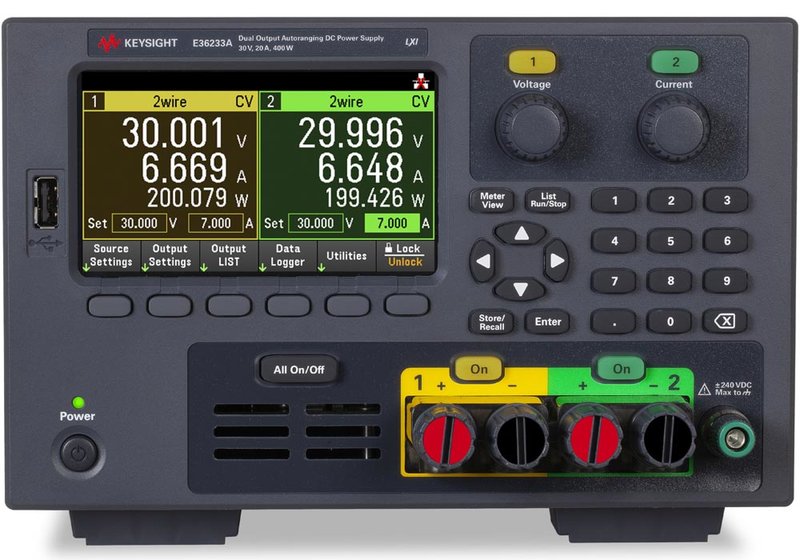

Keysight E36233A 2-Channel Autoranging DC Power Supply up to 400 W
The Keysight E36233A dual output power supply is intended for your bench applications that require power up to 400 W. Autoranging technology provides the highest current available at all output voltage. Power devices with current up to 40 A using auto-parallel to internally connect the two outputs into a single output with twice the power. The dual supply provides two independent 200 W channels.
- Useable power 400 W.
- Autoranging more current at all voltage.
- Auto-parallel for higher current up to 40 A
- Auto-series for higher voltage up to 120 V
- Variable voltage slew rate to control inrush current.
- Low noise, DUT protection and precision measurements.
- 350 µVRMS noise.
- Over-voltage, over-current, over-temperature protection.
- Local 2–wire or remote 4-wire measurements.
- Low range current measurement.
- Fully programmable power supply.
- Interfaces: USB, Ethernet/LAN, LXI Class-C, digital-I/O and optional GPIB.
- Suported by BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.
- Advanced features:
Data logger.
Output LIST.
Sequence outputs.

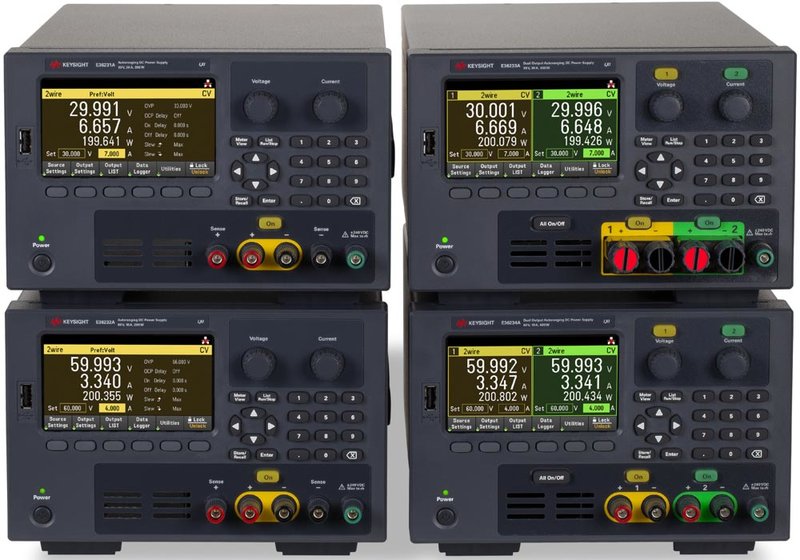

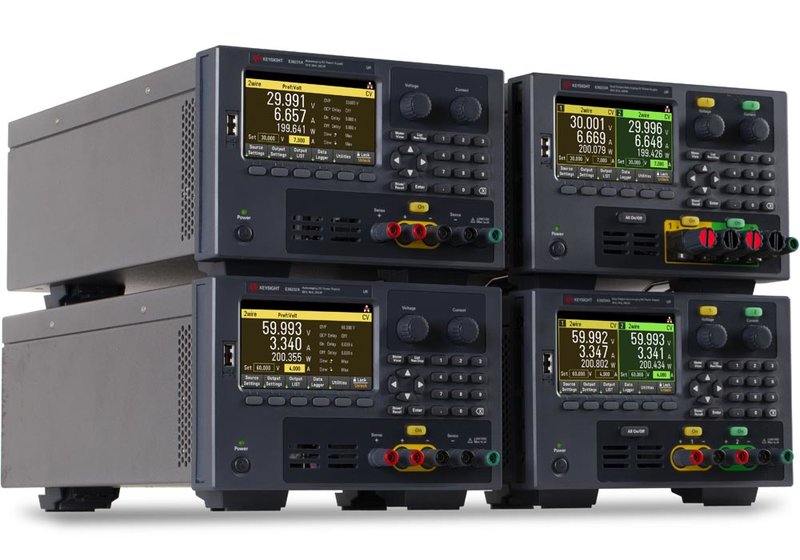

Model Overview
| Model | ▸E36231A | ▸E36232A | ▸E36233A | ▸E36234A | ||
| Power output | 200 W | 200 W | 400 W | 400 W | ||
| Channel | 1 | 1 | 1 | 2 | 1 | 2 |
| DC output rating (0...40ºC) | 0...30 V | 0...60 V | 0...30 V | 0...30 V | 0...60 V | 0...60 V |
| 0...20 A | 0...10 A | 0...20 A | 0...20 A | 0...10 A | 0...10 A | |
| Output ripple and noise (20 Hz...20 MHz), normal mode voltage, VPP | <4.5 mVPP | <3.5 mVPP | <4.5 mVPP | <3.5 mVPP | ||
| Output ripple and noise (20 Hz...10 MHz), normal mode voltage, VRMS | <350 µVRMS | |||||
| Accuracy 12 months (23ºC ±5ºC); programming accuracy ±(% of output + offset) | ||||||
| Voltage | 0.03% +4 mV | 0.03% +8 mV | 0.03% +4 mV | 0.03% +8 mV | ||
| Current | 0.1% +6 mA | 0.1% +3 mA | 0.1% + 6 mA | 0.1% +3 mA | ||
| Low range current* | 0.25% +160 µA | 0.25% +80 µA | 0.25% +160 µA | 0.25% +80 µA | ||
| Typical Characteristic | ||||||
| Command processing time | <10 ms | |||||
| Up/down programming settling time to within 1% of total excursion | Up full load: 50 msec; up no load: 50 msec; down full load: 30 msec; down no load: 100 ms | |||||
| Features | ||||||
| Low range current | ✓ | ✓ | ✓ | ✓ | ||
| Data logging | ✓ | ✓ | ✓ | ✓ | ||
| Voltage slew rate | ✓ | ✓ | ✓ | ✓ | ||
| Output LIST | ✓ | ✓ | ✓ | ✓ | ||
| Digital-I/O port | ✓ | ✓ | ✓ | ✓ | ||
| Remote sensing | ✓ | ✓ | ✓ | ✓ | ||
| Outputs at front and rear | ✓ | ✓ | ✓ | ✓ | ||
| Auto series/parallel connections | - | - | ✓ | ✓ | ||
| Output sequencing | - | - | ✓ | ✓ | ||
| E3633A/E3634A code compatible | ✓ | ✓ | - | - | ||
| I/O interfaces | USB 2.0, Ethernet/LAN, LXI Class-C, optional GPIB | |||||
| Dimensions (mm, over all) | 145 x 216 x 389; approx. 5.8 kg | 145 x 216 x 389; approx. 5.8 kg | 145 x 216 x 405; approx. 7.0 kg | 145 x 216 x 389; approx. 6.9 kg | ||
* ≤100 mA for E36231A and E36233A, ≤50 mA for E36232A and E36234A.

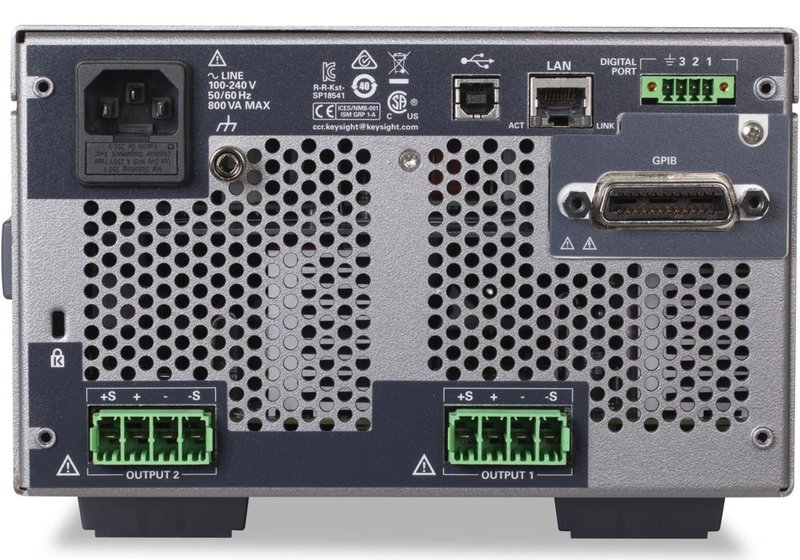

Included: Keysight E 36233A, AC power cord, digital-I/O connectors, rear output connectors.
Software: Keysight I/O Library. Suported by BenchVue. BenchVue makes it simple to connect, control instruemtns and automate test sequences.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
Agilent’s Electronic Measurement Group is now Keysight Technologies.
