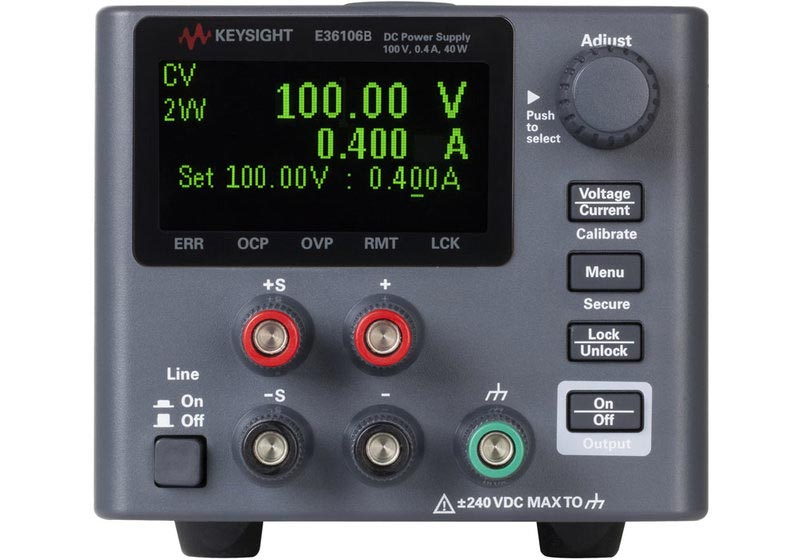

Keysight E36106B Programmable DC Power Supply 40 W/100 V/0.4 A

Online Price Advantage!
Keysight E36106A programmabel DC power supply
additional images:
progressive price
taking 1 pcs
€ 800,00
taking 3 pcs
€ 760,00
Price
List price € 829,00
800,00*
€ 952,00 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Delivery Time ~1-2 weeks
Description

Benefits

  • OLED, USB and Ethernet/LXI interface standard.
  • Quiet and space saving in a rack and on the benchtop.
  • Improved ripple noise performance.

Keysight Technologies E36106B Programmable 1-Channel 40 W/100 V/0.4 A DC Power Supplies - Accurate, Reliable Power.

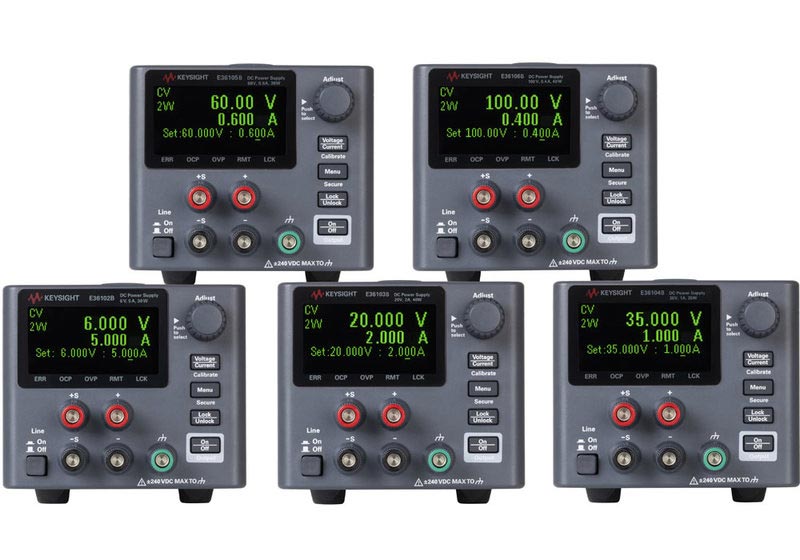

The Keysight E36100B Series DC power supplies let you power your device...

  • via manual front-panel operation,
  • remote soft front panel operation,
  • or with semi-automatic or fully automatic procedures.

Power your DUT with excellent voltage and current programming and readback accuracy: 1 channel, 40 W/100 V/0.4 A. Use the power supply's highly accurate low-current measurement feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe.

  • Modern I/O - USB and LAN (LXI Core).
  • Full BenchVue support.
  • Ease of use, intuitive menuing.
  • Easy to read: High contrast OLED display - clear from even sharp angles.
  • Ability to measure small currents.
  • A BenchVue software licence (BV0003B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.
Model E36106B
Output channels 1
Max. voltage 100 V
Max. current 0.4 A
Power 40 W
Resolution - program* 6.0 mV | 24 µA
Resolution - readback* 4 mV | 16 µA | 120 nA
Resolution - program (meter)* 6 mV | 1 mA
Resolution - readback (meter)* 6 mV | 1 mA | 1 µA
Output ripple and noise (20 Hz to 20 MHz) RMS/Peak-Peak2,5 mV/40 mV
Interfaces LAN (LXI Core), USB 2.0 FS (TMC488)
Size (HxWxD, mm) Overall dimension 2 U, ¼ rack 102 x 106 x 365; 3.7 kg. Net dimension (without feet, strap handle and binding posts) 89 x 106 x 339; 3.6 kg

* Voltage, current, small current.

Included: Programmable DC power supply, AC power chord. A BenchVue software licence (BV0003B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Agilent’s Electronic Measurement Group is now Keysight Technologies.
