PicoScope 4444 High-Resolution, True-Differential USB PC-Oscilloscope

Scaled Prices
taking 1 pc.
starting
€ 1.243,55
taking 3 pc.
starting
€ 1.181,37
starting 1.510,23
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the PicoScope 4444 Differential Input Oscilloscope

  • Connect and visualize signals that are off-limits to a grounded-input oscilloscope.
  • Measure differential signals with a single channel.
  • With the tried and tested PicoScope software.

PicoScope 4444 the Oscilloscope with 4 True-Differential Channels!

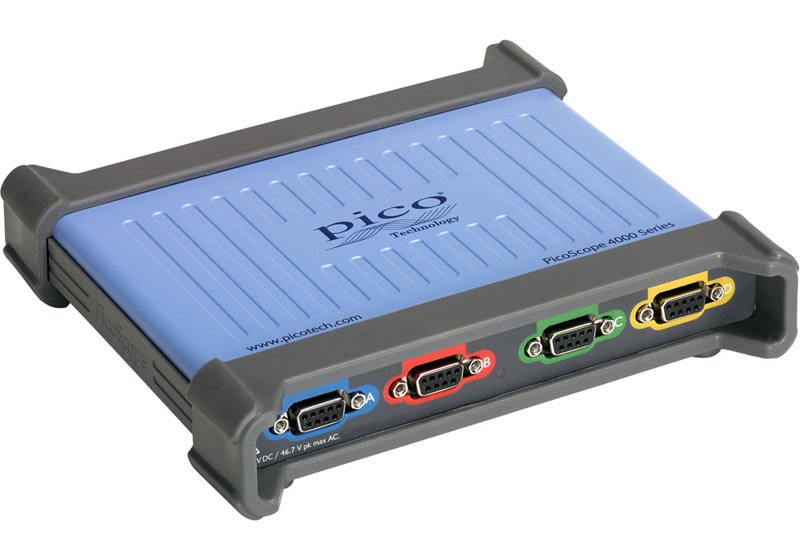

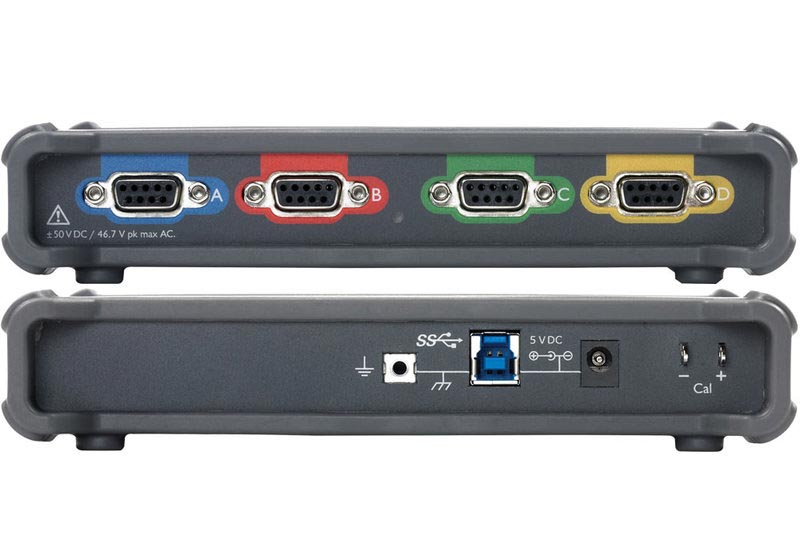

The PicoScope 4444 has 4 true-differential inputs with 12 to 14 bit resolution. With its wide differential and common-mode voltage ranges, the PicoScope 4444 and its accessories offer accurate and detailed measurement for a multitude of applications. 9-pin D-sub type connectors are used to create a true differential probe interface for a variety of accessories. The PicoScope software can automatically identify the probe and select the appropriate display settings. The TA271 and TA299 adaptors allow you to use the PicoScope 4444 with traditional BNC-connected accessories.

  • 4 input channels, true differential.
  • Flexible resolution, 12 or 14 bit.
  • 20 MHz bandwidth.
  • Up to 400 MS/s sampling rate.
  • 256 MS capture memory.
  • High common-mode rejection ratio.
  • Balanced high-impedance inputs for a low circuit load.
  • Intelligent probe interface.
  • Measure differential signals with a single channel.
  • Measure non-ground-referenced signals.
  • Reject common-mode voltages in electronic and biomedical applications.
  • Safely probe single and 3-phase voltages with 1000 V CAT III probes.
  • Measure power drawn by mobile and IoT devices.
  • Choice of accessories for sensitive low-level, general electronic and 1000 V CAT III applications.

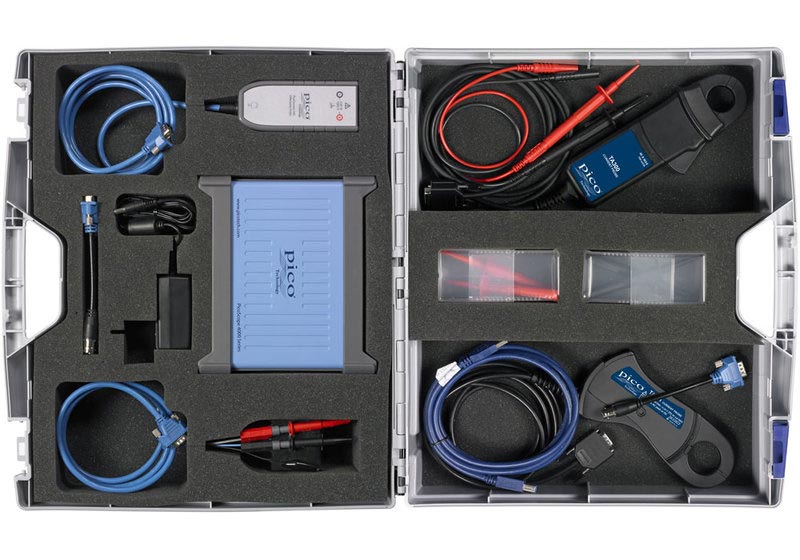

Model Overview - PicoScope 4444 Kits

Ordering CodeDescription
Kits

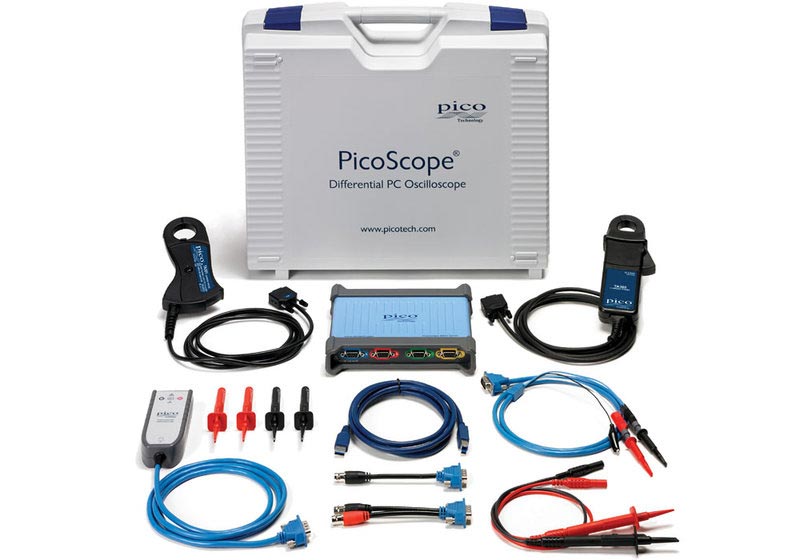

PQ073PicoScope 4444 Standard KitHigh-resolution differential oscilloscope, incl. 3x PicoConnect 441 1:1 passive differential voltage probes and 1x TA271 single-ended 9-pin D-sub to BNC adaptor.
PQ074PicoScope 4444 1000 V CAT III Mains Voltage KitHigh-resolution differential oscilloscope, incl. 3x PicoConnect 442 1000 V CAT III passive differential voltage probes and 1x TA271 single-ended 9-pin D-sub to BNC adaptor.
PQ167PicoScope 4444 1000 V CAT III Mains Voltage and Current KitHigh-resolution differential oscilloscope, incl. 3x PicoConnect 442 probes, 3x TA368 flex current probes and 1x TA271 D9-BNC adaptor
PQ088PicoScope 4444 OscilloscopeHigh-resolution differential oscilloscope. Not available separately: Must be purchased with at least one of the Pico D9 (9-pin D-sub) accessories listed below.
Accessories
PQ098PicoConnect 441 ProbePassive differential, 1:1, 20 MHz,voltage measurement probe. Supplied with detachable black and red sprung hook probe tips. Connector: Pico D9 (9-pin D-sub)
PQ087PicoConnect 442 Probe1000 V CAT III, passive differential, 25:1, 10 MHz,voltage measurement probe. Supplied with detachable shrouded black and red sprung hook probe tips. Connector: Pico D9 (9-pin D-sub)
TA300AC/DC current probe40 AAC/DC, 300 V CAT III, 100 kHz current measurement probe. Connector: Pico D9 (9-pin D-sub)
TA301AC/DC current probe200/2000 AAC/DC, 150 V CAT II, 20 kHz current measurement probe. Connector: Pico D9 (9-pin D-sub)
TA325Flex current probe 3-phaseFlexible 3-phase, switched-range 30/300/3000 AACRMS, 1000 V CAT III, 10 Hz to 20 kHz current probe. Requires 3x TA271 D9-BNC adaptor (sold separately). Connectors: 3x BNC
TA326Flex current probeFlexible single-phase, switched-range 30/300/3000 AACRMS, 1000 V CAT III, 10 Hz to 20 kHz current probe. Requires 1x TA271 D9-BNC adaptor (sold separately). Connector: BNC
TA271D9-BNC adaptor9-pin D-sub to BNC adaptor suitable for ground-referenced measurements using a single voltage or current probe with BNC
TA299D9-dual BNC adaptor9-pin D-sub to dual BNC adaptor suitable for differential measurements using two single-ended probes with BNC
PA149Carry casePortable carry case to hold the PicoScope 4444 and its accessories

Included: Only available as kits, see table, software and full user manual via download from Pico web-site.

Frequently Asked Questions:

Question: What are typical applications for the PicoScope 4444's differential inputs?

Answer: The differential inputs of the PicoScope 4444 can measure signals which oscilloscopes with ground-referenced single-ended inputs to ground cannot handle. A differential oscilloscope makes measurements between two high-impedance inputs, allowing measurements to be made on components and test points where neither side is grounded. Differential inputs also reject common mode noise. This noise which is picked up equally at both high impedance inputs, are effectively suppressed. Applications include, for example, non-ground referenced measurements or measuring single-phase and three-phase voltages and currents. The PicoScope 4444 can also be used for measuring power consumption of mobile and IoT devices, mains power quality testing, SMPS (switched-mode power supply) development, hybrid and electric vehicle design, motor drives and inverters, biomedical electronics, and measuring differential signals (CAN, balanced audio) with a single-channel.

Question: Why does the PicoScope have D-Sub instead of BNC connectors? Which probes do I used with the PicoScope 4444?

Answer: The PicoScope 4444's four input channels feature an intelligent probe interface that detects and identifies compatible probes, and supplies them with power if necessary. Each channel can have its own selection of voltage or current probe. The PicoScope 4444 is available in 2 kits, ready to use with 3 probes and a BNC adaptor. Additional probes also are available as an optional accessory. Non-attenuating probes are used for high-resolution, low-noise measurements of signals in a range from millivolts to ±50 V. Attenuating probes are used for the measurement of signals up to 1000 V CAT III. Current probes allow the measurement of currents up to 2000 A and also are rated for 1000 V CAT III measurements.

Question: What are the advantages of the PicoScope 4444's high 12- and 14-bit resolution?

Answer: The high resolution of the PicoScope 4444 offers 64x more detail. According to its technical specifications, the PicoScope 4444 can sample with 12-bit resolution at speeds up to 400 MS/s which is 16 times more vertical resolution than traditional 8-bit oscilloscopes (4096 vertical levels vs. 256). The PicoScope 4444's ADC (A/D converter) can also work as a 14-bit flash converter which reduces the maximum sampling rate to 50 MS/s, but offers 64 times more vertical resolution than traditional 8-bit oscilloscopes. Together with the PicoScope software an a large high-definition screen this will give you the ability to capture and view extremely fine details for example in scientific and battery test applications.
